About

Description

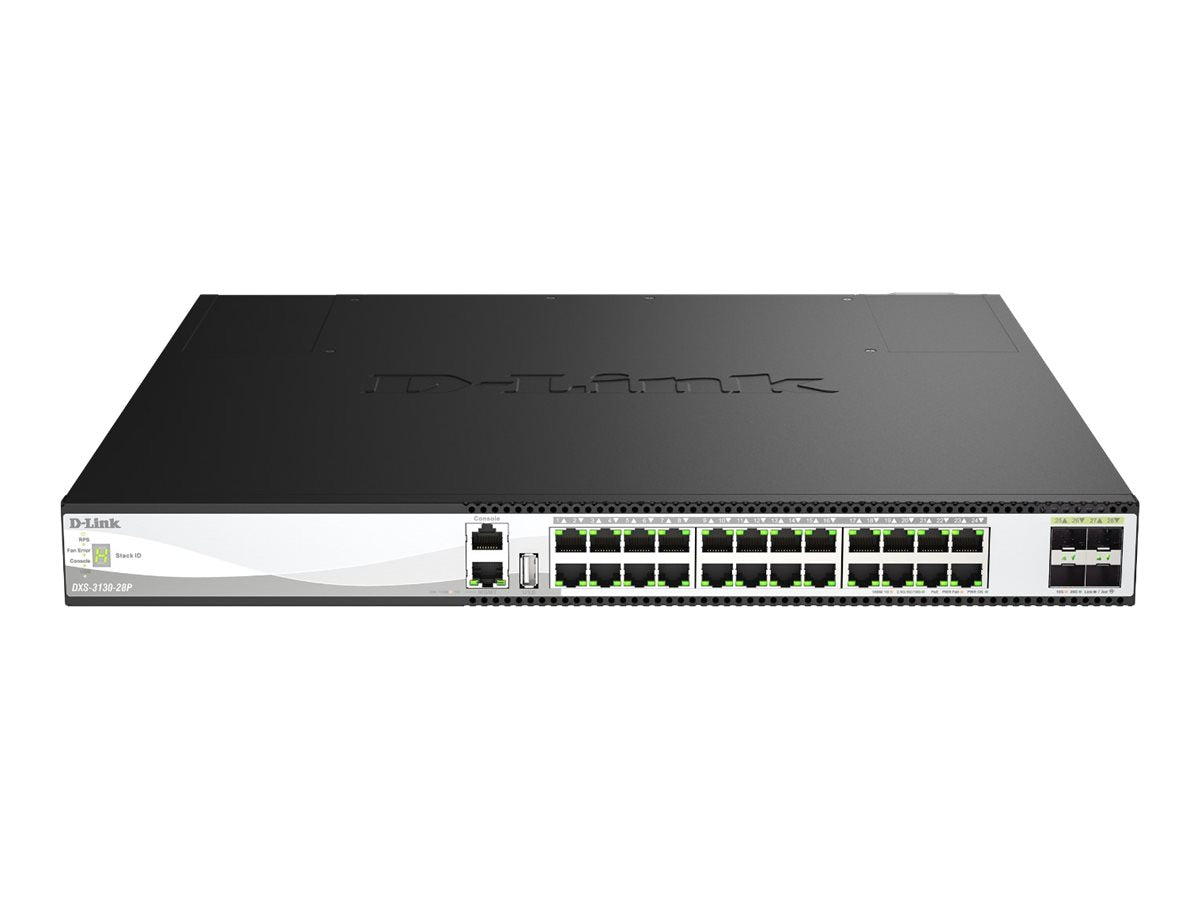

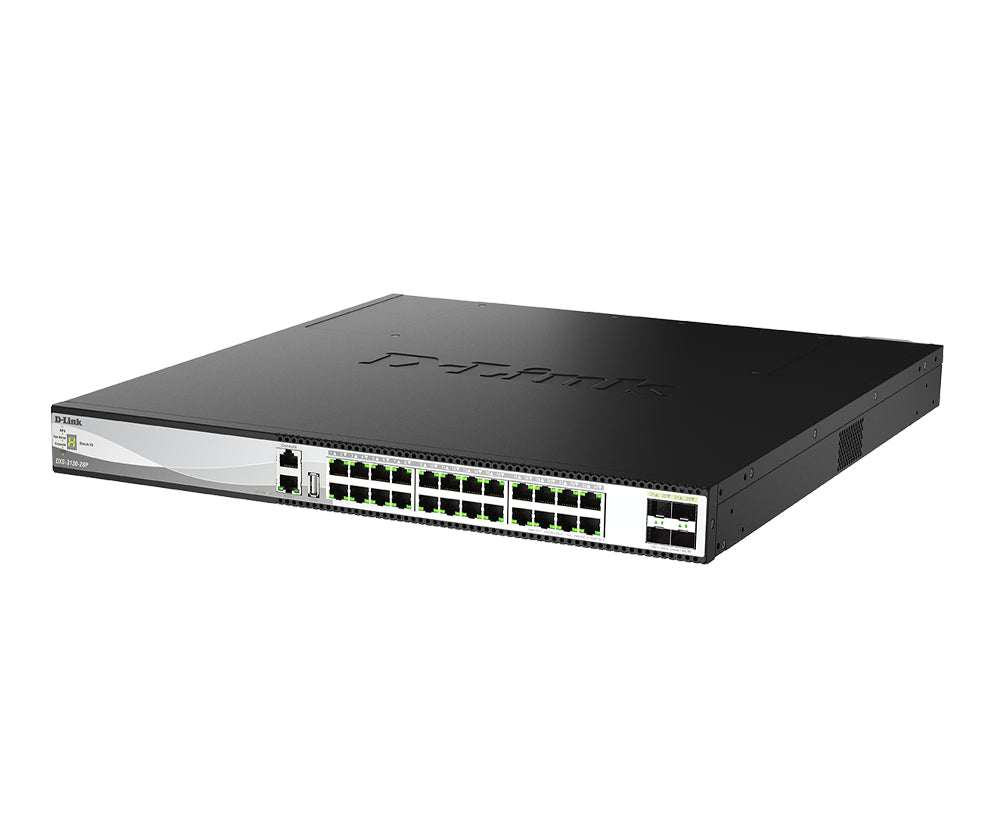

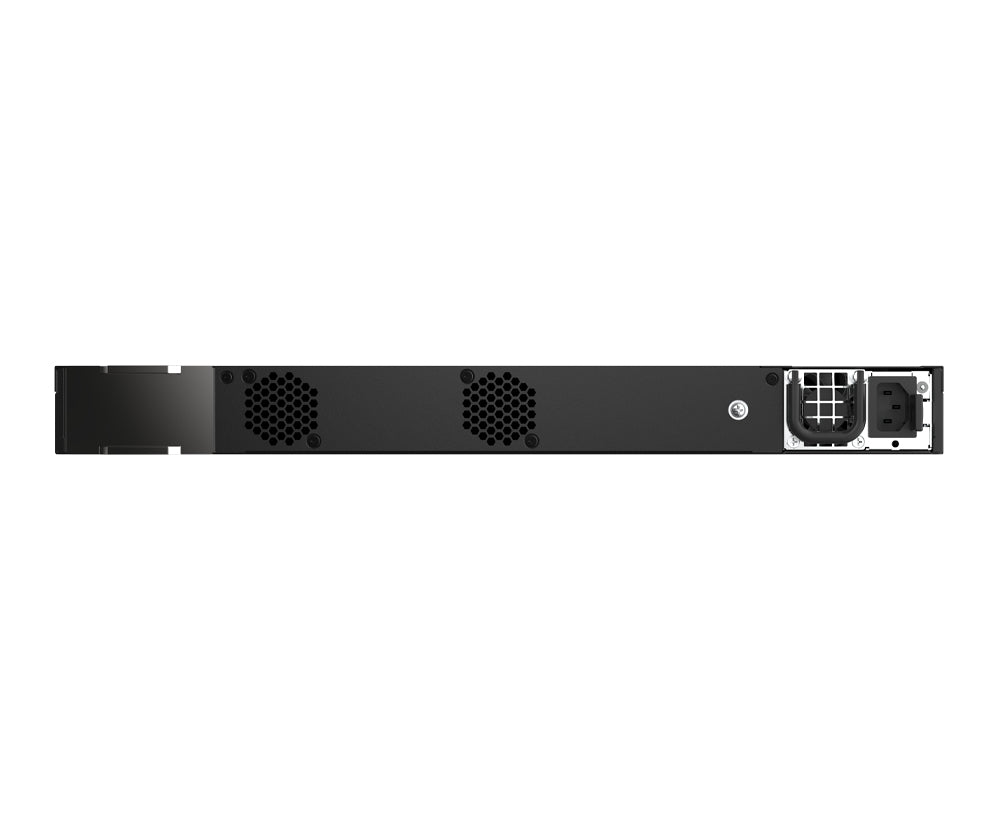

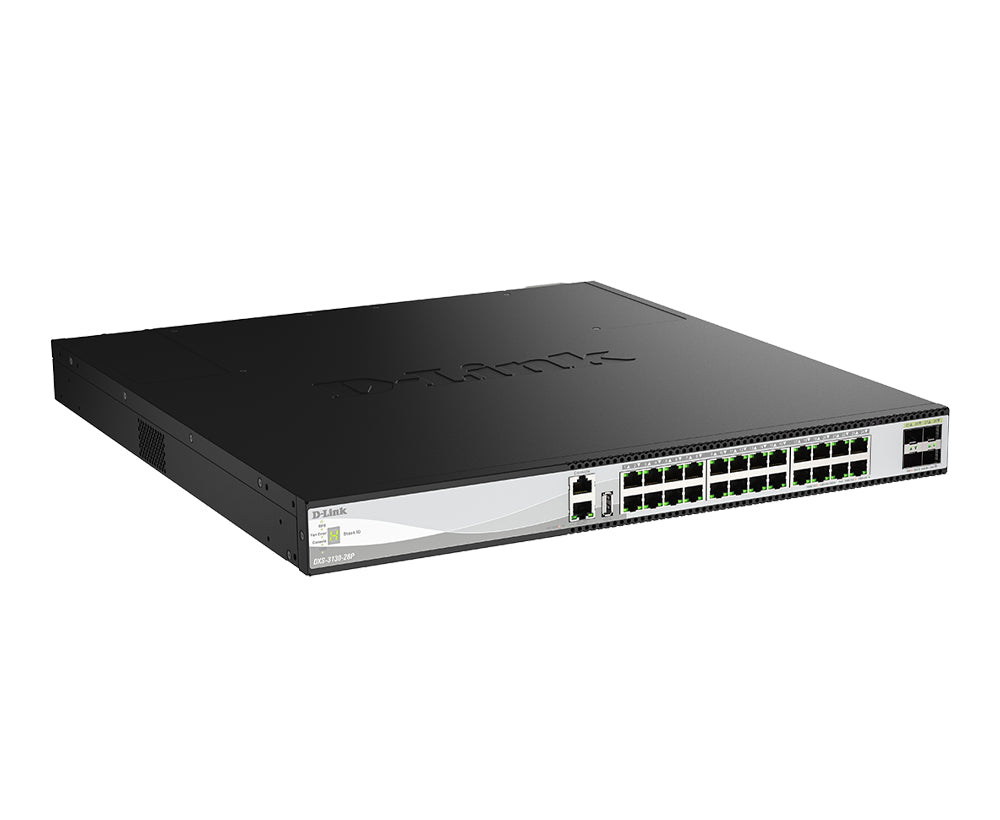

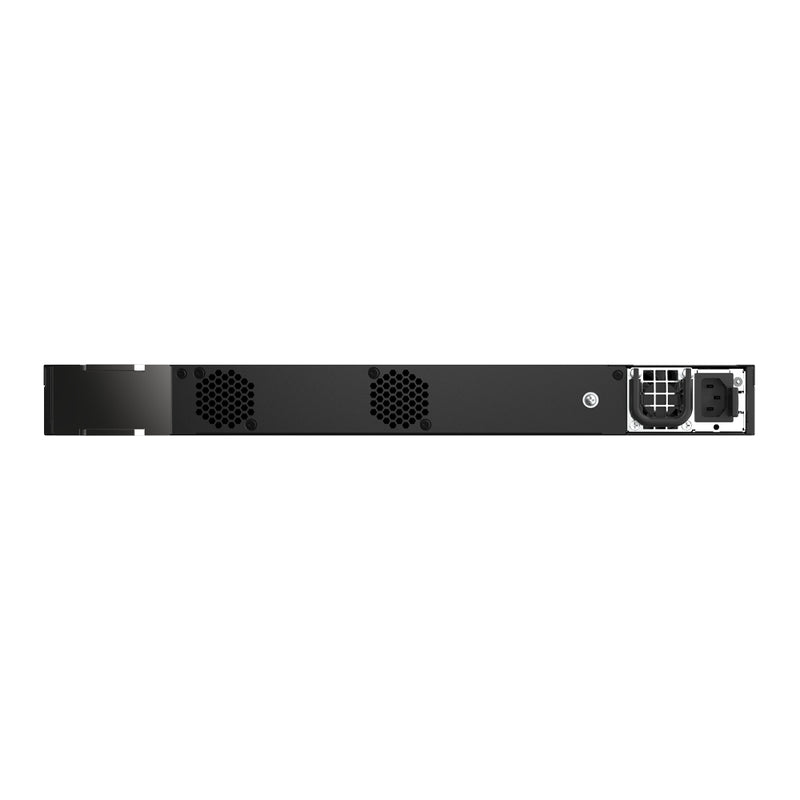

The D-Link DXS-3130-28P/E is a managed Layer 3 switch designed for businesses needing robust network performance. Suitable for medium to large enterprises, it offers flexible connectivity options and advanced features for efficient network management.

  • The switch supports 24 10G Ethernet ports, providing high-speed connections for demanding applications.
  • Quality of Service (QoS) ensures prioritized traffic management, improving performance for critical applications.
  • Web-based management allows for easy configuration and monitoring, enhancing usability for network administrators.
  • Port mirroring and link aggregation features facilitate effective traffic analysis and improved overall network bandwidth.
  • Support for advanced networking standards, including ARP inspection and broadcast storm control, increases overall network security and stability.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 9.90 kg
Additional specifications (71)
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
  • 10G Ethernet (copper) ports quantity: 24
  • SFP28 ports quantity: 4
  • USB 2.0 ports quantity: 1
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
  • 10G support: Yes
  • Port mirroring: Yes
  • IP routing: Yes
  • Policy-based routing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
  • VLAN support: Yes
  • Number of VLANs: 4000
  • Switching capacity: 680 Gbit/s
  • Forwarding rate: 505.92 Mpps
  • MAC address table: 32000 entries
  • Static route: Yes
  • Number of static routes: 512
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet buffer memory: 4 MB
  • DHCP features: DHCP server, DHCP snooping
  • Access Control List (ACL): Yes
  • Access Control List (ACL) egress: 1024
  • Access Control List (ACL) ingress: 3072
  • IGMP snooping: Yes
  • Security algorithms: SNMP, SNMPv2, SNMPv3
  • Loop protection: Yes
  • Password protection: Yes
  • Authentication type: RADIUS, TACACS+
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Black, Grey
  • LED indicators: Yes
  • Number of fans: 2 fan(s)
  • Noise level: 50.01 dB
  • Mean time between failures (MTBF): 286495.2 h
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 1782.37 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 60 W
  • Operating temperature (T-T): 5 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 3439.64 BTU/h
  • Width: 440 mm
  • Depth: 250 mm
  • Height: 44 mm
  • Weight: 6.48 kg
  • Quick start guide: Yes
Description

The D-Link DXS-3130-28P/E is a managed Layer 3 switch designed for businesses needing robust network performance. Suitable for medium to large enterprises, it offers flexible connectivity options and advanced features for efficient network management.

  • The switch supports 24 10G Ethernet ports, providing high-speed connections for demanding applications.
  • Quality of Service (QoS) ensures prioritized traffic management, improving performance for critical applications.
  • Web-based management allows for easy configuration and monitoring, enhancing usability for network administrators.
  • Port mirroring and link aggregation features facilitate effective traffic analysis and improved overall network bandwidth.
  • Support for advanced networking standards, including ARP inspection and broadcast storm control, increases overall network security and stability.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 9.90 kg
Additional specifications (71)
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
  • 10G Ethernet (copper) ports quantity: 24
  • SFP28 ports quantity: 4
  • USB 2.0 ports quantity: 1
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
  • 10G support: Yes
  • Port mirroring: Yes
  • IP routing: Yes
  • Policy-based routing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
  • VLAN support: Yes
  • Number of VLANs: 4000
  • Switching capacity: 680 Gbit/s
  • Forwarding rate: 505.92 Mpps
  • MAC address table: 32000 entries
  • Static route: Yes
  • Number of static routes: 512
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet buffer memory: 4 MB
  • DHCP features: DHCP server, DHCP snooping
  • Access Control List (ACL): Yes
  • Access Control List (ACL) egress: 1024
  • Access Control List (ACL) ingress: 3072
  • IGMP snooping: Yes
  • Security algorithms: SNMP, SNMPv2, SNMPv3
  • Loop protection: Yes
  • Password protection: Yes
  • Authentication type: RADIUS, TACACS+
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Black, Grey
  • LED indicators: Yes
  • Number of fans: 2 fan(s)
  • Noise level: 50.01 dB
  • Mean time between failures (MTBF): 286495.2 h
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 1782.37 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 60 W
  • Operating temperature (T-T): 5 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 3439.64 BTU/h
  • Width: 440 mm
  • Depth: 250 mm
  • Height: 44 mm
  • Weight: 6.48 kg
  • Quick start guide: Yes

D-Link DXS-3130-28P/E 24-Port 10G Layer 3 Stackable Aggregation Managed PoE Switch

€3.886,15
€3.886,15
Tax included.
