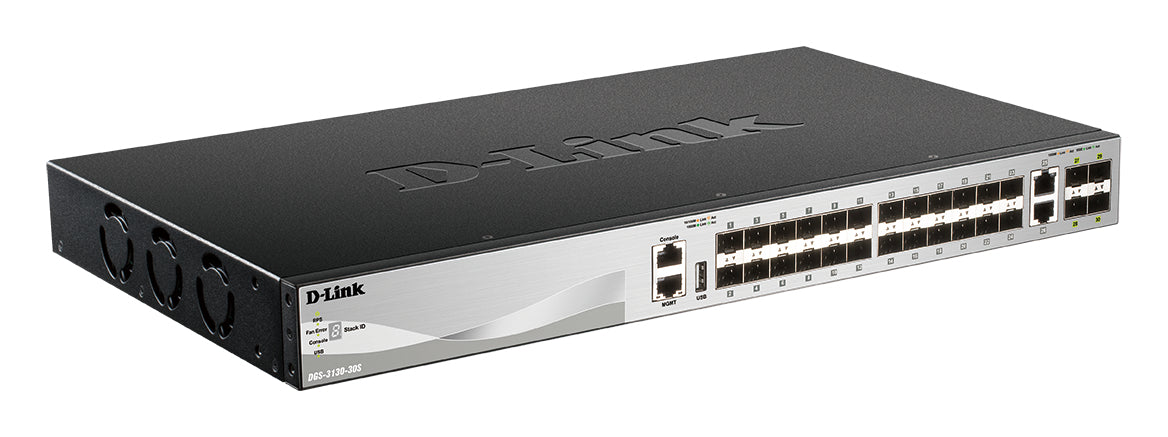

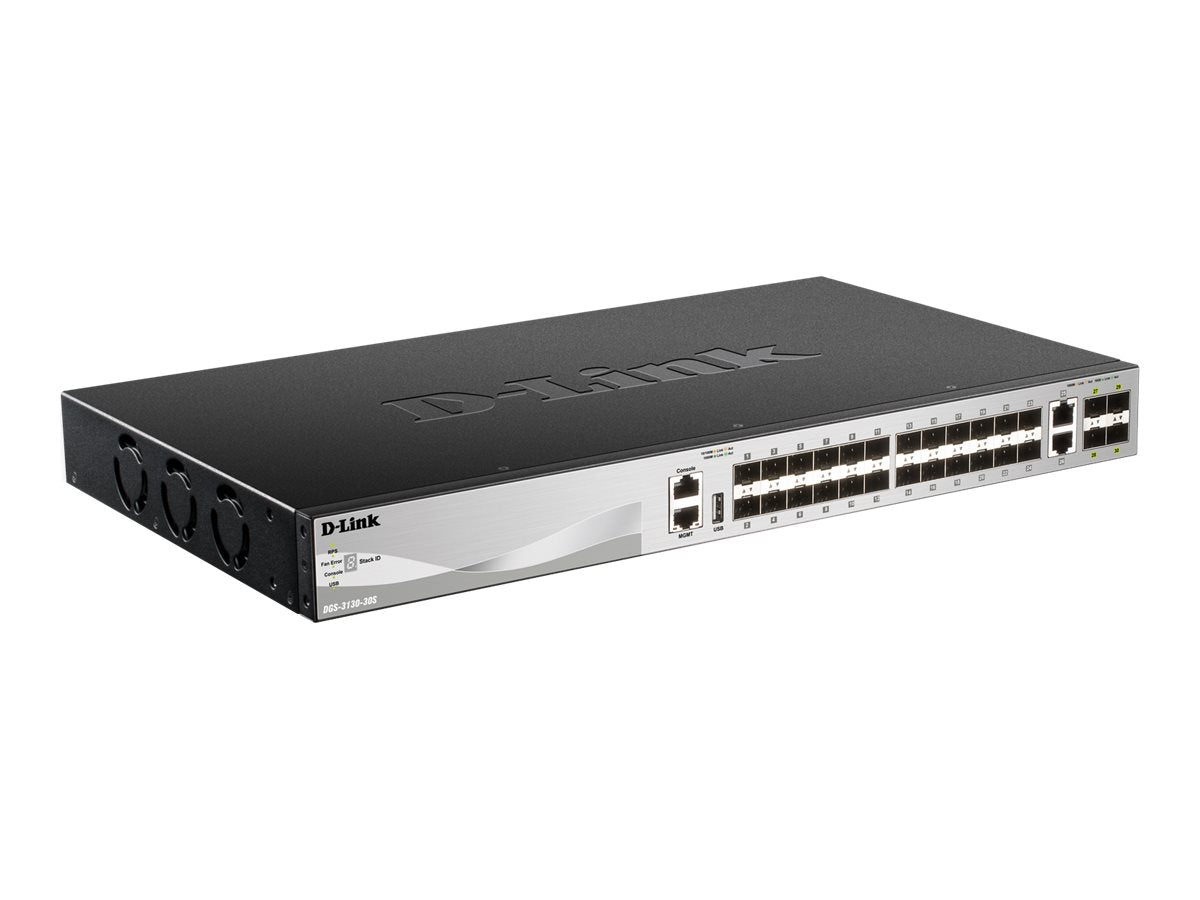

The D-Link DGS-3130-30S is a managed L3 switch designed for rack mounting, making it suitable for businesses needing efficient network management. With high-speed options including two 10 Gbps RJ-45 ports and extensive support for SFP and SFP+ modules, it accommodates a robust network infrastructure.
- Allows for high-speed connectivity with two 10 Gbps RJ-45 ports and 24 SFP ports for flexible networking solutions.
- Equipped with advanced web-based management for easier configuration and monitoring.
- Supports Quality of Service (QoS), ensuring efficient network performance by prioritizing critical traffic.
- Offers extensive MIB support for network management and monitoring tools.
- Includes port mirroring and flow control capabilities to enhance network troubleshooting and performance.
Specifications (3)
- Producer product family: DGS-3130-30S
- Producer product name: Switch
- Warranty: 60 month(s)
Design (1)
- Form factor: Rack mountable
Management features (1)
- Switch type: Managed L3
Ports & interfaces (5)
- 10 Gbps (RJ-45) ports quantity: 2
- SFP ports quantity: 24
- SFP+ ports quantity: 4
- POE: No
- Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
- Net weight: 3.90 kg
Additional specifications (66)
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- MIB support: RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
- Basic switching RJ-45 Ethernet ports quantity: 2
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- SFP module slots quantity: 24
- SFP+ module slots quantity: 4
- Fiber optic connector: SFP, SFP+
- USB 2.0 ports quantity: 1
- Power connector: AC-in jack
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4000
- Switching capacity: 168 Gbit/s
- Forwarding rate: 125 Mpps
- MAC address table: 16384 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 2 MB
- DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- Access Control List (ACL) egress: 512
- Access Control List (ACL) ingress: 2048
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv3, SSH-2, SSL/TLS
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
- Queue scheduling algorithms: Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
- Multicast support: Yes
- Routing protocols: RIP
- Stackable: Yes
- Product colour: Grey
- LED indicators: Yes
- Number of fans: 3 fan(s)
- Physical stacking (units): 9
- Virtual stacking (units): 32
- Noise level: 52.3 dB
- Mean time between failures (MTBF): 400490 h
- Power source: DC
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 65.01 W
- Power over Ethernet (PoE): No
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 221.8 BTU/h
- Width: 440 mm
- Depth: 250 mm
- Height: 44 mm
- Weight: 3.5 kg
- Certification: FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
