Description

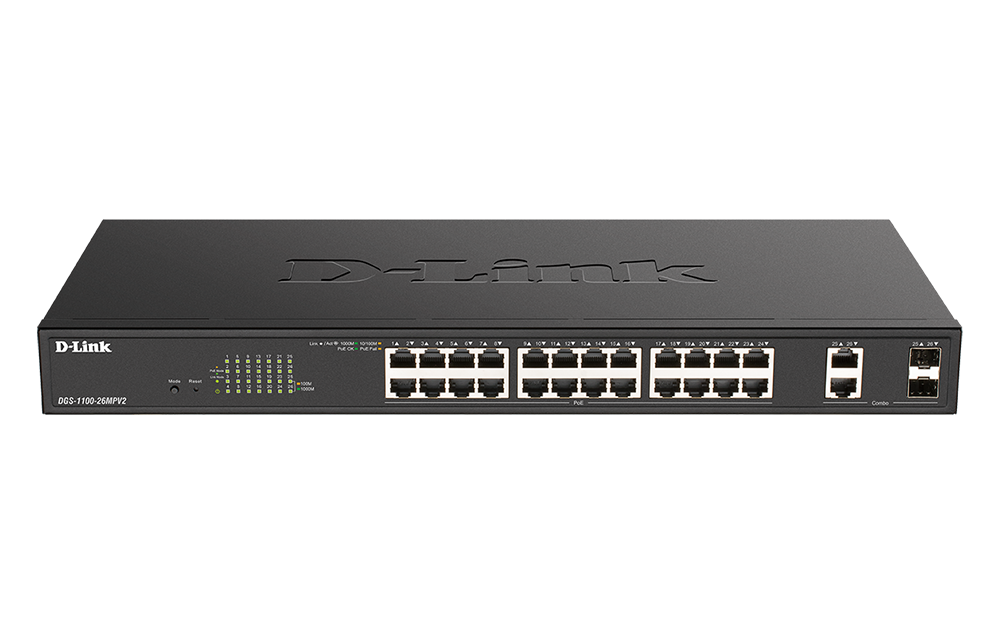

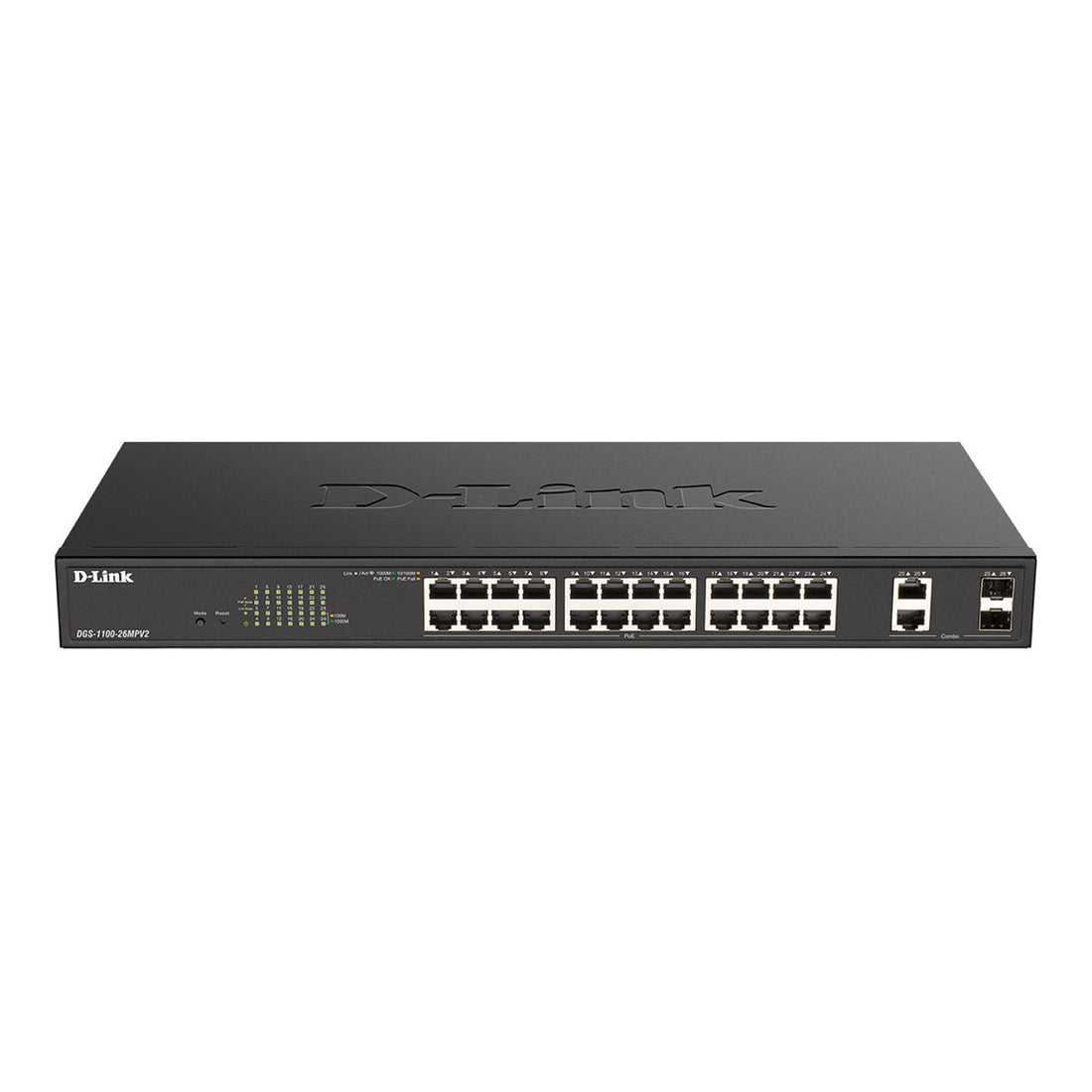

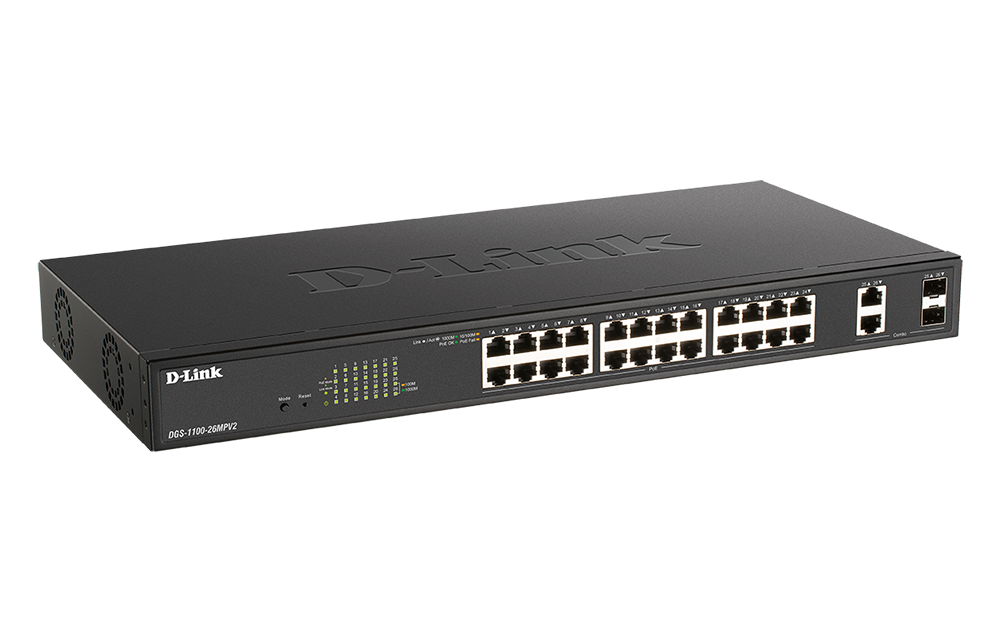

The D-Link DGS-1100-26MPV2 is a managed L2 switch designed for desktop or rackmount installation, suitable for small to medium-sized businesses seeking reliable network management. It offers extensive port options and management features to enhance network performance and efficiency.

  • Twenty-four Gigabit Ethernet ports allow for high-speed connectivity across your network.
  • PoE+ support enables the powering of devices like IP cameras and phones directly through the switch.
  • Web-based management simplifies network configuration and monitoring from any connected device.
  • Quality of Service (QoS) support helps prioritize network traffic for improved performance of critical applications.
  • Link aggregation capabilities allow the combining of multiple connections for increased bandwidth and redundancy.
Specifications (3)
  • Producer product family: DGS-1100 Series Gigabit Smart Managed Switches
  • Producer product name: DGS-1100-26MPV2
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop/Rackmountable
Management features (1)
  • Switch type: Managed L2
Ports & interfaces (2)
  • POE: PoE+ 802.3at/af
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
  • Net weight: 1.21 kg
Additional specifications (61)
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • MIB support: • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
  • Copper ethernet cabling technology: 10GBASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Voice VLAN
  • Switching capacity: 52 Gbit/s
  • Forwarding rate: 38.69 Mpps
  • MAC address table: 8000 entries
  • Jumbo frames support: Yes
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Security algorithms: SSL/TLS
  • MAC address filtering: Yes
  • Static port security: Yes
  • Multicast support: Yes
  • IPv4 multicast entries: 1
  • IPv6 multicast entries: 1
  • Number of multicast groups filtered: 1
  • IPv4 & IPv6 features: IPv4 FIB
  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Metal
  • Flash memory: 16 MB
  • Noise level: 50.5 dB
  • Fanless: Yes
  • MTBF (PoE): 317.777 h
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • Power consumption (max): 454.1 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 24
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Total Power over Ethernet (PoE) budget: 370 W
  • Operating temperature (T-T): -10 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Heat dissipation: 287 BTU/h
  • Width: 440 mm
  • Depth: 208 mm
  • Height: 44 mm
  • Weight: 2.8 kg
  • Harmonized System (HS) code: 85176990
Description

The D-Link DGS-1100-26MPV2 is a managed L2 switch designed for desktop or rackmount installation, suitable for small to medium-sized businesses seeking reliable network management. It offers extensive port options and management features to enhance network performance and efficiency.

  • Twenty-four Gigabit Ethernet ports allow for high-speed connectivity across your network.
  • PoE+ support enables the powering of devices like IP cameras and phones directly through the switch.
  • Web-based management simplifies network configuration and monitoring from any connected device.
  • Quality of Service (QoS) support helps prioritize network traffic for improved performance of critical applications.
  • Link aggregation capabilities allow the combining of multiple connections for increased bandwidth and redundancy.
Specifications (3)
  • Producer product family: DGS-1100 Series Gigabit Smart Managed Switches
  • Producer product name: DGS-1100-26MPV2
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop/Rackmountable
Management features (1)
  • Switch type: Managed L2
Ports & interfaces (2)
  • POE: PoE+ 802.3at/af
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
  • Net weight: 1.21 kg
Additional specifications (61)
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • MIB support: • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
  • Copper ethernet cabling technology: 10GBASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Voice VLAN
  • Switching capacity: 52 Gbit/s
  • Forwarding rate: 38.69 Mpps
  • MAC address table: 8000 entries
  • Jumbo frames support: Yes
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Security algorithms: SSL/TLS
  • MAC address filtering: Yes
  • Static port security: Yes
  • Multicast support: Yes
  • IPv4 multicast entries: 1
  • IPv6 multicast entries: 1
  • Number of multicast groups filtered: 1
  • IPv4 & IPv6 features: IPv4 FIB
  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Metal
  • Flash memory: 16 MB
  • Noise level: 50.5 dB
  • Fanless: Yes
  • MTBF (PoE): 317.777 h
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • Power consumption (max): 454.1 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 24
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Total Power over Ethernet (PoE) budget: 370 W
  • Operating temperature (T-T): -10 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Heat dissipation: 287 BTU/h
  • Width: 440 mm
  • Depth: 208 mm
  • Height: 44 mm
  • Weight: 2.8 kg
  • Harmonized System (HS) code: 85176990

D-Link DGS-1100-26MPV2 — DGS-1100 Series Gigabit Smart Managed Switches, Managed L2, Desktop/Rackmountable

€404,23
€404,23
Tax included.
