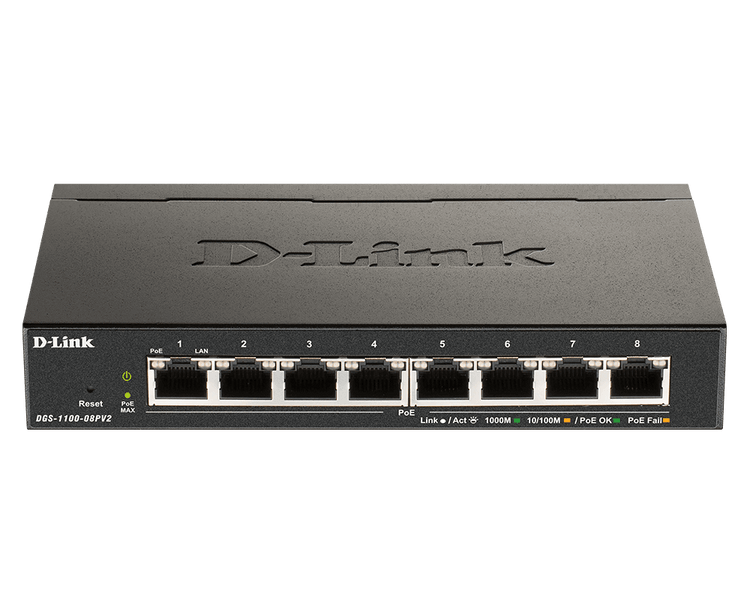

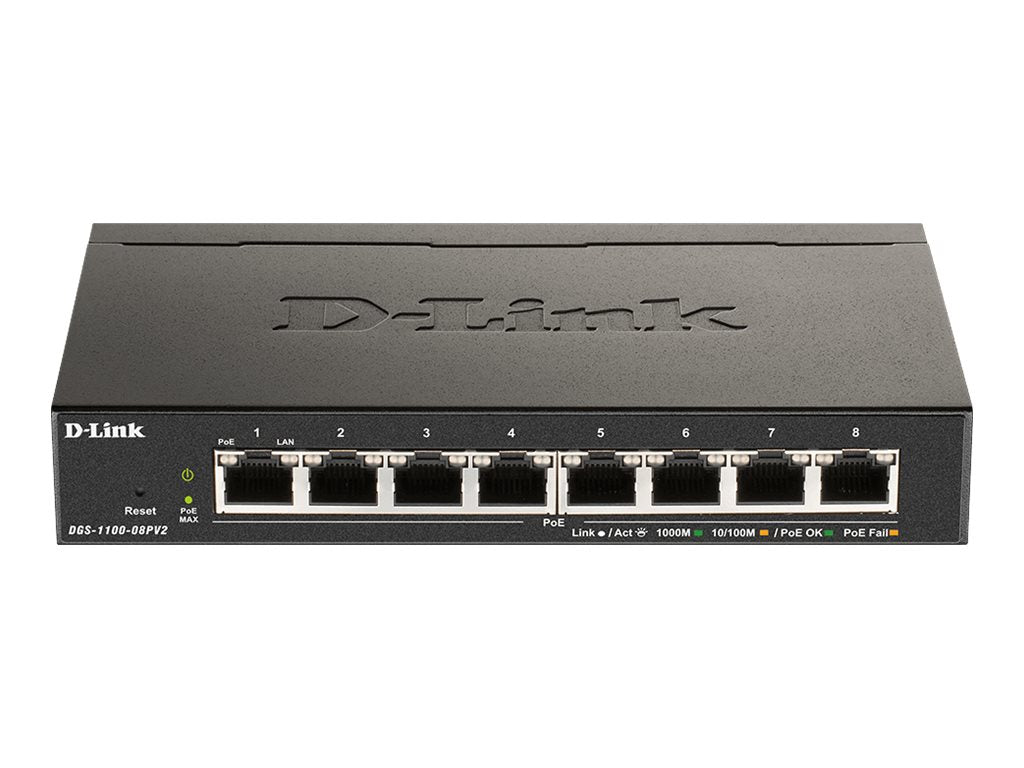

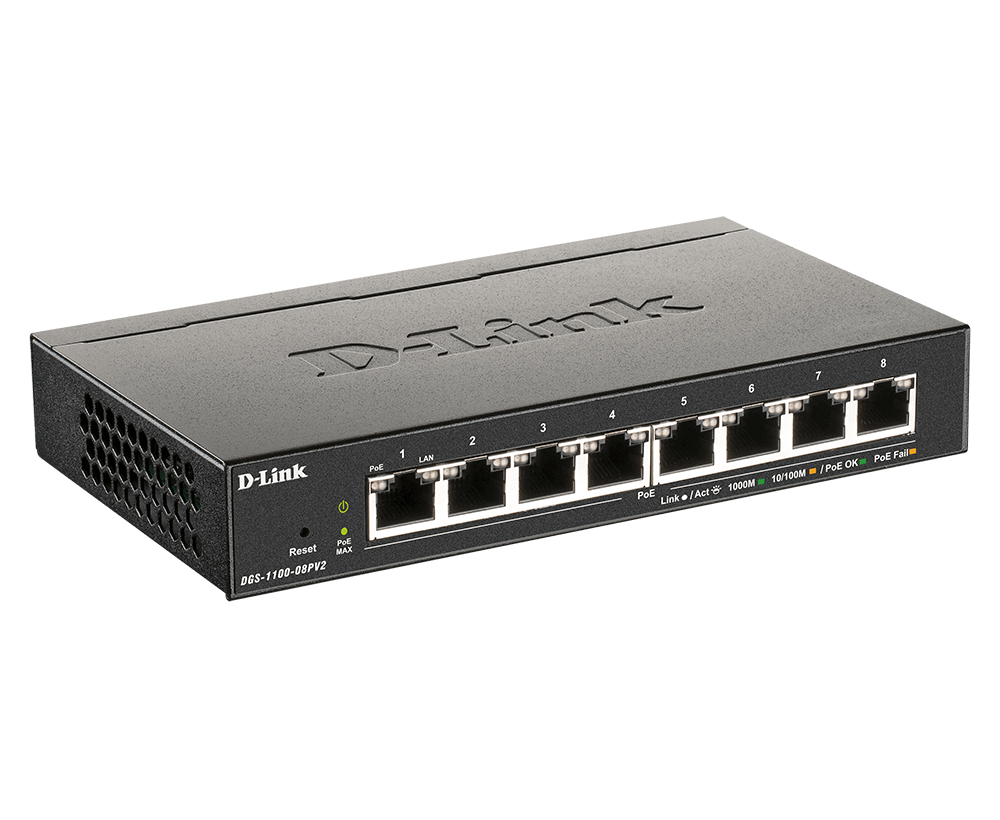

The D-Link DGS-1100-08PV2 is an 8-port Gigabit PoE Smart Managed Switch designed for users who need to manage their network effectively. Ideal for small businesses or home offices, this switch enables web-based management and supports Power over Ethernet (PoE).

  • Offers eight Gigabit Ethernet ports for fast data transfer rates up to 1000 Mbps, suitable for bandwidth-intensive applications.
  • Includes PoE capability (802.3at) for powering devices like IP cameras and phones directly through the network cable.
  • Features fanless design for quiet operation, making it suitable for office environments.
  • Supports advanced network management features such as Quality of Service (QoS), port mirroring, and link aggregation to optimize network performance.
  • Allows for easy setup and management via a web interface, providing users with control over their network settings.
Specifications (3)
  • Producer product family: 8-Port Gigabit PoE Smart Managed Switch
  • Producer product name: DGS-1100-08PV2
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Web managed
Other features (1)
  • Power supply type: External
Ports & interfaces (3)
  • Ethernet LAN (RJ-45) ports: 8
  • POE: 802.3at
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (2)
  • Net weight: 0.43 kg
  • Other features: Fanless
Additional specifications (55)
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4094
  • Switching capacity: 16 Gbit/s
  • Forwarding rate: 11.9 Mpps
  • MAC address table: 4096 entries
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Rack mounting: No
  • Product colour: Black
  • LED indicators: Yes
  • Flash memory: 2 MB
  • Fanless: Yes
  • Mean time between failures (MTBF): 786841 h
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • Power consumption (max): 77.9 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 64 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Storage relative humidity (H-H): 0 - 95%
  • Heat dissipation: 265.85 BTU/h
  • Width: 171 mm
  • Depth: 97.8 mm
  • Height: 28.6 mm
  • Weight: 430 g
  • Sustainability compliance: Yes
  • Compliance certificates: CE, RoHS
  • Certification: FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
Description

The D-Link DGS-1100-08PV2 is an 8-port Gigabit PoE Smart Managed Switch designed for users who need to manage their network effectively. Ideal for small businesses or home offices, this switch enables web-based management and supports Power over Ethernet (PoE).

  • Offers eight Gigabit Ethernet ports for fast data transfer rates up to 1000 Mbps, suitable for bandwidth-intensive applications.
  • Includes PoE capability (802.3at) for powering devices like IP cameras and phones directly through the network cable.
  • Features fanless design for quiet operation, making it suitable for office environments.
  • Supports advanced network management features such as Quality of Service (QoS), port mirroring, and link aggregation to optimize network performance.
  • Allows for easy setup and management via a web interface, providing users with control over their network settings.
Specifications (3)
  • Producer product family: 8-Port Gigabit PoE Smart Managed Switch
  • Producer product name: DGS-1100-08PV2
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Web managed
Other features (1)
  • Power supply type: External
Ports & interfaces (3)
  • Ethernet LAN (RJ-45) ports: 8
  • POE: 802.3at
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (2)
  • Net weight: 0.43 kg
  • Other features: Fanless
Additional specifications (55)
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4094
  • Switching capacity: 16 Gbit/s
  • Forwarding rate: 11.9 Mpps
  • MAC address table: 4096 entries
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Rack mounting: No
  • Product colour: Black
  • LED indicators: Yes
  • Flash memory: 2 MB
  • Fanless: Yes
  • Mean time between failures (MTBF): 786841 h
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • Power consumption (max): 77.9 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 64 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Storage relative humidity (H-H): 0 - 95%
  • Heat dissipation: 265.85 BTU/h
  • Width: 171 mm
  • Depth: 97.8 mm
  • Height: 28.6 mm
  • Weight: 430 g
  • Sustainability compliance: Yes
  • Compliance certificates: CE, RoHS
  • Certification: FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI

D-Link DGS-1100-08PV2 — 8-Port Gigabit PoE Smart Managed Switch, Web managed, Desktop, Power supply type External

€140,11
€140,11
Tax included.
