About

Description

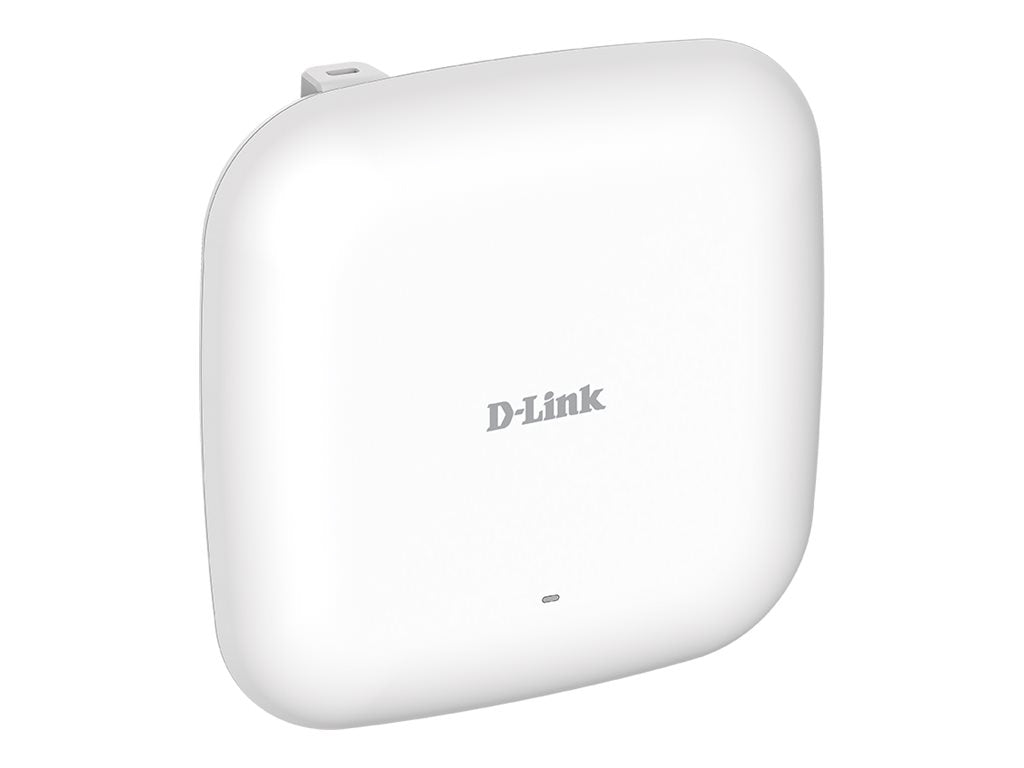

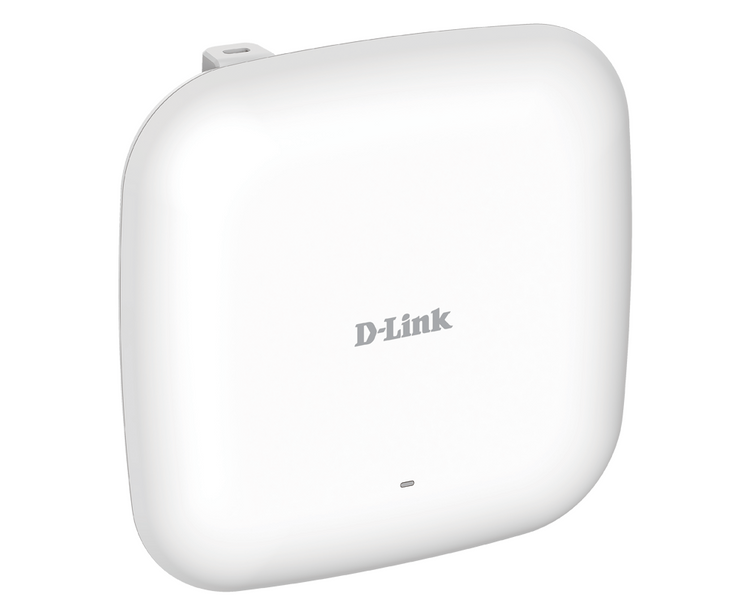

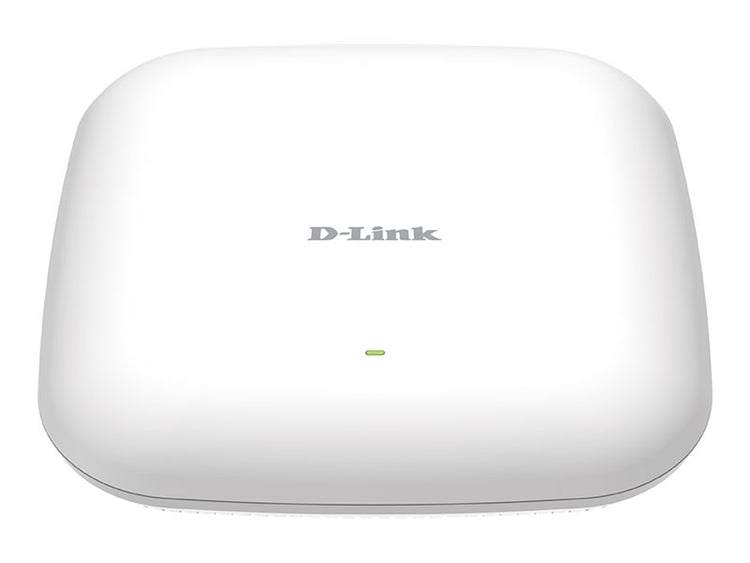

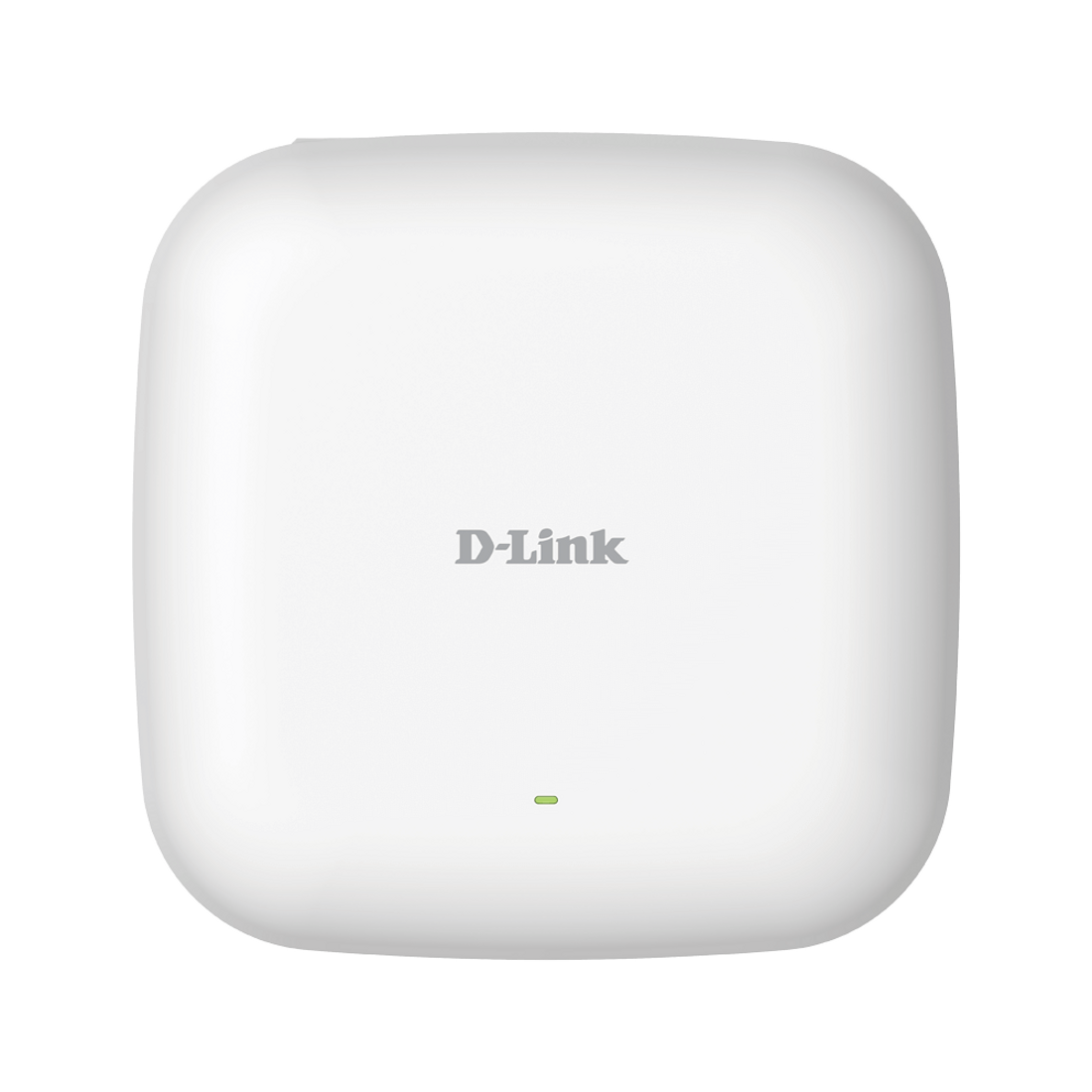

The D-Link Nuclias Connect AC1200 Wave 2 Access Point (DAP-2662) is designed for users looking to enhance their network connectivity. It delivers a robust Wi-Fi experience suitable for small to medium-sized businesses or home offices.

Supports dual-band Wi-Fi with data rates up to 1200 Mbit/s, providing high-speed internet access for multiple devices.
Equipped with MU-MIMO technology, allowing simultaneous data transmission to multiple users, improving overall network efficiency.

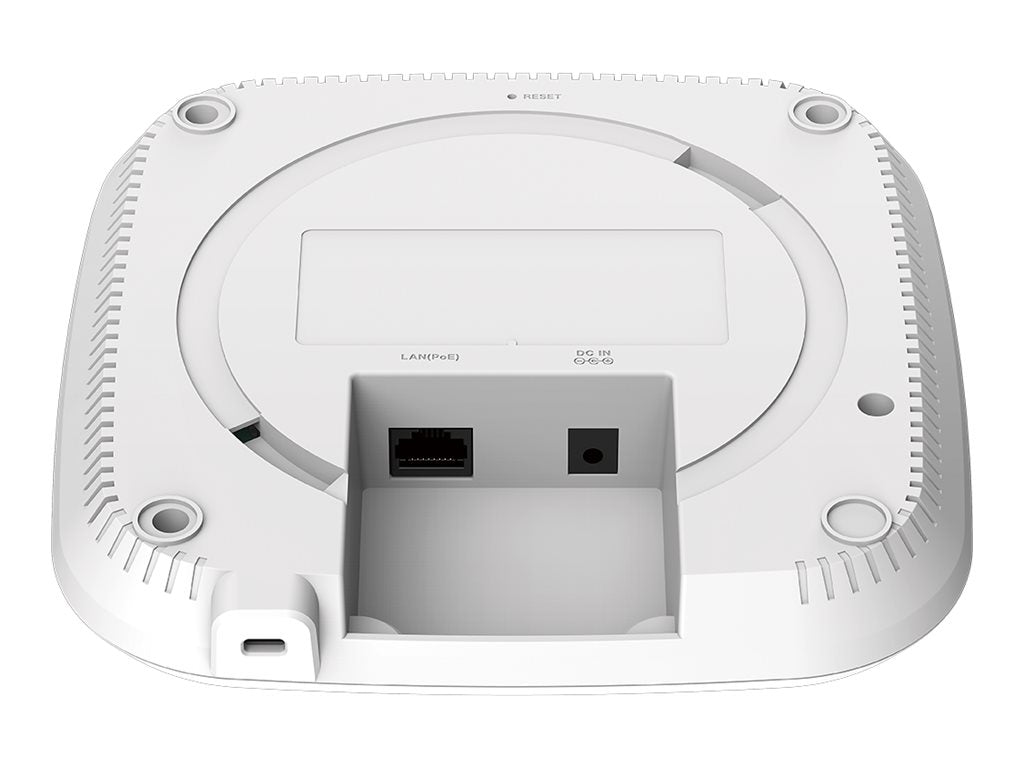

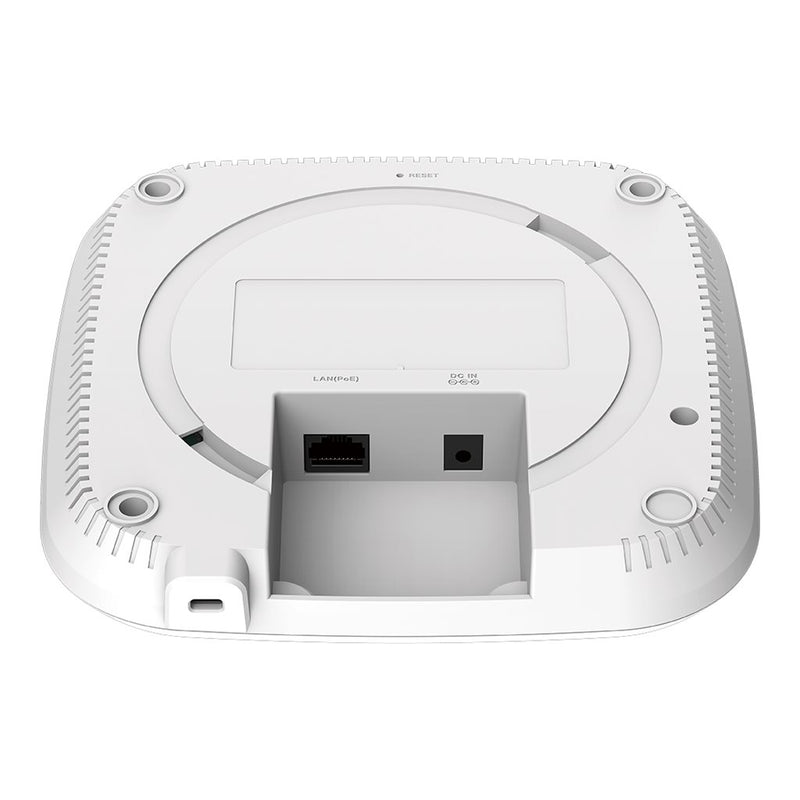

One Ethernet LAN (RJ-45) port enables wired connections for devices needing stable internet access.
Features four internal antennas that enhance signal strength and coverage within the network area.
Supports Power over Ethernet (PoE) for simplified installation by allowing power and data to be transmitted over the same cable.

Specifications (3)

Producer product family: Nuclias Connect AC1200 Wave 2 Access Point
Producer product name: DAP-2662
Warranty: 60 month(s)

Antenna (2)

Antenna type: 4xInternal
Antennas quantity: 4

Features (3)

Mesh Support: No
Mobile Broadband: No mobile broadband
MU-MiMO: Yes

Other features (1)

Ethernet LAN (RJ-45) ports: 1

Performance (2)

Ethernet LAN data rates: 10/100/1000 Mbit/s
Wi-Fi data rate (max): 300+867 Mbit/s

Ports & interfaces (1)

POE: PoE in

Wireless LAN features (1)

Wi-Fi band: 802.11ac

Technical details (1)

Net weight: 0.39 kg

Additional specifications (41)

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 1200 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Frequency band: 2.4, 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology: 10/100/1000Base-T(X)
Transmitting power: 26 dBmW
Mean time between failures (MTBF): 341897 h
Security algorithms: 64-bit WEP, 128-bit WEP, SSID
Number of SSID supported: 16
WAN connection: Ethernet (RJ-45)
DC-in jack: Yes
Power over Ethernet (PoE): Yes
DC voltage range: 12 V
Power consumption (max): 6.5 W
Placement: Ceiling, Table, Wall
Product colour: White
Cable lock slot: Yes
LED indicators: Power
Antenna features: Integrated antenna
Antenna gain level (max): 3.8 dBi
Shipping (inner) case length: 43.1 cm
Shipping (inner) case width: 38.3 cm
Shipping (inner) case height: 26.8 cm
Shipping (inner) case net weight: 3.9 kg
Products per shipping (inner) case: 10 pc(s)
Certification: FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint
Width: 170 mm
Depth: 28 mm
Height: 170 mm
Weight: 350 g
Quantity per pack: 1 pc(s)
Frequency range: 2400 - 5850 MHz
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 65 °C
Storage relative humidity (H-H): 5 - 95%
Harmonized System (HS) code: 85176990
