About

Description

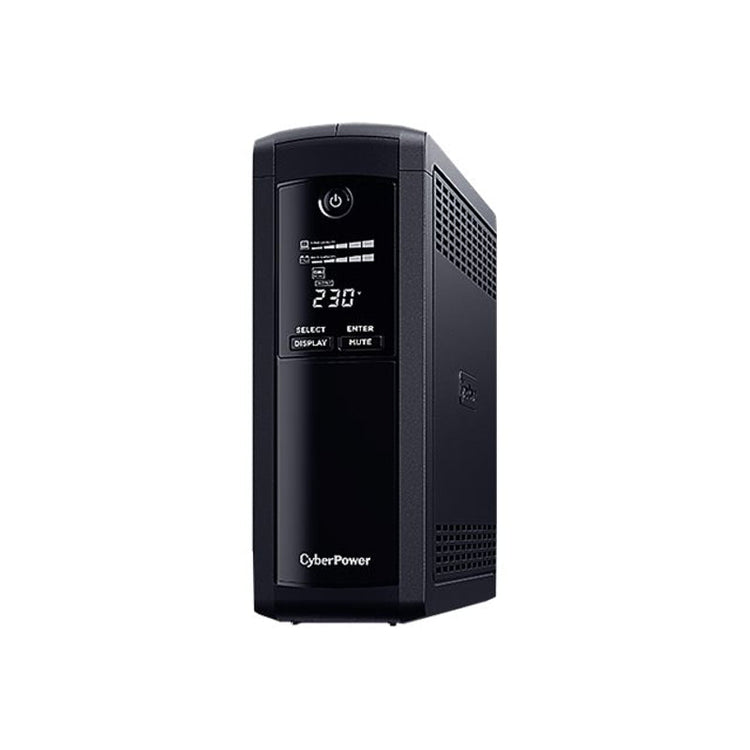

The CyberPower VP1600ELCD is a reliable backup UPS system suitable for home and office use. It ensures that your devices remain powered during outages, providing peace of mind for critical electronics.

  • With a capacity of 1600 VA and output power of 960 W, it effectively supports essential devices when the power goes out.
  • The line-interactive topology and Automatic Voltage Regulation (AVR) protect your equipment from voltage fluctuations.
  • The LCD status display offers real-time monitoring of battery and power conditions, keeping you informed.
  • Multiple connectivity options, including USB and serial ports, allow for easy integration into your existing setup.
  • With surge and spike protection, it safeguards your devices from electrical damage, enhancing their longevity.
Specifications (3)
  • Producer product family: Backup UPS Systems
  • Producer product name: VP1600ELCD
  • Warranty: 24 month(s)
Performance (2)
  • Capacity: 1600 VA
  • UPS topology: Line-Interactive
Technical details (3)
  • Capacity: 960 W
  • Net weight: 10.42 kg
  • Other features: Line-interactive UPS Topology; Generator Compatible; Automatic Voltage Regulation (AVR); High-speed Ethernet Data Transmission; Surge and Spike Protection; PowerPanel Management Software; Energy Saving Technology; Simulated Sine Wave Output; LCD Status Display; USB Connectivity Port; Serial Connectivity Port
Battery (3)
  • Battery recharge time: 8 (Typical) h
  • Typical backup time at full load: 2 min
  • Typical backup time at half load: 11 min
Design (1)
  • Form factor: Tower
Other features (1)
  • Dimensions (WxDxH): 100 x 355 x 281 mm
Additional specifications (55)
  • Output power capacity: 1.6 kVA
  • Output power: 960 W
  • Waveform: Sine
  • Input operation voltage (min): 167 V
  • Input operation voltage (max): 295 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (max): 230 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 10%
  • Automatic Voltage Regulation (AVR): Yes
  • Maximum current: 6.96 A
  • Surge energy rating: 450 J
  • Response time: 4 ms
  • Heat dissipation: 68 BTU/h
  • Number of input phases: 1
  • Number of output phases: 1
  • EMI/RFI noise filtering: Yes
  • Surge protection: Yes
  • Power protection features: Over voltage
  • Audible alarm(s): Yes
  • Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
  • AC outlet types: Type F
  • Power plug: C14 coupler
  • AC outlets quantity: 5 AC outlet(s)
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • USB port type: USB Type-B
  • Serial interface: Yes
  • Serial interface type: RS-232
  • Serial ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 2
  • Cabling technology: 10/100/1000Base-T(X)
  • Battery technology: Sealed Lead Acid (VRLA)
  • Housing material: Plastic
  • Cable length: 1.5 m
  • Product colour: Black
  • Display type: LCD
  • LED indicators: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 50 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Storage relative humidity (H-H): 0 - 90%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Compliance certificates: RoHS
  • Certification: CE, RCM
  • Cables included: USB cable
  • Manual: Yes
  • Sustainability compliance: Yes
  • Width: 100 mm
  • Depth: 355 mm
  • Height: 281 mm
  • Weight: 10.4 kg
  • Harmonized System (HS) code: 8504408590
  • Country of origin: China
Description

The CyberPower VP1600ELCD is a reliable backup UPS system suitable for home and office use. It ensures that your devices remain powered during outages, providing peace of mind for critical electronics.

  • With a capacity of 1600 VA and output power of 960 W, it effectively supports essential devices when the power goes out.
  • The line-interactive topology and Automatic Voltage Regulation (AVR) protect your equipment from voltage fluctuations.
  • The LCD status display offers real-time monitoring of battery and power conditions, keeping you informed.
  • Multiple connectivity options, including USB and serial ports, allow for easy integration into your existing setup.
  • With surge and spike protection, it safeguards your devices from electrical damage, enhancing their longevity.
Specifications (3)
  • Producer product family: Backup UPS Systems
  • Producer product name: VP1600ELCD
  • Warranty: 24 month(s)
Performance (2)
  • Capacity: 1600 VA
  • UPS topology: Line-Interactive
Technical details (3)
  • Capacity: 960 W
  • Net weight: 10.42 kg
  • Other features: Line-interactive UPS Topology; Generator Compatible; Automatic Voltage Regulation (AVR); High-speed Ethernet Data Transmission; Surge and Spike Protection; PowerPanel Management Software; Energy Saving Technology; Simulated Sine Wave Output; LCD Status Display; USB Connectivity Port; Serial Connectivity Port
Battery (3)
  • Battery recharge time: 8 (Typical) h
  • Typical backup time at full load: 2 min
  • Typical backup time at half load: 11 min
Design (1)
  • Form factor: Tower
Other features (1)
  • Dimensions (WxDxH): 100 x 355 x 281 mm
Additional specifications (55)
  • Output power capacity: 1.6 kVA
  • Output power: 960 W
  • Waveform: Sine
  • Input operation voltage (min): 167 V
  • Input operation voltage (max): 295 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (max): 230 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 10%
  • Automatic Voltage Regulation (AVR): Yes
  • Maximum current: 6.96 A
  • Surge energy rating: 450 J
  • Response time: 4 ms
  • Heat dissipation: 68 BTU/h
  • Number of input phases: 1
  • Number of output phases: 1
  • EMI/RFI noise filtering: Yes
  • Surge protection: Yes
  • Power protection features: Over voltage
  • Audible alarm(s): Yes
  • Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
  • AC outlet types: Type F
  • Power plug: C14 coupler
  • AC outlets quantity: 5 AC outlet(s)
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • USB port type: USB Type-B
  • Serial interface: Yes
  • Serial interface type: RS-232
  • Serial ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 2
  • Cabling technology: 10/100/1000Base-T(X)
  • Battery technology: Sealed Lead Acid (VRLA)
  • Housing material: Plastic
  • Cable length: 1.5 m
  • Product colour: Black
  • Display type: LCD
  • LED indicators: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 50 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Storage relative humidity (H-H): 0 - 90%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Compliance certificates: RoHS
  • Certification: CE, RCM
  • Cables included: USB cable
  • Manual: Yes
  • Sustainability compliance: Yes
  • Width: 100 mm
  • Depth: 355 mm
  • Height: 281 mm
  • Weight: 10.4 kg
  • Harmonized System (HS) code: 8504408590
  • Country of origin: China

CyberPower VP1600ELCD — Backup UPS Systems, 1600 VA, 960 W

€270,31
€270,31
Tax included.
