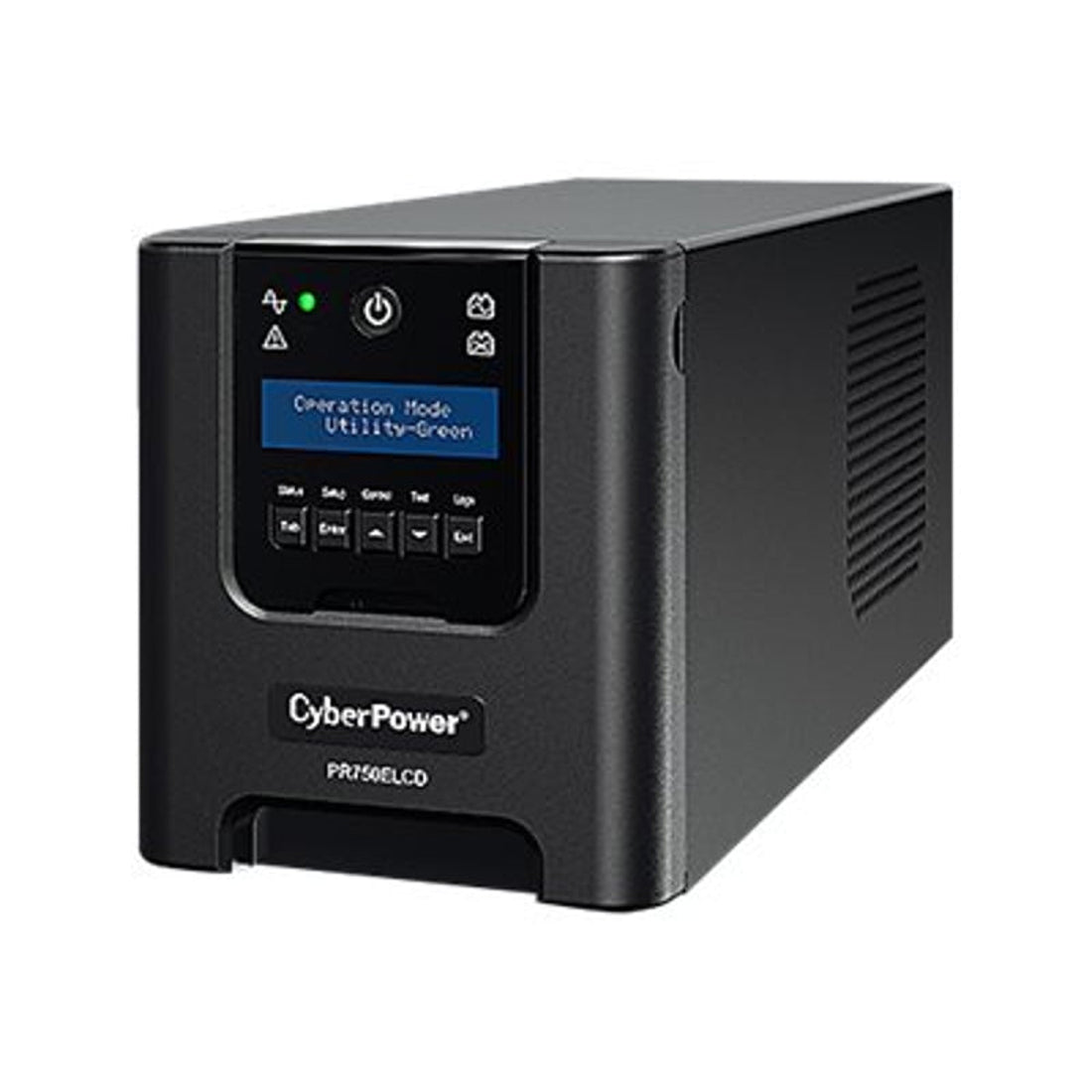

The CyberPower Smart App UPS Systems PR750ELCD is designed for users needing reliable power backup for their electronic devices. This tower UPS is suitable for home and office environments, ensuring devices remain operational during power interruptions.

Provides up to 10.5 minutes of backup time at half load, allowing for safe shutdown of devices during outages.
Features pure sine wave output for compatibility with sensitive equipment, ensuring stable operation.
Includes Automatic Voltage Regulation (AVR) to maintain consistent voltage levels and protect equipment from power fluctuations.
USB connectivity allows for easy management through PowerPanel software, helping users monitor and control their power needs.
Detachable LCD panel offers at-a-glance monitoring of power status, including battery life and output load.

Specifications (3)

Producer product family: Smart App UPS Systems
Producer product name: PR750ELCD
Warranty: 24 month(s)

Performance (2)

Capacity: 750 VA
UPS topology: Line-Interactive

Technical details (3)

Capacity: 675 W
Net weight: 12.30 kg
Other features: Line-interactive UPS Topology; Active PFC Compatible; Automatic Voltage Regulation (AVR); Critical/Non-critical Load Outlets; Surge and Spike Protection; LCD Status Display; USB Connectivity Port; PowerPanel Management Software; Tower Form Factor; Energy Saving Technology; Pure Sine Wave Output; Overload Protection; Hot-swappable Batteries; EMI and RFI Filtration; Detachable LCD Panel; Emergency Power Off (EPO) Port; SNMP/HTTP Remote Management Capability (Optional)

Battery (3)

Battery recharge time: 8 (Typical); 3 (Quick) h
Typical backup time at full load: 2.5 min
Typical backup time at half load: 10.5 min

Design (1)

Form factor: Tower

Other features (1)

Dimensions (WxDxH): 136 x 349 x 162 mm

Additional specifications (41)

Output power capacity: 0.75 kVA
Output power: 675 W
Waveform: Pure sine
Input operation voltage (min): 150 V
Input operation voltage (max): 301 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Maximum current: 10 A
Surge energy rating: 405 J
Response time: 4 ms
Power factor: 0.9
EMI/RFI noise filtering: Yes
Surge protection: Yes
Power protection features: Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
USB port: Yes
Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Hot-swap battery: Yes
Housing material: Metal
Product colour: Black
Display type: LCD
LED indicators: Error, Operation
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Certification: CE, EAC, RCM, RoHS
Cables included: USB cable
Width: 349 mm
Depth: 138 mm
Height: 162 mm
Weight: 12.3 kg
Harmonized System (HS) code: 8504408590
Country of origin: China
Overload protection: Yes
