Description

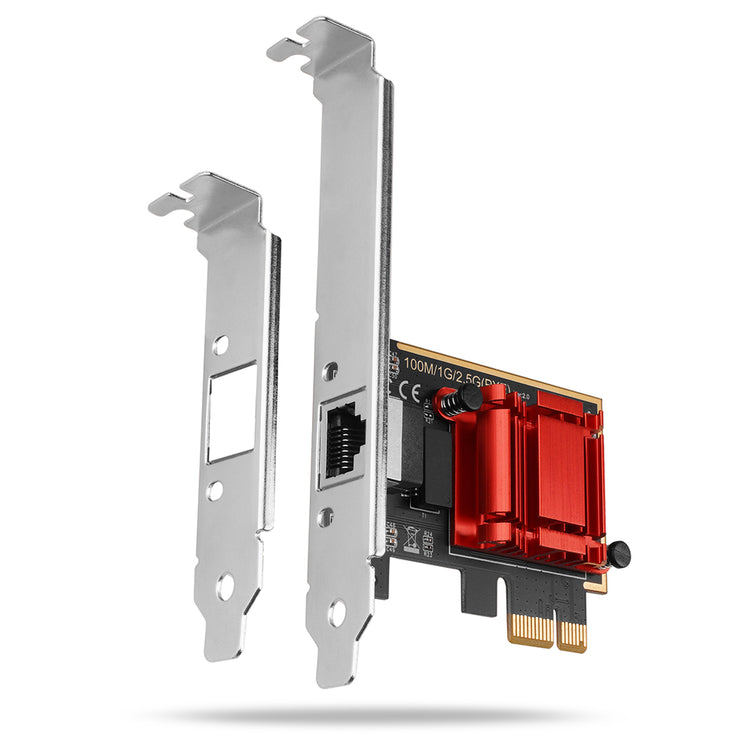

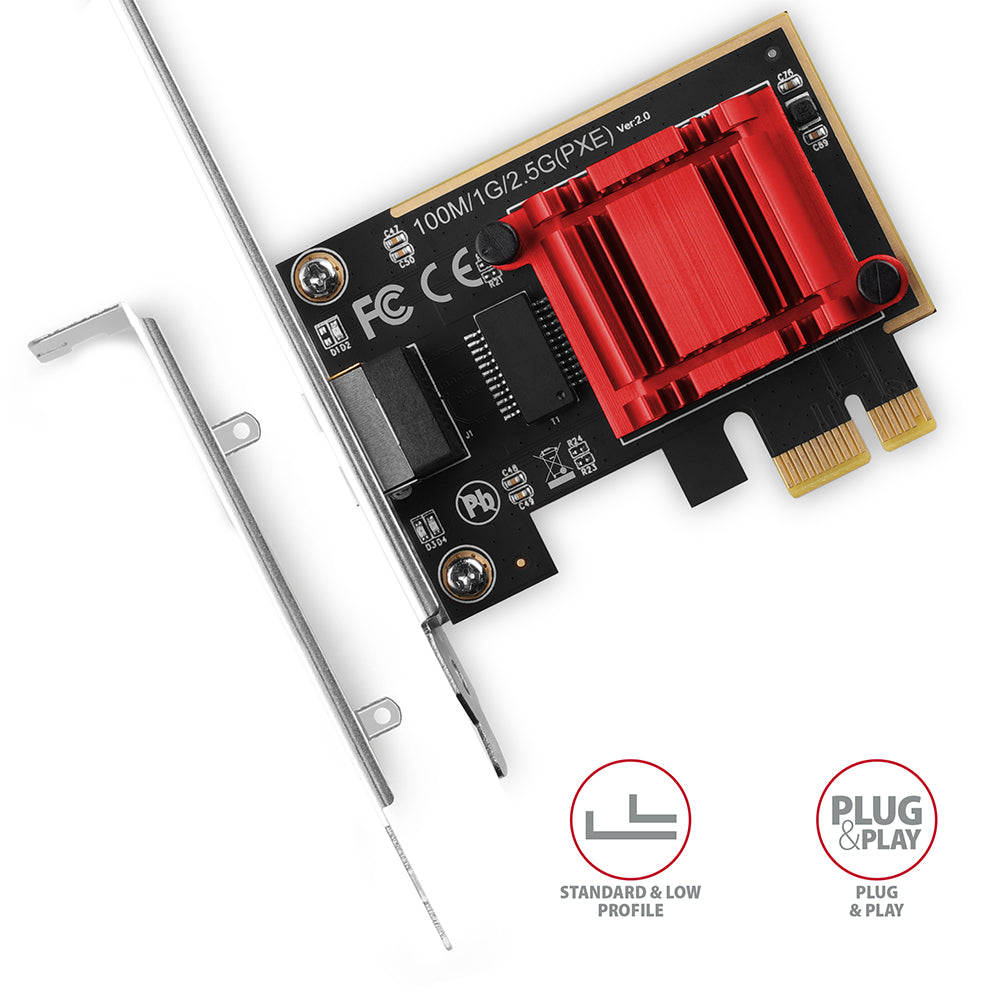

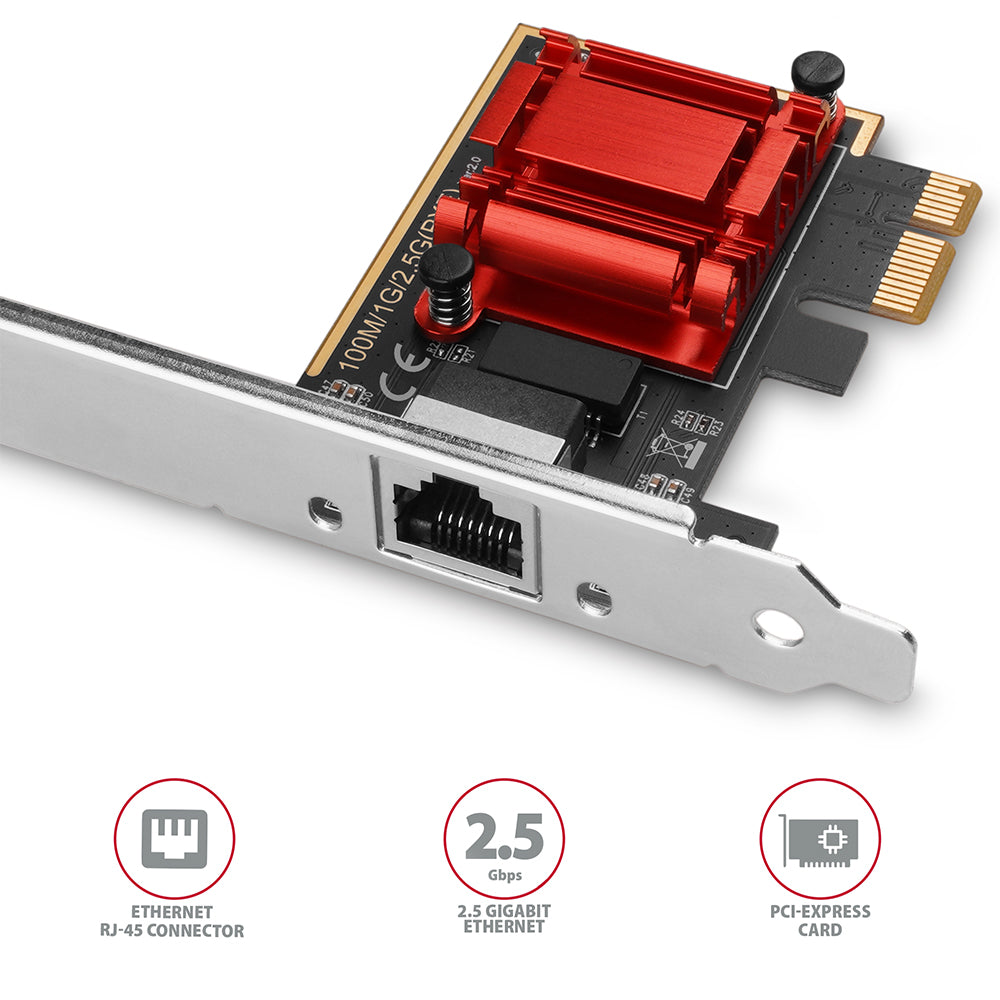

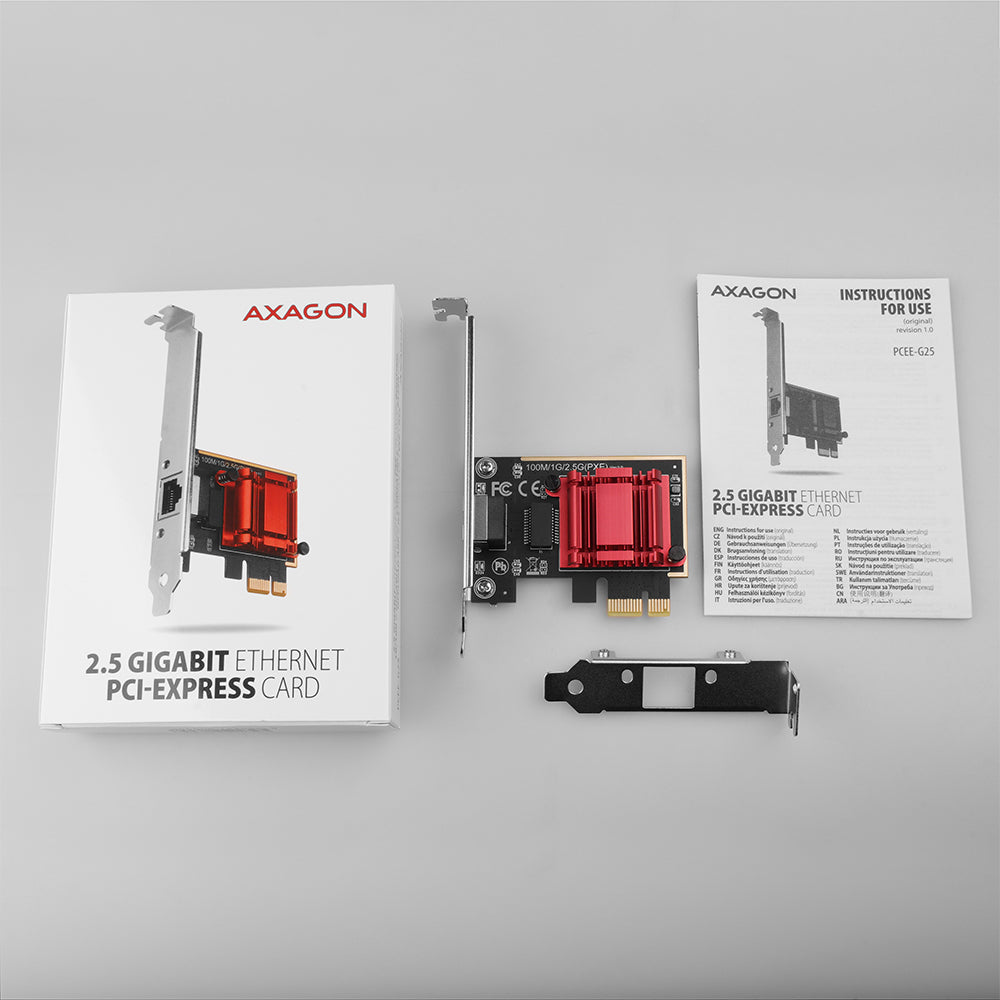

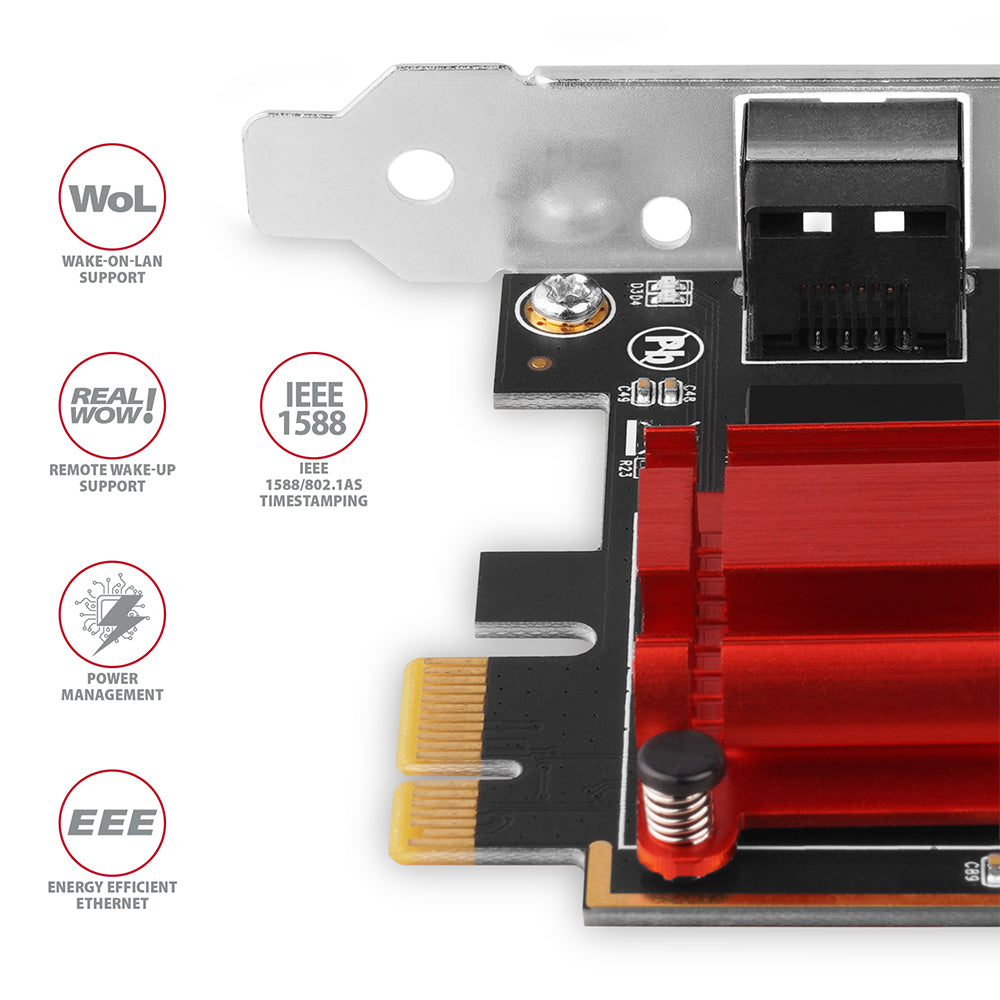

The AXAGON PCEE-G25 is a PCI-Express network card designed for users seeking faster wired network connectivity. It is suitable for PCs and enhances internet speed with its 2.5 Gbit/s transmission rate, making it ideal for gaming, streaming, and large file transfers.

  • Supports Ethernet data rates of 10, 100, 1000, and 2500 Mbit/s for versatile networking needs.
  • Equipped with Wake-on-LAN for remote management and energy efficiency.
  • Includes VLAN support for better network traffic management.
  • Integrates easily with Plug and Play functionality, ensuring a hassle-free setup.
  • Features LED indicators for real-time network activity monitoring.
Technical details (3)
  • Producer product family: PCI-Express network card with 2.5 Gbit/s transmission rate and PXE support
  • Producer product name: PCEE-G25
  • Net weight: 0.05 kg
Specifications (1)
  • Warranty: 36 month(s)
Additional specifications (34)
  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Ethernet
  • Ethernet LAN (RJ-45) ports: 1
  • PCI version: 2.1
  • PCI Card form factor: Full-height (low-profile)
  • Maximum data transfer rate: 2500 Mbit/s
  • Networking standards: IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
  • Cabling technology: 10/100/1000BaseT(X)
  • Wake-on-LAN ready: Yes
  • Full duplex: Yes
  • VLAN support: Yes
  • LAN controller: Realtek RTL8125B
  • Component for: PC
  • Product colour: Red, Silver
  • Internal: Yes
  • Chipset: Realtek RTL8125B
  • Plug and Play: Yes
  • LED indicators: Yes
  • Country of origin: China
  • Certification: CE, RoHS
  • Windows operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Other operating systems supported: Yes
  • Server operating systems supported: Yes
  • Mounting brackets included: Yes
  • Manual: Yes
  • Warranty period: 3 year(s)
  • Compliance certificates: RoHS, CE
  • Bracket height: Low-Profile (LP) / Full-Height (FH)
