About

Description

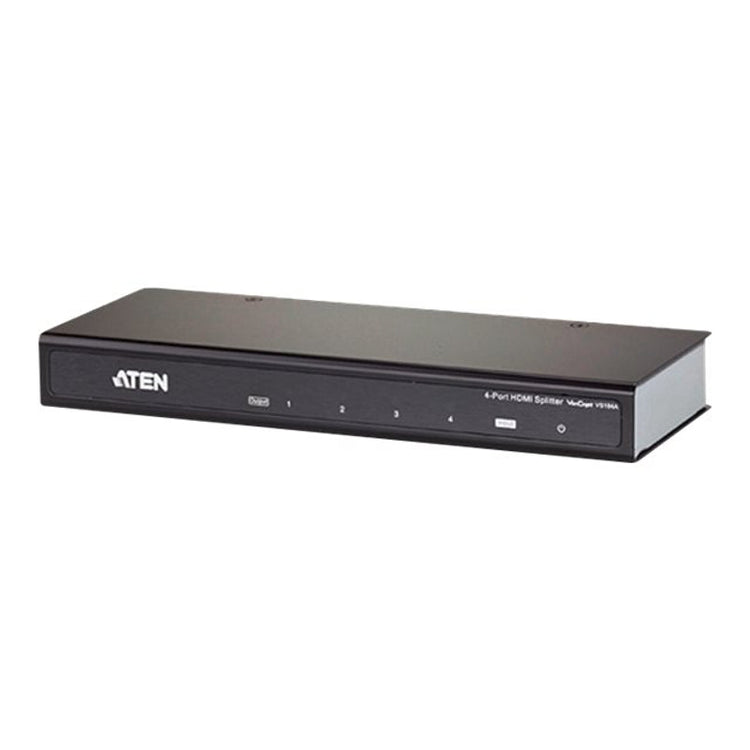

The Aten VS184A is a 4-Port 4K HDMI Splitter, ideal for users who need to connect a single HDMI source to multiple displays simultaneously. This device is suitable for both home and professional setups, enhancing your media experience across different screens.

  • Enables connection of one HDMI source to four displays, allowing for versatile viewing options.
  • Supports 4K Ultra HD resolution up to 4096 x 2160 pixels for high-quality visual output.
  • Provides long-distance transmission capabilities up to 15 meters, making installation flexible.
  • Compatible with 3D and advanced audio formats like DTS-HD Master Audio and Dolby TrueHD, enhancing entertainment quality.
  • Plug and Play functionality ensures easy setup without requiring additional software.
Specifications (3)
  • Producer product family: 4-Port 4K HDMI Splitter
  • Producer product name: VS184A
  • Warranty: 24 month(s)
Design (1)
  • Material: Metal
Features (1)
  • Connector 1: 1 x DC Jack
Operational conditions (1)
  • Temperature range (T-T): 0-50˚C °C
Technical details (2)
  • Net weight: 0.47 kg
  • Other features: Connects one HDMI source to four HDMI displays at the same time. HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant. Long distance transmission – up to 15 m (24 AWG). Supports max. data rate of 10.2 Gbps
Additional specifications (35)
  • Video port type: HDMI
  • Video out: 4x HDMI
  • Video ports quantity: 5
  • DC-in jack: Yes
  • Product colour: Black
  • Maximum resolution: 4096 x 2160 pixels
  • HD type: 4K Ultra HD
  • 3D: Yes
  • Maximum operating distance: 15 m
  • Maximum refresh rate: 60 Hz
  • Bandwidth: 340 MHz
  • HDCP version: 1.4
  • HDCP: Yes
  • Plug and Play: Yes
  • LED indicators: Yes
  • Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
  • AC input voltage: 5 V
  • Power consumption (typical): 6.02 W
  • Width: 80 mm
  • Depth: 200 mm
  • Height: 25 mm
  • Weight: 703 g
  • Manual: Yes
  • Cables included: HDMI
  • AC adapter included: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Master (outer) case net weight: 14.1 kg
  • Harmonized System (HS) code: 85176990
  • Master (outer) case width: 315 mm
  • Master (outer) case length: 490 mm
  • Master (outer) case height: 338 mm
  • Products per master (outer) case: 20 pc(s)
Description

The Aten VS184A is a 4-Port 4K HDMI Splitter, ideal for users who need to connect a single HDMI source to multiple displays simultaneously. This device is suitable for both home and professional setups, enhancing your media experience across different screens.

  • Enables connection of one HDMI source to four displays, allowing for versatile viewing options.
  • Supports 4K Ultra HD resolution up to 4096 x 2160 pixels for high-quality visual output.
  • Provides long-distance transmission capabilities up to 15 meters, making installation flexible.
  • Compatible with 3D and advanced audio formats like DTS-HD Master Audio and Dolby TrueHD, enhancing entertainment quality.
  • Plug and Play functionality ensures easy setup without requiring additional software.
Specifications (3)
  • Producer product family: 4-Port 4K HDMI Splitter
  • Producer product name: VS184A
  • Warranty: 24 month(s)
Design (1)
  • Material: Metal
Features (1)
  • Connector 1: 1 x DC Jack
Operational conditions (1)
  • Temperature range (T-T): 0-50˚C °C
Technical details (2)
  • Net weight: 0.47 kg
  • Other features: Connects one HDMI source to four HDMI displays at the same time. HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant. Long distance transmission – up to 15 m (24 AWG). Supports max. data rate of 10.2 Gbps
Additional specifications (35)
  • Video port type: HDMI
  • Video out: 4x HDMI
  • Video ports quantity: 5
  • DC-in jack: Yes
  • Product colour: Black
  • Maximum resolution: 4096 x 2160 pixels
  • HD type: 4K Ultra HD
  • 3D: Yes
  • Maximum operating distance: 15 m
  • Maximum refresh rate: 60 Hz
  • Bandwidth: 340 MHz
  • HDCP version: 1.4
  • HDCP: Yes
  • Plug and Play: Yes
  • LED indicators: Yes
  • Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
  • AC input voltage: 5 V
  • Power consumption (typical): 6.02 W
  • Width: 80 mm
  • Depth: 200 mm
  • Height: 25 mm
  • Weight: 703 g
  • Manual: Yes
  • Cables included: HDMI
  • AC adapter included: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Master (outer) case net weight: 14.1 kg
  • Harmonized System (HS) code: 85176990
  • Master (outer) case width: 315 mm
  • Master (outer) case length: 490 mm
  • Master (outer) case height: 338 mm
  • Products per master (outer) case: 20 pc(s)

Aten VS184A — 4-Port 4K HDMI Splitter

€111,59
€111,59
Tax included.
