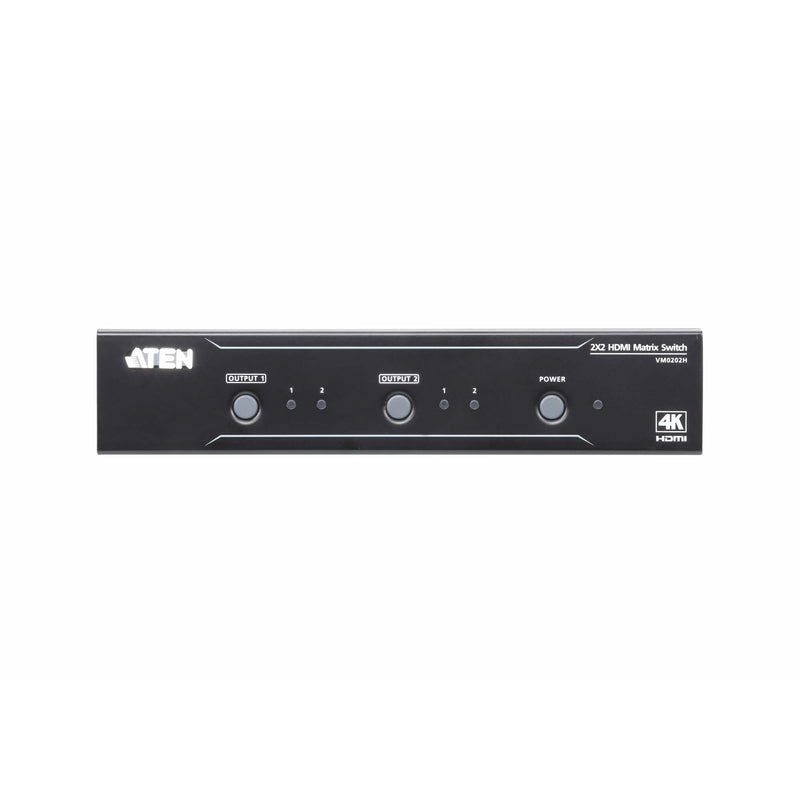

The Aten VM0202H is a 2x2 4K HDMI Matrix Switch designed for users who need to connect two HDMI sources and switch between two HDMI displays easily. This device is suitable for conferences, presentations, or home entertainment systems where multiple devices need access to different displays.

  • Supports resolutions up to 4096 x 2160 at 60Hz, ensuring high-quality video output.
  • Allows you to connect and switch between two HDMI sources and displays, providing flexibility in your setup.
  • Features multiple control methods including front panel buttons, an IR remote, and RS-232 control for convenient operation.
  • Includes an IR control system with receiver, making it easy to manage the switch from a distance.
  • Firmware upgradeable, allowing for updates and improvements to maintain functionality.
Specifications (2)
  • Producer product family: 2x2 4K HDMI Martrix Switch
  • Producer product name: VM0202H
Technical details (3)
  • Warranty: 36 month(s)
  • Net weight: 0.58 kg
  • Other features: Connects 2 HDMI sources to any 2 HDMI displays; HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible; Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane); Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Operational conditions (2)
  • Operating relative humidity (H-H): 0 - 80% RH, Non-Condensing %
  • Operating temperature (T-T): 0 to 40 °C
Other features (2)
  • Dimensions (WxDxH): 7.6 x 20 x 4.2 cm
  • Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Packaging content (1)
  • Manual: 1x VM0202H 2x2 4K HDMI Matrix Switch; 1x Rack Mount Kit; 1x Power Adapter; 1x IR Control; 1x IR Receiver; 1x User Instructions
Additional specifications (43)
  • Product type: AV matrix switcher
  • Data transfer rate: 10.2 Gbit/s
  • Maximum pixel clock: 340 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • HDCP version: 1.4
  • 3D: Yes
  • Firmware upgradeable: Yes
  • Extended display identification data (EDID): Yes
  • Supported resolutions: 4096 x 2160, 3840 x 2160
  • Housing colour: Black
  • Housing material: Metal
  • Rack mounting: Yes
  • Control type: Buttons
  • LED indicators: Yes
  • Remote control included: Yes
  • Built-in display: No
  • HDMI input ports quantity: 2
  • HDMI output ports quantity: 2
  • USB connector type: Micro-USB
  • USB ports quantity: 1
  • RS-232 ports: 1
  • DC-in jack: Yes
  • Power consumption (typical): 4.3 W
  • Storage temperature (T-T): -20 - 60 °C
  • Storage relative humidity (H-H): 0 - 80%
  • Products per master (outer) case: 5 pc(s)
  • Master (outer) case length: 325 mm
  • Master (outer) case width: 250 mm
  • Master (outer) case height: 175 mm
  • Master (outer) case net weight: 4.2 kg
  • Harmonized System (HS) code: 85299097
  • Width: 200 mm
  • Depth: 76 mm
  • Height: 42 mm
  • Weight: 840 g
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 980 g
  • Rack mount kit: Yes
  • AC adapter included: Yes
  • IR receiver included: Yes
