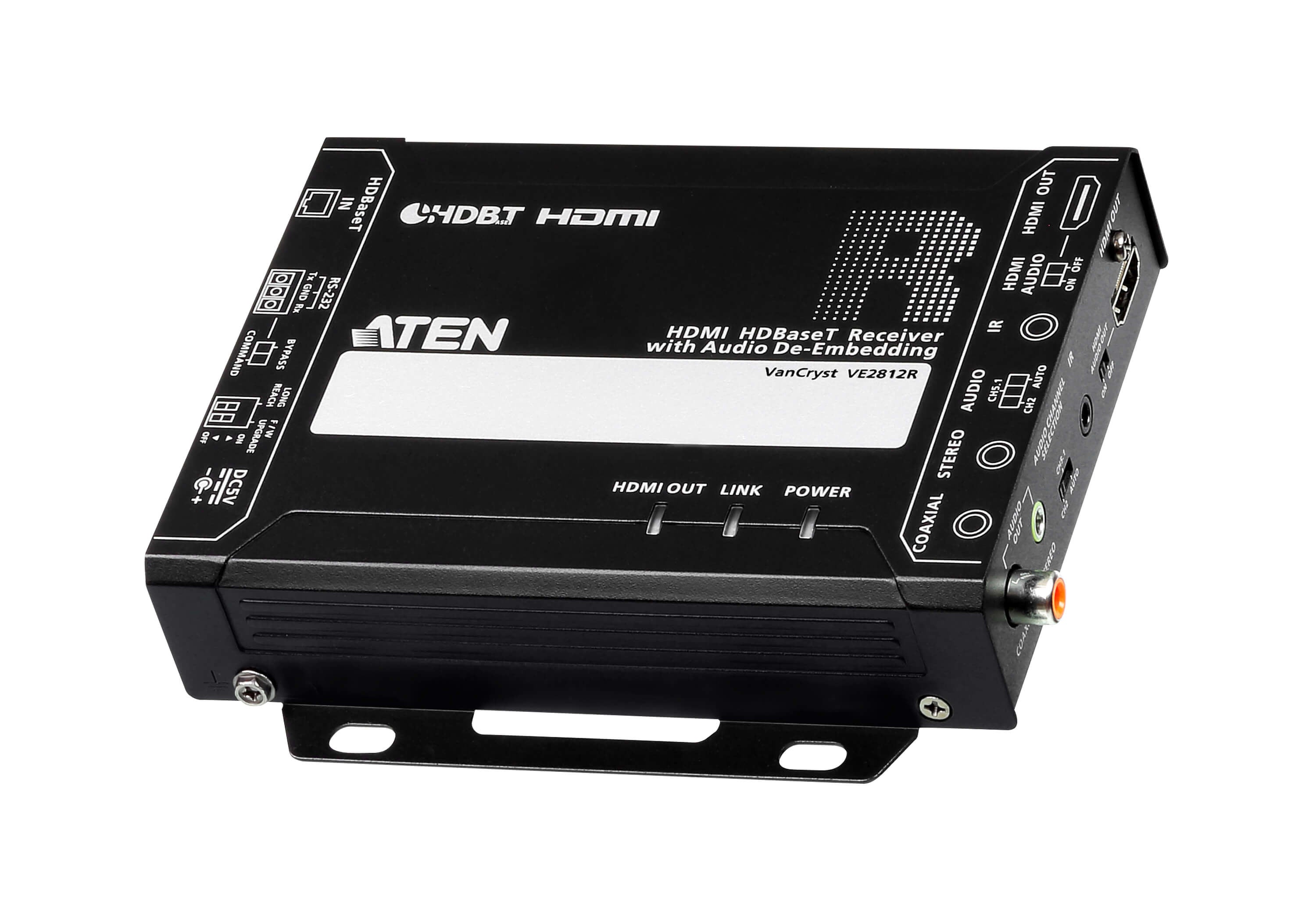

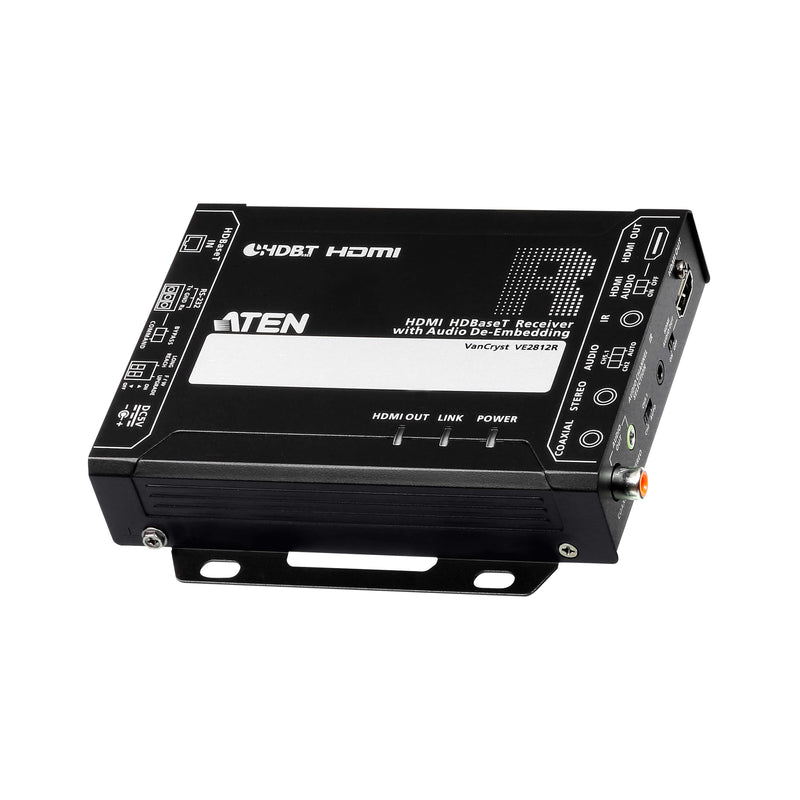

The Aten VE2812R is an HDMI HDBaseT Receiver designed for seamless AV connectivity and audio de-embedding. It supports resolutions up to 4K at a distance of 70 meters using Cat 5e/6 cables and features multiple output options including HDMI, Mini Stereo Jack, and SPDIF.

• Supports 4K resolution at 70m (Cat 5e/6) and 100m (Cat 6a)
• Output connections: 1xHDMI, 1xMini Stereo Jack, 1xSPDIF Coaxial
• Plug-and-play functionality for easy setup
• Bi-directional IR signal transmission support
• Firmware upgradeable with LED indicators for status

Specifications

• Producer product family: HDMI HDBaseT Receiver with Audio De-Embedding
• Producer product name: VE2812R
• Warranty: 24 month(s)

Technical details

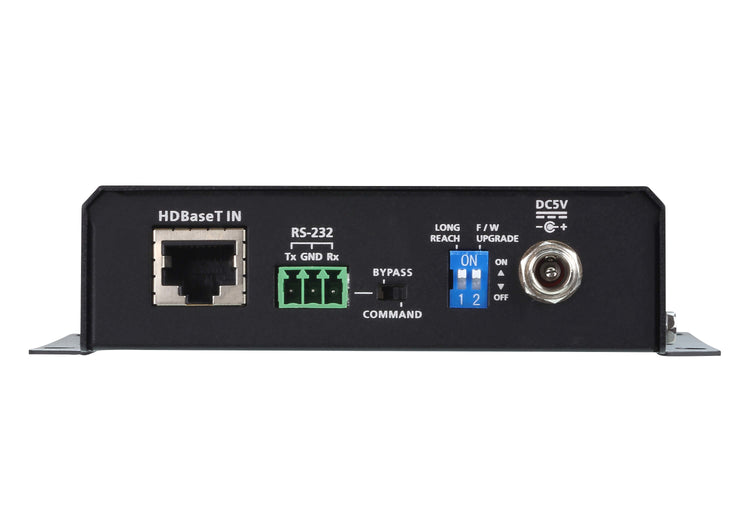

• Connector type: 1xDC Jack (Power), 1xRJ-45 Female (Unit To Unit)
• Net weight: 0.46 kg
• Other features: Plug-and-play; Supports bi-directional IR signal transmission - two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time

Other features

• Resolution: 4K at 70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p at 100m (Cat 5e/6/6a)
• Weight: 0.46 kg

Ports & interfaces

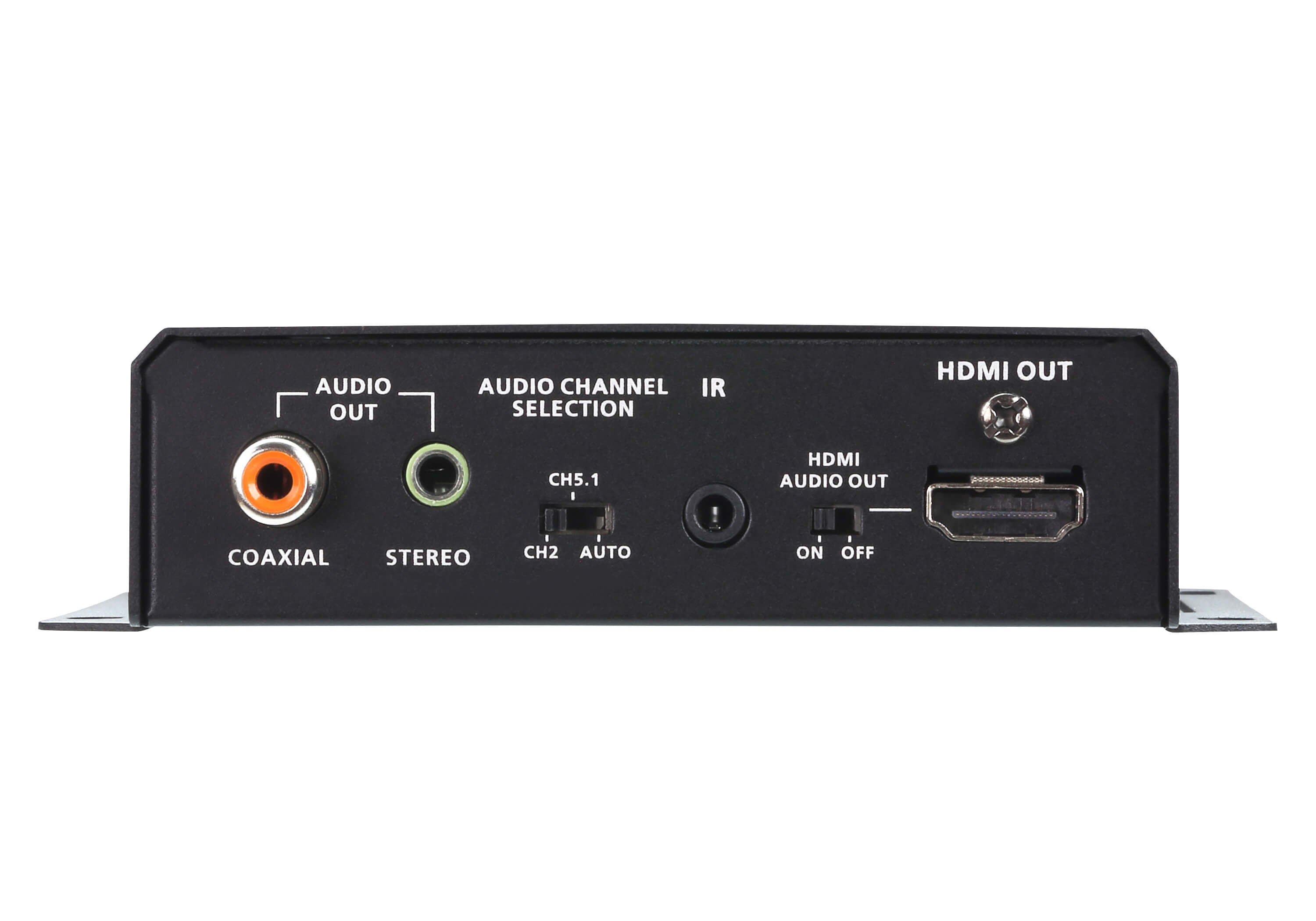

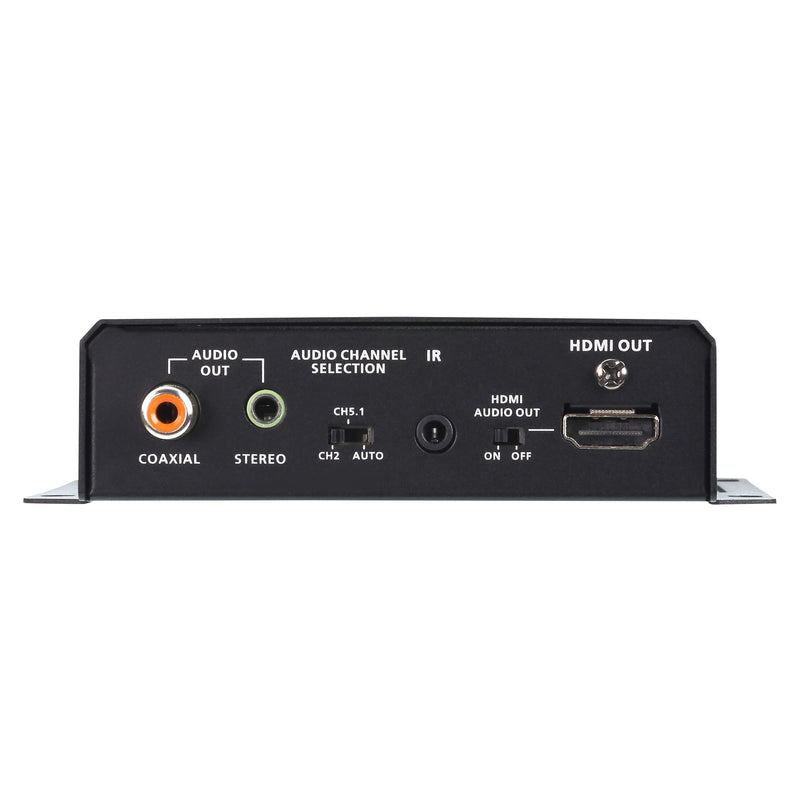

• Output connections: 1xHDMI Type A Female (Black), 1xMini Stereo Jack Female (Green), 1xSPDIF Coaxial Female (Orange)

Additional specifications

• Type: AV receiver
• Maximum resolution: 4096 x 2160 pixels
• Cable types supported: Cat5e, Cat6
• Maximum transfer distance: 100 m
• Extended display identification data (EDID): Yes
• Electrostatic Discharge (ESD) protection: Yes
• LED indicators: Yes
• Supported video modes: 1080p
• Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
• Bandwidth: 10.2 Gbit/s
• HDCP: Yes
• Material: Metal
• 3D: Yes
• Firmware upgradeable: Yes
• Consumer Electronics Control (CEC) support: Yes
• Baud rate: 19.2 Kbit/s
• Plug and Play: Yes
• Impedance: 100 Ω
• HDCP version: 2.2
• Product colour: Black
• Connectivity technology: Wired
• Ethernet LAN: Yes
• RJ-45 input ports: 1
• HDBaseT port: Yes
• Number of HDMI outputs: 1
• HDMI version: 1.4
• RS-232 input ports: 1
• Digital audio coaxial out: 2
• Video out: 1
• Audio output: 2
• 3.5 mm (1/8-inch) out: Yes
• Remote (IR) input: 1
• DC-in jack: Yes
• Operating voltage (receiver): 5 V
• Power consumption (receiver) (max): 4.98 W
• External power adapter: Yes
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 101 mm
• Depth: 136 mm
• Height: 29 mm
• AC adapter included: Yes
• Compliance certificates: RoHS
• Master (outer) case width: 250 mm
• Master (outer) case length: 325 mm
• Master (outer) case height: 175 mm
• Master (outer) case net weight: 3.6 kg
• Products per master (outer) case: 5 pc(s)
