About

Description

The Aten USB VGA Cat 5 Mini KVM Extender is designed for users who need to access a computer from a distance, making it suitable for offices or home setups. It allows you to extend your computer's VGA, keyboard, and mouse functionality up to 100 meters, providing flexibility in your workspace.

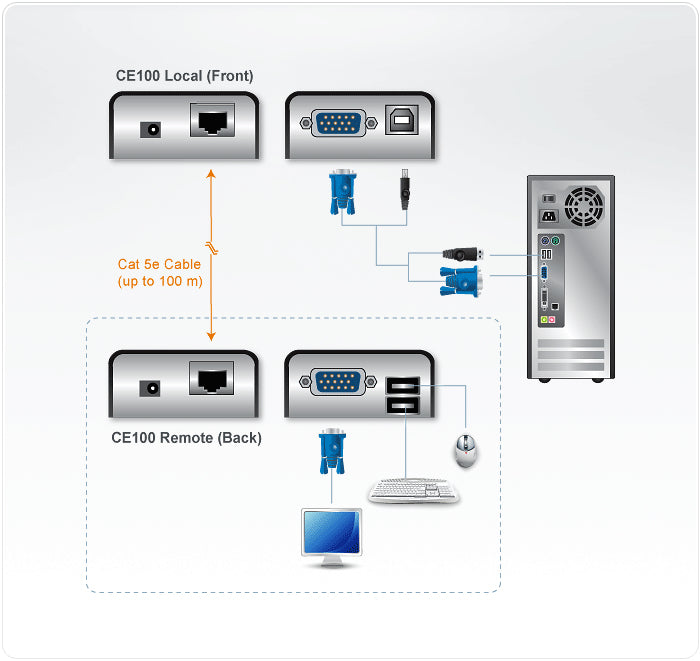

  • Extends VGA, keyboard, and mouse from a local PC to a remote unit, ideal for long-distance setups.
  • Utilizes Cat 5e cables for reliable and efficient connectivity, simplifying installation.
  • Supports video resolutions up to 1920 x 1200, ensuring clear and high-quality display.
  • Features built-in 8KV/15KV ESD protection, enhancing device durability and reliability.
  • Does not require an external power supply for the local unit, streamlining installation and reducing clutter.
Specifications (5)
  • Producer product family: Extender
  • Producer product name: USB VGA Cat 5 Mini KVM Extender
  • Features: Extends local PC VGA/keyboard/Mouse to Remote side. Uses Cat 5e cable to connect the local and remote units. Easily add or remove computers connected to the installation. Supports real time DDC communication. Superior video quality – up to 1920 x 1200. Allow access to a computer from the remote console up to 100 m distance. Support manual compensation adjustment for better video quality. No external power supply needed for local unit. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV). Wall mountable.
  • Operating temperature: 0–50°C
  • Warranty: 24 month(s)
Operational conditions (1)
  • Storage temperature (T-T): -20–60 °C
Ports & interfaces (2)
  • DC-in jack: Yes
  • KVM Ports: 1 x USB Type B Female (White) 1 x HDB-15 Male (Blue)
Technical details (1)
  • Net weight: 0.17 kg
Additional specifications (29)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 100 m
  • Cable types supported: Cat5
  • Maximum digital resolution: 1920 x 1200 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power
  • USB port type: USB Type-B/ USB Type-A
  • USB 2.0 ports quantity: 3
  • RJ-45 ports quantity: 2
  • Transmitter width: 5.74 cm
  • Transmitter depth: 9.1 cm
  • Transmitter height: 2.4 cm
  • Transmitter weight: 170 g
  • Receiver width: 5.74 cm
  • Receiver depth: 9.1 cm
  • Receiver height: 2.4 cm
  • Receiver weight: 170 g
  • Cables included: USB, VGA
  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Weight: 603 g
  • Master (outer) case net weight: 12.1 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 315 mm
  • Master (outer) case length: 490 mm
  • Master (outer) case height: 338 mm
  • Products per master (outer) case: 20 pc(s)
Description

The Aten USB VGA Cat 5 Mini KVM Extender is designed for users who need to access a computer from a distance, making it suitable for offices or home setups. It allows you to extend your computer's VGA, keyboard, and mouse functionality up to 100 meters, providing flexibility in your workspace.

  • Extends VGA, keyboard, and mouse from a local PC to a remote unit, ideal for long-distance setups.
  • Utilizes Cat 5e cables for reliable and efficient connectivity, simplifying installation.
  • Supports video resolutions up to 1920 x 1200, ensuring clear and high-quality display.
  • Features built-in 8KV/15KV ESD protection, enhancing device durability and reliability.
  • Does not require an external power supply for the local unit, streamlining installation and reducing clutter.
Specifications (5)
  • Producer product family: Extender
  • Producer product name: USB VGA Cat 5 Mini KVM Extender
  • Features: Extends local PC VGA/keyboard/Mouse to Remote side. Uses Cat 5e cable to connect the local and remote units. Easily add or remove computers connected to the installation. Supports real time DDC communication. Superior video quality – up to 1920 x 1200. Allow access to a computer from the remote console up to 100 m distance. Support manual compensation adjustment for better video quality. No external power supply needed for local unit. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV). Wall mountable.
  • Operating temperature: 0–50°C
  • Warranty: 24 month(s)
Operational conditions (1)
  • Storage temperature (T-T): -20–60 °C
Ports & interfaces (2)
  • DC-in jack: Yes
  • KVM Ports: 1 x USB Type B Female (White) 1 x HDB-15 Male (Blue)
Technical details (1)
  • Net weight: 0.17 kg
Additional specifications (29)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 100 m
  • Cable types supported: Cat5
  • Maximum digital resolution: 1920 x 1200 pixels
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power
  • USB port type: USB Type-B/ USB Type-A
  • USB 2.0 ports quantity: 3
  • RJ-45 ports quantity: 2
  • Transmitter width: 5.74 cm
  • Transmitter depth: 9.1 cm
  • Transmitter height: 2.4 cm
  • Transmitter weight: 170 g
  • Receiver width: 5.74 cm
  • Receiver depth: 9.1 cm
  • Receiver height: 2.4 cm
  • Receiver weight: 170 g
  • Cables included: USB, VGA
  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Weight: 603 g
  • Master (outer) case net weight: 12.1 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 315 mm
  • Master (outer) case length: 490 mm
  • Master (outer) case height: 338 mm
  • Products per master (outer) case: 20 pc(s)

Aten USB VGA Cat 5 Mini KVM Extender

€166,15
