Description

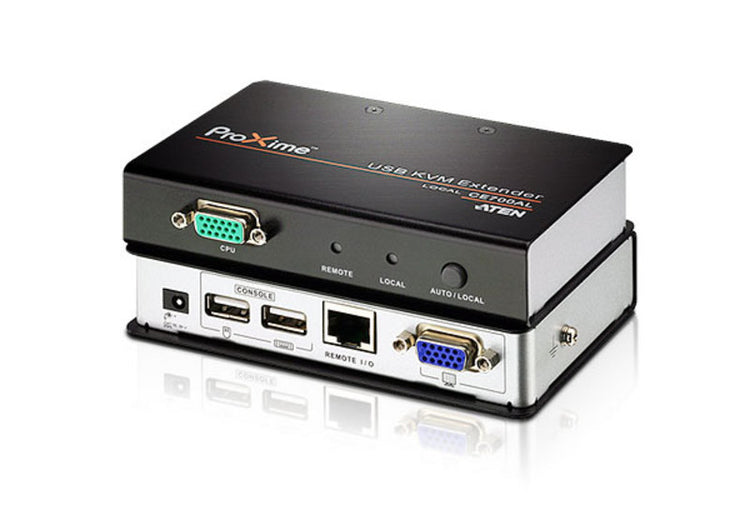

The Aten USB VGA Cat 5 KVM Extender is designed for users needing to control their systems from two locations—local and remote. Suitable for environments requiring flexibility in access, it supports high-resolution video and enables dual console operation for efficient multitasking.

  • Connects local and remote units using Cat 5e cable over distances up to 150m, allowing for expanded workspace.
  • Supports resolutions up to 1280 x 1024 at 150m, enabling clear and detailed display quality.
  • Features dual console operation, letting you control your system from both local and remote keyboard, mouse, and monitor.
  • Automatic gain control adjusts the signal strength based on distance, ensuring reliable performance.
  • Rack mounting capability allows for organized and space-efficient installation in server rooms.
Specifications (2)
  • Producer product name: USB VGA Cat 5 KVM Extender (1280 x 1024@150m)
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 0.33 kg
  • Other features: Cat 5e cable connects the Local and Remote Units - up to 150m apart. Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles. High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m). Automatic gain control - adjusts signal strength to compensate for distance. CE700AL- Console Ports: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) KVM Ports:1 x SPHD-17 Female (Green); Unit To Unit: 1 x RJ-45 Female (Black) Power:1 x DC Jack (Black). CE700AR- Console Ports: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue); Unit To Unit: 1 x RJ-45 Female (Black); Power: 1 x DC Jack (Black).
Additional specifications (37)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e
  • Rack mounting: Yes
  • Supported resolutions: 1920 x 1200, 1600 x 1200, 1280 x 1024
  • Product colour: Black, Grey
  • Material: Metal
  • LED indicators: Link, Power
  • Transmitter video port type: VGA
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: VGA
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • AC adapter output voltage: 5.3 V
  • Transmitter width: 12.7 cm
  • Transmitter depth: 8.65 cm
  • Transmitter height: 2.5 cm
  • Transmitter weight: 330 g
  • Receiver width: 12.7 cm
  • Receiver depth: 8.14 cm
  • Receiver height: 2.5 cm
  • Receiver weight: 320 g
  • Manual: Yes
  • Quick installation guide: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Weight: 1.14 kg
  • Master (outer) case net weight: 5.67 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 300 mm
  • Master (outer) case length: 336 mm
  • Master (outer) case height: 194 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten USB VGA Cat 5 KVM Extender is designed for users needing to control their systems from two locations—local and remote. Suitable for environments requiring flexibility in access, it supports high-resolution video and enables dual console operation for efficient multitasking.

  • Connects local and remote units using Cat 5e cable over distances up to 150m, allowing for expanded workspace.
  • Supports resolutions up to 1280 x 1024 at 150m, enabling clear and detailed display quality.
  • Features dual console operation, letting you control your system from both local and remote keyboard, mouse, and monitor.
  • Automatic gain control adjusts the signal strength based on distance, ensuring reliable performance.
  • Rack mounting capability allows for organized and space-efficient installation in server rooms.
Specifications (2)
  • Producer product name: USB VGA Cat 5 KVM Extender (1280 x 1024@150m)
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 0.33 kg
  • Other features: Cat 5e cable connects the Local and Remote Units - up to 150m apart. Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles. High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m). Automatic gain control - adjusts signal strength to compensate for distance. CE700AL- Console Ports: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) KVM Ports:1 x SPHD-17 Female (Green); Unit To Unit: 1 x RJ-45 Female (Black) Power:1 x DC Jack (Black). CE700AR- Console Ports: 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue); Unit To Unit: 1 x RJ-45 Female (Black); Power: 1 x DC Jack (Black).
Additional specifications (37)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5e
  • Rack mounting: Yes
  • Supported resolutions: 1920 x 1200, 1600 x 1200, 1280 x 1024
  • Product colour: Black, Grey
  • Material: Metal
  • LED indicators: Link, Power
  • Transmitter video port type: VGA
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: VGA
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • AC adapter output voltage: 5.3 V
  • Transmitter width: 12.7 cm
  • Transmitter depth: 8.65 cm
  • Transmitter height: 2.5 cm
  • Transmitter weight: 330 g
  • Receiver width: 12.7 cm
  • Receiver depth: 8.14 cm
  • Receiver height: 2.5 cm
  • Receiver weight: 320 g
  • Manual: Yes
  • Quick installation guide: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Weight: 1.14 kg
  • Master (outer) case net weight: 5.67 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 300 mm
  • Master (outer) case length: 336 mm
  • Master (outer) case height: 194 mm
  • Products per master (outer) case: 5 pc(s)

Aten USB VGA Cat 5 KVM Extender (1280 x 1024@150m)

€256,67
€256,67
Tax included.
