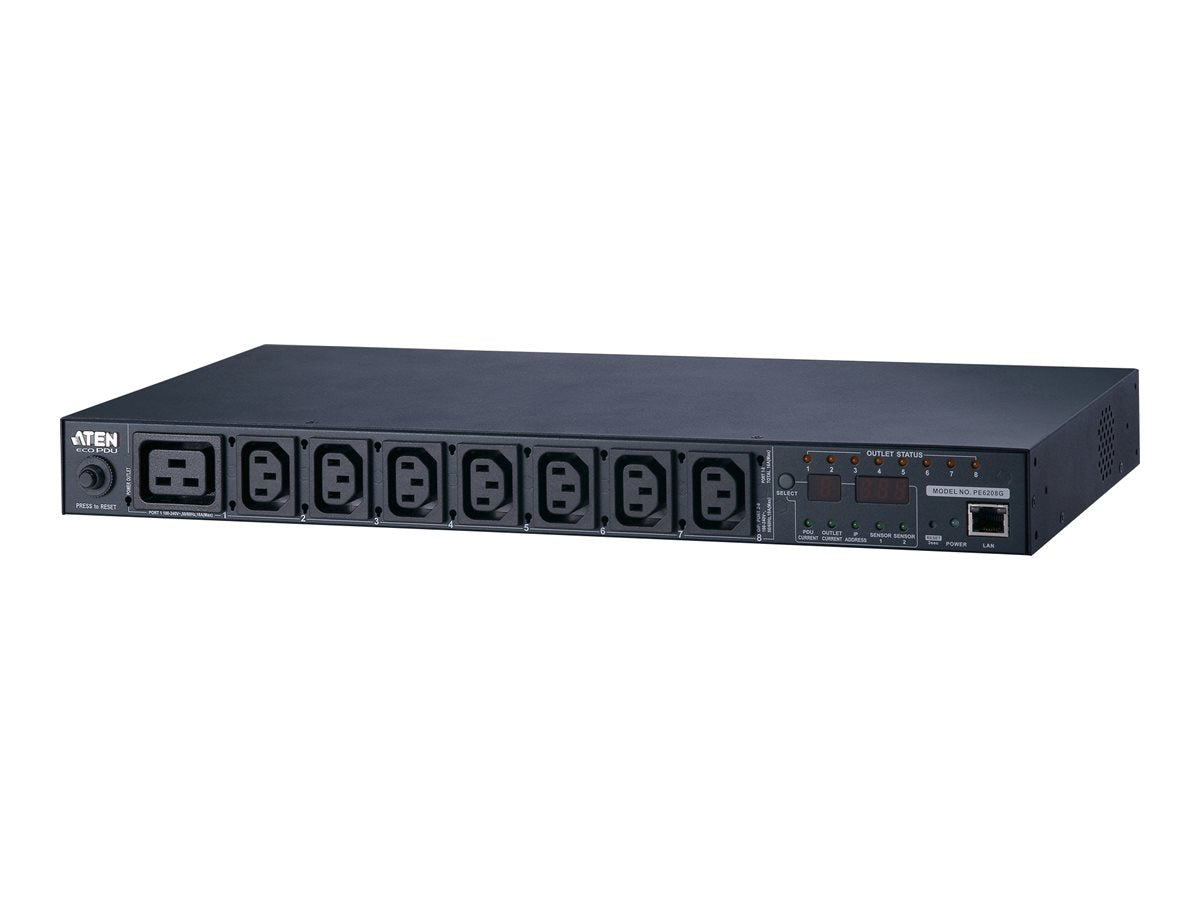

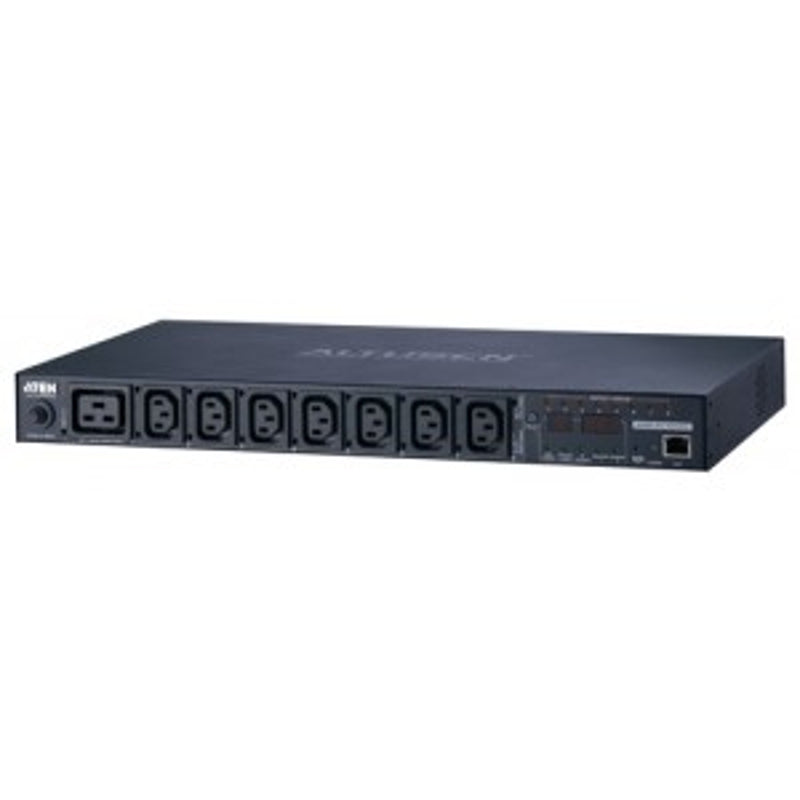

The Aten PE6208G is a metered and switched power distribution unit designed for efficient power management in a 1U rack space. It features eight AC outlets and offers monitoring capabilities to track current usage.

• 8 AC outlets (7 x IEC320 C13 + 1 x IEC320 C19)
• Input power of 3680VA with a maximum current of 16A
• Horizontal rack mount design with included mounting kit
• Integrated LED indicators for LAN, link, power, and status
• Constructed from durable metal housing and compliant with RoHS standards

Specifications

• Warranty: 24 month(s)

Operational conditions

• Operating temperature (T-T): 0 – 50°C °C

Other features

• Box contents: 1x PE6208 Power Distribution Unit; 1x Power Cord; 1x Rack Mount Kit; 1x User Instructions
• Frequency range: 50-60 Hz

Ports & interfaces

• Output connections: Outlet Type: 7 x IEC320 C13 + 1 x IEC320 C19

Technical details

• Connector type: Input Connection: IEC 60320 C20
• Net weight: 2.79 kg
• Other features: Input Power: 3680VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 16A (Max)
• Producer product family: 16A 8-Outlet 1U Metered & Switched eco PDU
• Producer product name: PE6208G

Additional specifications

• PDU types: Monitored
• Rack capacity: 1U
• Mounting: Horizontal
• Housing material: Metal
• Product colour: Black
• AC outlets quantity: 8 AC outlet(s)
• Power plug: C20 coupler
• Ethernet LAN (RJ-45) ports: 1
• LED indicators: LAN, Link, Power, Status
• Monitoring: Current
• Nominal input voltage: 100-240 V
• AC input frequency: 50 - 60 Hz
• Maximum current: 16 A
• Nominal output voltage: 100-240 V
• Compliance certificates: RoHS
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 219.3 mm
• Depth: 432.4 mm
• Height: 44 mm
• Weight: 2.79 kg
