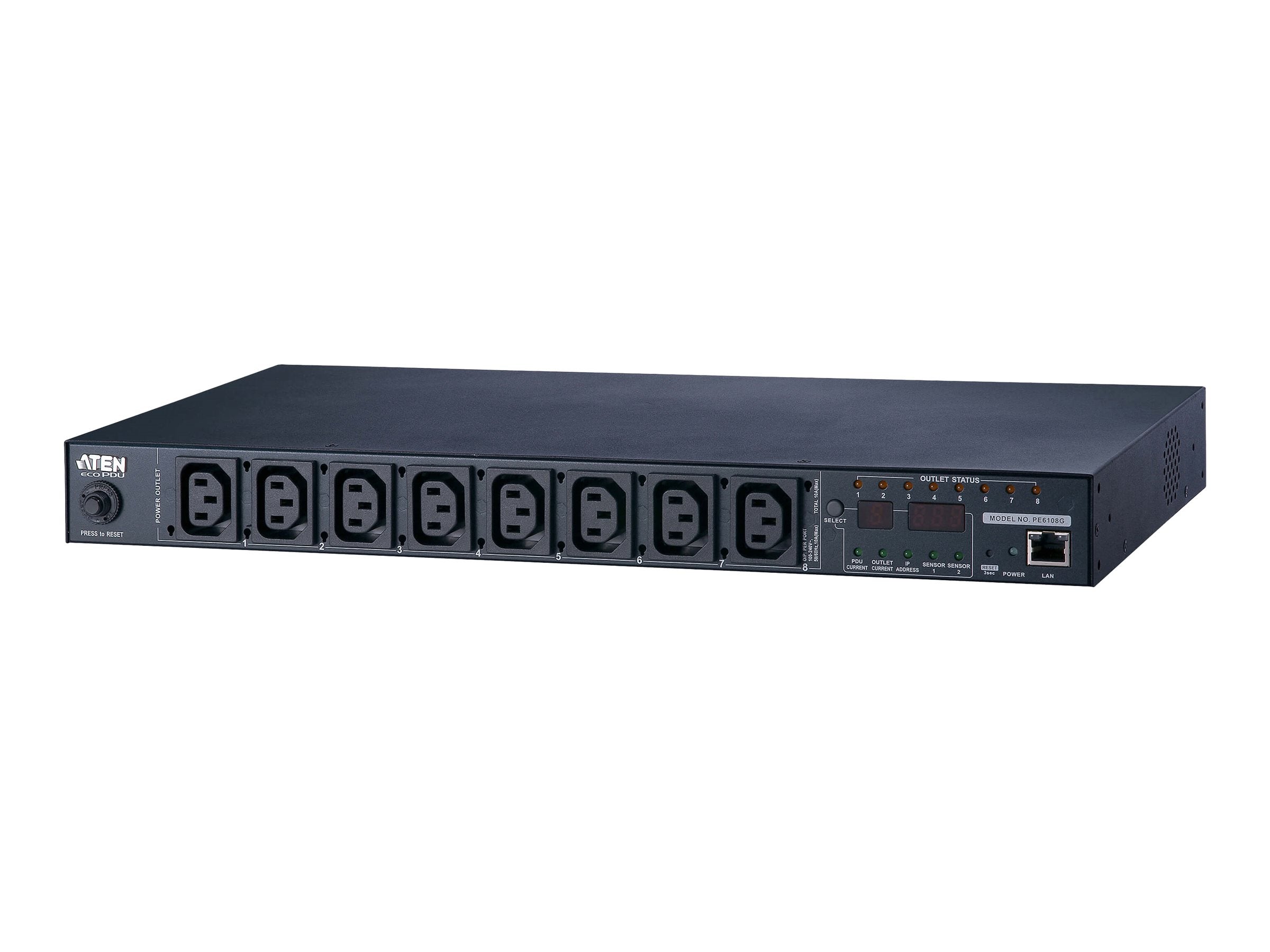

The Aten PE6108G is a metered and switched power distribution unit designed for efficient power management. It features eight IEC320 C13 outlets and operates at a maximum current of 10A with a nominal input voltage range of 100-240V.

• Rack-mounted design with a 1U capacity for efficient space usage
• Includes 8 AC outlets for versatile connectivity
• Comes with essential accessories: power cord, rack mount kit, and user instructions
• Equipped with LED indicators for LAN, link, power, and status monitoring
• Constructed from durable metal housing and designed for horizontal mounting

Specifications

• Warranty: 24 month(s)

Operational conditions

• Operating temperature (T-T): 0 – 50°C °C

Other features

• Box contents: 1x PE6108 Power Distribution Unit; 1x Power Cord; 1x Rack Mount Kit; 1x User Instructions
• Frequency range: 50-60 Hz

Ports & interfaces

• Output connections: Outlet Type: 8 x IEC320 C13

Technical details

• Connector type: Input Connection: IEC 60320 C20
• Net weight: 2.77 kg
• Other features: Input Power: 2300VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 10A (Max)
• Producer product family: 10A 8-Outlet 1U Metered&Switched eco PDU
• Producer product name: PE6108G

Additional specifications

• PDU types: Metered, Switched
• Rack capacity: 1U
• Mounting: Horizontal
• Housing material: Metal
• Product colour: Black
• AC outlets quantity: 8 AC outlet(s)
• Power plug: C20 coupler
• AC outlet types: C13 coupler
• Ethernet LAN (RJ-45) ports: 1
• LED indicators: LAN, Link, Power, Status
• Cable length: 3 m
• Monitoring: Current
• Nominal input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Maximum current: 10 A
• Nominal output voltage: 100 - 240 V
• Maximum input current per phase: 10 A
• Compliance certificates: RoHS
• Certification: CE, TUV-CB, CE-LVD
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 220.4 mm
• Depth: 432.4 mm
• Height: 44 mm
• Weight: 3.27 kg
• Cables included: AC
• Rack mount kit: Yes
• Master (outer) case net weight: 9.81 kg
• Master (outer) case width: 388 mm
• Master (outer) case length: 519 mm
• Master (outer) case height: 348 mm
• Products per master (outer) case: 3 pc(s)
