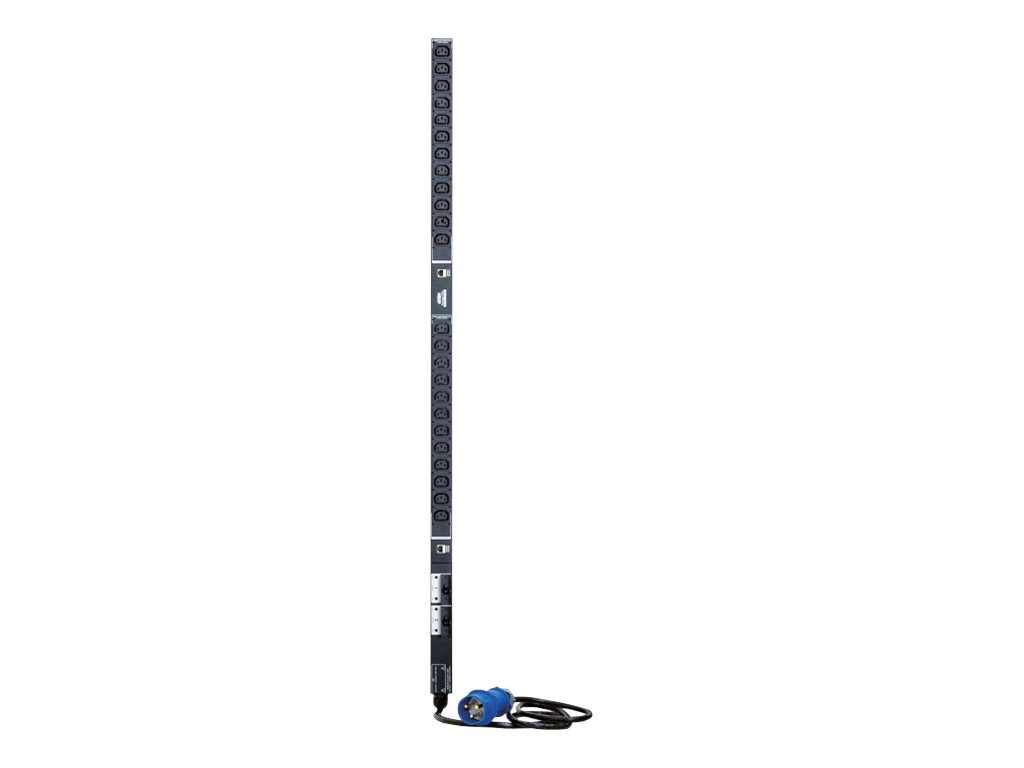

The Aten PE1324G is a metered-ready energy PDU designed to distribute power efficiently across 24 outlets. With a robust metal housing and a 1.6 m cable, it supports various input voltages and comes equipped with a single Ethernet LAN port for network monitoring.

• 24 IEC320 C13 outlets for versatile connectivity
• Maximum load capacity of 7360 VA with 32A input current
• Operating temperature range of 0 to 50°C
• Includes mounting kit and user instructions
• Compact design with dimensions of 40.4 mm width and 1300 mm depth

Specifications

• Warranty: 24 month(s)

Operational conditions

• Operating temperature (T-T): 0–50°C °C

Other features

• Box contents: 1x PE1324 Energy PDU; 1x Mounting Kit; 1x User Instructions
• Frequency range: 50-60 Hz

Ports & interfaces

• Output connections: Outlet Type: Total: 24 x IEC320 C13; Bank1: Outlet 1 – 12; 12 x C13; Bank2: Outlet 13 – 24; 12 x C13

Technical details

• Connector type: Input Connection: IEC 60309 32A
• Net weight: 3.60 kg
• Other features: Input Power: 7360VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 32A (Max)
• Producer product family: 32A 24-Outlet Metered-Ready Energy PDU
• Producer product name: PE1324G

Additional specifications

• PDU types: Metered
• Housing material: Metal
• Product colour: Black
• AC outlets quantity: 24 AC outlet(s)
• Power plug: IEC 60309
• AC outlet types: C13 coupler
• Ethernet LAN (RJ-45) ports: 1
• Cable length: 1.6 m
• Nominal input voltage: 100-240 V
• AC input frequency: 50 - 60 Hz
• Maximum current: 32 A
• Load capacity: 7360 VA
• Certification: CE, C-Tick, TUV-CB, GOST
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Storage relative humidity (H-H): 0 - 80%
• Width: 40.4 mm
• Depth: 1300 mm
• Height: 44 mm
• Weight: 3.73 kg
• Manual: Yes
• Master (outer) case net weight: 3.73 kg
• Master (outer) case width: 205 mm
• Master (outer) case length: 1465 mm
• Master (outer) case height: 166 mm
• Products per master (outer) case: 1 pc(s)
