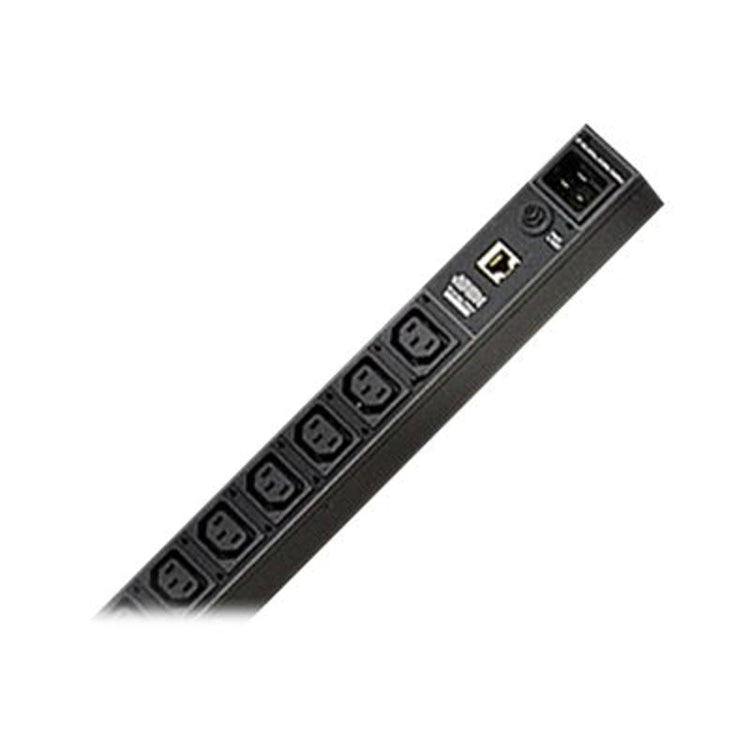

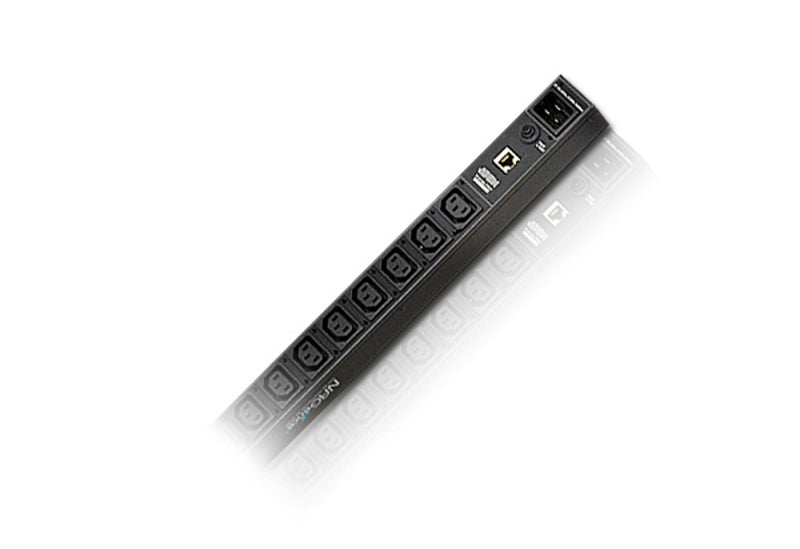

The Aten PE1216G is a metered-energy power distribution unit (PDU) designed to manage multiple devices efficiently. With 16 IEC320 C13 outlets, it provides a maximum input current of 16A and is suitable for a range of operating conditions.

• 16 AC outlets with IEC320 C13 connectivity
• Input power capacity of 3680VA
• Operating temperature range from 0 to 50°C
• Metal housing in black finish
• Ethernet LAN port for network management

Specifications

• Warranty: 24 month(s)

Operational conditions

• Operating temperature (T-T): 0 - 50°C °C

Other features

• Box contents: 1x PE1216 Energy PDU; 1x Power cord; 1 x Mounting Kit; 1x User Instructions
• Frequency range: 50-60 Hz

Ports & interfaces

• Output connections: Outlet Type: Total: 16 x IEC320 C13

Technical details

• Connector type: Input Connection: IEC 60320 C20
• Net weight: 1.32 kg
• Other features: Input Power: 3680VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 16A (Max)
• Producer product family: 16A 16-Outlet Metered-Ready Energy PDU
• Producer product name: PE1216G

Additional specifications

• PDU types: Metered
• Housing material: Metal
• Product colour: Black
• AC outlets quantity: 16 AC outlet(s)
• Power plug: C20 coupler
• AC outlet types: C13 coupler
• Ethernet LAN (RJ-45) ports: 1
• Cable length: 3 m
• Nominal input voltage: 100-240 V
• AC input frequency: 50 - 60 Hz
• Maximum current: 16 A
• Nominal output voltage: 100 - 240 V
• Certification: CE, C-Tick, TUV-CB, GOST
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Storage relative humidity (H-H): 0 - 80%
• Width: 44 mm
• Depth: 730 mm
• Height: 44 mm
• Weight: 1.88 kg
• Cables included: AC
• Manual: Yes
• Master (outer) case net weight: 3.76 kg
• Master (outer) case width: 203 mm
• Master (outer) case length: 806 mm
• Master (outer) case height: 127 mm
• Products per master (outer) case: 2 pc(s)
