About

Description

The Aten 0U 32A 24Port Basic PDU with Surge Protection is designed for users who need reliable power management in a server rack environment. Ideal for data centers or tech setups, this PDU provides multiple outlets and surge protection to keep devices safe and powered.

  • Features 24 AC outlets, including both C13 and C19 types, for versatile connectivity options.
  • Surge protection safeguards connected devices from voltage spikes.
  • Constructed from aluminum, ensuring durability and effective heat dissipation.
  • Operates efficiently across a wide input voltage range of 100-240 VAC.
  • Includes an L-shaped mounting kit for easy installation in server racks.
Specifications (1)
  • Warranty: 24 month(s)
Features (1)
  • Material: Aluminum
Operational conditions (1)
  • Operating temperature (T-T): 0 - 40°C °C
Other features (2)
  • Box contents: 1x Basic PDU; L-shaped mounting kit; 1x User Instructions
  • Frequency range: 50-60 Hz
Ports & interfaces (1)
  • Output connections: Outlet Type: (22) IEC 320 C13, (2) IEC 320 C19
Technical details (5)
  • Connector type: Input Connection: IEC 60309 32A
  • Net weight: 2.40 kg
  • Other features: Input Power: 7680VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 32A (Max)
  • Producer product family: 0U 32A 24Port Basic PDU with Surge Protection
  • Producer product name: PE0324SG
Additional specifications (28)
  • PDU types: Basic
  • Rack capacity: 0U
  • Housing material: Aluminium
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Cable length: 3 m
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50-60 Hz
  • Maximum current: 32 A
  • Load capacity: 7680 VA
  • Power protection features: Over current
  • Surge protection: Yes
  • Certification: CE A CE, LVD
  • Storage temperature (T-T): -20 - 60 °C
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Width: 1199.8 mm
  • Depth: 44.4 mm
  • Height: 60 mm
  • Weight: 2.52 kg
  • Manual: Yes
  • Master (outer) case net weight: 2.52 kg
  • Master (outer) case width: 125 mm
  • Master (outer) case length: 1408 mm
  • Master (outer) case height: 146 mm
  • Products per master (outer) case: 1 pc(s)
Description

The Aten 0U 32A 24Port Basic PDU with Surge Protection is designed for users who need reliable power management in a server rack environment. Ideal for data centers or tech setups, this PDU provides multiple outlets and surge protection to keep devices safe and powered.

  • Features 24 AC outlets, including both C13 and C19 types, for versatile connectivity options.
  • Surge protection safeguards connected devices from voltage spikes.
  • Constructed from aluminum, ensuring durability and effective heat dissipation.
  • Operates efficiently across a wide input voltage range of 100-240 VAC.
  • Includes an L-shaped mounting kit for easy installation in server racks.
Specifications (1)
  • Warranty: 24 month(s)
Features (1)
  • Material: Aluminum
Operational conditions (1)
  • Operating temperature (T-T): 0 - 40°C °C
Other features (2)
  • Box contents: 1x Basic PDU; L-shaped mounting kit; 1x User Instructions
  • Frequency range: 50-60 Hz
Ports & interfaces (1)
  • Output connections: Outlet Type: (22) IEC 320 C13, (2) IEC 320 C19
Technical details (5)
  • Connector type: Input Connection: IEC 60309 32A
  • Net weight: 2.40 kg
  • Other features: Input Power: 7680VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 32A (Max)
  • Producer product family: 0U 32A 24Port Basic PDU with Surge Protection
  • Producer product name: PE0324SG
Additional specifications (28)
  • PDU types: Basic
  • Rack capacity: 0U
  • Housing material: Aluminium
  • Product colour: Black
  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler
  • Cable length: 3 m
  • Nominal input voltage: 100-240 V
  • AC input frequency: 50-60 Hz
  • Maximum current: 32 A
  • Load capacity: 7680 VA
  • Power protection features: Over current
  • Surge protection: Yes
  • Certification: CE A CE, LVD
  • Storage temperature (T-T): -20 - 60 °C
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m
  • Width: 1199.8 mm
  • Depth: 44.4 mm
  • Height: 60 mm
  • Weight: 2.52 kg
  • Manual: Yes
  • Master (outer) case net weight: 2.52 kg
  • Master (outer) case width: 125 mm
  • Master (outer) case length: 1408 mm
  • Master (outer) case height: 146 mm
  • Products per master (outer) case: 1 pc(s)

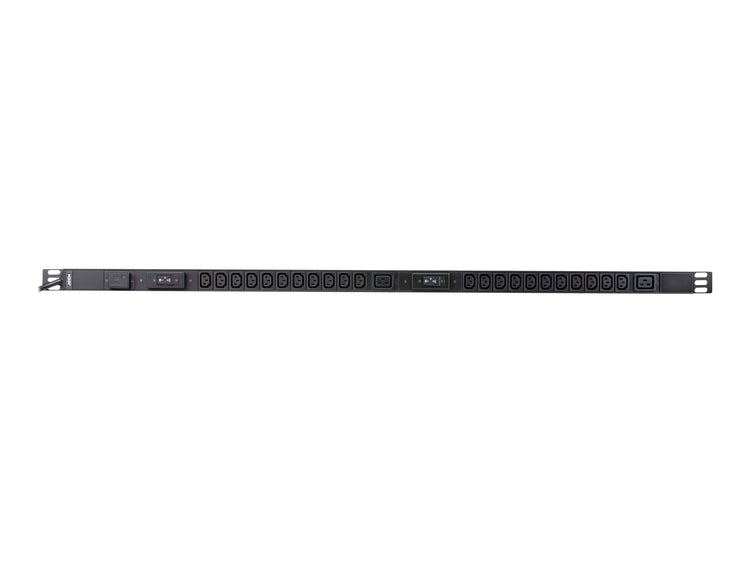

Aten PE0324SG — 0U 32A 24Port Basic PDU with Surge Protection

€297,59
€297,59
Tax included.
