About

Description

The Aten Basic 1U PDU with surge protection is ideal for users needing a reliable power distribution unit for their server or networking racks. It offers multiple output connections, ensuring your devices are well-supported and protected from surges.

  • Features 10 AC outlets, allowing for multiple devices to be powered simultaneously.
  • Surge protection helps safeguard connected equipment from voltage spikes.
  • Compact 1U design fits easily into standard server racks, maximizing space efficiency.
  • Constructed from aluminum, ensuring durability and stability in various operating conditions.
  • Nominal input voltage of 100-240 VAC accommodates different power requirements.
Specifications (1)
  • Warranty: 24 month(s)
Features (1)
  • Material: Aluminum
Operational conditions (1)
  • Operating temperature (T-T): 0 - 40°C °C
Other features (2)
  • Box contents: 1x Basic PDU; 1x Power cord; 1x User Instructions
  • Frequency range: 50-60 Hz
Ports & interfaces (1)
  • Output connections: Outlet Type: (10) IEC-320 C13
Technical details (5)
  • Connector type: Input Connection For G Plug: IEC-320 C14; For Ｚ Plug: Chinese 10A
  • Net weight: 0.66 kg
  • Other features: Input Power: 2400VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 10A (Max)
  • Producer product family: Basic 1U PDU with surge protection 10A
  • Producer product name: PE0110SG
Additional specifications (20)
  • PDU types: Basic
  • Rack capacity: 1U
  • Product colour: Black
  • AC outlets quantity: 10 AC outlet(s)
  • AC outlet types: C13 coupler
  • Nominal input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 10 A
  • Load capacity: 2400 VA
  • Compliance certificates: RoHS
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 444 mm
  • Depth: 4820 mm
  • Height: 450 mm
  • Weight: 1.2 kg
  • Master (outer) case net weight: 12 kg
  • Master (outer) case width: 595 mm
  • Master (outer) case length: 710 mm
  • Master (outer) case height: 188 mm
  • Products per master (outer) case: 10 pc(s)
Description

The Aten Basic 1U PDU with surge protection is ideal for users needing a reliable power distribution unit for their server or networking racks. It offers multiple output connections, ensuring your devices are well-supported and protected from surges.

  • Features 10 AC outlets, allowing for multiple devices to be powered simultaneously.
  • Surge protection helps safeguard connected equipment from voltage spikes.
  • Compact 1U design fits easily into standard server racks, maximizing space efficiency.
  • Constructed from aluminum, ensuring durability and stability in various operating conditions.
  • Nominal input voltage of 100-240 VAC accommodates different power requirements.
Specifications (1)
  • Warranty: 24 month(s)
Features (1)
  • Material: Aluminum
Operational conditions (1)
  • Operating temperature (T-T): 0 - 40°C °C
Other features (2)
  • Box contents: 1x Basic PDU; 1x Power cord; 1x User Instructions
  • Frequency range: 50-60 Hz
Ports & interfaces (1)
  • Output connections: Outlet Type: (10) IEC-320 C13
Technical details (5)
  • Connector type: Input Connection For G Plug: IEC-320 C14; For Ｚ Plug: Chinese 10A
  • Net weight: 0.66 kg
  • Other features: Input Power: 2400VA(Max); Nominal Input Voltage: 100-240 VAC; Maximum Input Current: 10A (Max)
  • Producer product family: Basic 1U PDU with surge protection 10A
  • Producer product name: PE0110SG
Additional specifications (20)
  • PDU types: Basic
  • Rack capacity: 1U
  • Product colour: Black
  • AC outlets quantity: 10 AC outlet(s)
  • AC outlet types: C13 coupler
  • Nominal input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 10 A
  • Load capacity: 2400 VA
  • Compliance certificates: RoHS
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 444 mm
  • Depth: 4820 mm
  • Height: 450 mm
  • Weight: 1.2 kg
  • Master (outer) case net weight: 12 kg
  • Master (outer) case width: 595 mm
  • Master (outer) case length: 710 mm
  • Master (outer) case height: 188 mm
  • Products per master (outer) case: 10 pc(s)

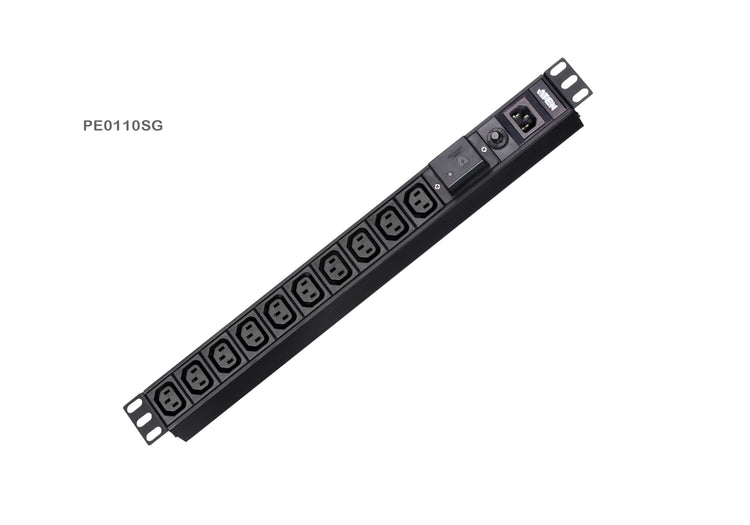

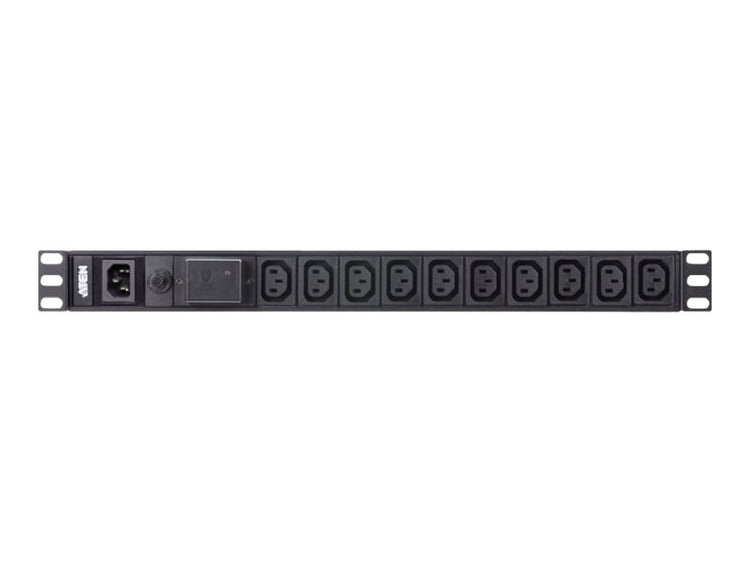

Aten PE0110SG — Basic 1U PDU with surge protection 10A

€96,71
€96,71
Tax included.
