About

Description

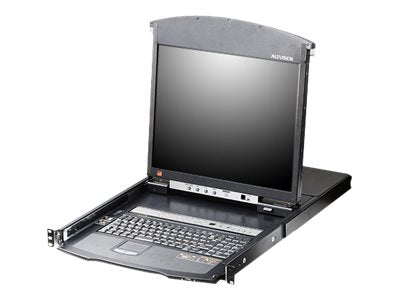

The Aten LCD KVM over IP Switch KL1516AIN is designed for users who need to manage multiple computers remotely. It is ideal for IT professionals and data centers looking for efficient control over up to 16 computers from a single interface.

  • Supports local and remote access, enhancing user flexibility.
  • Features a 19-inch LCD display for clear visual output.
  • Maximum video resolution of 1920 x 1200 pixels for quality viewing.
  • Rack-mountable design saves space in server environments.
  • Compatible with various Aten KVM switches for expanded connectivity.
Specifications (2)
  • Producer product family: LCD KVM over IP Switch
  • Producer product name: KL1516AIN
Technical details (4)
  • Warranty: 24 month(s)
  • Compatible products: Switches: KH1508A/KH1516A, ACS1208A/ACS1216A, CS1708A/CS1716A
  • Net weight: 15.4 kg
  • Other features: 1-Local/Remote Share Access 16-Port Cat 5 Dual Rail 19"
Operational conditions (2)
  • Operating relative humidity (H-H): 0 - 80% RH, Non-Condensing %
  • Operating temperature (T-T): 0 to 40 °C
Other features (2)
  • Dimensions (WxDxH): 70.12 x 48 x 4.4 cm
  • Resolution: 1280 x 1024 @ 75Hz; Local Video: 1600 x 1200 @ 60Hz (non-FHD version), 1920 x 1200 @ 60Hz (FHD version); Remote Video: FHD: 1920 x 1200 @ 60Hz, Non-FHD: 1600 x 1200 @ 60 Hz;
Additional specifications (35)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Maximum resolution: 1920 x 1200 pixels
  • Networking standards: IEEE 802.3, IEEE 802.3u
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 16
  • LED indicators: Yes
  • Push button: Yes
  • Cabling technology: 10/100Base-T(X)
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 1
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Power consumption (typical): 36 W
  • Input current: 1 A
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Width: 480 mm
  • Height: 44 mm
  • Depth: 701.2 mm
  • Weight: 15.7 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 15.7 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)
Description

The Aten LCD KVM over IP Switch KL1516AIN is designed for users who need to manage multiple computers remotely. It is ideal for IT professionals and data centers looking for efficient control over up to 16 computers from a single interface.

  • Supports local and remote access, enhancing user flexibility.
  • Features a 19-inch LCD display for clear visual output.
  • Maximum video resolution of 1920 x 1200 pixels for quality viewing.
  • Rack-mountable design saves space in server environments.
  • Compatible with various Aten KVM switches for expanded connectivity.
Specifications (2)
  • Producer product family: LCD KVM over IP Switch
  • Producer product name: KL1516AIN
Technical details (4)
  • Warranty: 24 month(s)
  • Compatible products: Switches: KH1508A/KH1516A, ACS1208A/ACS1216A, CS1708A/CS1716A
  • Net weight: 15.4 kg
  • Other features: 1-Local/Remote Share Access 16-Port Cat 5 Dual Rail 19"
Operational conditions (2)
  • Operating relative humidity (H-H): 0 - 80% RH, Non-Condensing %
  • Operating temperature (T-T): 0 to 40 °C
Other features (2)
  • Dimensions (WxDxH): 70.12 x 48 x 4.4 cm
  • Resolution: 1280 x 1024 @ 75Hz; Local Video: 1600 x 1200 @ 60Hz (non-FHD version), 1920 x 1200 @ 60Hz (FHD version); Remote Video: FHD: 1920 x 1200 @ 60Hz, Non-FHD: 1600 x 1200 @ 60 Hz;
Additional specifications (35)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Maximum resolution: 1920 x 1200 pixels
  • Networking standards: IEEE 802.3, IEEE 802.3u
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 16
  • LED indicators: Yes
  • Push button: Yes
  • Cabling technology: 10/100Base-T(X)
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 1
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Power consumption (typical): 36 W
  • Input current: 1 A
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Width: 480 mm
  • Height: 44 mm
  • Depth: 701.2 mm
  • Weight: 15.7 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 15.7 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)

Aten KL1516AIN — LCD KVM over IP Switch, Warranty 36 month(s)

€3.561,27
€3.561,27
Tax included.
