About

Description

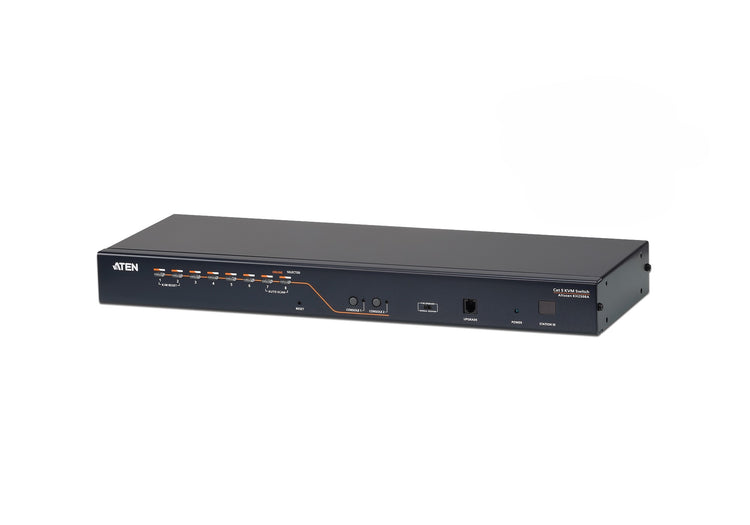

The Aten KH2508A is a KVM switch designed for users needing to control up to 8 computers from 2 separate consoles. Ideal for IT professionals and tech setups that require efficient management of multiple systems, it provides versatile connectivity options and high-resolution support.

  • Supports 8 computers, allowing centralized control to simplify workspace management.
  • Multiple console ports (USB and PS/2) offer flexibility for different keyboard and mouse types.
  • Achieves a maximum video resolution of 1920 x 1200 pixels for clear display quality.
  • Built with metal housing for durability and reliable performance.
  • Includes LED indicators and push-button/hot key options for easy operation.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 2.81 kg
  • Producer product name: KH2508A 2-Console 8-Port Cat 5 KVM Switch with Daisy-Chain Port
Additional specifications (40)
  • Number of computers controlled: 8
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Console ports: PS/2, USB A, VGA (D-Sub)
  • Console USB ports quantity: 4
  • USB connector type: USB Type-A
  • PS/2 ports quantity: 4
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 8
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,255 s
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
  • Depth: 155.8 mm
  • Height: 44 mm
  • Weight: 3.16 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 9.48 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 420 mm
  • Master (outer) case length: 565 mm
  • Master (outer) case height: 258 mm
  • Products per master (outer) case: 3 pc(s)
Description

The Aten KH2508A is a KVM switch designed for users needing to control up to 8 computers from 2 separate consoles. Ideal for IT professionals and tech setups that require efficient management of multiple systems, it provides versatile connectivity options and high-resolution support.

  • Supports 8 computers, allowing centralized control to simplify workspace management.
  • Multiple console ports (USB and PS/2) offer flexibility for different keyboard and mouse types.
  • Achieves a maximum video resolution of 1920 x 1200 pixels for clear display quality.
  • Built with metal housing for durability and reliable performance.
  • Includes LED indicators and push-button/hot key options for easy operation.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 2.81 kg
  • Producer product name: KH2508A 2-Console 8-Port Cat 5 KVM Switch with Daisy-Chain Port
Additional specifications (40)
  • Number of computers controlled: 8
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Console ports: PS/2, USB A, VGA (D-Sub)
  • Console USB ports quantity: 4
  • USB connector type: USB Type-A
  • PS/2 ports quantity: 4
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 8
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,255 s
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
  • Depth: 155.8 mm
  • Height: 44 mm
  • Weight: 3.16 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 9.48 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 420 mm
  • Master (outer) case length: 565 mm
  • Master (outer) case height: 258 mm
  • Products per master (outer) case: 3 pc(s)

Aten KH2508A 2-Console 8-Port Cat 5 KVM Switch with Daisy-Chain Port

€748,95
€748,95
Tax included.
