Description

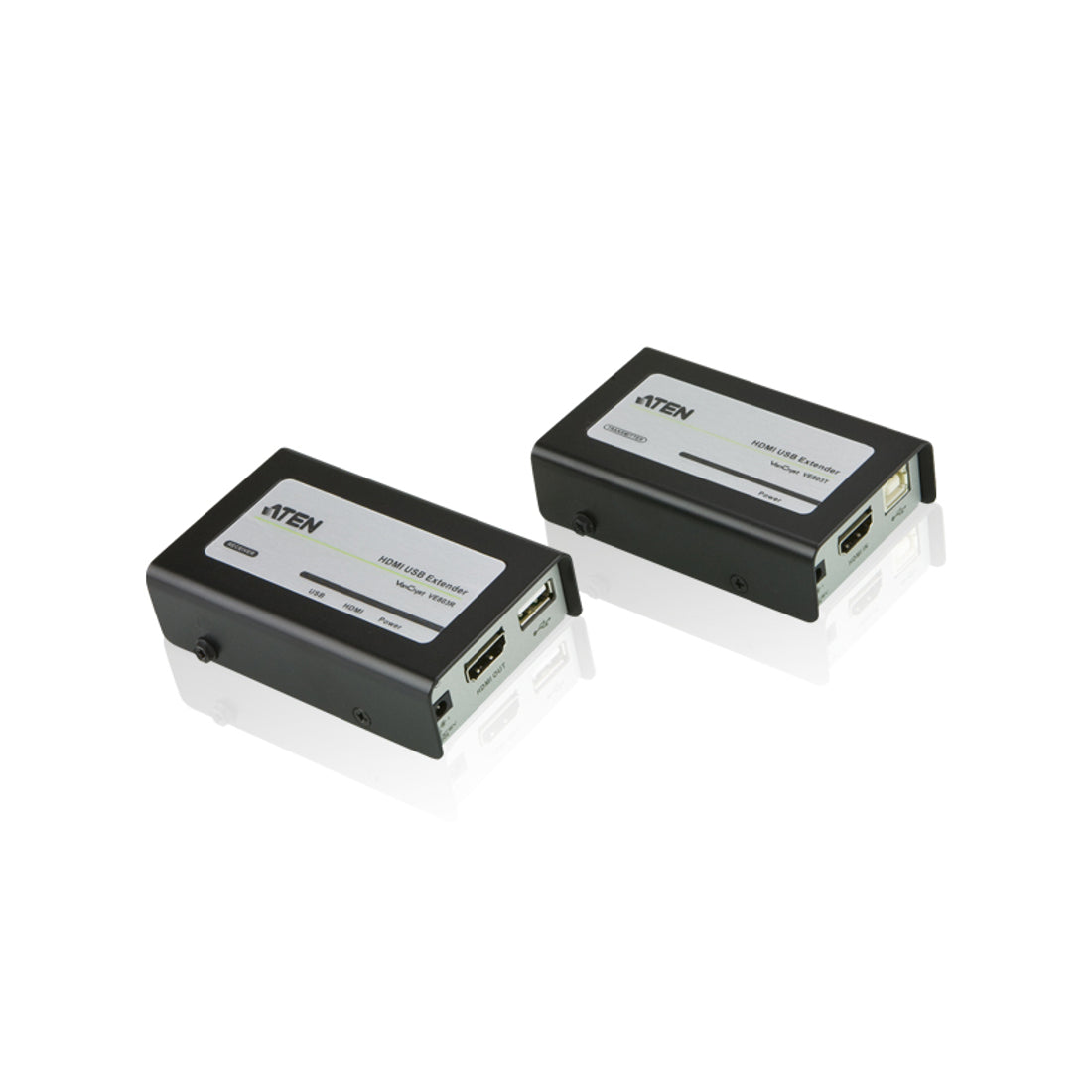

The Aten HDMI/USB Cat 5 Extender is designed for users who need to transmit high-quality audio and video over long distances. It is suitable for settings like presentations, classrooms, or entertainment setups where connecting devices up to 60 meters apart is necessary.

  • Extends 1080p video up to 40 meters and 1080i up to 60 meters, ensuring quality for distant displays.
  • Supports a variety of video resolutions including 1920 x 1080 and 1920 x 1200, providing flexibility for different setups.
  • Features USB touch panel support and transparent USB for connecting full-speed USB devices, enhancing interactivity.
  • Includes an 8 segment equalization adjustment switch to optimize display quality based on distance.
  • Built-in ESD protection guard against electrostatic discharge, ensuring durability and reliable operation.
Specifications (5)
  • Producer product family: Extender
  • Producer product name: HDMI/USB Cat 5 Extender
  • Features: Uses two Cat 5e cables to connect the local and the remote units. Extends 1080p by 40m; extend 1080i by 60m. Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200). Supports USB touch panel. 8 segment equalization adjustment switch optimizes display quality. Support Dolby True HD and DTS HD Master Audio. Built-in 8KV/15KV ESD protection. Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps). Supports wide screen formats. HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25 Gbit/s. Powered local unit via USB cable.
  • Operating temperature: 0 - 50°C
  • Warranty: 24 month(s)
Headphones (1)
  • Impedance: 100 Ω
Operational conditions (1)
  • Storage temperature (T-T): -20-60 °C
Ports & interfaces (4)
  • Audio input: 1 x HDMI Type A Female (Black)
  • Audio output: 1 x HDMI Type A Female (Black)
  • DC-in jack: Yes
  • Output connections: 1 x HDMI Type A Female (Black)
Technical details (1)
  • Net weight: 0.16 kg
Additional specifications (38)
  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1200 pixels
  • Cable types supported: Cat5e
  • Maximum transfer distance: 60 m
  • Extended display identification data (EDID): Yes
  • Electrostatic Discharge (ESD) protection: Yes
  • Supported video modes: 1080i, 1080p
  • Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
  • Bandwidth: 6.75 Gbit/s
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Product colour: Black
  • Connectivity technology: Wired
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • USB connector type: USB Type-A, USB Type-B
  • Operating voltage (transmitter): 5 V
  • Operating voltage (receiver): 5 V
  • Power consumption (TX): 1.04 W
  • Power consumption (RX): 0.75 W
  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Weight: 495 g
  • Receiver dimensions (WxDxH): 90 x 57.4 x 24 mm
  • Receiver weight: 160 g
  • Transmitter dimensions (WxDxH): 90 x 57.4 x 24 mm
  • Transmitter weight: 160 g
  • AC adapter included: Yes
  • Cables included: USB
  • Manual: Yes
  • Mounting kit: Yes
  • Master (outer) case width: 315 mm
  • Master (outer) case length: 490 mm
  • Master (outer) case height: 338 mm
  • Master (outer) case net weight: 9.9 kg
  • Products per master (outer) case: 20 pc(s)
Description

The Aten HDMI/USB Cat 5 Extender is designed for users who need to transmit high-quality audio and video over long distances. It is suitable for settings like presentations, classrooms, or entertainment setups where connecting devices up to 60 meters apart is necessary.

  • Extends 1080p video up to 40 meters and 1080i up to 60 meters, ensuring quality for distant displays.
  • Supports a variety of video resolutions including 1920 x 1080 and 1920 x 1200, providing flexibility for different setups.
  • Features USB touch panel support and transparent USB for connecting full-speed USB devices, enhancing interactivity.
  • Includes an 8 segment equalization adjustment switch to optimize display quality based on distance.
  • Built-in ESD protection guard against electrostatic discharge, ensuring durability and reliable operation.
Specifications (5)
  • Producer product family: Extender
  • Producer product name: HDMI/USB Cat 5 Extender
  • Features: Uses two Cat 5e cables to connect the local and the remote units. Extends 1080p by 40m; extend 1080i by 60m. Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200). Supports USB touch panel. 8 segment equalization adjustment switch optimizes display quality. Support Dolby True HD and DTS HD Master Audio. Built-in 8KV/15KV ESD protection. Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps). Supports wide screen formats. HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25 Gbit/s. Powered local unit via USB cable.
  • Operating temperature: 0 - 50°C
  • Warranty: 24 month(s)
Headphones (1)
  • Impedance: 100 Ω
Operational conditions (1)
  • Storage temperature (T-T): -20-60 °C
Ports & interfaces (4)
  • Audio input: 1 x HDMI Type A Female (Black)
  • Audio output: 1 x HDMI Type A Female (Black)
  • DC-in jack: Yes
  • Output connections: 1 x HDMI Type A Female (Black)
Technical details (1)
  • Net weight: 0.16 kg
Additional specifications (38)
  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1200 pixels
  • Cable types supported: Cat5e
  • Maximum transfer distance: 60 m
  • Extended display identification data (EDID): Yes
  • Electrostatic Discharge (ESD) protection: Yes
  • Supported video modes: 1080i, 1080p
  • Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
  • Bandwidth: 6.75 Gbit/s
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Product colour: Black
  • Connectivity technology: Wired
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • USB connector type: USB Type-A, USB Type-B
  • Operating voltage (transmitter): 5 V
  • Operating voltage (receiver): 5 V
  • Power consumption (TX): 1.04 W
  • Power consumption (RX): 0.75 W
  • Operating temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Weight: 495 g
  • Receiver dimensions (WxDxH): 90 x 57.4 x 24 mm
  • Receiver weight: 160 g
  • Transmitter dimensions (WxDxH): 90 x 57.4 x 24 mm
  • Transmitter weight: 160 g
  • AC adapter included: Yes
  • Cables included: USB
  • Manual: Yes
  • Mounting kit: Yes
  • Master (outer) case width: 315 mm
  • Master (outer) case length: 490 mm
  • Master (outer) case height: 338 mm
  • Master (outer) case net weight: 9.9 kg
  • Products per master (outer) case: 20 pc(s)

Aten HDMI/USB Cat 5 Extender

€145,07
€145,07
