About

Description

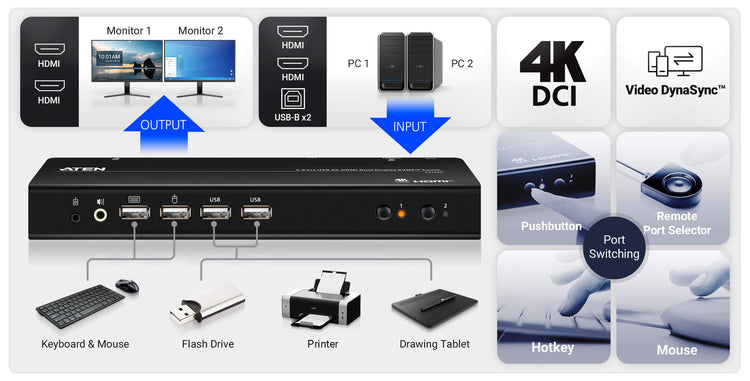

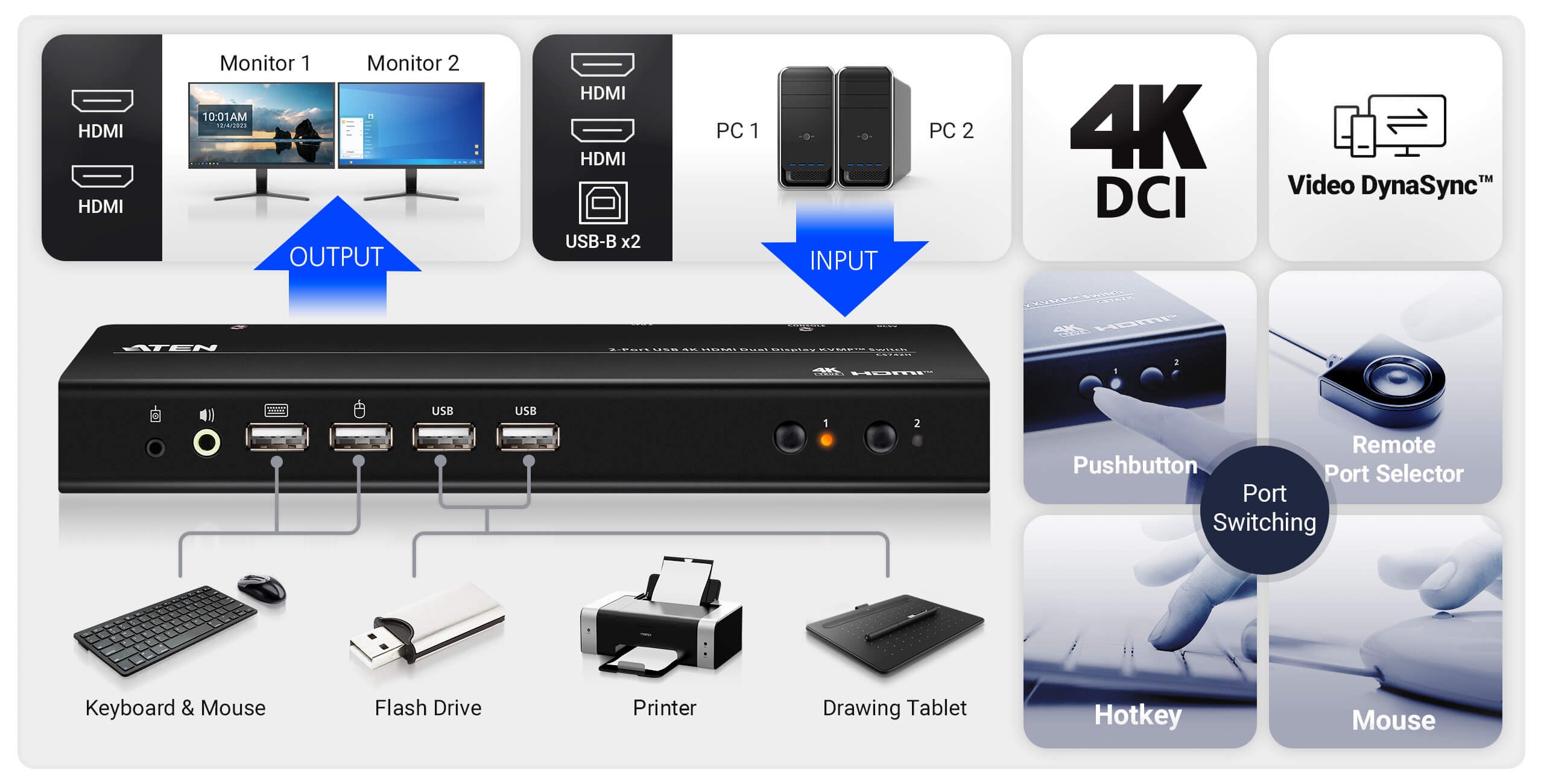

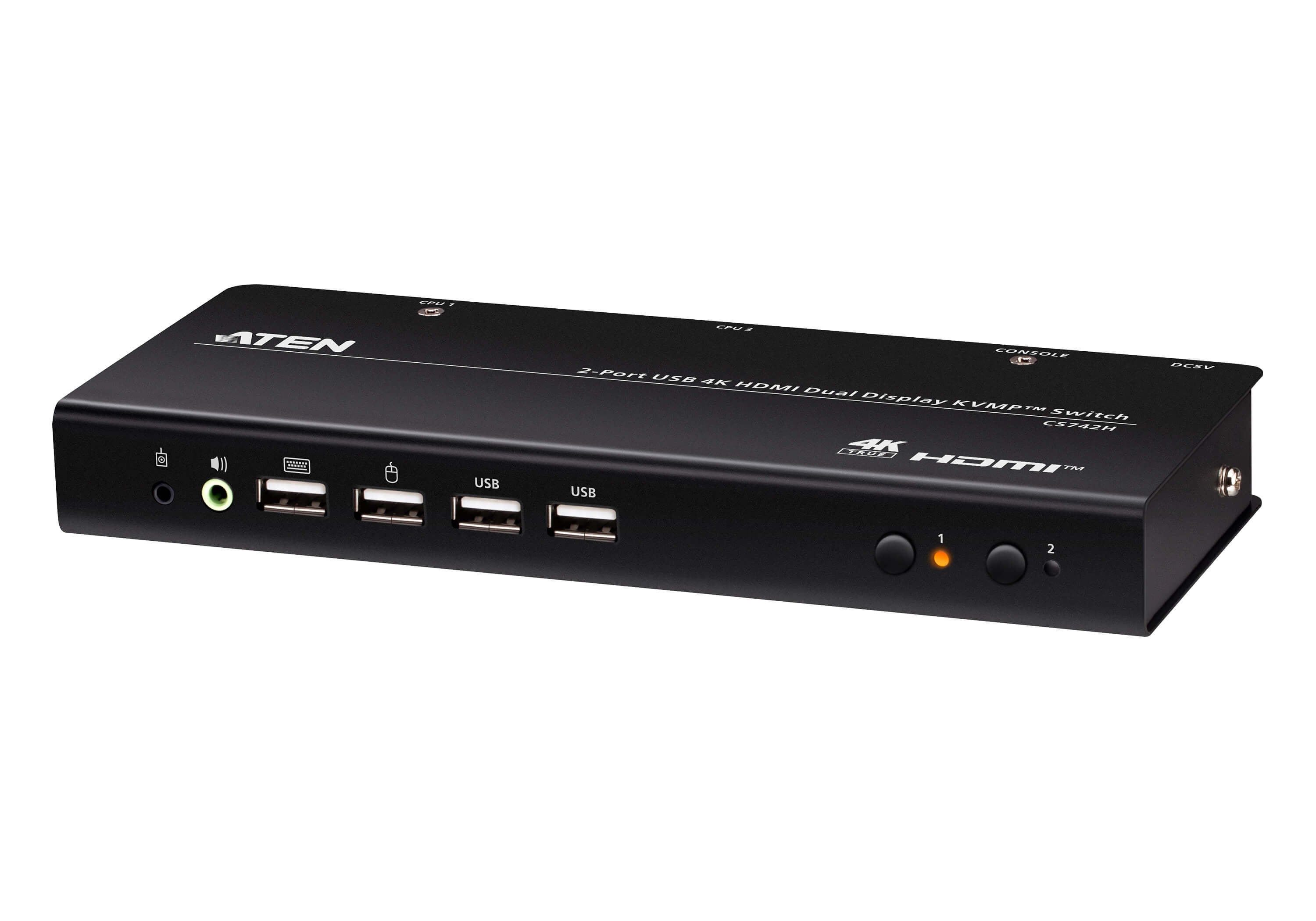

The Aten CS742H-AT-G is a 2-Port USB 4K HDMI Dual-Display KVMP switch, ideal for users who need to control multiple computers from a single set of keyboard, video, and mouse peripherals. This device offers a convenient solution for multitasking and efficient workspace management.

  • Allows control of two computers using one keyboard and mouse setup, minimizing desk clutter.
  • Supports dual HDMI displays with a maximum resolution of 5120 x 1440 pixels for high-quality visuals.

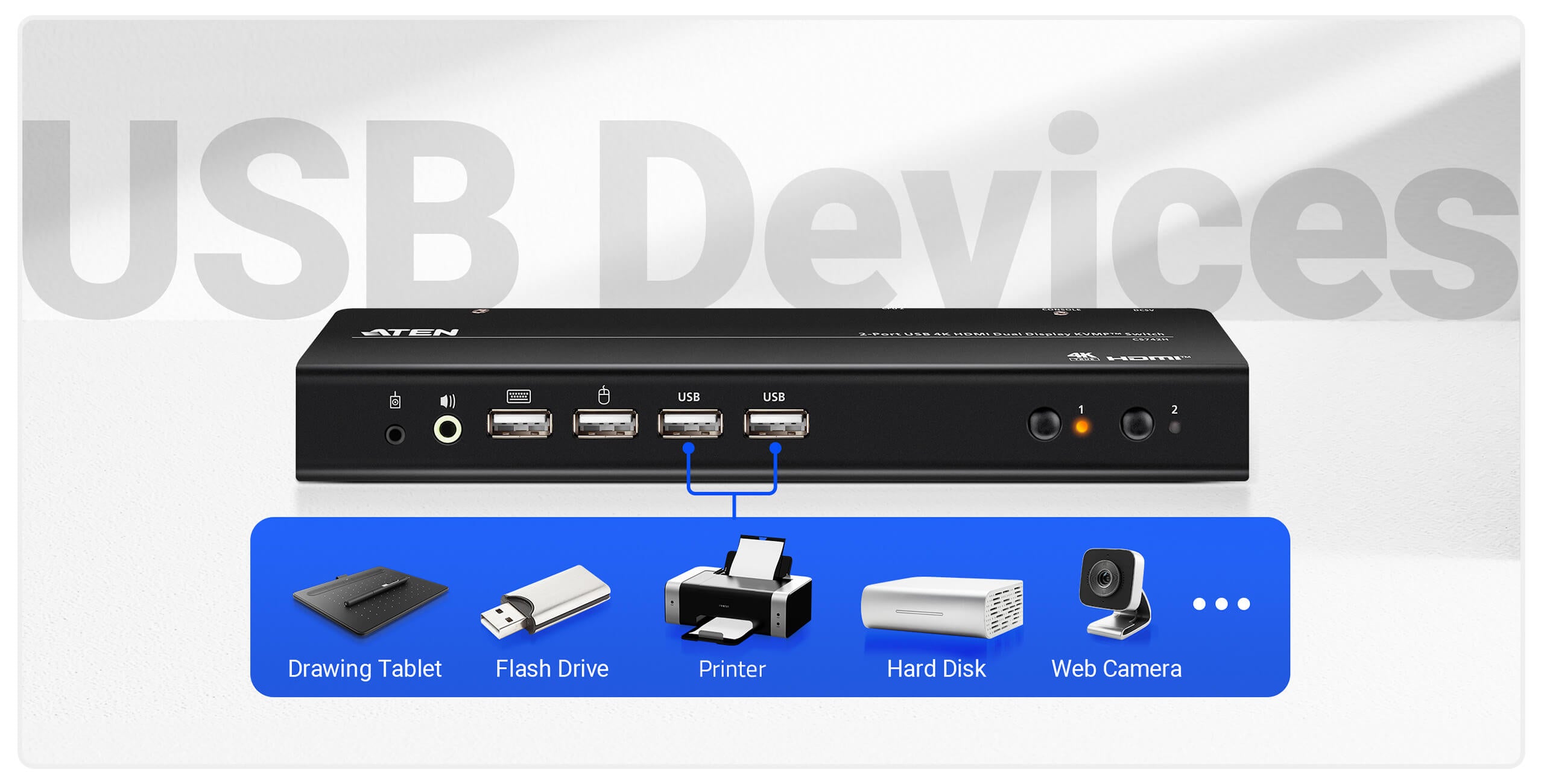

  • Equipped with a USB hub that includes multiple ports for connecting additional devices, enhancing functionality.
  • Hot-plug and plug-and-play capabilities enable seamless switching between computers without rebooting.
  • Features led indicators and push buttons for easy operation and status monitoring.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 0.47 kg
Additional specifications (47)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI

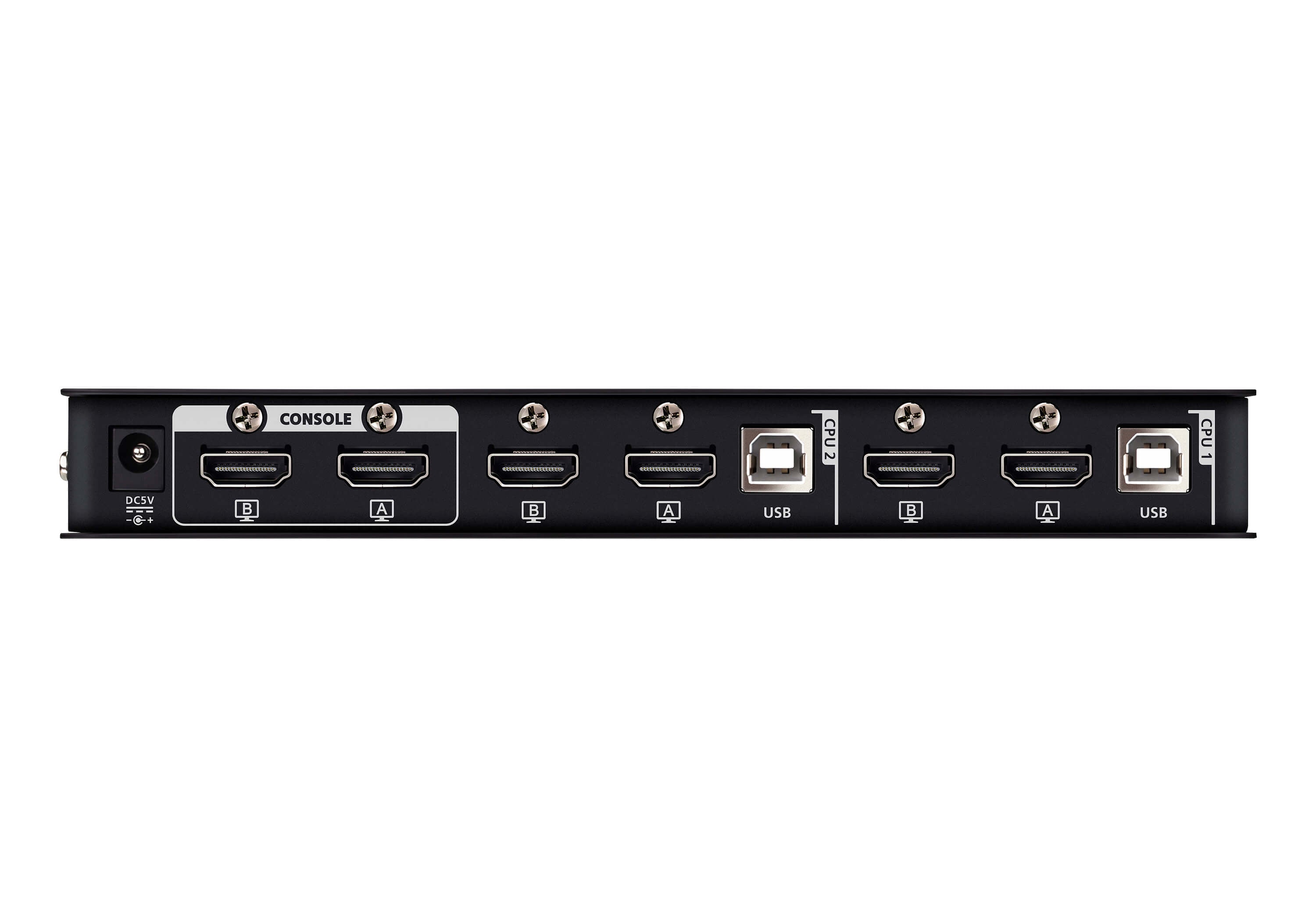

  • HDMI ports quantity: 4
  • USB 2.0 Type-B ports quantity: 2

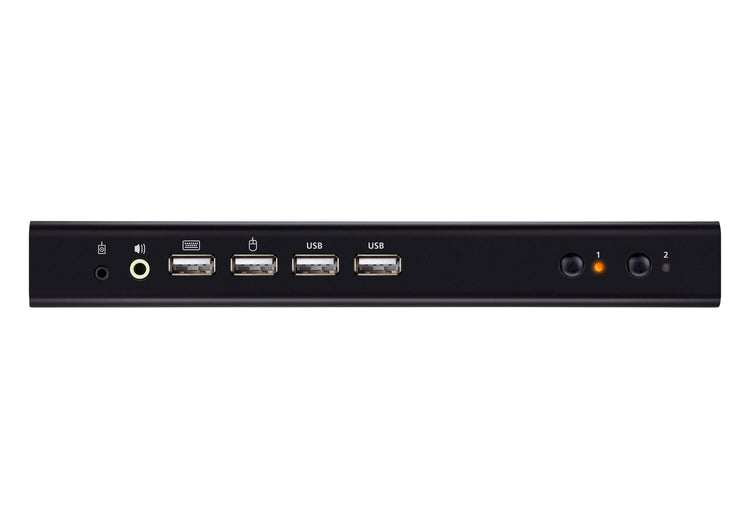

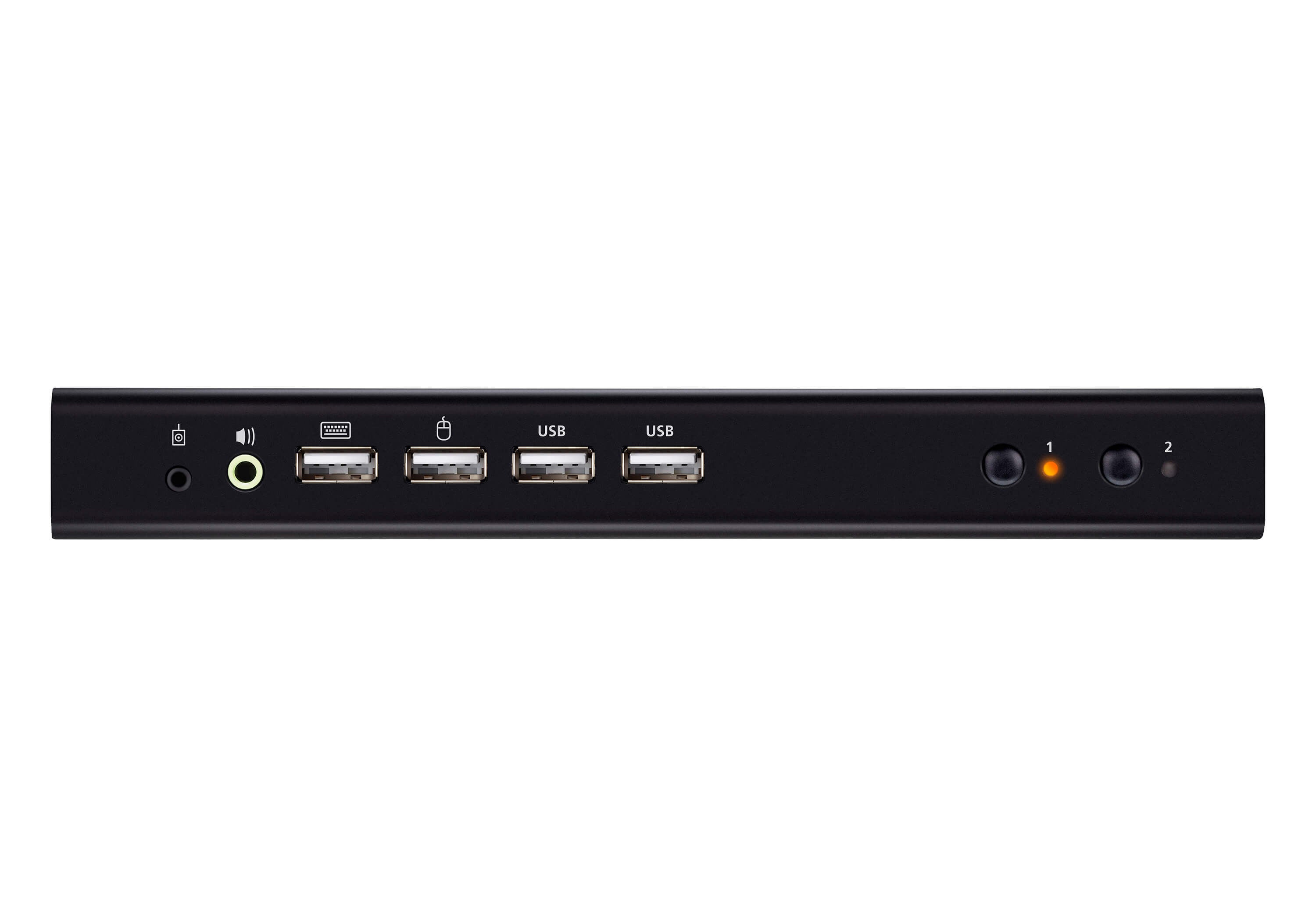

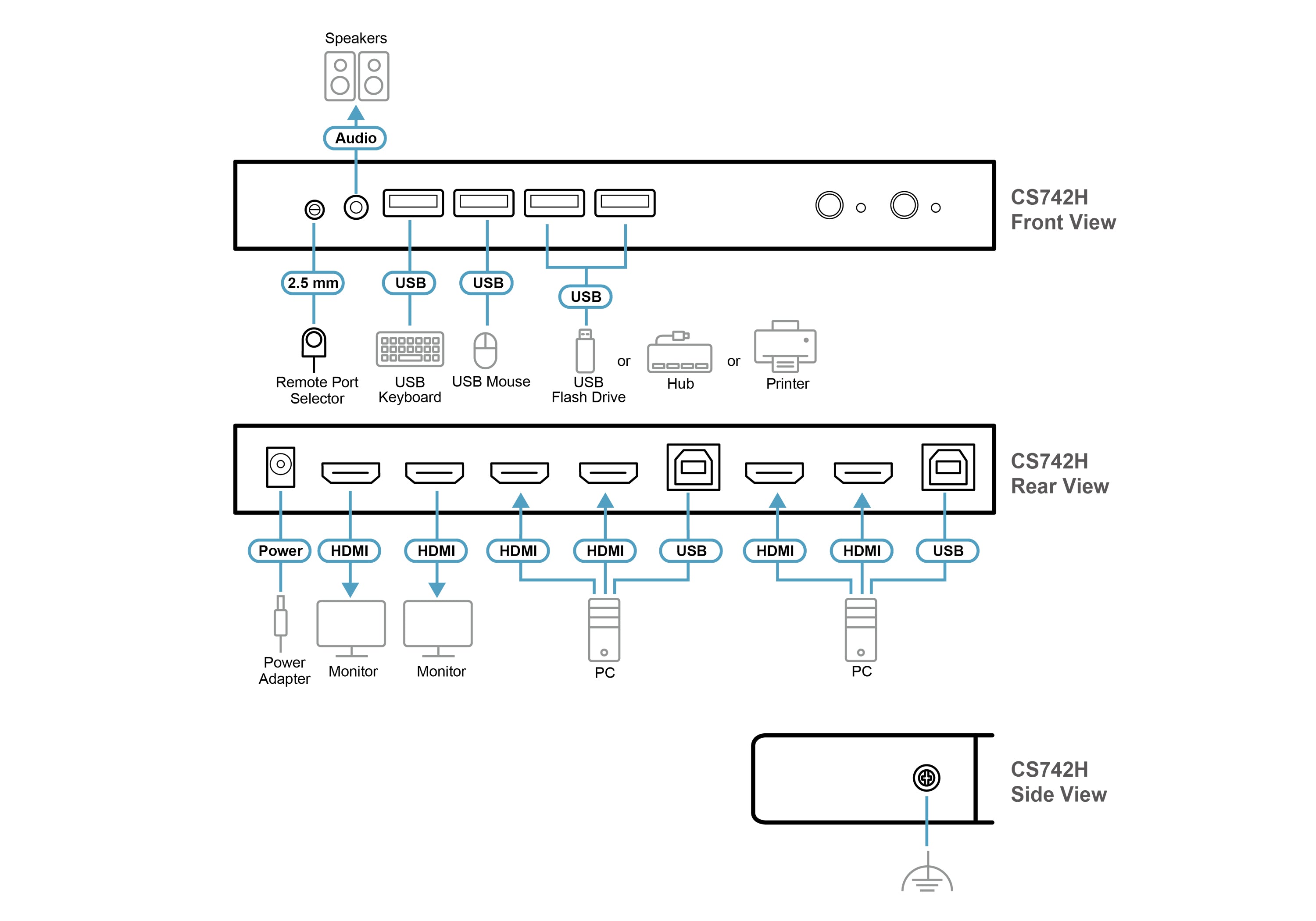

  • Console ports: HDMI, USB A, 3.5mm headphone
  • Console USB ports quantity: 2
  • Console HDMI ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • DC-in jack: Yes
  • HD type: Dual QHD
  • Maximum resolution: 5120 x 1440 pixels
  • Scan interval: 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
  • Hot-Plug support: Yes
  • Plug and Play: Yes
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power consumption (typical): 3.63 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 81.7 mm
  • Depth: 202.3 mm
  • Height: 25 mm
  • Weight: 1.21 kg
  • Cables included: HDMI, USB Type-A to USB Type-B
  • Manual: Yes
  • AC adapter included: Yes
  • Rubber feet: Yes
  • Remote control included: Yes
  • Master (outer) case net weight: 6.05 kg
  • Harmonized System (HS) code: 84718000
  • Master (outer) case width: 232 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 283 mm
  • Master (outer) case volume: 32819.225200128 cm³
  • Country of origin: Thailand
Description

The Aten CS742H-AT-G is a 2-Port USB 4K HDMI Dual-Display KVMP switch, ideal for users who need to control multiple computers from a single set of keyboard, video, and mouse peripherals. This device offers a convenient solution for multitasking and efficient workspace management.

  • Allows control of two computers using one keyboard and mouse setup, minimizing desk clutter.
  • Supports dual HDMI displays with a maximum resolution of 5120 x 1440 pixels for high-quality visuals.
  • Equipped with a USB hub that includes multiple ports for connecting additional devices, enhancing functionality.
  • Hot-plug and plug-and-play capabilities enable seamless switching between computers without rebooting.
  • Features led indicators and push buttons for easy operation and status monitoring.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 0.47 kg
Additional specifications (47)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 4
  • USB 2.0 Type-B ports quantity: 2
  • Console ports: HDMI, USB A, 3.5mm headphone
  • Console USB ports quantity: 2
  • Console HDMI ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • DC-in jack: Yes
  • HD type: Dual QHD
  • Maximum resolution: 5120 x 1440 pixels
  • Scan interval: 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
  • Hot-Plug support: Yes
  • Plug and Play: Yes
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power consumption (typical): 3.63 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 81.7 mm
  • Depth: 202.3 mm
  • Height: 25 mm
  • Weight: 1.21 kg
  • Cables included: HDMI, USB Type-A to USB Type-B
  • Manual: Yes
  • AC adapter included: Yes
  • Rubber feet: Yes
  • Remote control included: Yes
  • Master (outer) case net weight: 6.05 kg
  • Harmonized System (HS) code: 84718000
  • Master (outer) case width: 232 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 283 mm
  • Master (outer) case volume: 32819.225200128 cm³
  • Country of origin: Thailand

Aten CS742H-AT-G 2-Port USB 4K HDMI Dual-Display KVMP Switch (Cables included)

€174,83
€174,83
Tax included.
