About

Description

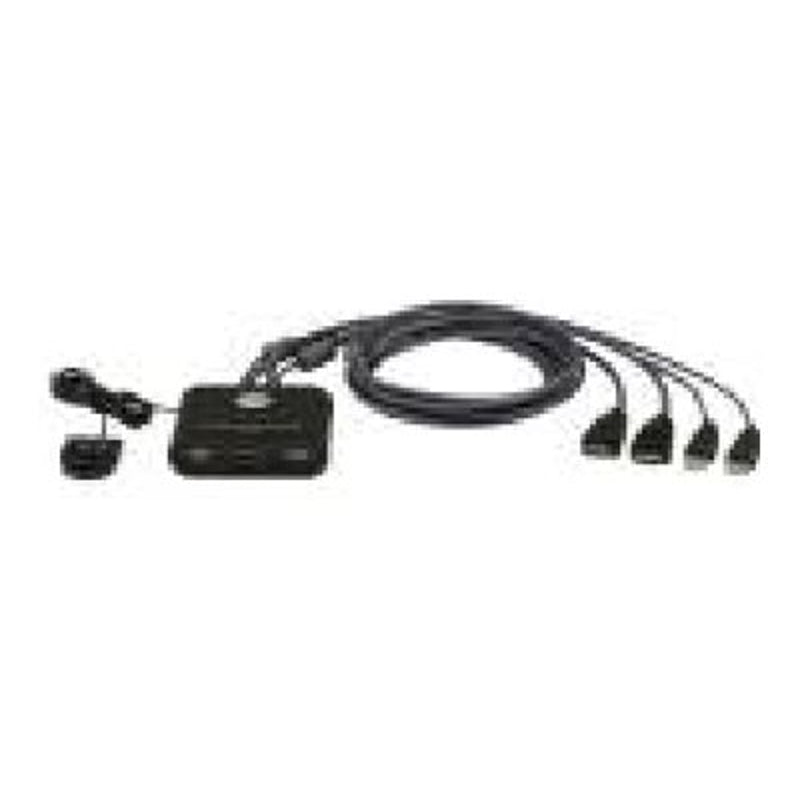

The Aten 2-Port USB FHD HDMI Cable KVM Switch CS22HF is designed for users who need to control two computers with a single keyboard, mouse, and monitor. It is suitable for home office setups, small businesses, or any space where desktop efficiency is important.

  • Easily switch between two computers using one console to streamline your workspace.
  • Supports Full HD resolutions up to 1920 x 1200 pixels, providing clear and sharp video quality.
  • Includes USB and HDMI connections, allowing compatibility with a wide range of devices.
  • Built-in LED indicators provide visual confirmation of which computer is currently selected.
  • Compact dimensions make it easy to place in tight spaces while keeping your desk organized.
Specifications (3)
  • Producer product family: 2-Port USB FHD HDMI Cable KVM Switch
  • Producer product name: CS22HF
  • Warranty: 24 month(s)
Operational conditions (2)
  • Operating relative humidity (H-H): 0 - 80% RH, Non-Condensing %
  • Operating temperature (T-T): 0 to 50 °C
Other features (1)
  • Dimensions (WxDxH): 6.65x8.24x2.52 cm
Technical details (2)
  • Net weight: 0.26 kg
  • Other features: One KVM console controls two computers with USB and HDMI interface. Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. Console Ports: 1 x HDMI Female, 2 x USB Type A Femal. KVM Ports: 2 x HDMI Male, 2 x USB Type A Male
Additional specifications (38)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 1
  • Console ports: HDMI, USB A
  • USB connector type: USB Type-A
  • DC-in jack: Yes
  • HD type: Full HD
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • HDCP: Yes
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Plastic
  • Cable length: 1.2 m
  • Remote switch cable length: 1.8 m
  • LED indicators: Yes
  • Built-in display: No
  • Input voltage: 5 V
  • Power consumption (typical): 1.518 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Storage temperature (T-T): -20 - 60 °C
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 66.5 mm
  • Depth: 82.4 mm
  • Height: 25.2 mm
  • Weight: 260 g
  • Packaging content: 1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 328 mm
  • Master (outer) case length: 389 mm
  • Master (outer) case height: 330 mm
  • Master (outer) case volume: 42192.1 cm³
  • Products per master (outer) case: 20 pc(s)
  • Country of origin: Taiwan
Description

The Aten 2-Port USB FHD HDMI Cable KVM Switch CS22HF is designed for users who need to control two computers with a single keyboard, mouse, and monitor. It is suitable for home office setups, small businesses, or any space where desktop efficiency is important.

  • Easily switch between two computers using one console to streamline your workspace.
  • Supports Full HD resolutions up to 1920 x 1200 pixels, providing clear and sharp video quality.
  • Includes USB and HDMI connections, allowing compatibility with a wide range of devices.
  • Built-in LED indicators provide visual confirmation of which computer is currently selected.
  • Compact dimensions make it easy to place in tight spaces while keeping your desk organized.
Specifications (3)
  • Producer product family: 2-Port USB FHD HDMI Cable KVM Switch
  • Producer product name: CS22HF
  • Warranty: 24 month(s)
Operational conditions (2)
  • Operating relative humidity (H-H): 0 - 80% RH, Non-Condensing %
  • Operating temperature (T-T): 0 to 50 °C
Other features (1)
  • Dimensions (WxDxH): 6.65x8.24x2.52 cm
Technical details (2)
  • Net weight: 0.26 kg
  • Other features: One KVM console controls two computers with USB and HDMI interface. Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. Console Ports: 1 x HDMI Female, 2 x USB Type A Femal. KVM Ports: 2 x HDMI Male, 2 x USB Type A Male
Additional specifications (38)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 1
  • Console ports: HDMI, USB A
  • USB connector type: USB Type-A
  • DC-in jack: Yes
  • HD type: Full HD
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • HDCP: Yes
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Plastic
  • Cable length: 1.2 m
  • Remote switch cable length: 1.8 m
  • LED indicators: Yes
  • Built-in display: No
  • Input voltage: 5 V
  • Power consumption (typical): 1.518 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Storage temperature (T-T): -20 - 60 °C
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 66.5 mm
  • Depth: 82.4 mm
  • Height: 25.2 mm
  • Weight: 260 g
  • Packaging content: 1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 328 mm
  • Master (outer) case length: 389 mm
  • Master (outer) case height: 330 mm
  • Master (outer) case volume: 42192.1 cm³
  • Products per master (outer) case: 20 pc(s)
  • Country of origin: Taiwan

Aten CS22HF — 2-Port USB FHD HDMI Cable KVM Switch

€64,47
€64,47
Tax included.
