About

Description

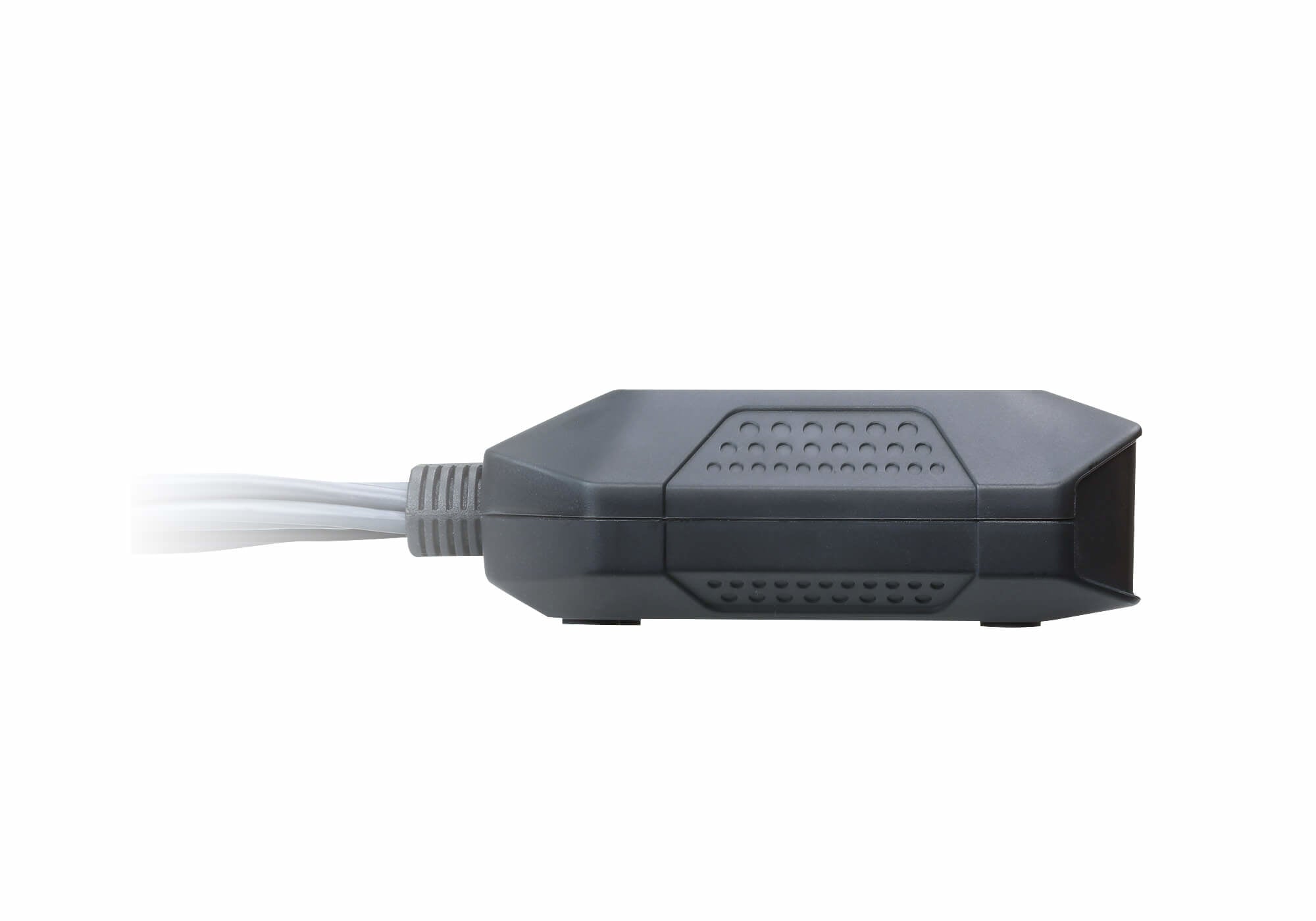

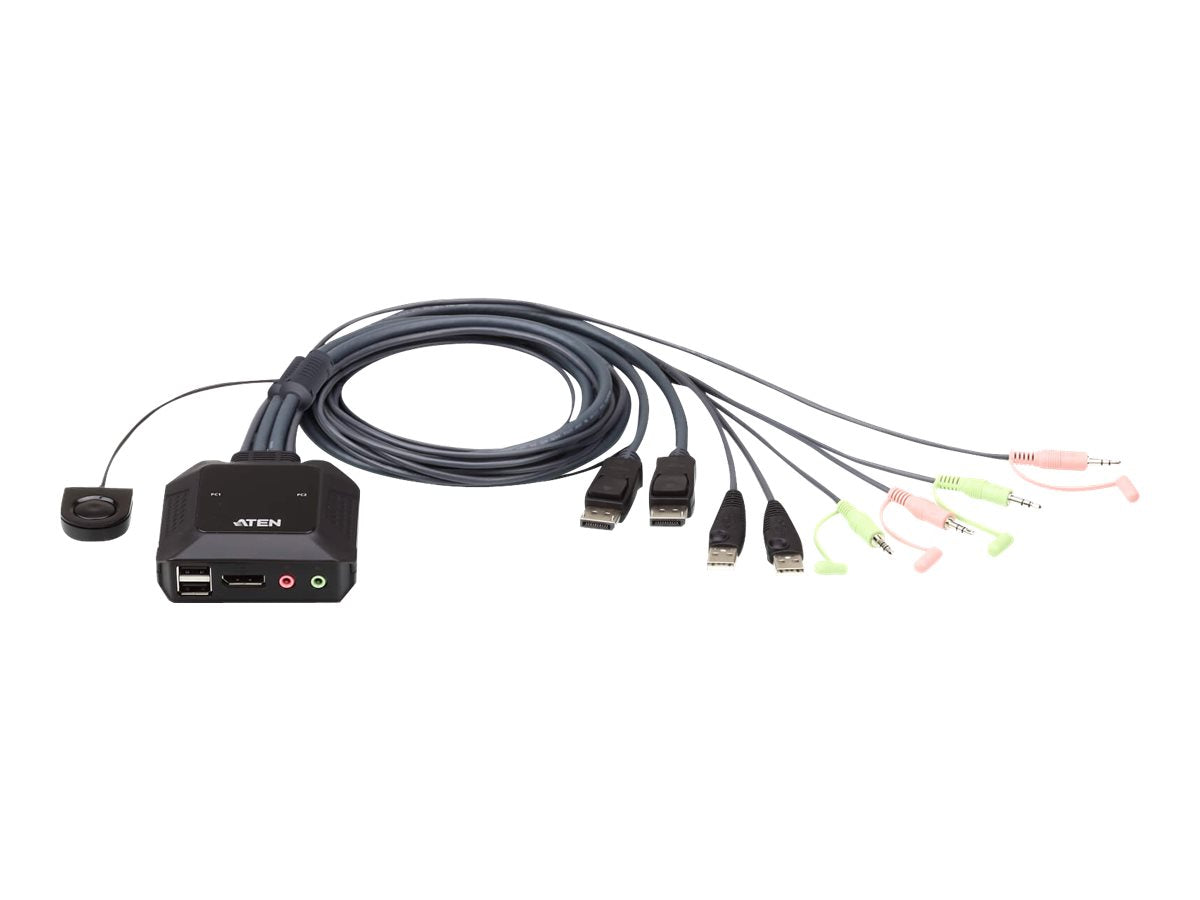

The Aten CS22DP is a 2-Port KVM Switch designed for users who need to control two USB DisplayPort computers from a single console. This device is ideal for multitaskers who want seamless access to multiple computers without the hassle of switching setups.

  • Easily switch between two computers using a single DisplayPort monitor, keyboard, and mouse.
  • Supports resolutions up to 4096 x 2160 at 30 Hz for high-quality video performance.
  • Includes audio support with 3.5mm headphone and microphone jacks for communication.
  • Features USB 2.0 ports for connecting peripherals without additional power sources.
  • Bus-powered design allows for convenient and straightforward setup.
Specifications (3)
  • Producer product family: USB DisplayPort Cable with Remote Port Selector
  • Producer product name: CS22DP
  • Warranty: 24 month(s)
Technical details (2)
  • Type: 2-Port KVM Switch
  • Net weight: 0.35 kg
Other features (1)

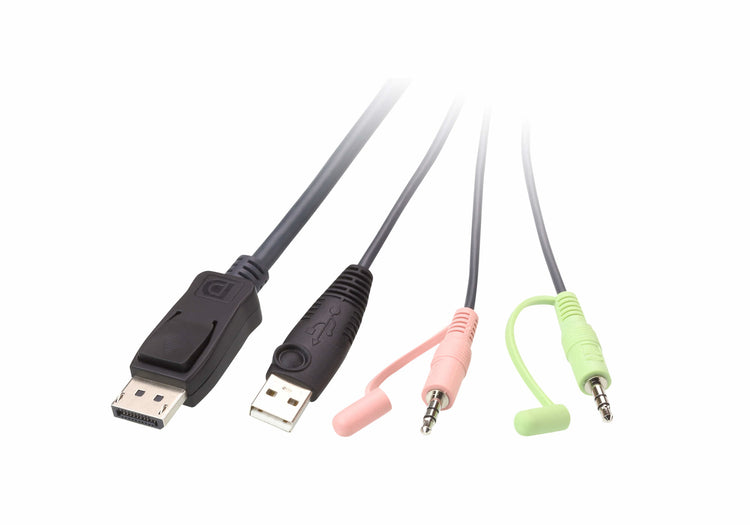

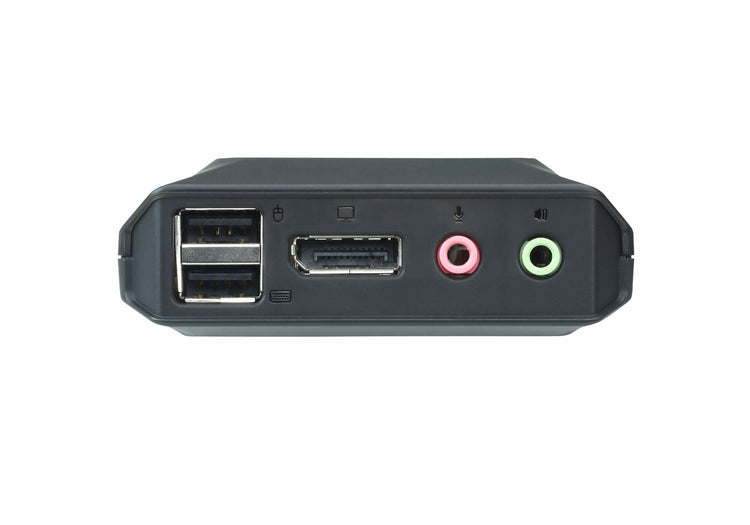

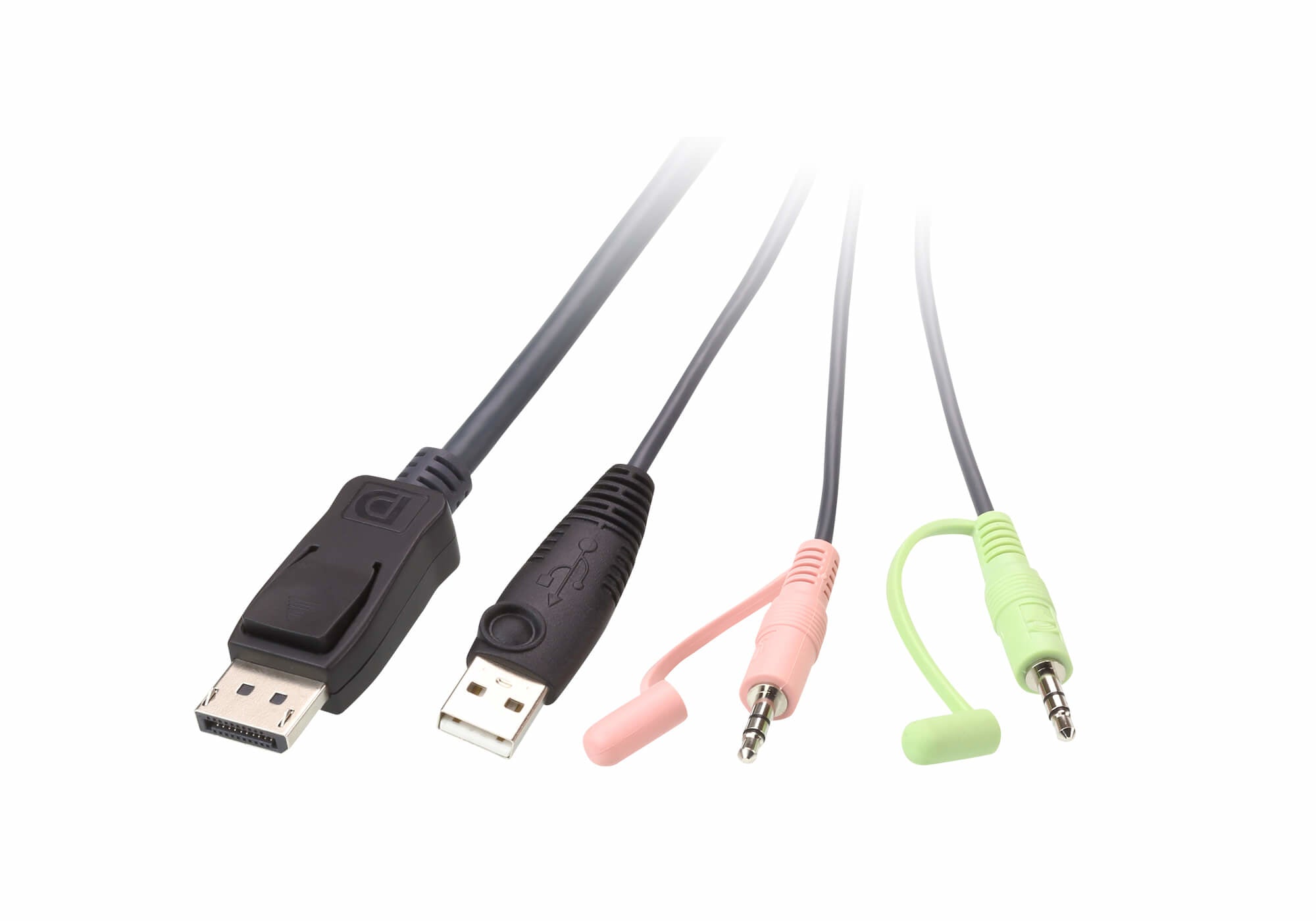

  • I/O ports: Console Ports: 1 x DisplayPort Female, 2 x USB Type A Female, 1 x 3.5mm Audio Jack Female (Green), 1 x 3.5mm Audio Jack Female (Pink); KVM (Computer) Ports: 2 x DisplayPort Male, 2 x USB Type A Male, 2 x 3.5mm Audio Jack Male (Green), 2 x 3.5mm Audio Jack Male (Pink); Power (Optional): 1 x USB Micro Type B Female
Additional specifications (50)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.1
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
  • Console USB ports quantity: 2
  • USB 2.0 ports quantity: 2
  • USB connector type: Micro-USB B, USB Type-A
  • Audio connections: Yes
  • Headphone outputs: 1
  • Number of microphone inputs: 1
  • Ethernet LAN: No
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 30 Hz
  • HDCP: Yes
  • Hot-Plug support: Yes
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Plastic
  • Wired remote switch: Yes
  • Cable length: 1.2 m
  • Remote switch cable length: 1.8 m
  • LED indicators: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 1.38 W
  • USB powered: Yes
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Sustainability certificates: RoHS
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 84.2 mm
  • Depth: 83.4 mm
  • Height: 30.4 mm
  • Weight: 360 g
  • Manual: Yes
  • Master (outer) case net weight: 7.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 328 mm
  • Master (outer) case length: 389 mm
  • Master (outer) case height: 330 mm
  • Products per master (outer) case: 20 pc(s)
Description

The Aten CS22DP is a 2-Port KVM Switch designed for users who need to control two USB DisplayPort computers from a single console. This device is ideal for multitaskers who want seamless access to multiple computers without the hassle of switching setups.

  • Easily switch between two computers using a single DisplayPort monitor, keyboard, and mouse.
  • Supports resolutions up to 4096 x 2160 at 30 Hz for high-quality video performance.
  • Includes audio support with 3.5mm headphone and microphone jacks for communication.
  • Features USB 2.0 ports for connecting peripherals without additional power sources.
  • Bus-powered design allows for convenient and straightforward setup.
Specifications (3)
  • Producer product family: USB DisplayPort Cable with Remote Port Selector
  • Producer product name: CS22DP
  • Warranty: 24 month(s)
Technical details (2)
  • Type: 2-Port KVM Switch
  • Net weight: 0.35 kg
Other features (1)
  • I/O ports: Console Ports: 1 x DisplayPort Female, 2 x USB Type A Female, 1 x 3.5mm Audio Jack Female (Green), 1 x 3.5mm Audio Jack Female (Pink); KVM (Computer) Ports: 2 x DisplayPort Male, 2 x USB Type A Male, 2 x 3.5mm Audio Jack Male (Green), 2 x 3.5mm Audio Jack Male (Pink); Power (Optional): 1 x USB Micro Type B Female
Additional specifications (50)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.1
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
  • Console USB ports quantity: 2
  • USB 2.0 ports quantity: 2
  • USB connector type: Micro-USB B, USB Type-A
  • Audio connections: Yes
  • Headphone outputs: 1
  • Number of microphone inputs: 1
  • Ethernet LAN: No
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 30 Hz
  • HDCP: Yes
  • Hot-Plug support: Yes
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Plastic
  • Wired remote switch: Yes
  • Cable length: 1.2 m
  • Remote switch cable length: 1.8 m
  • LED indicators: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 1.38 W
  • USB powered: Yes
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Sustainability certificates: RoHS
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 84.2 mm
  • Depth: 83.4 mm
  • Height: 30.4 mm
  • Weight: 360 g
  • Manual: Yes
  • Master (outer) case net weight: 7.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 328 mm
  • Master (outer) case length: 389 mm
  • Master (outer) case height: 330 mm
  • Products per master (outer) case: 20 pc(s)

Aten CS22DP — USB DisplayPort Cable with Remote Port Selector, 2-Port KVM Switch

€80,59
€80,59
Tax included.
