About

Description

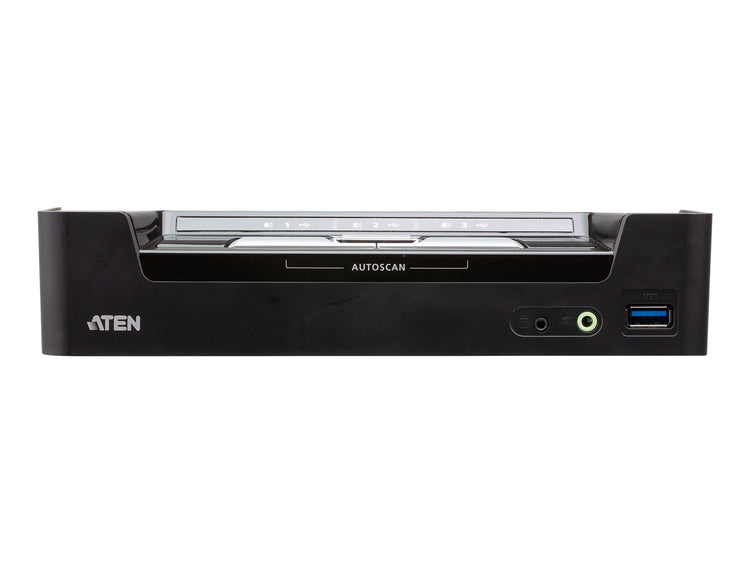

The Aten CS1953 is a 3-Port USB-C DisplayPort Hybrid KVMP Switch designed for users who need to control multiple computers from a single workstation. It is ideal for professionals who require quick access and seamless switching between systems for productivity and efficiency.

  • Control up to three computers with a single keyboard and mouse setup.
  • Enjoy high-quality video with a maximum resolution of 4096 x 2160 pixels at 60 Hz.

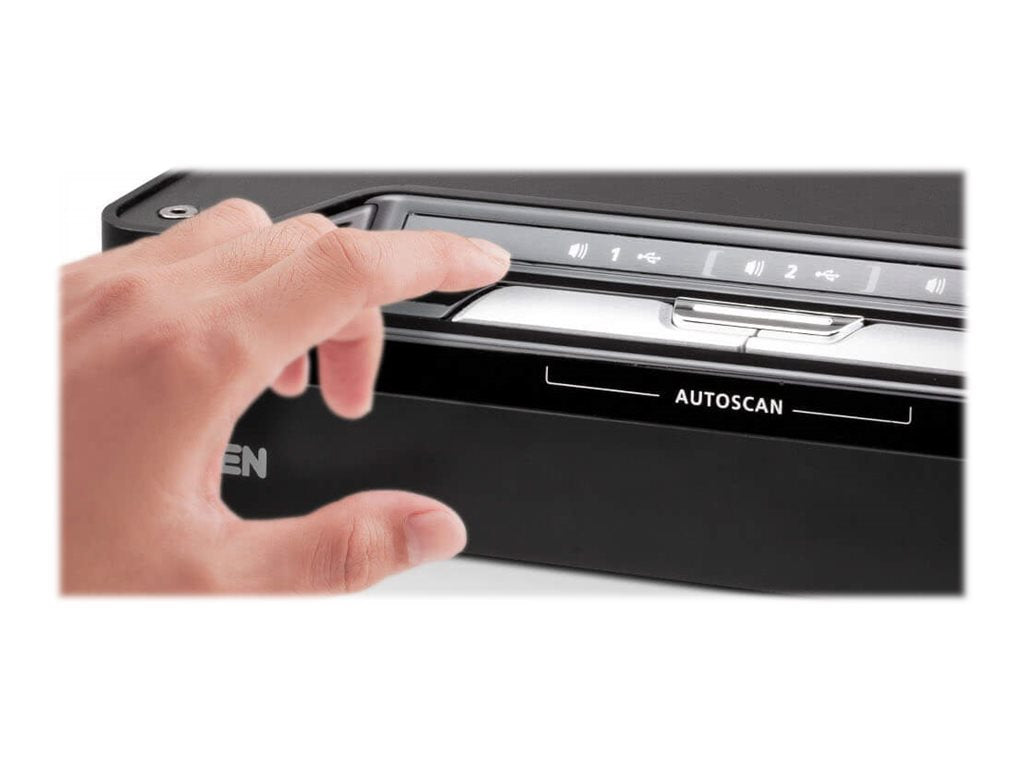

  • Easily switch between devices using push buttons or hot keys for convenience.
  • Connect audio devices with dedicated headphone and microphone inputs.
  • Utilize a built-in USB hub with multiple ports for connecting additional peripherals.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 0.5 kg
  • Producer product family: 3-Port USB-C DisplayPort Hybrid KVMP Switch
  • Producer product name: CS1953
Additional specifications (45)
  • Number of computers controlled: 3
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 3

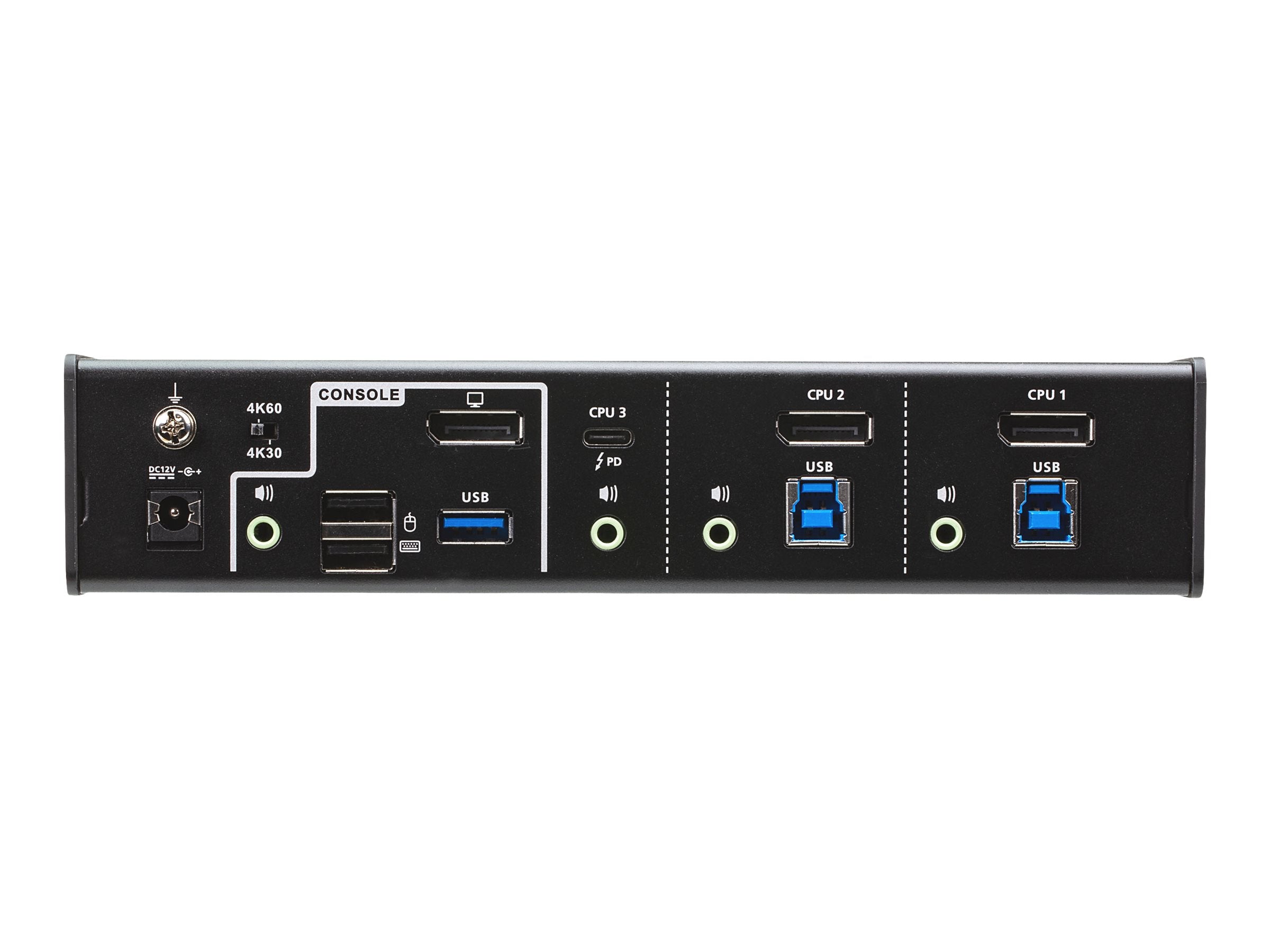

  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 1
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 12 V
  • Power consumption (typical): 5.78 W
  • Windows operating systems supported: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 206.3 mm
  • Depth: 75.4 mm
  • Height: 44 mm
  • Weight: 960 g
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 4.8 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 232 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 283 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten CS1953 is a 3-Port USB-C DisplayPort Hybrid KVMP Switch designed for users who need to control multiple computers from a single workstation. It is ideal for professionals who require quick access and seamless switching between systems for productivity and efficiency.

  • Control up to three computers with a single keyboard and mouse setup.
  • Enjoy high-quality video with a maximum resolution of 4096 x 2160 pixels at 60 Hz.
  • Easily switch between devices using push buttons or hot keys for convenience.
  • Connect audio devices with dedicated headphone and microphone inputs.
  • Utilize a built-in USB hub with multiple ports for connecting additional peripherals.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 0.5 kg
  • Producer product family: 3-Port USB-C DisplayPort Hybrid KVMP Switch
  • Producer product name: CS1953
Additional specifications (45)
  • Number of computers controlled: 3
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 3
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 1
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 12 V
  • Power consumption (typical): 5.78 W
  • Windows operating systems supported: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 206.3 mm
  • Depth: 75.4 mm
  • Height: 44 mm
  • Weight: 960 g
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 4.8 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 232 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 283 mm
  • Products per master (outer) case: 5 pc(s)

Aten CS1953 — 3-Port USB-C DisplayPort Hybrid KVMP Switch

€399,27
€399,27
Tax included.
