Description

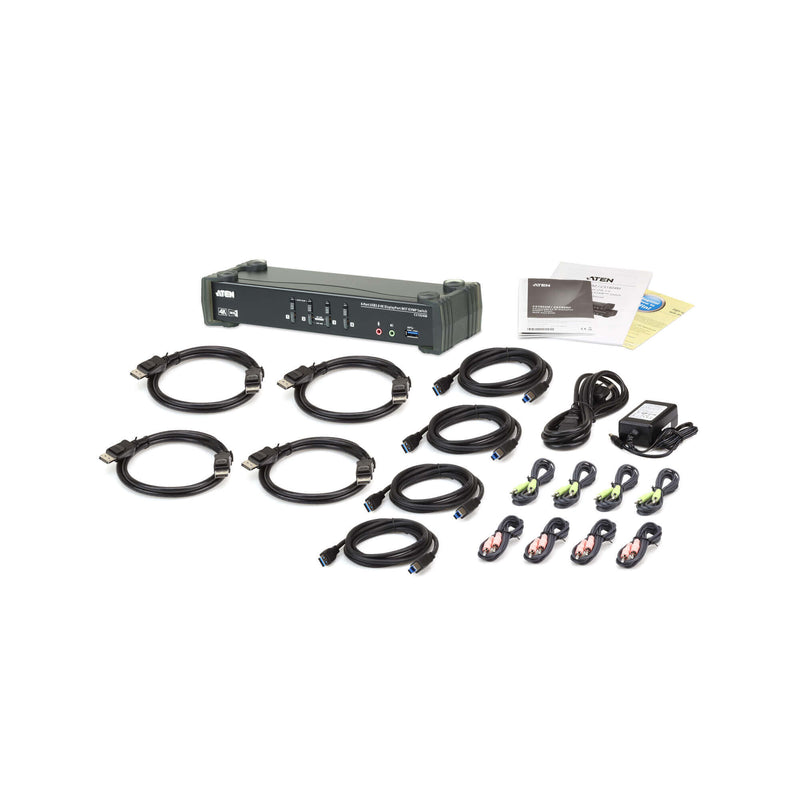

The Aten CS1924M is a 4-Port USB 3.0 KVMP switch designed for users who need to control multiple computers from a single workstation. It features high-quality video output up to 4K UHD, making it suitable for both home and professional environments where visual clarity is essential.

  • Supports superior video quality with resolutions up to 4K UHD, enhancing visuals for gaming or graphic design.
  • Includes a 2-port USB 3.1 hub for fast data transfer, allowing users to connect multiple devices simultaneously.
  • Controls up to four computers with the convenience of a single mouse and keyboard setup, streamlining workspace usage.
  • Equipped with multiple audio connections, including six headphone outputs and microphone inputs for versatile audio management.
  • LED indicators and a push button enable easy switching between connected computers, enhancing user experience.
Specifications (3)
  • Producer product family: 4-Port USB3.0 4K DisplayPort KVMP Switch with Built-in MST Hub
  • Producer product name: CS1924M
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 0.92 kg
  • Other features: Supports superior video quality – 4K UHD (3840 x 2160 at 60 Hz) and 4K DCI (4096 x 2160 at 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
Additional specifications (45)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • DisplayPorts quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 6
  • Number of microphone inputs: 6
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 4.89 W
  • Windows operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 270 mm
  • Depth: 88 mm
  • Height: 55.5 mm
  • Weight: 2.01 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 10.1 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten CS1924M is a 4-Port USB 3.0 KVMP switch designed for users who need to control multiple computers from a single workstation. It features high-quality video output up to 4K UHD, making it suitable for both home and professional environments where visual clarity is essential.

  • Supports superior video quality with resolutions up to 4K UHD, enhancing visuals for gaming or graphic design.
  • Includes a 2-port USB 3.1 hub for fast data transfer, allowing users to connect multiple devices simultaneously.
  • Controls up to four computers with the convenience of a single mouse and keyboard setup, streamlining workspace usage.
  • Equipped with multiple audio connections, including six headphone outputs and microphone inputs for versatile audio management.
  • LED indicators and a push button enable easy switching between connected computers, enhancing user experience.
Specifications (3)
  • Producer product family: 4-Port USB3.0 4K DisplayPort KVMP Switch with Built-in MST Hub
  • Producer product name: CS1924M
  • Warranty: 24 month(s)
Technical details (2)
  • Net weight: 0.92 kg
  • Other features: Supports superior video quality – 4K UHD (3840 x 2160 at 60 Hz) and 4K DCI (4096 x 2160 at 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
Additional specifications (45)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • DisplayPorts quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 6
  • Number of microphone inputs: 6
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 4.89 W
  • Windows operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 270 mm
  • Depth: 88 mm
  • Height: 55.5 mm
  • Weight: 2.01 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 10.1 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)

Aten CS1924M — 4-Port USB3.0 4K DisplayPort KVMP Switch with Built-in MST Hub

€519,55
