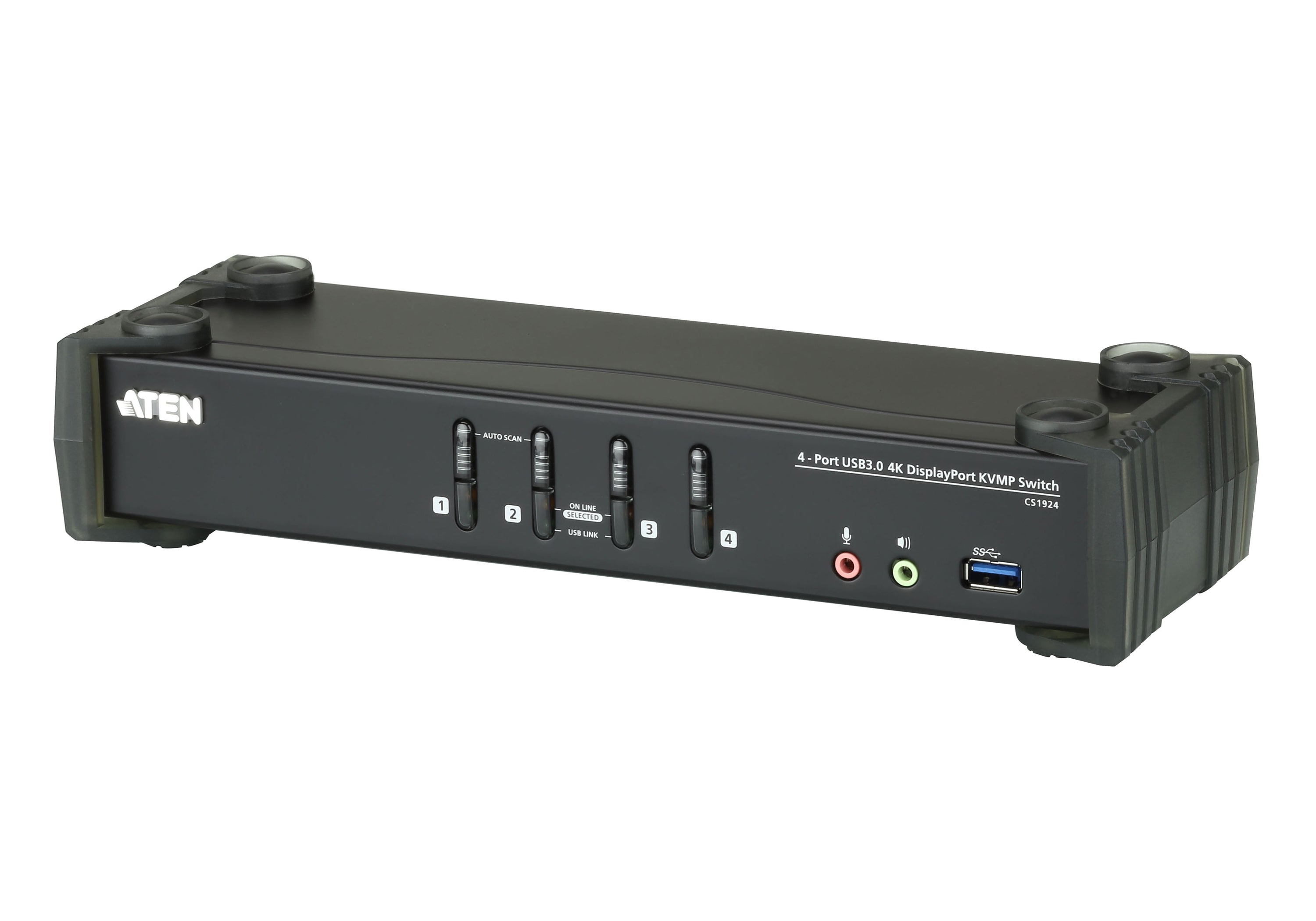

The Aten 4-Port USB 3.0 4K DisplayPort KVMP Switch (CS1924-AT-G) allows you to control up to four computers using a single keyboard, mouse, and monitor setup. Featuring high-resolution support of up to 4096 x 2160 pixels, this switch lets you seamlessly switch between systems while also providing multiple audio connections.

• Controls up to 4 computers
• Supports up to 4K resolution (4096 x 2160 pixels)
• Includes 6 USB 3.2 Gen 1 Type-A hub ports
• Offers audio connections with 2.1 channels and 6 headphone outputs
• Hot-Plug support for easy connection of devices

Specifications

• Warranty: 24 month(s)

Technical details

• Net weight: 0.91 kg
• Producer product family: 4-Port USB 3.0 4K DisplayPort KVMP Switch
• Producer product name: CS1924-AT-G

Additional specifications

• Number of computers controlled: 4
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: DisplayPort
• Display connection: Yes
• Console ports: USB A
• Console USB ports quantity: 2
• USB hub: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 6
• USB connector type: USB Type-A, USB Type-B
• USB version: 3.2 Gen 1 (3.1 Gen 1)
• Audio connections: Yes
• Headphone outputs: 6
• Number of microphone inputs: 6
• DC-in jack: Yes
• Ethernet LAN: No
• Maximum resolution: 4096 x 2160 pixels
• Maximum digital resolution: 4096 x 2160 pixels
• Scan interval: 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
• HDCP: Yes
• Hot-Plug support: Yes
• Audio channels: 2.1
• Product colour: Black
• Housing material: Metal, Plastic
• LED indicators: Activity, Link
• Push button: Yes
• Built-in display: No
• Windows operating systems supported: Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium, Windows XP Home
• Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 9.3
• Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
• Compliance certificates: RoHS
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 88 mm
• Depth: 270 mm
• Height: 55.5 mm
• Weight: 910 g
• Cables included: Audio (3.5mm), DisplayPort, USB
• Manual: Yes
• AC adapter included: Yes
• Power requirements: 5V DC
