About

Description

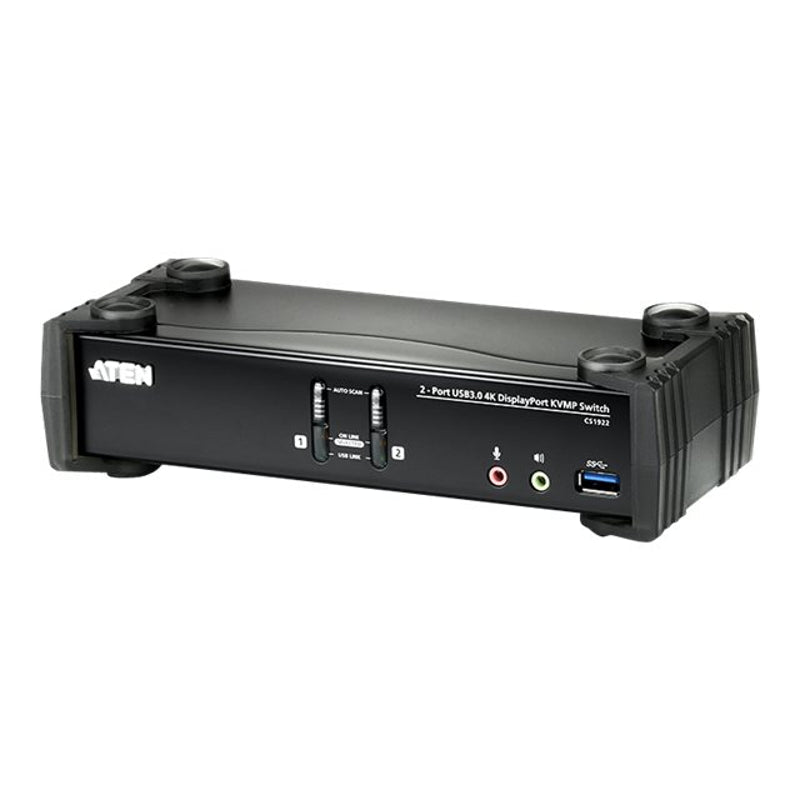

The Aten CS1922 is a 2-Port USB 3.0 4K DisplayPort KVMP switch that allows you to control up to four computers using one keyboard, mouse, and monitor setup. It is ideal for users who need to switch between multiple computers efficiently, such as in offices or homes with various devices.

  • Supports 4K Ultra HD resolution at 4096 x 2160 pixels for high-quality video output.
  • Built-in USB hub with two USB 3.2 Gen 1 ports for connecting additional devices.
  • Hot-plug support enables you to switch computers without restarting, ensuring seamless transitions.
  • Audio connections allow you to manage audio input and output for all connected devices.
  • LED indicators provide clear visibility of operation and USB activity.
Technical details (3)
  • Producer product family: 2-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)
  • Producer product name: CS1922
  • Net weight: 0.73 kg
Specifications (1)
  • Warranty: 24 month(s)
Additional specifications (48)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 3
  • Console ports: 3.5mm mic, DisplayPort, USB B
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-B
  • USB version: 3.2 Gen 1 (3.1 Gen 1)
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 4
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Scan interval: 1,99 s
  • HDCP: Yes
  • Hot-Plug support: Yes
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Operation, USB
  • Push button: Yes
  • Built-in display: No
  • Power source: DC
  • Output voltage: 5 V
  • Power consumption (typical): 2 W
  • External power adapter: Yes
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 88 mm
  • Depth: 210 mm
  • Height: 55.5 mm
  • Weight: 1.42 kg
  • Cables included: Audio (3.5mm), DisplayPort, USB
  • Manual: Yes
  • AC adapter included: Yes
  • Master (outer) case net weight: 7.1 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 292 mm
  • Master (outer) case length: 517 mm
  • Master (outer) case height: 194 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten CS1922 is a 2-Port USB 3.0 4K DisplayPort KVMP switch that allows you to control up to four computers using one keyboard, mouse, and monitor setup. It is ideal for users who need to switch between multiple computers efficiently, such as in offices or homes with various devices.

  • Supports 4K Ultra HD resolution at 4096 x 2160 pixels for high-quality video output.
  • Built-in USB hub with two USB 3.2 Gen 1 ports for connecting additional devices.
  • Hot-plug support enables you to switch computers without restarting, ensuring seamless transitions.
  • Audio connections allow you to manage audio input and output for all connected devices.
  • LED indicators provide clear visibility of operation and USB activity.
Technical details (3)
  • Producer product family: 2-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)
  • Producer product name: CS1922
  • Net weight: 0.73 kg
Specifications (1)
  • Warranty: 24 month(s)
Additional specifications (48)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 3
  • Console ports: 3.5mm mic, DisplayPort, USB B
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-B
  • USB version: 3.2 Gen 1 (3.1 Gen 1)
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 4
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Scan interval: 1,99 s
  • HDCP: Yes
  • Hot-Plug support: Yes
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Operation, USB
  • Push button: Yes
  • Built-in display: No
  • Power source: DC
  • Output voltage: 5 V
  • Power consumption (typical): 2 W
  • External power adapter: Yes
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 88 mm
  • Depth: 210 mm
  • Height: 55.5 mm
  • Weight: 1.42 kg
  • Cables included: Audio (3.5mm), DisplayPort, USB
  • Manual: Yes
  • AC adapter included: Yes
  • Master (outer) case net weight: 7.1 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 292 mm
  • Master (outer) case length: 517 mm
  • Master (outer) case height: 194 mm
  • Products per master (outer) case: 5 pc(s)

Aten CS1922 — 2-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)

€218,23
€218,23
Tax included.
