About

Description

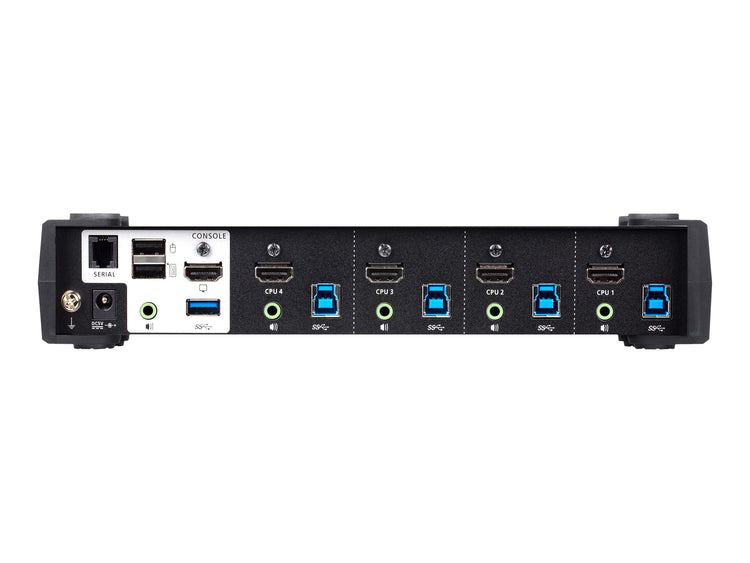

The Aten CS1824 is a 4-Port USB 3.0 4K HDMI KVMP Switch designed for users who need to control multiple computers from a single keyboard, mouse, and monitor setup. This device is suitable for home or office environments where switching between computers efficiently is crucial.

  • Control up to 4 computers with a single set of peripherals, simplifying your workspace.
  • Experience high-quality visuals with support for 4K Ultra HD at a maximum resolution of 4096 x 2160 pixels.
  • Utilize multiple HDMI ports for flexible connectivity options, with a total of 5 HDMI ports available.
  • Connect audio devices easily with multiple headphone outputs and audio connections.
  • Upgrade firmware as needed to keep the device current and compatible with evolving technology.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 0.94 kg
  • Producer product family: 4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode
  • Producer product name: CS1824
Additional specifications (44)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 5
  • HDMI version: 2.0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
  • Console ports: 3.5mm headphone, HDMI, USB A
  • Console USB ports quantity: 4
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Serial ports quantity: 1
  • Audio connections: Yes
  • Headphone outputs: 6
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,99 s
  • HDCP: Yes
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 2.535 W
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 88 mm
  • Depth: 270 mm
  • Height: 55.5 mm
  • Weight: 2.24 kg
  • Master (outer) case net weight: 11.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten CS1824 is a 4-Port USB 3.0 4K HDMI KVMP Switch designed for users who need to control multiple computers from a single keyboard, mouse, and monitor setup. This device is suitable for home or office environments where switching between computers efficiently is crucial.

  • Control up to 4 computers with a single set of peripherals, simplifying your workspace.
  • Experience high-quality visuals with support for 4K Ultra HD at a maximum resolution of 4096 x 2160 pixels.
  • Utilize multiple HDMI ports for flexible connectivity options, with a total of 5 HDMI ports available.
  • Connect audio devices easily with multiple headphone outputs and audio connections.
  • Upgrade firmware as needed to keep the device current and compatible with evolving technology.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 0.94 kg
  • Producer product family: 4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode
  • Producer product name: CS1824
Additional specifications (44)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 5
  • HDMI version: 2.0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
  • Console ports: 3.5mm headphone, HDMI, USB A
  • Console USB ports quantity: 4
  • USB hub: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Serial ports quantity: 1
  • Audio connections: Yes
  • Headphone outputs: 6
  • DC-in jack: Yes
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,99 s
  • HDCP: Yes
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Push button: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 2.535 W
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 88 mm
  • Depth: 270 mm
  • Height: 55.5 mm
  • Weight: 2.24 kg
  • Master (outer) case net weight: 11.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)

Aten CS1824 — 4-Port USB 3.0 4K HDMI KVMP Switch with Audio Mixer Mode

€593,95
€593,95
Tax included.
