About

Description

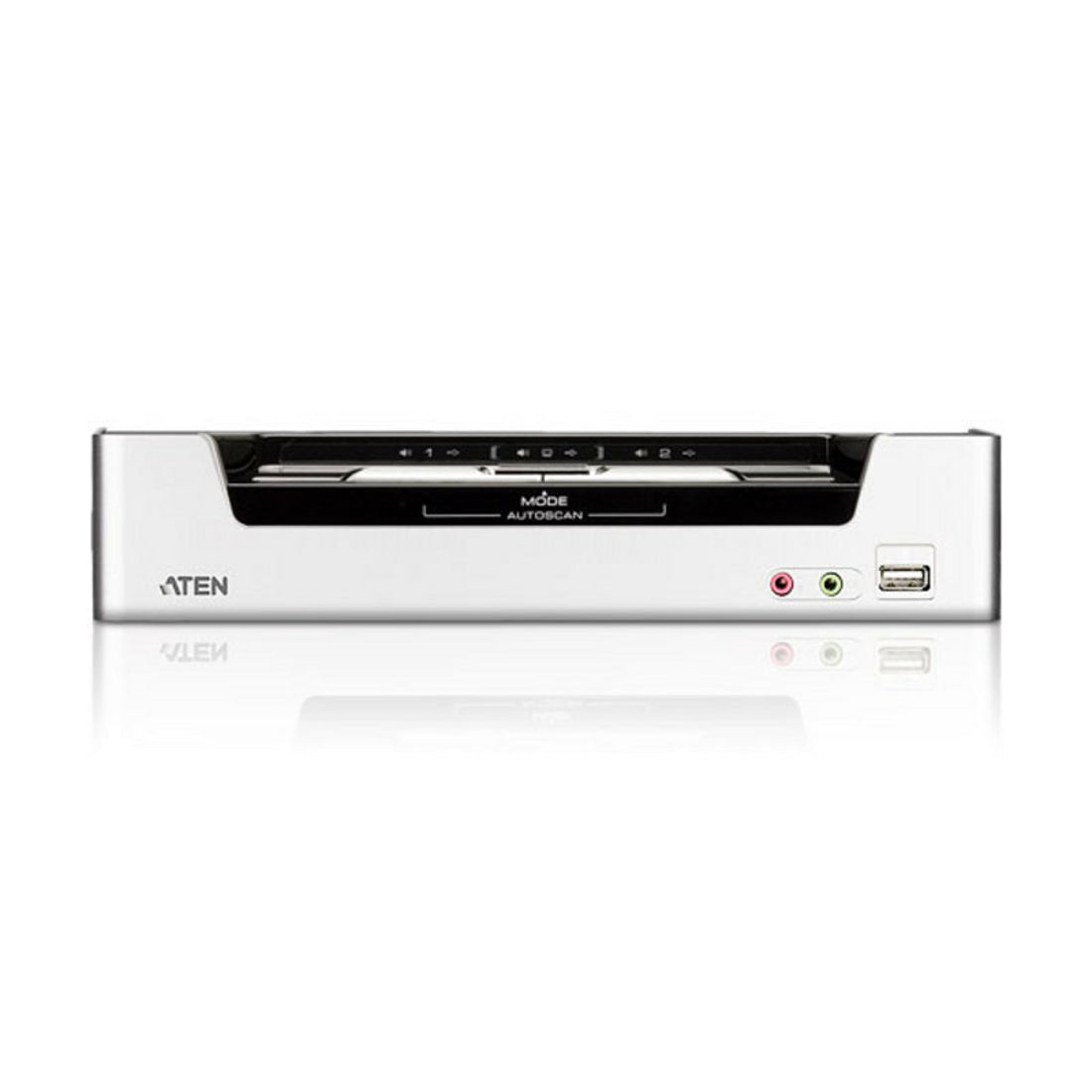

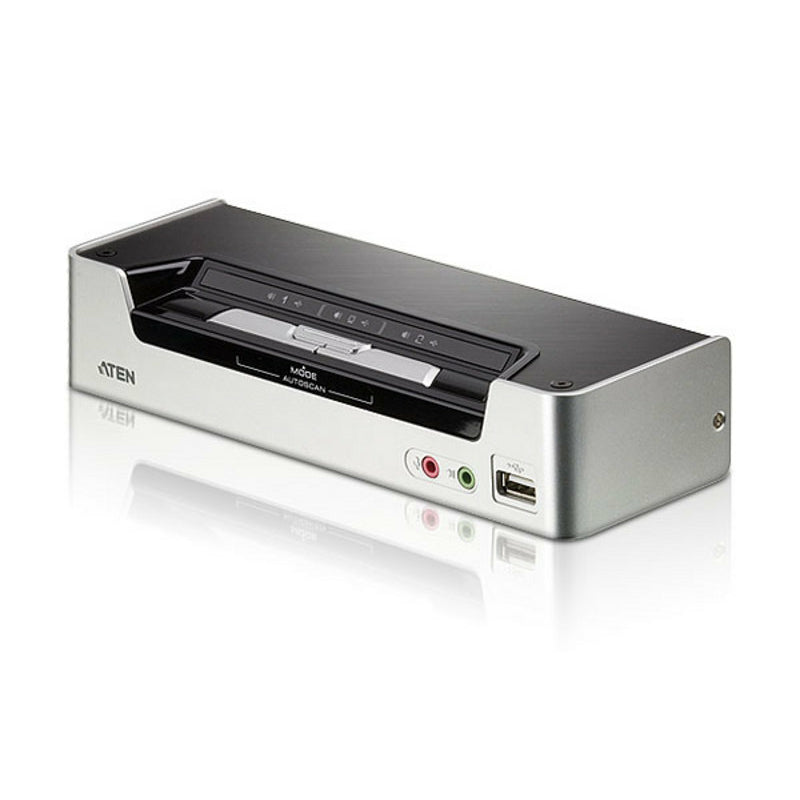

The Aten CS1792 is a 2-Port USB HDMI/Audio KVMP switch designed for users who need to control two computers from a single set of keyboard, mouse, and monitor. It is suitable for multitaskers and professionals who require seamless switching between systems without losing video quality.

  • Supports high-definition video resolutions up to 1920 x 1200 pixels for clear visuals.
  • Allows quick switching between computers using pushbuttons or hotkeys for efficient workflow.
  • Equipped with multiple console ports, including USB and HDMI, ensuring versatile connectivity.
  • Features audio connections for both headphones and microphones, accommodating various audio needs.
  • Compatible with multiple platforms, including Windows, Linux, and Mac, offering flexibility for different users.
Specifications (3)
  • Producer product family: 2-Port USB HDMI/Audio KVMP Switch
  • Producer product name: CS1792
  • Warranty: 24 month(s)
Design (1)
  • Material: Metal, Plastic
Operational conditions (1)
  • Temperature range (T-T): 0-50˚C °C
Other features (1)
  • I/O ports: Console Ports: 2 x USB Type A Female (rear panel), 1 x HDMI Female (Black), 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM Ports: 2 x USB Type B Female, 2 x HDMI Female (Black), 2 x 3.5 mm Audio Jack Female (Green), 2 x 3.5 mm Audio Jack Female (Pink)
Technical details (2)
  • Net weight: 0.42 kg
  • Other features: Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI); PC selection via pushbutton and hotkeys; Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution; Multiplatform support - Windows, Linux,and Mac
Additional specifications (45)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 2
  • Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 4
  • DC-in jack: Yes
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black, Grey
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5.3 V
  • Power consumption (typical): 5.35 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 206.3 mm
  • Depth: 72.4 mm
  • Height: 44 mm
  • Weight: 1.04 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 5.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 232 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 283 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten CS1792 is a 2-Port USB HDMI/Audio KVMP switch designed for users who need to control two computers from a single set of keyboard, mouse, and monitor. It is suitable for multitaskers and professionals who require seamless switching between systems without losing video quality.

  • Supports high-definition video resolutions up to 1920 x 1200 pixels for clear visuals.
  • Allows quick switching between computers using pushbuttons or hotkeys for efficient workflow.
  • Equipped with multiple console ports, including USB and HDMI, ensuring versatile connectivity.
  • Features audio connections for both headphones and microphones, accommodating various audio needs.
  • Compatible with multiple platforms, including Windows, Linux, and Mac, offering flexibility for different users.
Specifications (3)
  • Producer product family: 2-Port USB HDMI/Audio KVMP Switch
  • Producer product name: CS1792
  • Warranty: 24 month(s)
Design (1)
  • Material: Metal, Plastic
Operational conditions (1)
  • Temperature range (T-T): 0-50˚C °C
Other features (1)
  • I/O ports: Console Ports: 2 x USB Type A Female (rear panel), 1 x HDMI Female (Black), 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM Ports: 2 x USB Type B Female, 2 x HDMI Female (Black), 2 x 3.5 mm Audio Jack Female (Green), 2 x 3.5 mm Audio Jack Female (Pink)
Technical details (2)
  • Net weight: 0.42 kg
  • Other features: Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI); PC selection via pushbutton and hotkeys; Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution; Multiplatform support - Windows, Linux,and Mac
Additional specifications (45)
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: HDMI
  • HDMI ports quantity: 2
  • Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 4
  • Number of microphone inputs: 4
  • DC-in jack: Yes
  • HD type: WUXGA
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 1,5,99 s
  • Product colour: Black, Grey
  • Housing material: Metal, Plastic
  • LED indicators: Yes
  • Hot keys: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5.3 V
  • Power consumption (typical): 5.35 W
  • Windows operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Width: 206.3 mm
  • Depth: 72.4 mm
  • Height: 44 mm
  • Weight: 1.04 kg
  • Quick installation guide: Yes
  • Manual: Yes
  • Master (outer) case net weight: 5.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 232 mm
  • Master (outer) case length: 500 mm
  • Master (outer) case height: 283 mm
  • Products per master (outer) case: 5 pc(s)

Aten CS1792 — 2-Port USB HDMI/Audio KVMP Switch

€218,23
€218,23
Tax included.
