Description

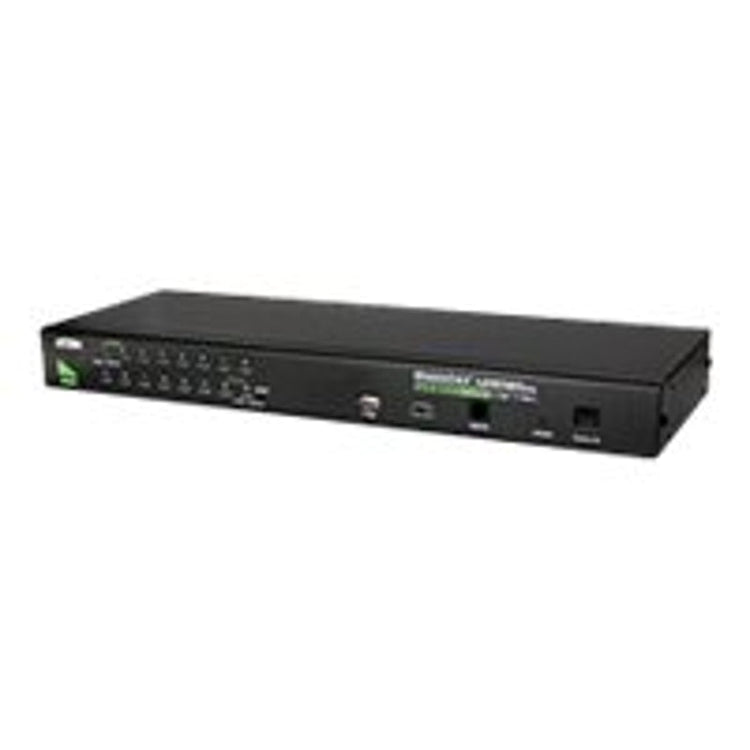

The Aten CS1716A is a 16-port KVM switch designed for those who need to manage multiple computers from a single console. Ideal for IT professionals and businesses, this device allows seamless control of up to 512 computers through daisy-chaining, ensuring efficient workspace organization.
- Supports up to 16 computers from one USB-PS/2 console, making multitasking easier.
- Daisy-chaining capability allows connection of up to 31 additional units, expanding your control to 512 devices.
- Offers superior video quality with resolutions up to 2048 x 1536 pixels for clear display.
- Hot-plug support enables you to add or remove computers without interrupting your workflow.
- Metal housing ensures durability for demanding environments.
Specifications (3)
- Producer product family: 16-Port PS/2-USB VGA KVM Switch with Daisy-Chain Port and USB Peripheral Support
- Producer product name: CS1716A
- Warranty: 24 month(s)
Design (1)
- Material: Metal
Features (2)
- Connector 1: 1 x SPHD-18 Male
- Connector 2: 16 x SPHD-15 Female
Operational conditions (1)
- Temperature range (T-T): 0-50˚C °C
Technical details (2)
- Net weight: 2.85 kg
- Other features: Superior video quality - up to 2048 x 1536; DDC2B. One USB-PS/2 console controls up to 16 computers; Daisy-chain up to 31 additional units - control up to 512 computers from a single console. Broadcast Mode - operation simultaneously performed on all selected computers... etc. Video DynaSync - stores the console monitor EDID to optimize display resolution
Additional specifications (48)
- Number of computers controlled: 512
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 17
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 1
- DC-in jack: Yes
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Scan interval: 1,255 s
- DDC2B support: Yes
- Hot-Plug support: Yes
- Daisy chain: Yes
- Firmware upgradeable: Yes
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
- Power source: DC
- Input voltage: 5.3 V
- Power consumption (typical): 6.6 W
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Compliance certificates: RoHS
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 437.2 mm
- Depth: 159.9 mm
- Height: 44 mm
- Weight: 3.61 kg
- Cables included: KVM
- Quick installation guide: Yes
- AC adapter included: Yes
- Rack mount kit: Yes
- Master (outer) case net weight: 10.8 kg
- Harmonized System (HS) code: 85176200
- Master (outer) case width: 375 mm
- Master (outer) case length: 565 mm
- Master (outer) case height: 258 mm
- Products per master (outer) case: 3 pc(s)
Description
The Aten CS1716A is a 16-port KVM switch designed for those who need to manage multiple computers from a single console. Ideal for IT professionals and businesses, this device allows seamless control of up to 512 computers through daisy-chaining, ensuring efficient workspace organization.
- Supports up to 16 computers from one USB-PS/2 console, making multitasking easier.
- Daisy-chaining capability allows connection of up to 31 additional units, expanding your control to 512 devices.
- Offers superior video quality with resolutions up to 2048 x 1536 pixels for clear display.
- Hot-plug support enables you to add or remove computers without interrupting your workflow.
- Metal housing ensures durability for demanding environments.
Specifications (3)
- Producer product family: 16-Port PS/2-USB VGA KVM Switch with Daisy-Chain Port and USB Peripheral Support
- Producer product name: CS1716A
- Warranty: 24 month(s)
Design (1)
- Material: Metal
Features (2)
- Connector 1: 1 x SPHD-18 Male
- Connector 2: 16 x SPHD-15 Female
Operational conditions (1)
- Temperature range (T-T): 0-50˚C °C
Technical details (2)
- Net weight: 2.85 kg
- Other features: Superior video quality - up to 2048 x 1536; DDC2B. One USB-PS/2 console controls up to 16 computers; Daisy-chain up to 31 additional units - control up to 512 computers from a single console. Broadcast Mode - operation simultaneously performed on all selected computers... etc. Video DynaSync - stores the console monitor EDID to optimize display resolution
Additional specifications (48)
- Number of computers controlled: 512
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- VGA (D-Sub) ports quantity: 17
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 1
- DC-in jack: Yes
- HD type: QXGA
- Maximum resolution: 2048 x 1536 pixels
- Scan interval: 1,255 s
- DDC2B support: Yes
- Hot-Plug support: Yes
- Daisy chain: Yes
- Firmware upgradeable: Yes
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- On Screen Display (OSD): Yes
- Power source: DC
- Input voltage: 5.3 V
- Power consumption (typical): 6.6 W
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Compliance certificates: RoHS
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 437.2 mm
- Depth: 159.9 mm
- Height: 44 mm
- Weight: 3.61 kg
- Cables included: KVM
- Quick installation guide: Yes
- AC adapter included: Yes
- Rack mount kit: Yes
- Master (outer) case net weight: 10.8 kg
- Harmonized System (HS) code: 85176200
- Master (outer) case width: 375 mm
- Master (outer) case length: 565 mm
- Master (outer) case height: 258 mm
- Products per master (outer) case: 3 pc(s)
Aten CS1716A — 16-Port PS/2-USB VGA KVM Switch with Daisy-Chain Port and USB Peripheral Support
- Regular price
- €615,03
- Sale price
- €615,03
- Regular price
-
Tax included.
