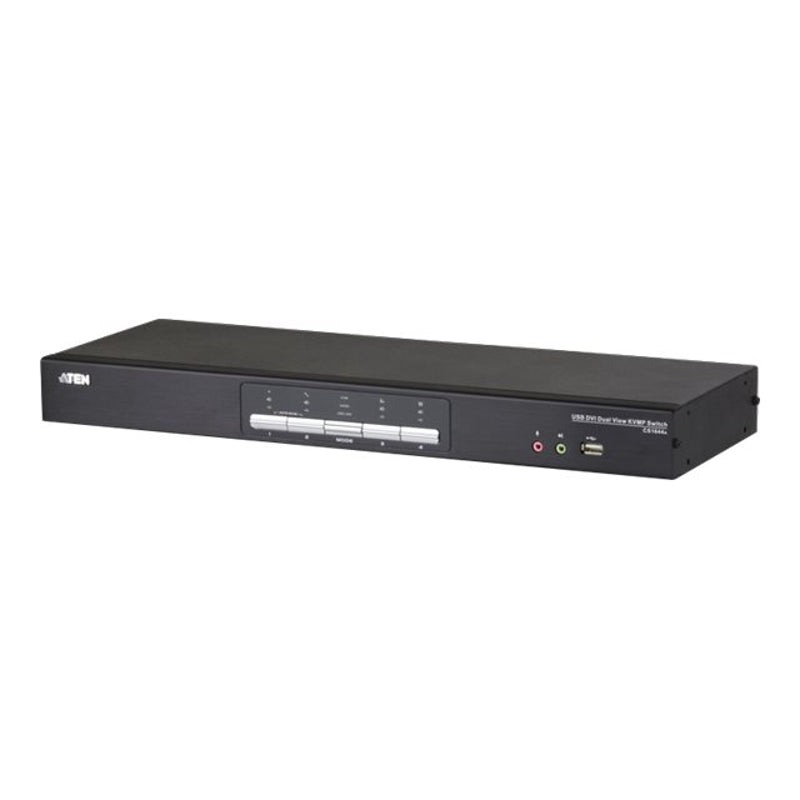

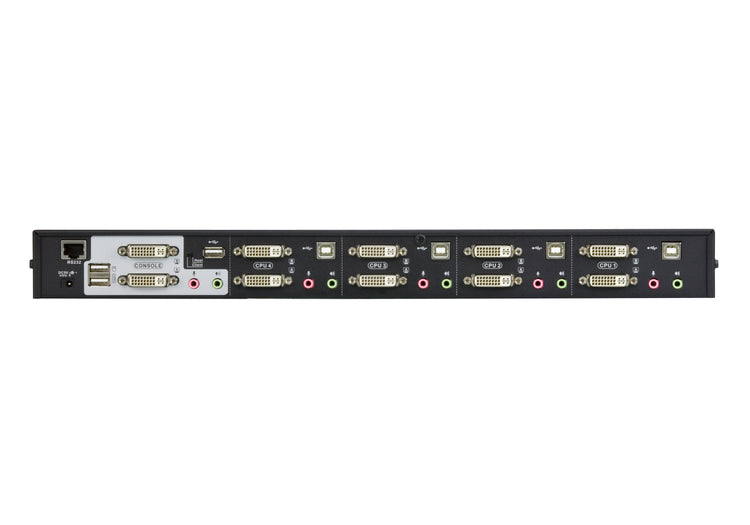

The Aten CS1644A is a 4-Port USB DVI Dual Link KVMP switch designed for seamless control of up to four computers. It features multiple video and audio connections, ensuring high-resolution support and convenience for various setups.

• Controls up to 4 computers with a maximum resolution of 2560 x 1600 pixels.
• Includes USB ports for keyboard and mouse connections, along with a USB hub.
• Supports DVI-I video connections with a total of 10 DVI-I ports.
• Offers audio connections with 4 headphone outputs and 4 microphone inputs.
• Equipped with 1 Ethernet LAN (RJ-45) port and rack mounting capability.

Specifications

• Warranty: 24 month(s)

Technical details

• Net weight: 2.32 kg
• Producer product family: 4-Port USB DVI Dual Link Dual Display/Audio KVMP Switch
• Producer product name: CS1644A

Additional specifications

• Number of computers controlled: 4
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: DVI-I
• DVI-I ports quantity: 10
• USB 2.0 Type-B ports quantity: 4
• Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A
• Console USB ports quantity: 2
• USB hub: Yes
• USB 2.0 Type-A hub ports quantity: 2
• USB connector type: USB Type-A
• Audio connections: Yes
• Headphone outputs: 4
• Number of microphone inputs: 4
• DC-in jack: Yes
• Ethernet LAN (RJ-45) ports: 1
• HD type: WQXGA
• Maximum resolution: 2560 x 1600 pixels
• Video bandwidth: 60 Hz
• Scan interval: 1,99 s
• HDCP: Yes
• Rack mounting: Yes
• Rack capacity: 1U
• Product colour: Black
• Housing material: Metal, Plastic
• Push button: Yes
• Hot keys: Yes
• Built-in display: No
• Power source: DC
• Input voltage: 5.3 V
• Power consumption (typical): 12.19 W
• Windows operating systems supported: Yes
• Linux operating systems supported: Yes
• Mac operating systems supported: Yes
• Other operating systems supported: FreeBSD
• Compliance certificates: RoHS
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 437.2 mm
• Depth: 159.8 mm
• Height: 44 mm
• Weight: 2.32 kg
• Cables included: KVM
• Manual: Yes
• Master (outer) case net weight: 13.5 kg
• Harmonized System (HS) code: 85176200
• Master (outer) case width: 573 mm
• Master (outer) case length: 642 mm
• Master (outer) case height: 264 mm
• Products per master (outer) case: 3 pc(s)
