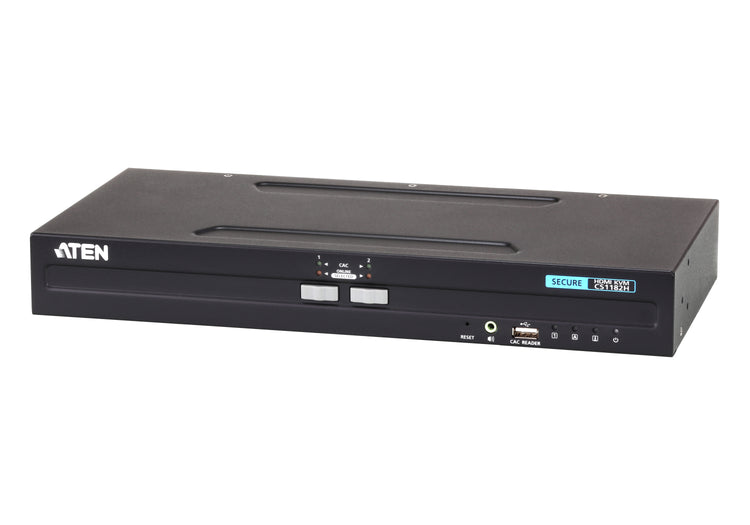

The Aten CS1182H is a 2-Port USB HDMI Secure KVM Switch designed for secure management of two computers. It supports 4K Ultra HD video resolution and multiple connectivity options, making it suitable for various computing environments.

• Controls up to 2 computers with USB and HDMI connections
• Supports high-resolution video up to 3840 x 2160 pixels at 30 Hz
• Equipped with 4 USB 2.0 Type-B ports and 2 PS/2 ports
• Includes audio connections with 2 headphone outputs
• Rack mountable design with 1U capacity

Specifications

• Warranty: 24 month(s)

Technical details

• Net weight: 1.95 kg
• Producer product family: 2-Port USB HDMI Secure KVM Switch (PSS PP v3.0 Compliant)
• Producer product name: CS1182H

Additional specifications

• Number of computers controlled: 2
• Keyboard port type: USB
• Mouse port type: USB
• Video port type: HDMI
• HDMI ports quantity: 2
• USB 2.0 Type-B ports quantity: 4
• Console ports: 3.5mm headphone, HDMI, PS/2, USB A
• Console USB ports quantity: 2
• USB connector type: USB Type-B
• PS/2 ports quantity: 2
• Audio connections: Yes
• Headphone outputs: 2
• HD type: 4K Ultra HD
• Maximum resolution: 3840 x 2160 pixels
• Video bandwidth: 30 Hz
• Rack mounting: Yes
• Rack capacity: 1U
• Product colour: Black
• LED indicators: Yes
• Push button: Yes
• Built-in display: No
• Power source: AC
• Input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Input current: 1 A
• Power consumption (typical): 2.4 W
• Compliance certificates: RoHS
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Width: 335 mm
• Depth: 163.9 mm
• Height: 44 mm
• Weight: 1.95 kg
• Cables included: AC
• Quick installation guide: Yes
• Manual: Yes
• Master (outer) case net weight: 5.85 kg
• Harmonized System (HS) code: 85176200
• Master (outer) case width: 375 mm
• Master (outer) case length: 565 mm
• Master (outer) case height: 258 mm
• Products per master (outer) case: 3 pc(s)
