Description

The Aten CN9600 is a single port DVI KVM over IP switch designed for users needing remote access to their systems. It is suitable for those managing servers or computers from a distance, enabling straightforward control and connectivity.

  • Connect and control multiple devices remotely through Ethernet LAN ports.
  • Supports video resolutions up to 1920 x 1200 pixels for clear display.
  • Offers USB ports for flexible keyboard and mouse connections.
  • Includes audio connections for headphone and microphone use, enhancing communication.
  • Firmware upgradeable to ensure continued compatibility and performance.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 0.84 kg
  • Producer product family: 1-Port/Remote Share Access Single port DVI KVM over IP Switch
  • Producer product name: CN9600
Additional specifications (40)
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-D
  • DVI-D ports quantity: 2
  • USB 2.0 Type-B ports quantity: 1
  • Console ports: 3.5mm headphone, DVI-D, USB A
  • Console USB ports quantity: 2
  • USB connector type: Mini-USB B, USB Type-A
  • PS/2 ports quantity: 1
  • Serial port type: RJ-45
  • Serial ports quantity: 2
  • Audio connections: Yes
  • Headphone outputs: 1
  • Number of microphone inputs: 1
  • DC-in jack: Yes
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 2
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 5.55 W
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 154.9 mm
  • Depth: 200 mm
  • Height: 28.5 mm
  • Weight: 1.24 kg
  • Master (outer) case net weight: 6.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)
Description

The Aten CN9600 is a single port DVI KVM over IP switch designed for users needing remote access to their systems. It is suitable for those managing servers or computers from a distance, enabling straightforward control and connectivity.

  • Connect and control multiple devices remotely through Ethernet LAN ports.
  • Supports video resolutions up to 1920 x 1200 pixels for clear display.
  • Offers USB ports for flexible keyboard and mouse connections.
  • Includes audio connections for headphone and microphone use, enhancing communication.
  • Firmware upgradeable to ensure continued compatibility and performance.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 0.84 kg
  • Producer product family: 1-Port/Remote Share Access Single port DVI KVM over IP Switch
  • Producer product name: CN9600
Additional specifications (40)
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-D
  • DVI-D ports quantity: 2
  • USB 2.0 Type-B ports quantity: 1
  • Console ports: 3.5mm headphone, DVI-D, USB A
  • Console USB ports quantity: 2
  • USB connector type: Mini-USB B, USB Type-A
  • PS/2 ports quantity: 1
  • Serial port type: RJ-45
  • Serial ports quantity: 2
  • Audio connections: Yes
  • Headphone outputs: 1
  • Number of microphone inputs: 1
  • DC-in jack: Yes
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 2
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Firmware upgradeable: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Built-in display: No
  • Power source: DC
  • Input voltage: 5 V
  • Power consumption (typical): 5.55 W
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 154.9 mm
  • Depth: 200 mm
  • Height: 28.5 mm
  • Weight: 1.24 kg
  • Master (outer) case net weight: 6.2 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 342 mm
  • Master (outer) case length: 512 mm
  • Master (outer) case height: 232 mm
  • Products per master (outer) case: 5 pc(s)

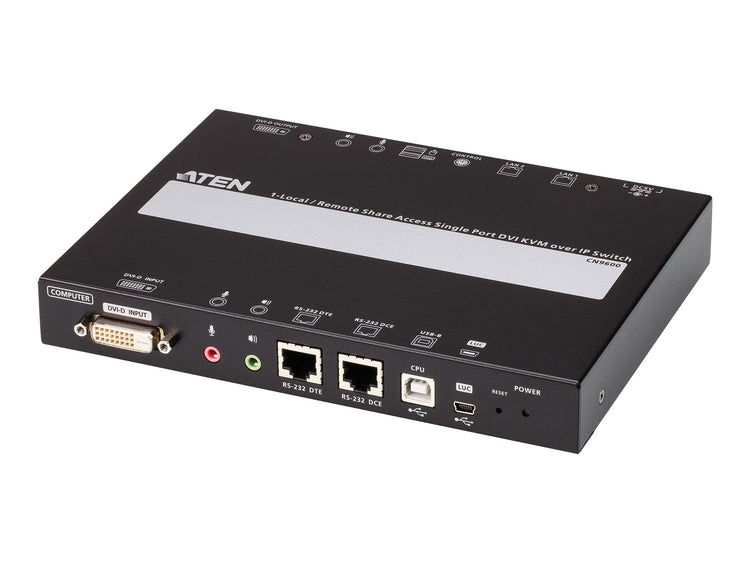

Aten CN9600 — 1-Port/Remote Share Access Single port DVI KVM over IP Switch

€1.346,63
€1.346,63
Tax included.
