About

Description

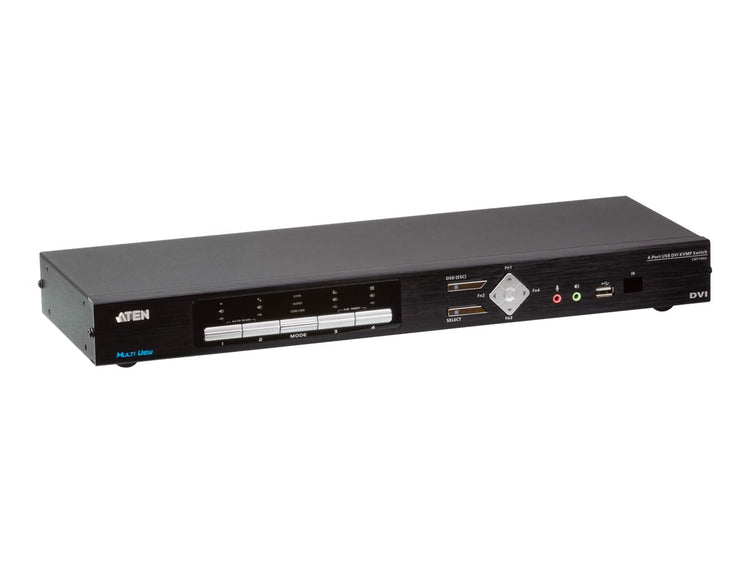

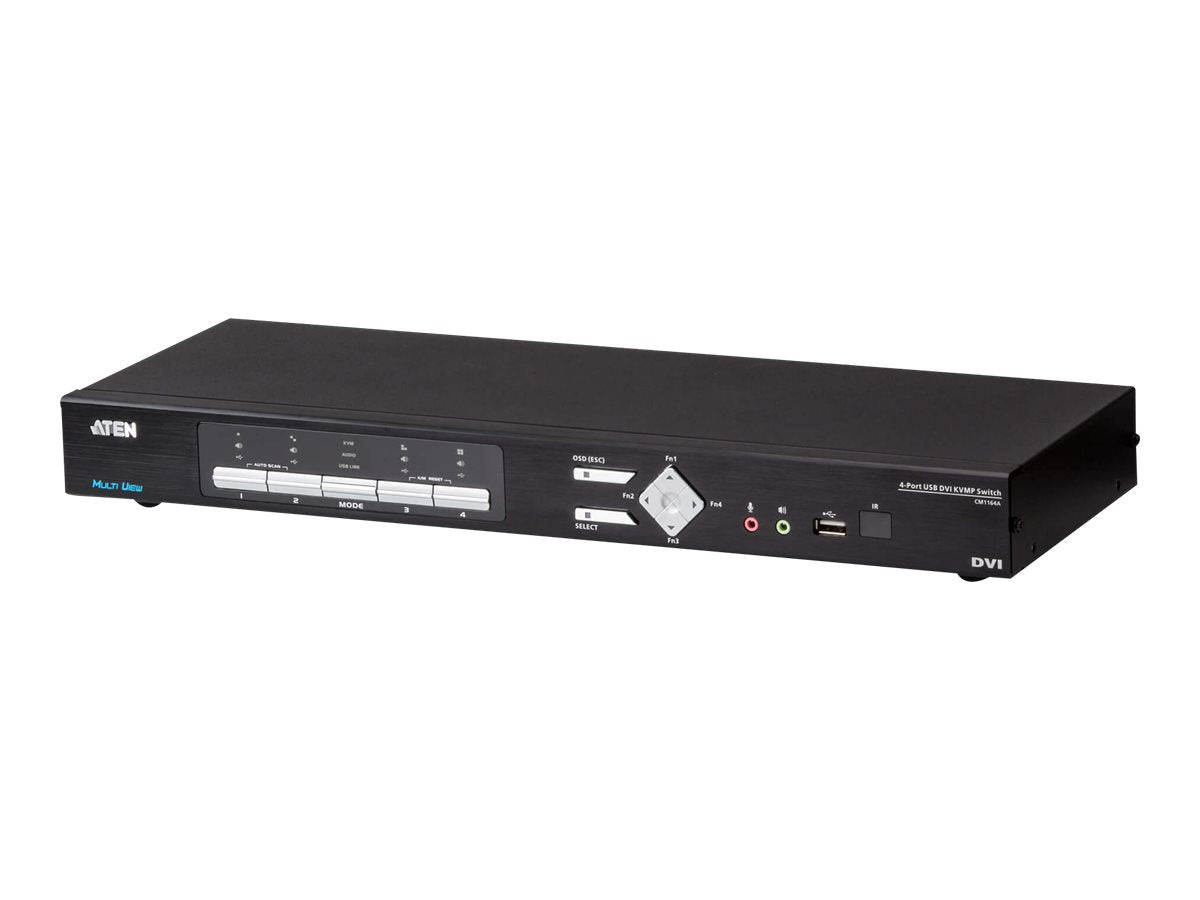

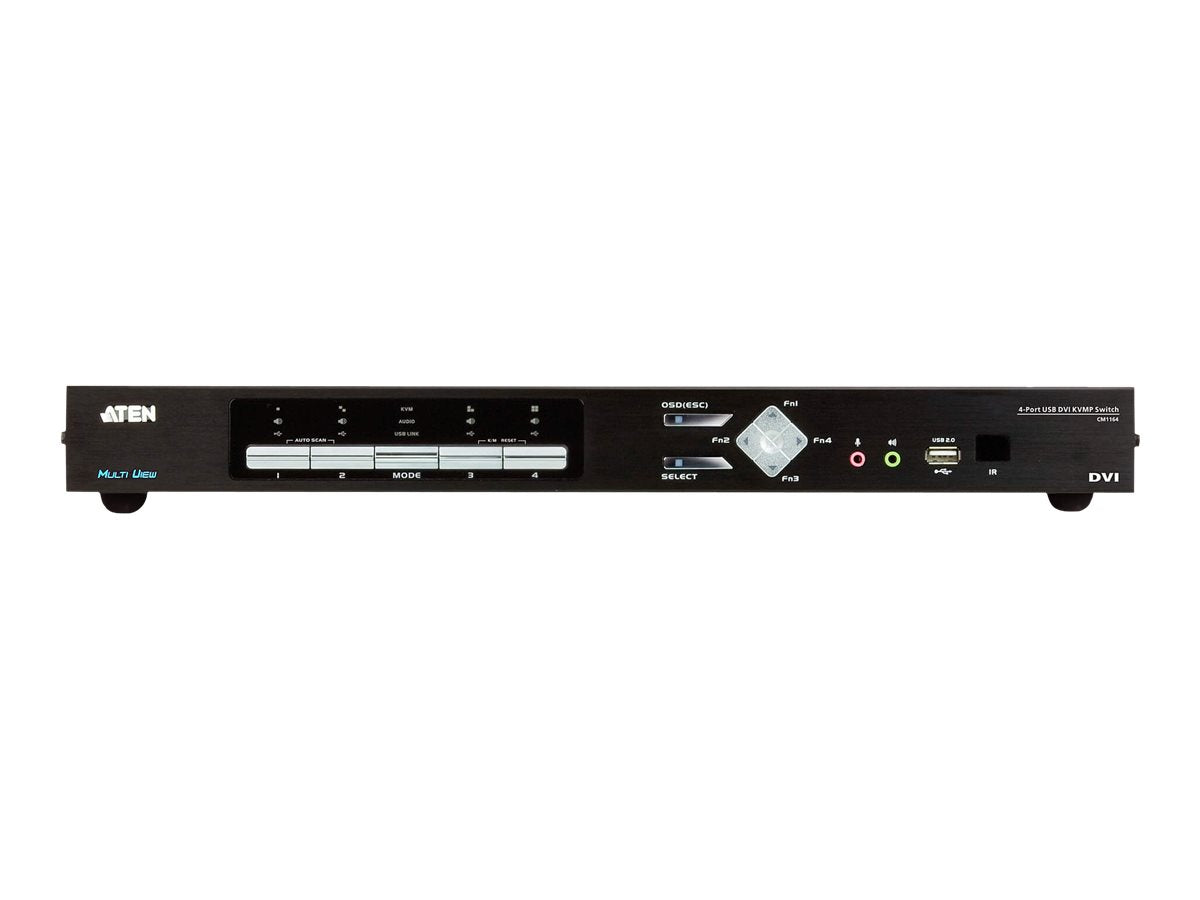

The Aten 4-Port USB DVI Multi-View KVMP Switch CM1164A is designed for users needing to switch between multiple computers while sharing a monitor, keyboard, and mouse. Ideal for professionals with diverse setups, it facilitates efficient multitasking across four computers.

  • Control up to four computers from a single console, enhancing workspace efficiency.
  • Supports Full HD resolution (1920 x 1200 pixels) for clear and detailed visuals.
  • Includes USB hub functionality, providing additional ports for peripherals.
  • Features multiple audio connections, allowing for headphone and microphone use.
  • Supports rack mounting, fitting neatly into server racks for organized setups.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 2.46 kg
  • Producer product family: 4-Port USB DVI Multi-View KVMP Switch
  • Producer product name: CM1164A
Additional specifications (54)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-D
  • DVI-D ports quantity: 5
  • USB 2.0 Type-B ports quantity: 4

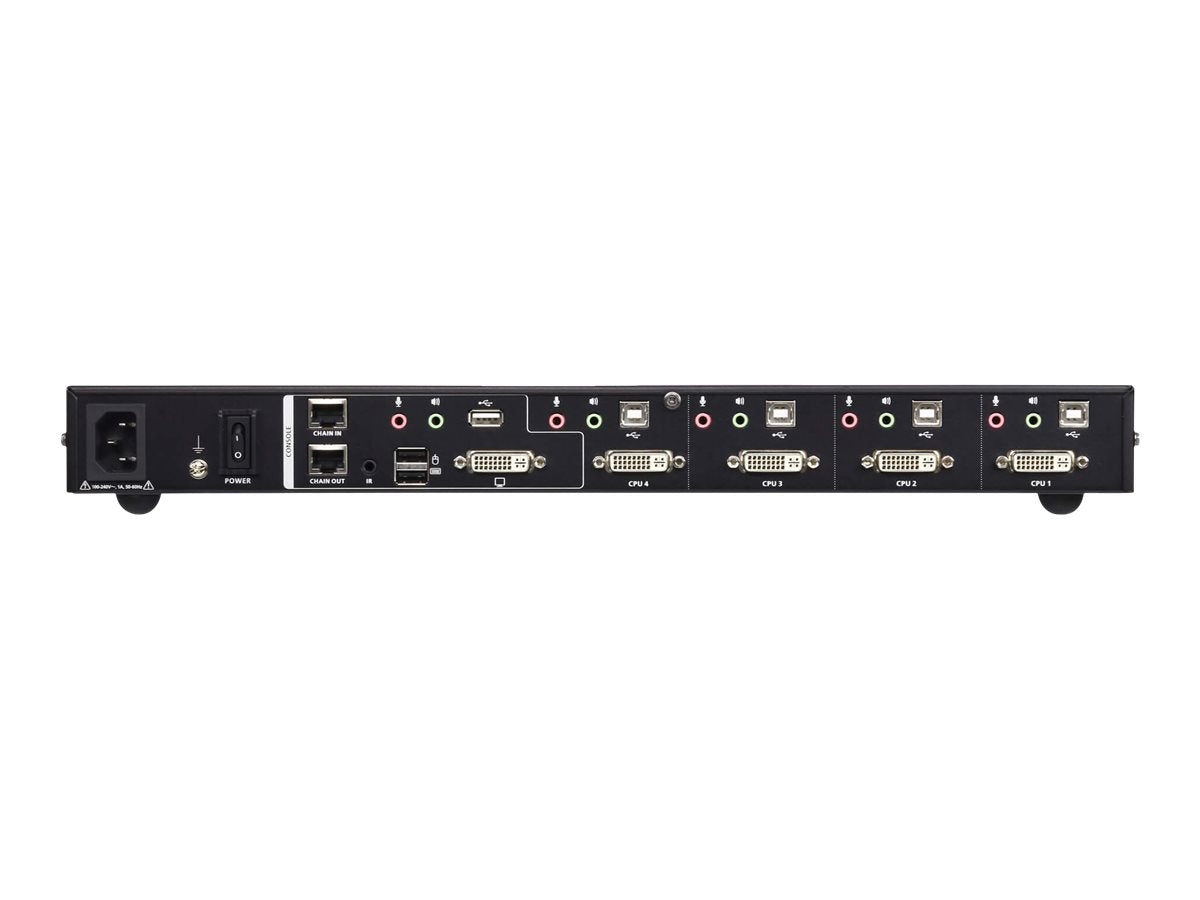

  • Console ports: 3.5mm headphone, DVI-D, RJ–45, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 6
  • Number of microphone inputs: 6
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 2
  • HD type: Full HD
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 5,10,15,30,60,90 s
  • HDCP: Yes
  • Daisy chain: Yes
  • Rack mounting: Yes
  • Rack capacity: 1U
  • Product colour: Black
  • Housing material: Metal
  • Cascadable: Yes
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • On Screen Display (OSD): Yes
  • Power source: AC
  • Input voltage: 110 - 220 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 9.7 W
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
  • Depth: 164 mm
  • Height: 44 mm
  • Weight: 3.98 kg
  • Cables included: KVM
  • Manual: Yes
  • AC adapter included: Yes
  • Rack mount kit: Yes
  • Master (outer) case net weight: 11.9 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 420 mm
  • Master (outer) case length: 555 mm
  • Master (outer) case height: 255 mm
  • Products per master (outer) case: 3 pc(s)
Description

The Aten 4-Port USB DVI Multi-View KVMP Switch CM1164A is designed for users needing to switch between multiple computers while sharing a monitor, keyboard, and mouse. Ideal for professionals with diverse setups, it facilitates efficient multitasking across four computers.

  • Control up to four computers from a single console, enhancing workspace efficiency.
  • Supports Full HD resolution (1920 x 1200 pixels) for clear and detailed visuals.
  • Includes USB hub functionality, providing additional ports for peripherals.
  • Features multiple audio connections, allowing for headphone and microphone use.
  • Supports rack mounting, fitting neatly into server racks for organized setups.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 2.46 kg
  • Producer product family: 4-Port USB DVI Multi-View KVMP Switch
  • Producer product name: CM1164A
Additional specifications (54)
  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-D
  • DVI-D ports quantity: 5
  • USB 2.0 Type-B ports quantity: 4
  • Console ports: 3.5mm headphone, DVI-D, RJ–45, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 Type-A hub ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 6
  • Number of microphone inputs: 6
  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 2
  • HD type: Full HD
  • Maximum resolution: 1920 x 1200 pixels
  • Video bandwidth: 60 Hz
  • Scan interval: 5,10,15,30,60,90 s
  • HDCP: Yes
  • Daisy chain: Yes
  • Rack mounting: Yes
  • Rack capacity: 1U
  • Product colour: Black
  • Housing material: Metal
  • Cascadable: Yes
  • LED indicators: Yes
  • Push button: Yes
  • Hot keys: Yes
  • Built-in display: No
  • On Screen Display (OSD): Yes
  • Power source: AC
  • Input voltage: 110 - 220 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 9.7 W
  • Compliance certificates: RoHS
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 437.2 mm
  • Depth: 164 mm
  • Height: 44 mm
  • Weight: 3.98 kg
  • Cables included: KVM
  • Manual: Yes
  • AC adapter included: Yes
  • Rack mount kit: Yes
  • Master (outer) case net weight: 11.9 kg
  • Harmonized System (HS) code: 85176200
  • Master (outer) case width: 420 mm
  • Master (outer) case length: 555 mm
  • Master (outer) case height: 255 mm
  • Products per master (outer) case: 3 pc(s)

Aten CM1164A — 4-Port USB DVI Multi-View KVMP Switch

€2.396,91
€2.396,91
Tax included.
