About

Description

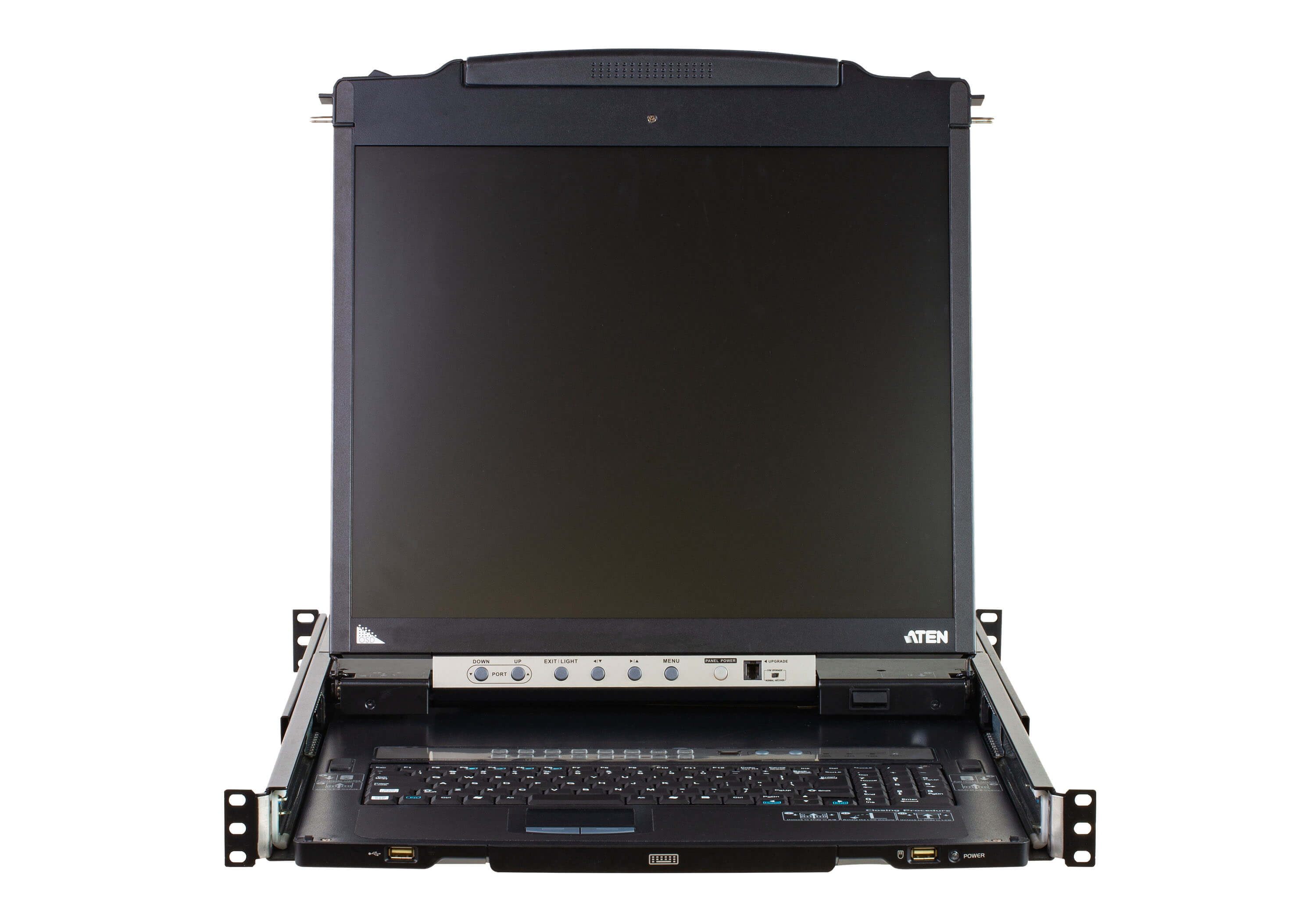

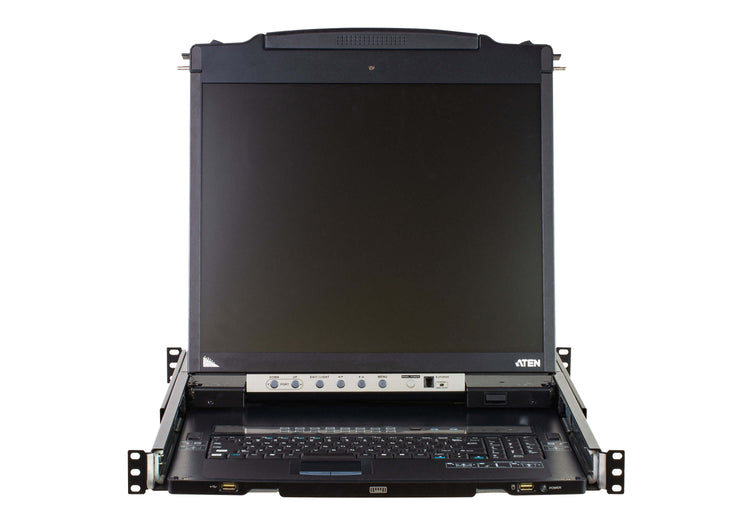

The Aten CL5816N is a 16-Port PS/2-USB VGA Dual Rail KVM Switch suitable for users managing multiple computers seamlessly. It features a 19-inch LCD display, making it ideal for environments where space is at a premium and visual clarity is essential.

  • Control up to 16 computers, allowing for efficient management of multiple systems from a single console.
  • The 19-inch LCD display offers a maximum resolution of 1920 x 1200 pixels for clear visuals.
  • USB and PS/2 keyboard and mouse ports provide flexibility in connecting different peripherals.
  • Daisy-chain capability allows for expanded control of additional computers, enhancing system scalability.
  • On-screen display (OSD) and LED indicators simplify navigation and monitoring of connected systems.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 14.76 kg
  • Producer product family: 16-Port PS/2-USB VGA Dual Rail 19" LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
  • Producer product name: CL5816N
Additional specifications (35)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Operating relative humidity (H-H): 0 - 80%
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 16
  • LED indicators: Yes
  • Push button: Yes
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 16
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Power consumption (typical): 26.8 W
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Width: 680.4 mm
  • Height: 44 mm
  • Depth: 480 mm
  • Weight: 15.3 kg
  • Manual: Yes
  • Master (outer) case net weight: 15.3 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)
Description

The Aten CL5816N is a 16-Port PS/2-USB VGA Dual Rail KVM Switch suitable for users managing multiple computers seamlessly. It features a 19-inch LCD display, making it ideal for environments where space is at a premium and visual clarity is essential.

  • Control up to 16 computers, allowing for efficient management of multiple systems from a single console.
  • The 19-inch LCD display offers a maximum resolution of 1920 x 1200 pixels for clear visuals.
  • USB and PS/2 keyboard and mouse ports provide flexibility in connecting different peripherals.
  • Daisy-chain capability allows for expanded control of additional computers, enhancing system scalability.
  • On-screen display (OSD) and LED indicators simplify navigation and monitoring of connected systems.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (3)
  • Net weight: 14.76 kg
  • Producer product family: 16-Port PS/2-USB VGA Dual Rail 19" LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
  • Producer product name: CL5816N
Additional specifications (35)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Operating relative humidity (H-H): 0 - 80%
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 16
  • LED indicators: Yes
  • Push button: Yes
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 16
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Power consumption (typical): 26.8 W
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Width: 680.4 mm
  • Height: 44 mm
  • Depth: 480 mm
  • Weight: 15.3 kg
  • Manual: Yes
  • Master (outer) case net weight: 15.3 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)

Aten CL5816N — 16-Port PS/2-USB VGA Dual Rail 19" LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support

€2.425,43
€2.425,43
Tax included.
