About

Description

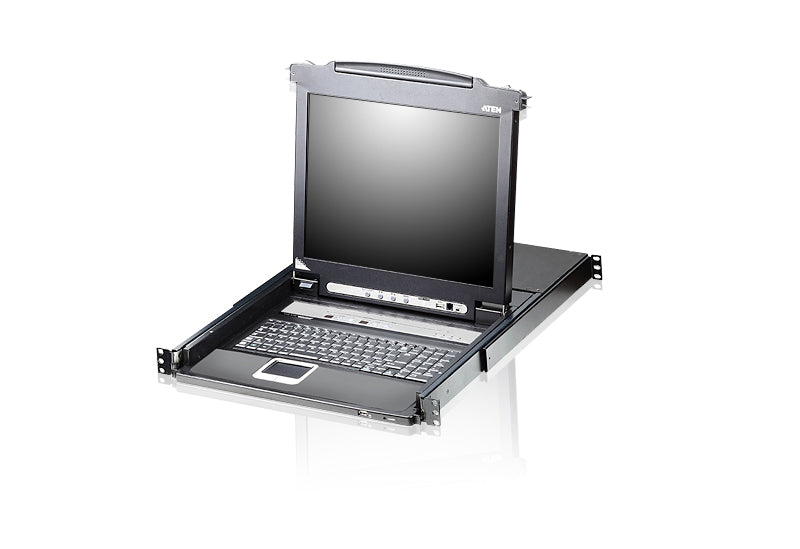

The Aten CL5708N is an 8-Port KVM switch designed for users who need to manage multiple computers from a single console. This product is suitable for environments where efficient control and space-saving solutions are essential, featuring a built-in LCD monitor for convenience.

  • Control up to 8 computers using a single console, streamlining workflow in complex setups.
  • Daisy-chain capability allows you to connect up to 31 additional units, managing a total of 256 computers.
  • Integrated 19" LCD monitor with a maximum resolution of 1920 x 1200 provides clear visual output.
  • Hot-plug support enables the addition or removal of computers without shutting down the system.
  • Rack-mountable design saves space and organizes multiple systems effectively.
Specifications (3)
  • Producer product family: 8-Port PS/2-USB VGA 19" LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
  • Producer product name: CL5708N
  • Warranty: 24 month(s)
Other features (3)
  • Dimensions (WxDxH): 48.00 x 68.92 x 4.40 cm

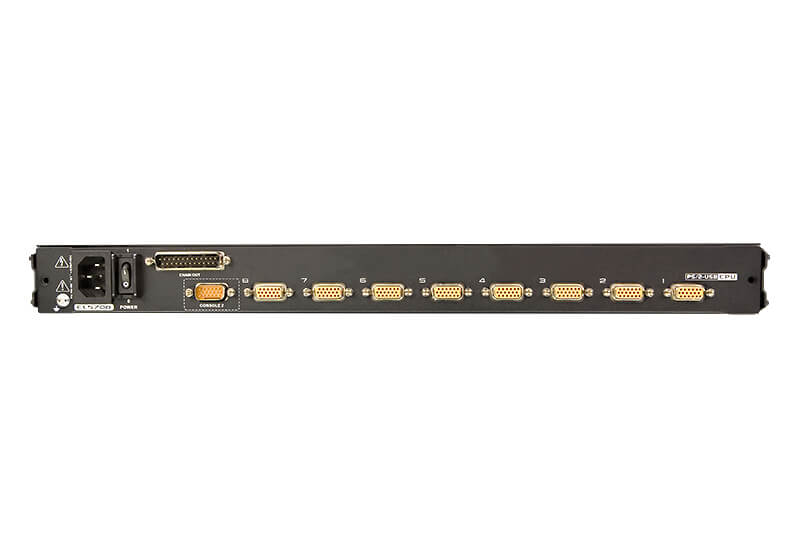

  • I/O ports: 8 x SPHD Female (Yellow), 1 x DB-25 Male, 1 x RJ-11 Female, 1 x IEC 60320/C14, 1 x SPHD Male (Yellow), 1 x USB Type A Female (Front), 1 x USB Type A Female
  • Resolution: 1280 x 1024 @ 75 Hz
Technical details (2)
  • Net weight: 13.39 kg

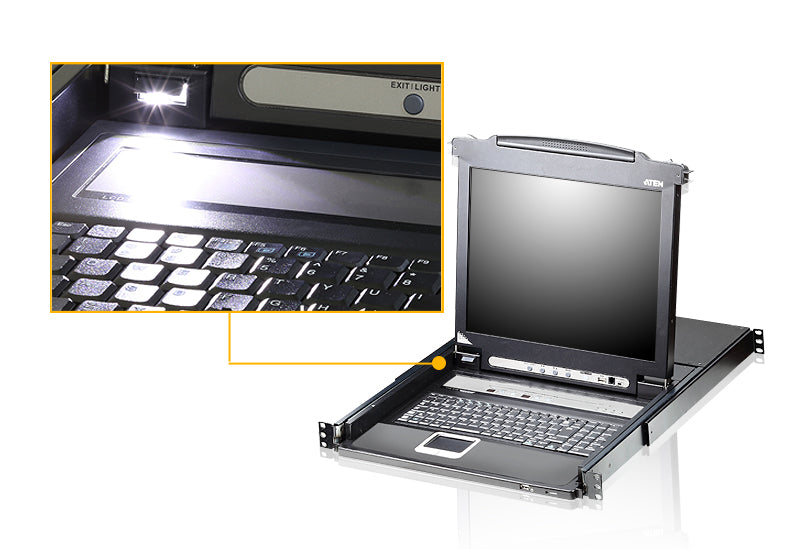

  • Other features: LED illumination light; Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway housing; Daisy-chain up to 31 additional units - control up to 256 computers from a single console
Additional specifications (41)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Hot-Plug support: Yes
  • Operating relative humidity (H-H): 0 - 80%
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 8
  • LED indicators: Yes
  • Push button: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 8
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Power consumption (typical): 27.2 W
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Width: 480 mm
  • Height: 44 mm
  • Depth: 689.2 mm
  • Weight: 13.4 kg
  • Cables included: AC, KVM
  • Quick installation guide: Yes
  • Manual: Yes
  • Rack mount kit: Yes
  • Master (outer) case net weight: 13.6 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)
Description

The Aten CL5708N is an 8-Port KVM switch designed for users who need to manage multiple computers from a single console. This product is suitable for environments where efficient control and space-saving solutions are essential, featuring a built-in LCD monitor for convenience.

  • Control up to 8 computers using a single console, streamlining workflow in complex setups.
  • Daisy-chain capability allows you to connect up to 31 additional units, managing a total of 256 computers.
  • Integrated 19" LCD monitor with a maximum resolution of 1920 x 1200 provides clear visual output.
  • Hot-plug support enables the addition or removal of computers without shutting down the system.
  • Rack-mountable design saves space and organizes multiple systems effectively.
Specifications (3)
  • Producer product family: 8-Port PS/2-USB VGA 19" LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
  • Producer product name: CL5708N
  • Warranty: 24 month(s)
Other features (3)
  • Dimensions (WxDxH): 48.00 x 68.92 x 4.40 cm
  • I/O ports: 8 x SPHD Female (Yellow), 1 x DB-25 Male, 1 x RJ-11 Female, 1 x IEC 60320/C14, 1 x SPHD Male (Yellow), 1 x USB Type A Female (Front), 1 x USB Type A Female
  • Resolution: 1280 x 1024 @ 75 Hz
Technical details (2)
  • Net weight: 13.39 kg
  • Other features: LED illumination light; Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway housing; Daisy-chain up to 31 additional units - control up to 256 computers from a single console
Additional specifications (41)
  • Display diagonal: 48.3 cm (19")
  • Display: LCD
  • On Screen Display (OSD): Yes
  • Product colour: Black
  • Hot-Plug support: Yes
  • Operating relative humidity (H-H): 0 - 80%
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Daisy chain: Yes
  • Number of computers controlled: 8
  • LED indicators: Yes
  • Push button: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U
  • VGA (D-Sub) ports quantity: 8
  • Keyboard port type: USB, PS/2
  • Mouse port type: USB, PS/2
  • Video port type: VGA
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Power consumption (typical): 27.2 W
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Windows operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Linux operating systems supported: Yes
  • Width: 480 mm
  • Height: 44 mm
  • Depth: 689.2 mm
  • Weight: 13.4 kg
  • Cables included: AC, KVM
  • Quick installation guide: Yes
  • Manual: Yes
  • Rack mount kit: Yes
  • Master (outer) case net weight: 13.6 kg
  • Master (outer) case width: 668 mm
  • Master (outer) case length: 833 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)

Aten CL5708N — 8-Port PS/2-USB VGA 19" LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support

€1.645,47
