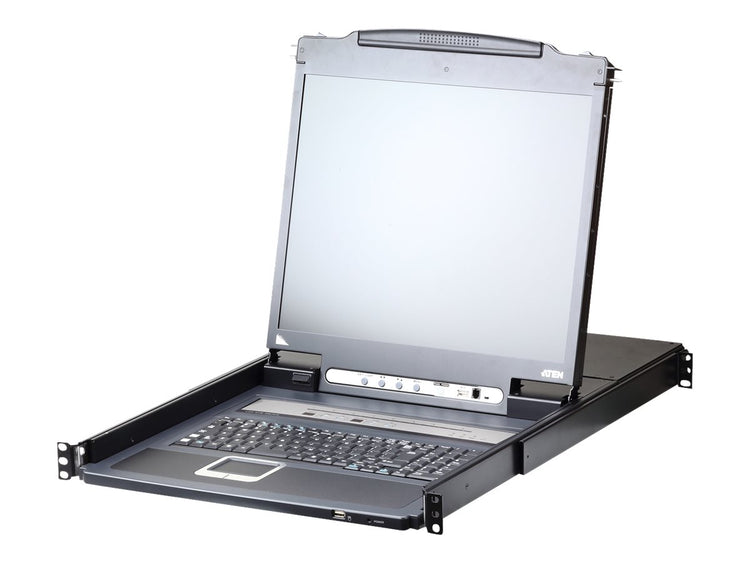

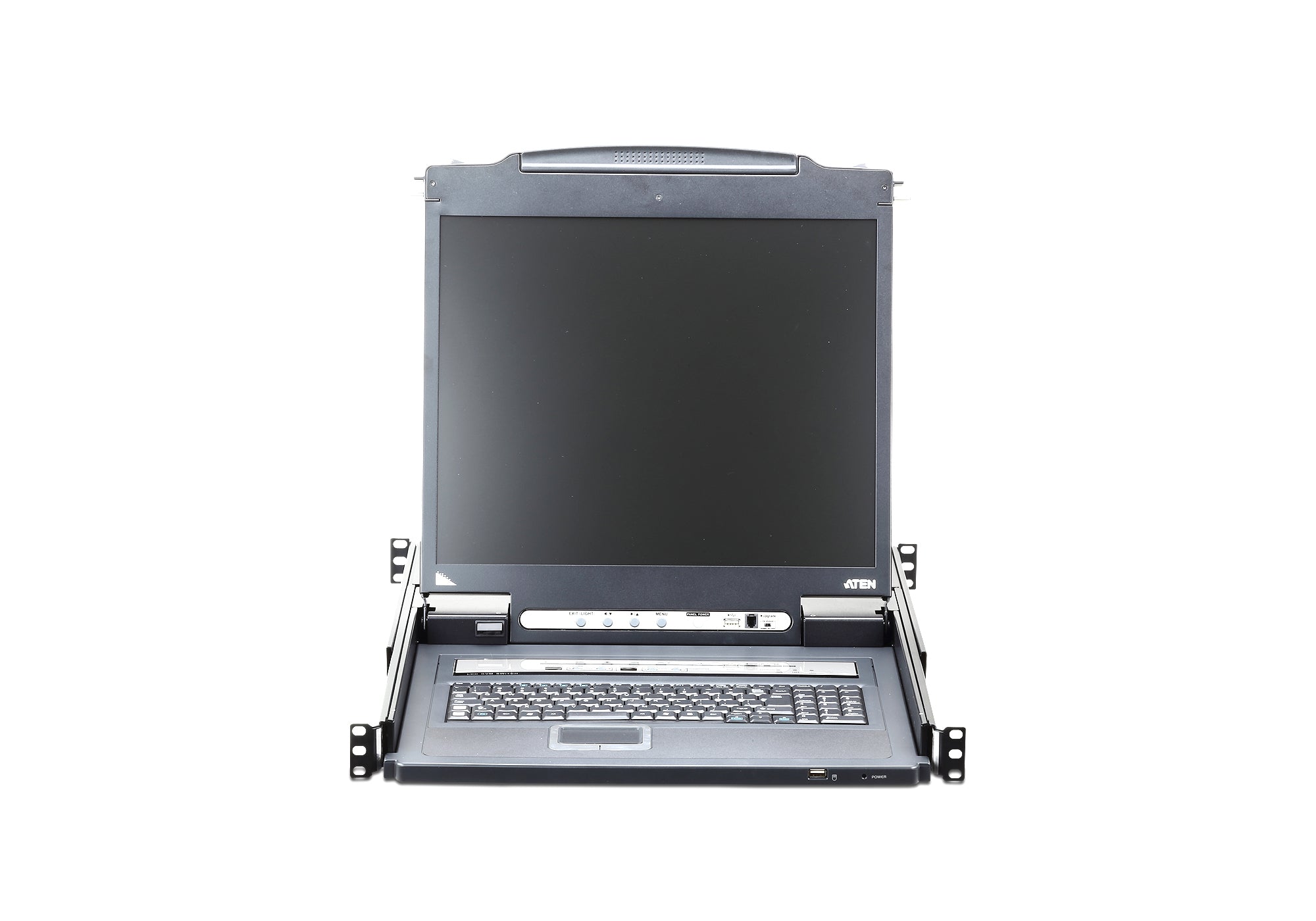

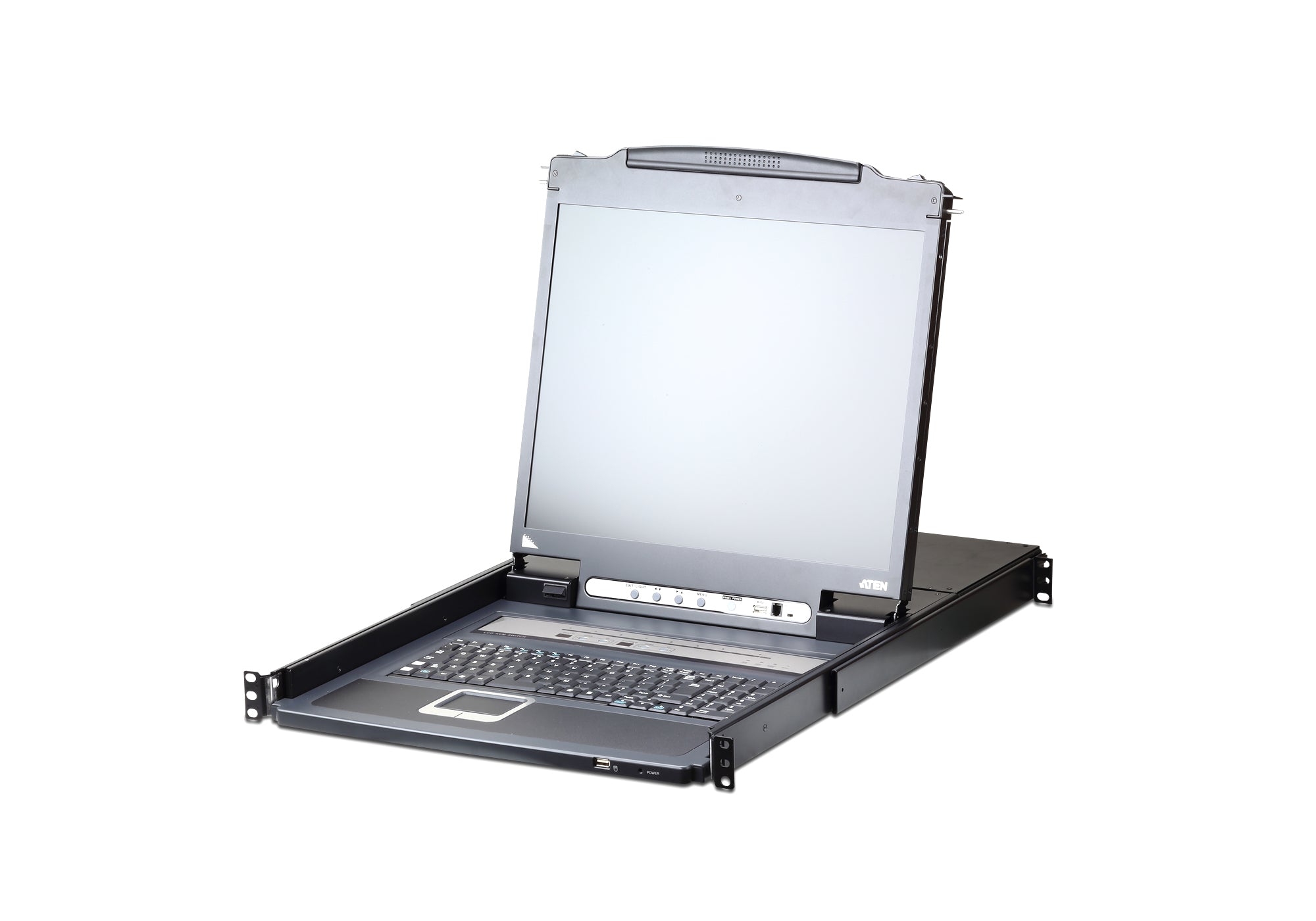

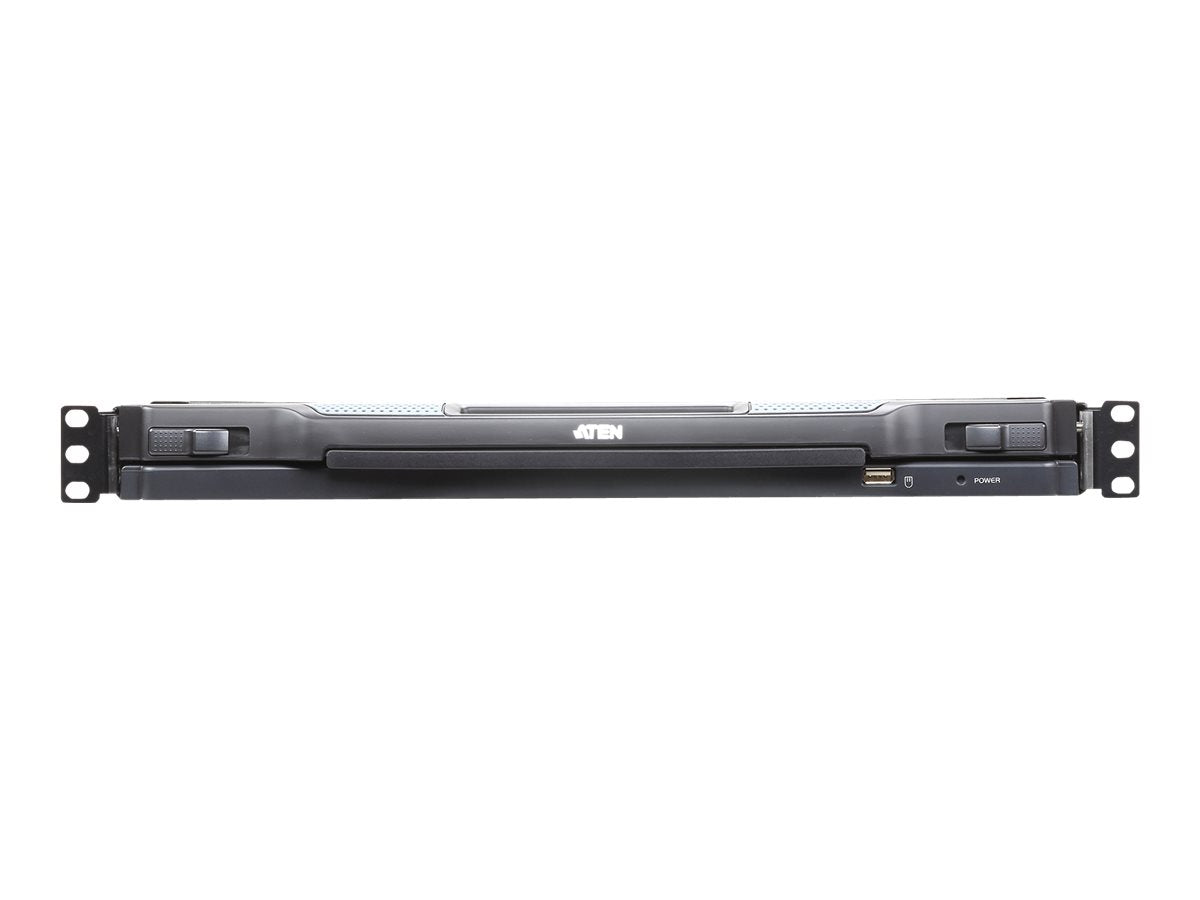

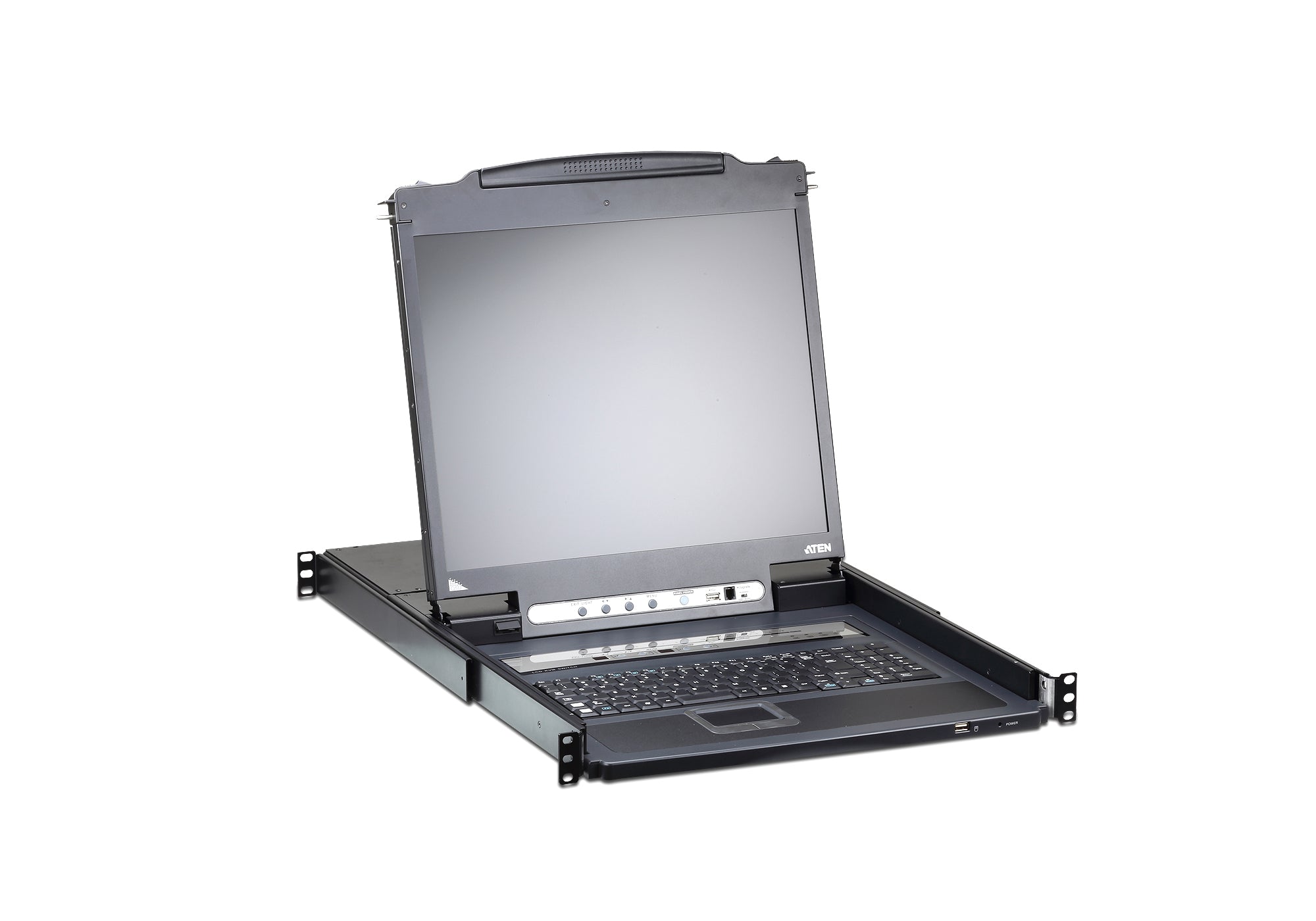

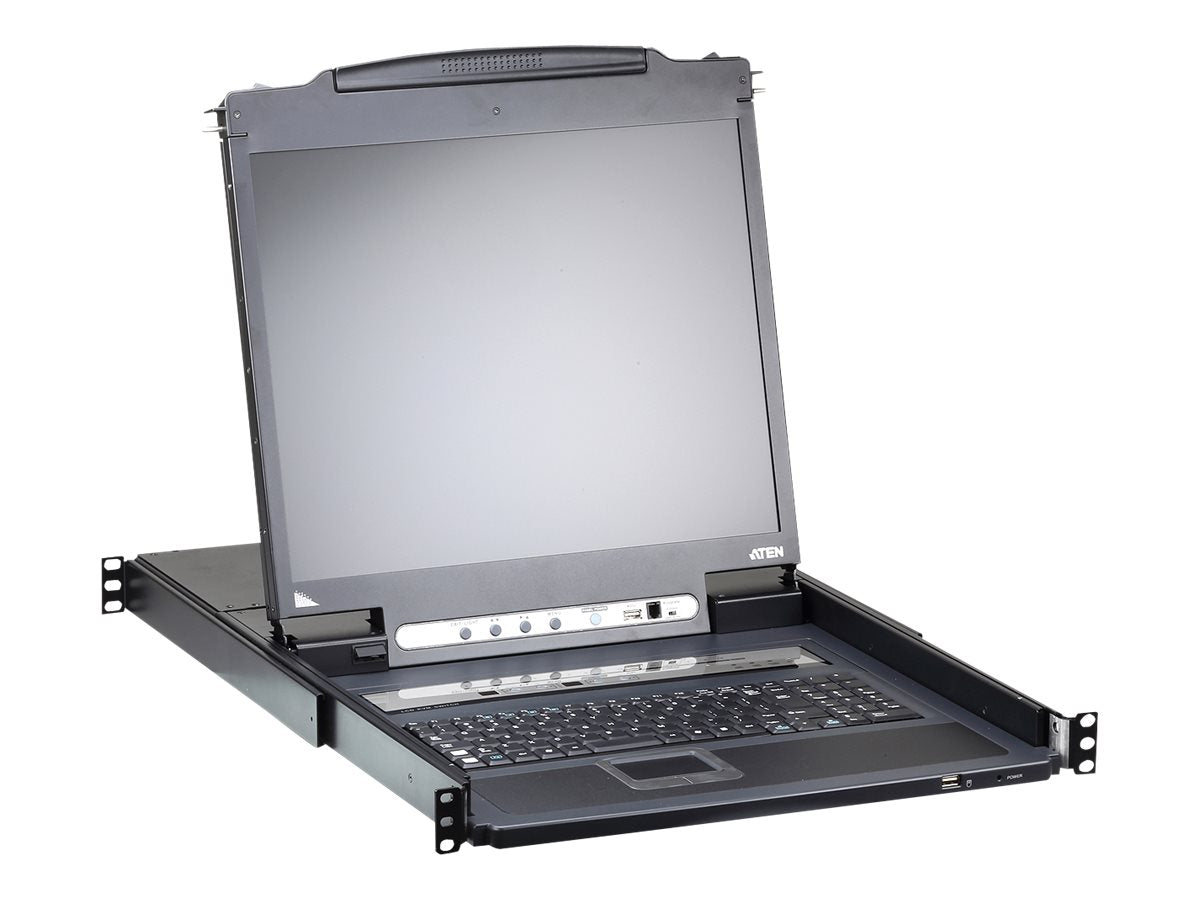

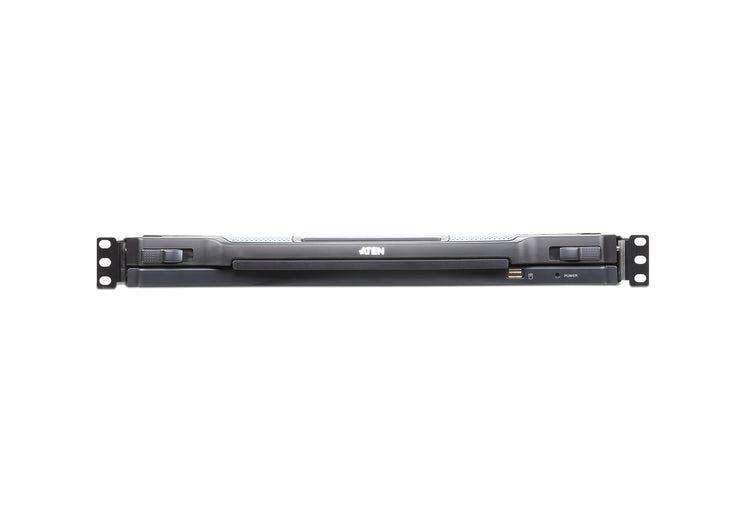

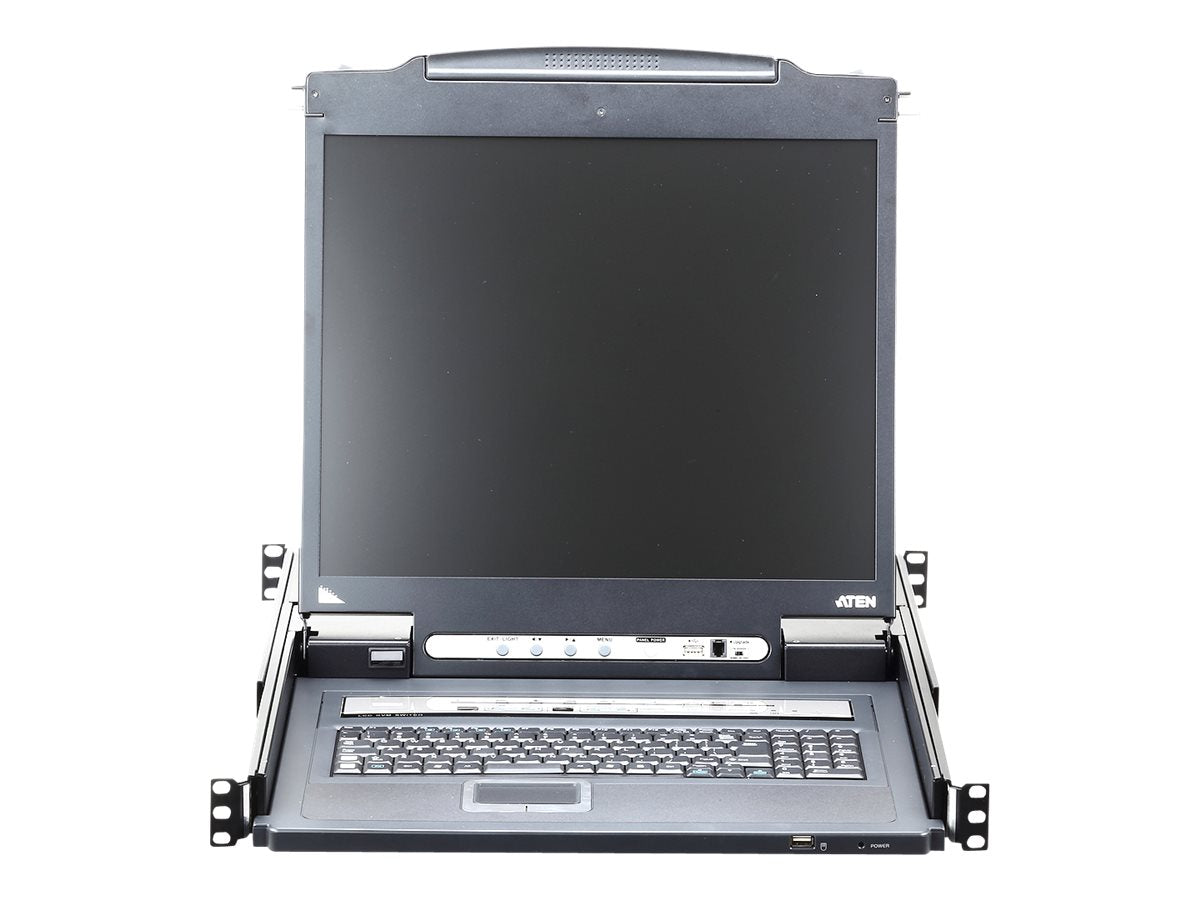

The Aten CL5708IN is a KVM over IP switch designed to control up to 8 computers directly and up to 128 through daisy-chaining. It features an integrated 19-inch LED-backlit LCD monitor in a Slideaway housing, along with USB peripheral support for enhanced functionality.

• Exclusive LED illumination for keyboard and touchpad visibility in low-light environments
• Supports 1280 x 1024 resolution at 75 Hz
• Comes with multiple I/O ports including USB and SPHD connectors
• Operating temperature range of 0-50 °C and humidity range of 0-80%
• Mouse DynaSync automatically synchronizes local and remote mouse movements

Specifications

• Producer product family: KVM over IP Switch with Daisy-Chain Port and USB Peripheral Support
• Producer product name: CL5708IN 8-Port PS/2-USB VGA 19" LCD KVM
• Warranty: 24 month(s)

Operational conditions

• Operating relative humidity (H-H): 0-80 %
• Operating temperature (T-T): 0-50 °C

Other features

• Dimensions (WxDxH): 68.92 x 4.40 x 48.00 cm

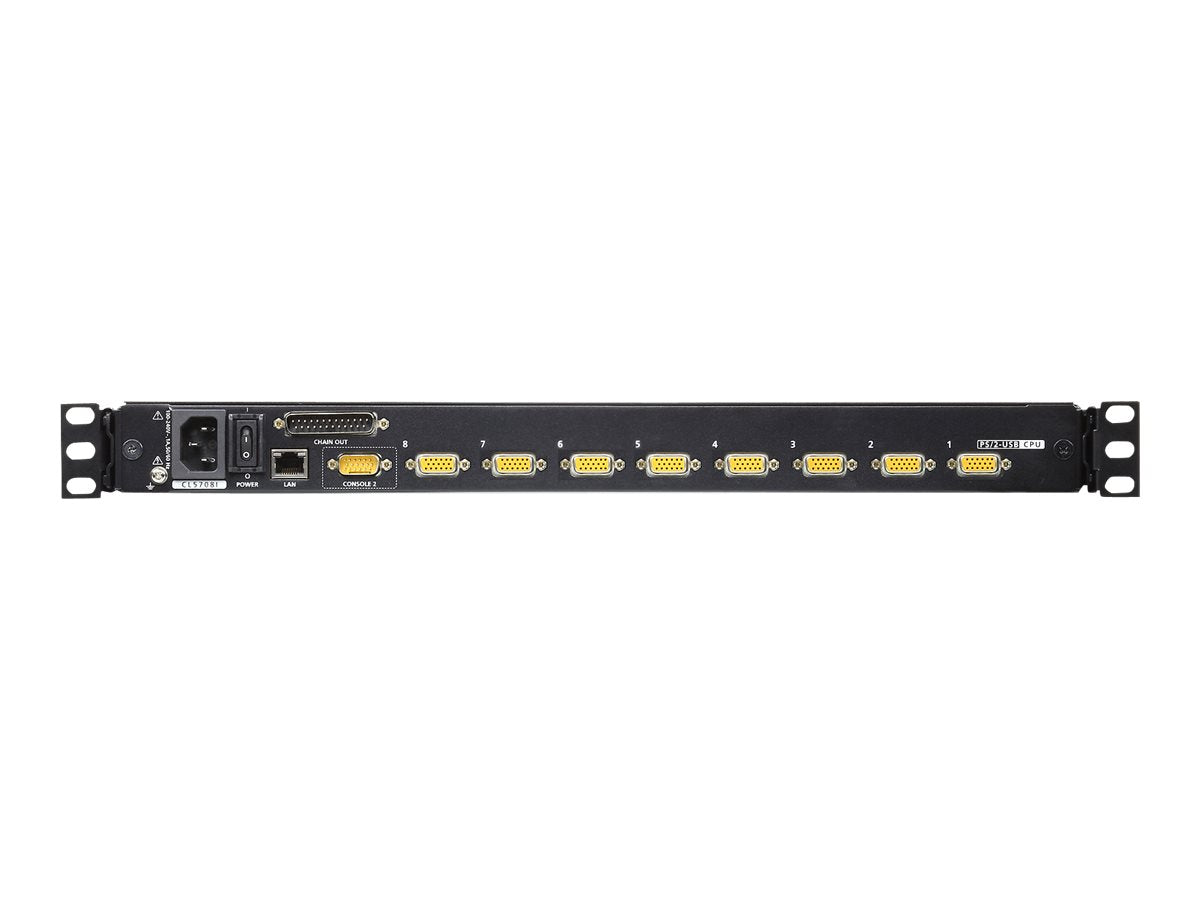

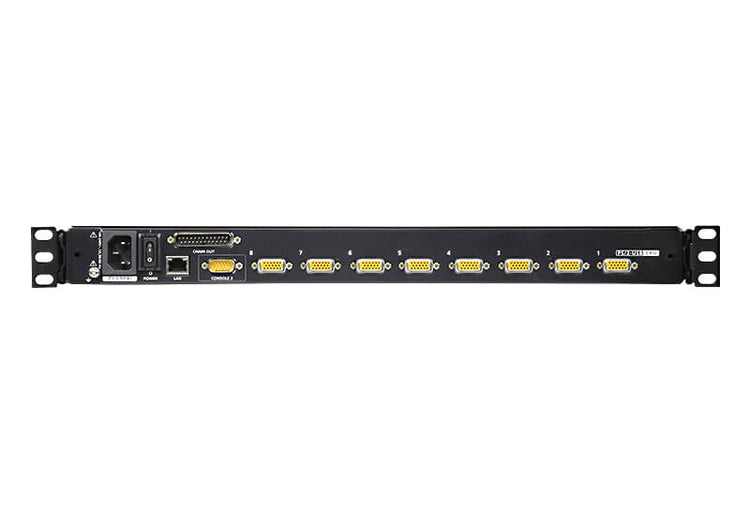

• I/O ports: 1xSPHD Male (Yellow); 2xUSB Type-A Female; 8xSPHD Female; 1xDB-25 Male; 1xRJ-11 Female; 1xRJ-45 Female; 1xIEC 60320/C14
• Resolution: 1280 x 1024 at 75 Hz

Ports & interfaces

• Number of computers controlled: 8 (Direct), 128 (via Daisy-chain)

Technical details

• Net weight: 13.39 kg
• Other features: Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions; Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway housing; 1 remote bus for KVM over IP access-allowing IT administrators to remotely monitor and control upto 8 servers; Mouse DynaSync - automatically synchronizes the local and remote mouse movements
