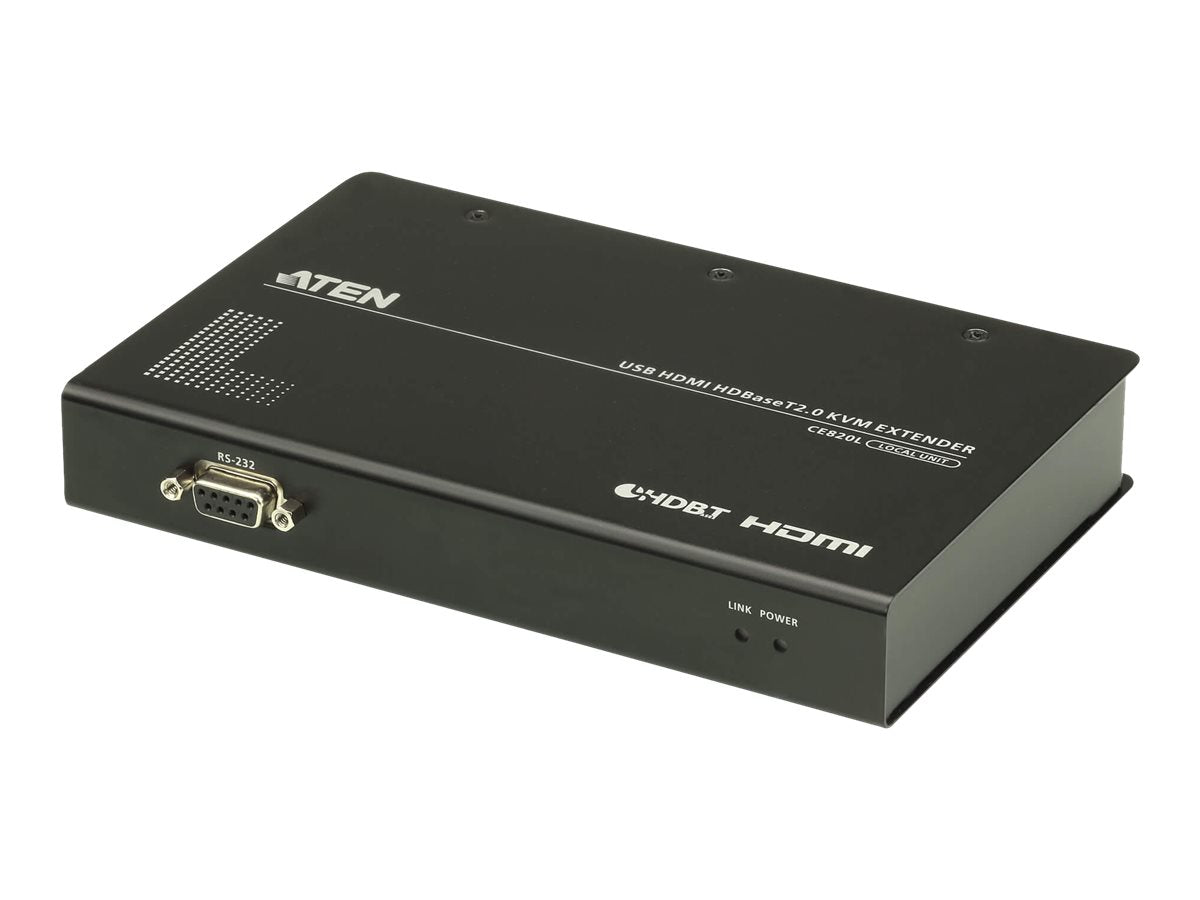

The Aten CE820 USB HDMI HDBaseT 2.0 KVM Extender allows for high-definition video and audio transmission over long distances. With a maximum transfer distance of 150 meters, it supports cable types like Cat5e, Cat6, and Cat6a, making it suitable for various setups.

• Supports maximum digital resolution of 4096 x 2160 pixels
• Includes 4 USB 2.0 ports for versatile connectivity

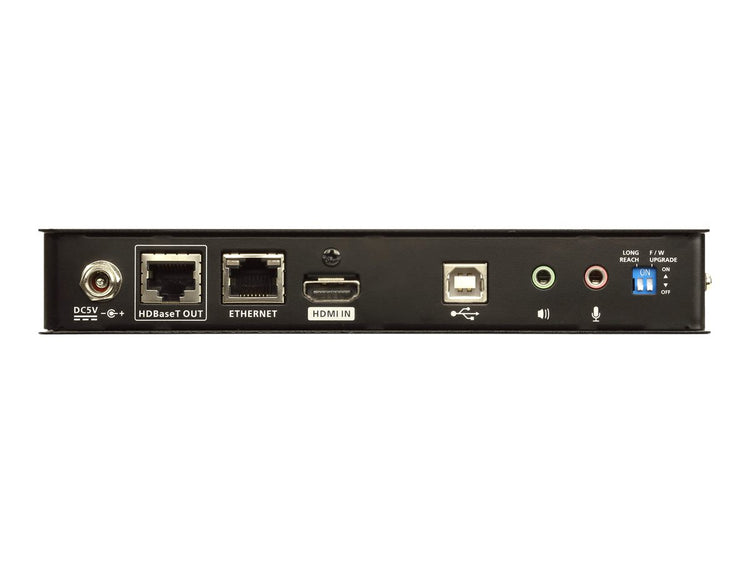

• Transmitter and receiver have HDMI and USB keyboard/mouse ports

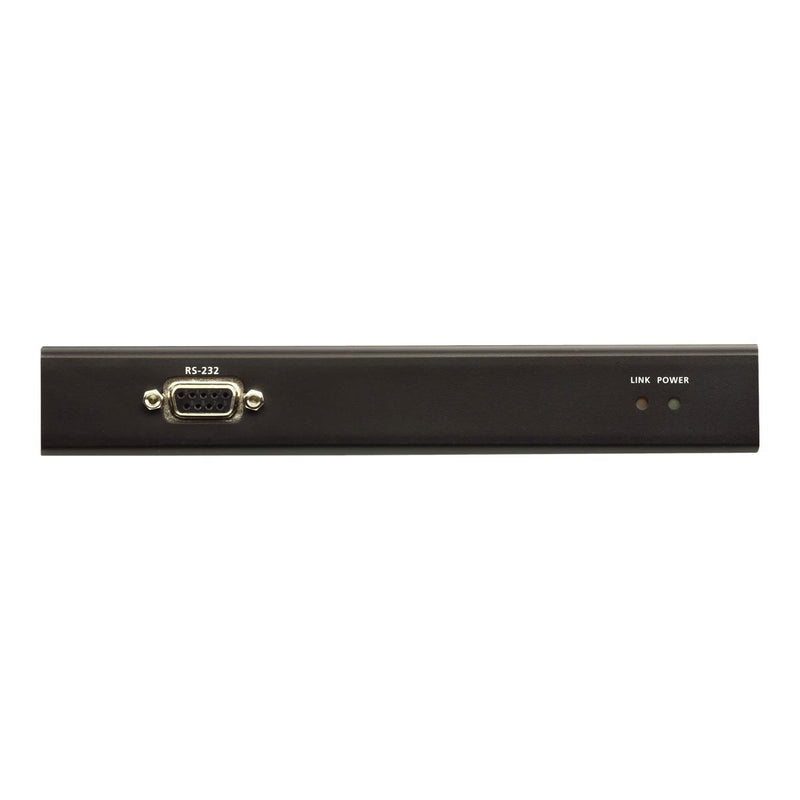

• Features LED indicators for link, power, and video status
• Rack mountable design for easy installation in systems

Specifications

• Producer product name: CE820 USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
• Warranty: 24 month(s)

Technical details

• Net weight: 0.63 kg

Additional specifications

• Type: Transmitter & receiver
• Connectivity technology: Wired
• Maximum transfer distance: 150 m
• Cable types supported: Cat5e, Cat6, Cat6a
• Rack mounting: Yes
• Maximum digital resolution: 4096 x 2160 pixels
• Product colour: Black
• Material: Metal
• LED indicators: Link, Power, Video
• Transmitter video port type: HDMI
• Transmitter local video port: Yes
• Transmitter local video port type: HDMI
• Transmitter local keyboard/mouse port type: USB
• RJ-45 ports quantity (transmitter): 1
• Receiver local video port type: HDMI
• Receiver local keyboard/mouse port type: USB
• RJ-45 ports quantity (receiver): 1
• USB 2.0 ports quantity: 4
• PC Audio in: Yes
• PC Audio out: Yes
• AC adapter output voltage: 5 V
• Power consumption (transmitter) (max): 2.87 W
• Power consumption (receiver) (max): 5.37 W
• Transmitter width: 18.2 cm
• Transmitter depth: 12.2 cm
• Transmitter height: 2.87 cm
• Transmitter weight: 630 g
• Receiver width: 18.2 cm
• Receiver depth: 12.2 cm
• Receiver height: 2.87 cm
• Receiver weight: 650 g
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 80%
• Weight: 1.96 kg
• Master (outer) case net weight: 9.8 kg
• Harmonized System (HS) code: 84733080
• Master (outer) case width: 342 mm
• Master (outer) case length: 512 mm
• Master (outer) case height: 232 mm
• Products per master (outer) case: 5 pc(s)
