Description

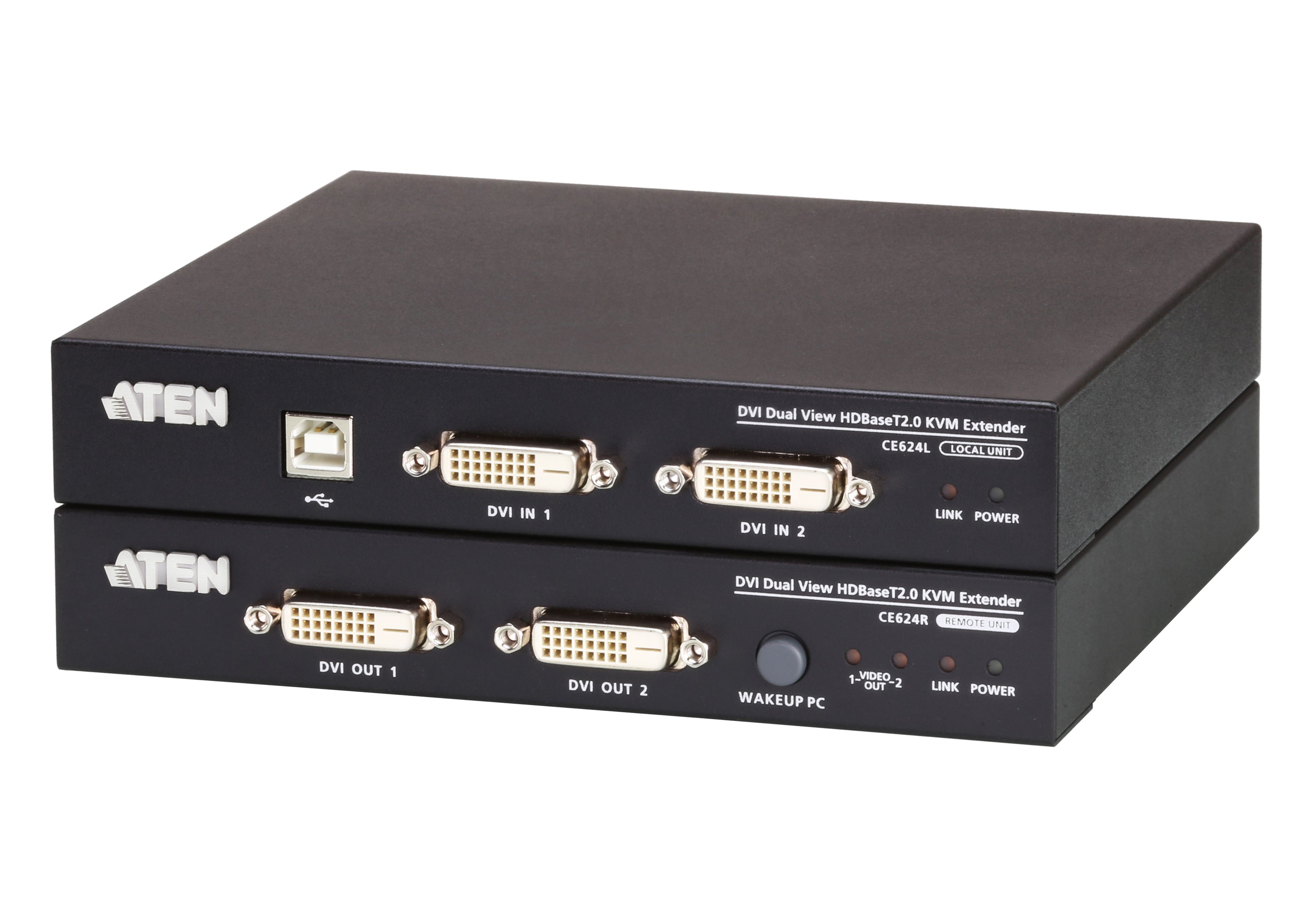

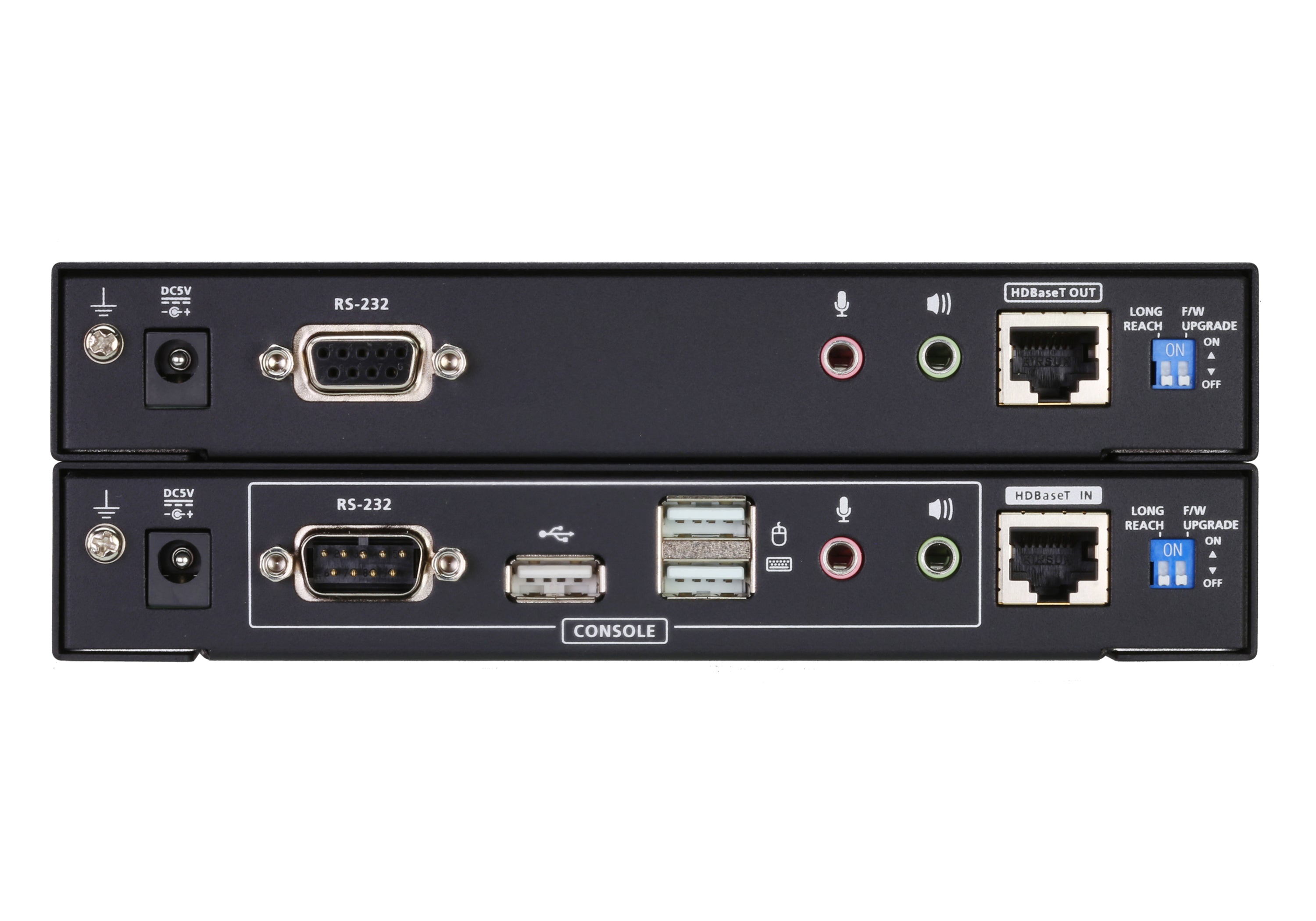

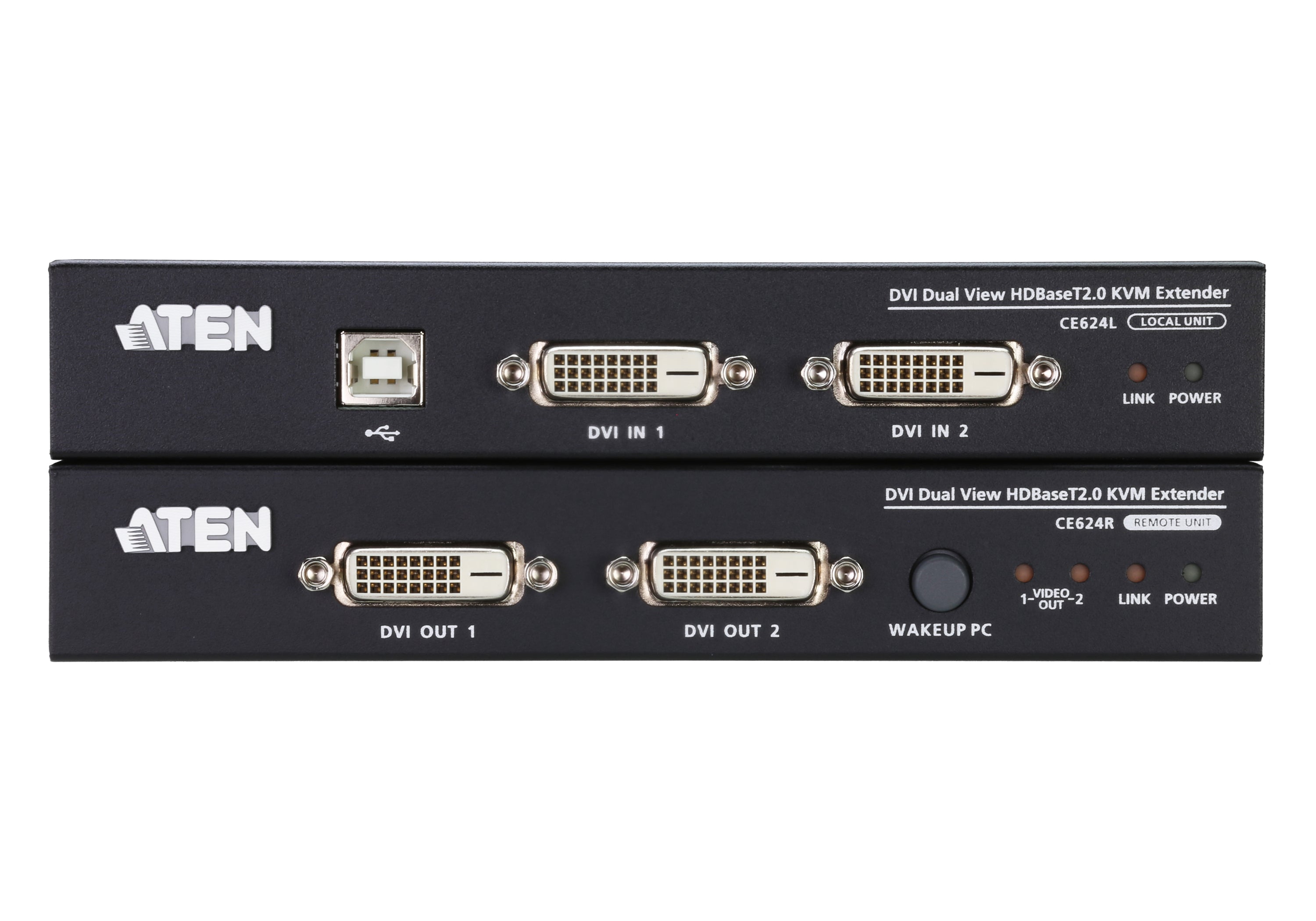

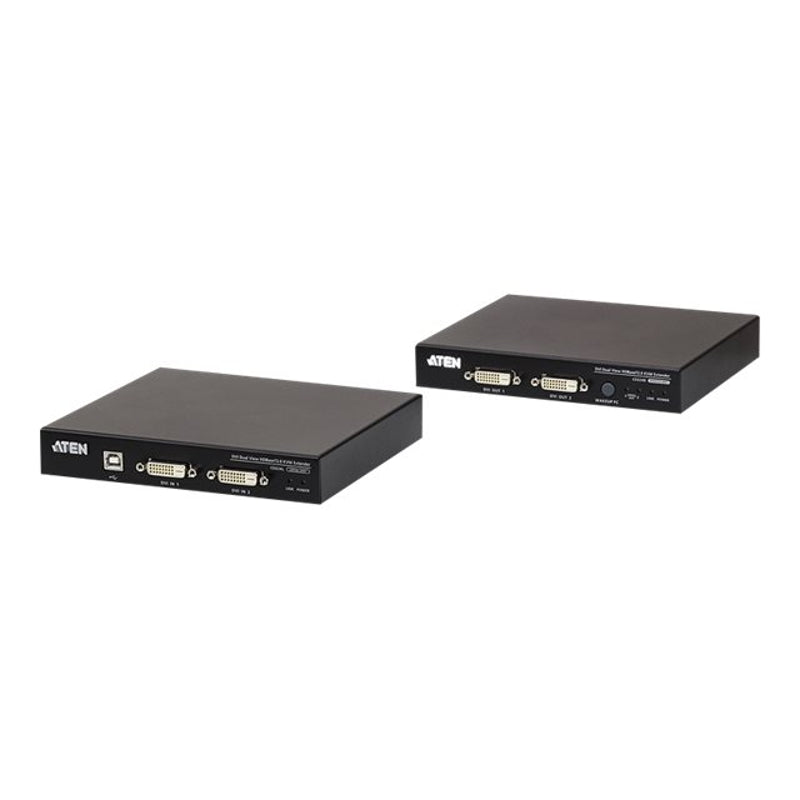

The Aten CE624 is a USB DVI Dual View HDBaseT KVM Extender suitable for users who need to manage multiple computers from a single keyboard, mouse, and monitor setup. This device efficiently transmits video and control signals over long distances, making it ideal for various professional environments such as offices or studios.

  • Supports video resolutions up to 1920 x 1200 for clear visuals.
  • Allows transmission distances up to 150 meters, providing flexibility in setup.
  • Compatible with various cable types, including Cat5e and Cat6, offering versatile installation options.
  • Includes LED indicators for link and power status, simplifying monitoring of the device's operation.
  • Designed for rack mounting, streamlining organization and space management in professional spaces.
Specifications (1)
  • Warranty: 24 month(s)
Display (1)
  • Display: 1920 x 1200 at 100m
Technical details (3)
  • Net weight: 0.8 kg
  • Producer product family: USB DVI Dual View HDBaseT 2.0 KVM Extender
  • Producer product name: CE624
Additional specifications (38)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5, Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 1920 x 1200 pixels
  • Supported resolutions: 1600x1200, 1920x1200, 1920x1080
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power
  • Transmitter video port type: DVI-D
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DVI-D
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • AC adapter output voltage: 5 V
  • Transmitter width: 17.4 cm
  • Transmitter depth: 15.9 cm
  • Transmitter height: 2.88 cm
  • Transmitter weight: 800 g
  • Receiver width: 17.4 cm
  • Receiver depth: 15.9 cm
  • Receiver height: 2.88 cm
  • Receiver weight: 810 g
  • Manual: Yes
  • Quick installation guide: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Weight: 3.65 kg
  • Master (outer) case net weight: 3.65 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 247 mm
  • Master (outer) case length: 556 mm
  • Master (outer) case height: 153 mm
  • Products per master (outer) case: 1 pc(s)
Description

The Aten CE624 is a USB DVI Dual View HDBaseT KVM Extender suitable for users who need to manage multiple computers from a single keyboard, mouse, and monitor setup. This device efficiently transmits video and control signals over long distances, making it ideal for various professional environments such as offices or studios.

  • Supports video resolutions up to 1920 x 1200 for clear visuals.
  • Allows transmission distances up to 150 meters, providing flexibility in setup.
  • Compatible with various cable types, including Cat5e and Cat6, offering versatile installation options.
  • Includes LED indicators for link and power status, simplifying monitoring of the device's operation.
  • Designed for rack mounting, streamlining organization and space management in professional spaces.
Specifications (1)
  • Warranty: 24 month(s)
Display (1)
  • Display: 1920 x 1200 at 100m
Technical details (3)
  • Net weight: 0.8 kg
  • Producer product family: USB DVI Dual View HDBaseT 2.0 KVM Extender
  • Producer product name: CE624
Additional specifications (38)
  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Cable types supported: Cat5, Cat5e, Cat6, Cat6a
  • Rack mounting: Yes
  • Maximum digital resolution: 1920 x 1200 pixels
  • Supported resolutions: 1600x1200, 1920x1200, 1920x1080
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power
  • Transmitter video port type: DVI-D
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DVI-D
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • AC adapter output voltage: 5 V
  • Transmitter width: 17.4 cm
  • Transmitter depth: 15.9 cm
  • Transmitter height: 2.88 cm
  • Transmitter weight: 800 g
  • Receiver width: 17.4 cm
  • Receiver depth: 15.9 cm
  • Receiver height: 2.88 cm
  • Receiver weight: 810 g
  • Manual: Yes
  • Quick installation guide: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%
  • Weight: 3.65 kg
  • Master (outer) case net weight: 3.65 kg
  • Harmonized System (HS) code: 84733080
  • Master (outer) case width: 247 mm
  • Master (outer) case length: 556 mm
  • Master (outer) case height: 153 mm
  • Products per master (outer) case: 1 pc(s)

Aten CE624 — USB DVI Dual View HDBaseT 2.0 KVM Extender, 1920 x 1200 at 100m

€1.381,35
€1.381,35
Tax included.
