About
Description

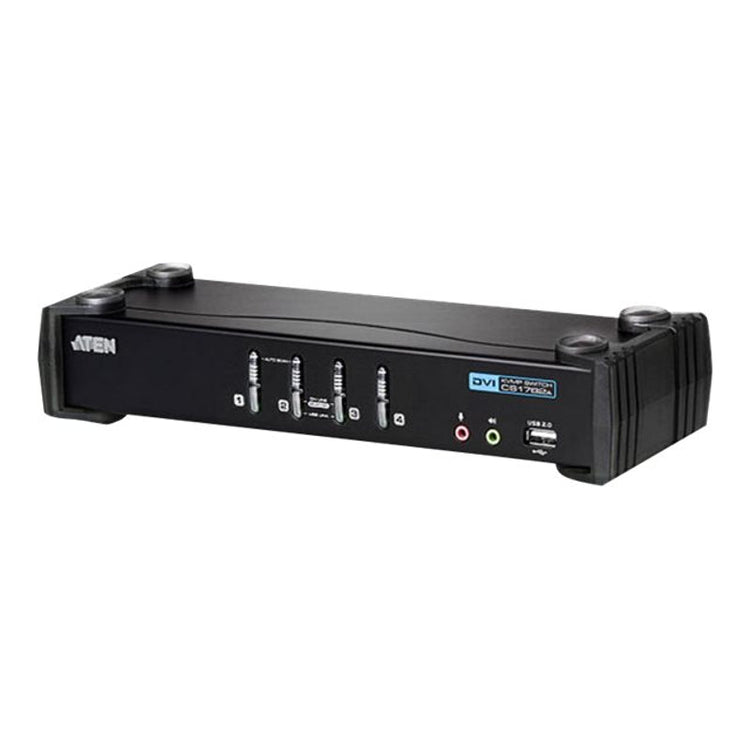

The Aten 4-Port USB DVI/Audio KVMP Switch is designed for users who need to control multiple computers from a single console. It provides versatile connectivity options, making it suitable for various operating systems including Windows, Linux, Mac, and Sun.
- Supports superior video quality with a maximum resolution of 1920 x 1200 pixels for clear displays.
- Allows easy computer selection through front panel pushbuttons, hotkeys, or mouse control.
- Includes multiple audio connections, accommodating both headphone and microphone inputs for enhanced multimedia interactions.
- Features a USB hub with four USB ports for connecting additional peripherals.
- Constructed with a durable metal housing, ensuring stability and longevity.
Specifications (2)
- Producer product name: 4-Port USB DVI/Audio KVMP™ Switc
- Warranty: 24 month(s)
Operational conditions (1)
- Temperature range (T-T): 0 - 50°C °C
Technical details (2)
- Net weight: 0.94 kg
- Other features: Superior video quality – 1920 x 1200. Computer selection via front panel pushbuttons, hotkeys, and mouse. DVI digital and analog monitor support – fully compliant with the DVI specifications. Multiplatform support – Windows, Linux, Mac, and Sun. "Console Ports - 2 x USB Type A Female (White; front panel). 1 x DVI-I Female (White). 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel). 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)." "KVM Ports - 4 x USB Type B Female (White), 4 x DVI-I Female (White), 4 x Mini Stereo Jack Female (Green), 4 x Mini Stereo Jack Female (Pink), " Power- 1 x DC Jack USB Hub.
Additional specifications (44)
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DVI-I
- DVI-I ports quantity: 4
- USB 2.0 Type-B ports quantity: 4
- Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A
- Console USB ports quantity: 4
- USB hub: Yes
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 6
- Number of microphone inputs: 6
- DC-in jack: Yes
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,99 s
- DDC2B support: Yes
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5.3 V
- Power consumption (typical): 4.8 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 270 mm
- Depth: 88 mm
- Height: 55.5 mm
- Weight: 2.1 kg
- Quick installation guide: Yes
- Manual: Yes
- Master (outer) case net weight: 10.5 kg
- Harmonized System (HS) code: 85176200
- Master (outer) case width: 342 mm
- Master (outer) case length: 512 mm
- Master (outer) case height: 232 mm
- Products per master (outer) case: 5 pc(s)
