About

Description

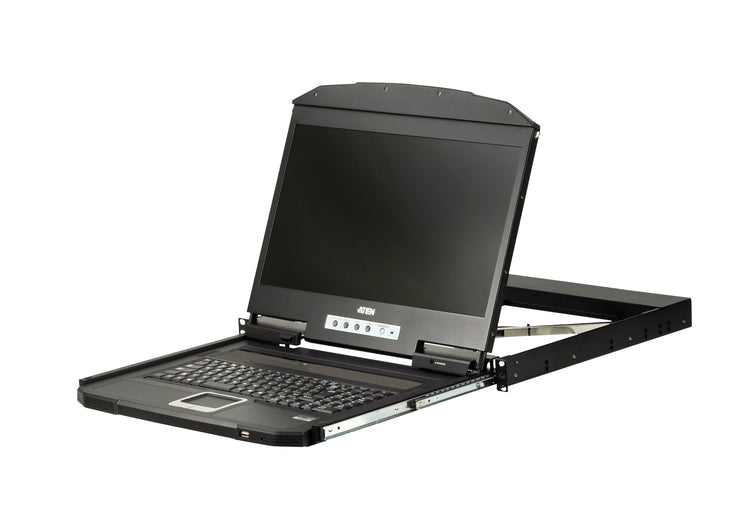

The Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console is designed for users who need an efficient and compact KVM solution. Ideal for server environments, it provides a clear interface for managing multiple computers with ease.

  • The 18.5" TFT-LCD display delivers a resolution of 1366 x 768 pixels, allowing for a detailed view of your systems.
  • Hot-plug support enables you to connect or disconnect computers without shutting down the system.
  • The built-in KVM switch allows you to control one computer, streamlining the management process in server racks.
  • Designed to fit in a standard 1U rack space, it maximizes space while providing essential functionality.
  • With a contrast ratio of 1000:1 and wide viewing angles, the display ensures visibility from various positions.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 9.07 kg
Additional specifications (57)
  • Display diagonal: 47 cm (18.5")
  • Display resolution: 1366 x 768 pixels
  • Display: TFT-LCD
  • Display brightness: 250 cd/m²
  • Contrast ratio (typical): 1000:1
  • Viewing angle, horizontal: 170°
  • Viewing angle, vertical: 160°
  • On Screen Display (OSD): Yes
  • Pixel pitch: 0.3 x 0.3 mm
  • Aspect ratio: 16:9
  • Display type: LCD
  • Response time: 5 ms
  • Display number of colours: 16.78 million colours
  • Material: Metal, Plastic
  • Product colour: Black
  • Hot-Plug support: Yes
  • Operating relative humidity (H-H): 0 - 80%
  • Built-in KVM switch: Yes
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Key lock: Yes
  • Number of computers controlled: 1
  • On/off switch: Yes
  • LED indicators: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U
  • I/O ports: 3.5 mm Audio Jack, SPHD
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: VGA
  • USB 2.0 Type-A ports quantity: 3
  • Keyboard number of keys: 105
  • Built-in touchpad: Yes
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Certification: UL 60950-1, CAN/CSA
  • Power supply type: AC
  • Power consumption (typical): 14.1 W
  • AC adapter input voltage: 100 - 240 V
  • AC adapter frequency: 50/60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 477 mm
  • Height: 42.8 mm
  • Depth: 480.6 mm
  • Weight: 10.2 kg
  • Cables included: AC, KVM
  • Manual: Yes
  • AC adapter included: Yes
  • Rack mount kit: Yes
  • Master (outer) case net weight: 10.2 kg
  • Master (outer) case width: 612 mm
  • Master (outer) case length: 658 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)
Description

The Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console is designed for users who need an efficient and compact KVM solution. Ideal for server environments, it provides a clear interface for managing multiple computers with ease.

  • The 18.5" TFT-LCD display delivers a resolution of 1366 x 768 pixels, allowing for a detailed view of your systems.
  • Hot-plug support enables you to connect or disconnect computers without shutting down the system.
  • The built-in KVM switch allows you to control one computer, streamlining the management process in server racks.
  • Designed to fit in a standard 1U rack space, it maximizes space while providing essential functionality.
  • With a contrast ratio of 1000:1 and wide viewing angles, the display ensures visibility from various positions.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 9.07 kg
Additional specifications (57)
  • Display diagonal: 47 cm (18.5")
  • Display resolution: 1366 x 768 pixels
  • Display: TFT-LCD
  • Display brightness: 250 cd/m²
  • Contrast ratio (typical): 1000:1
  • Viewing angle, horizontal: 170°
  • Viewing angle, vertical: 160°
  • On Screen Display (OSD): Yes
  • Pixel pitch: 0.3 x 0.3 mm
  • Aspect ratio: 16:9
  • Display type: LCD
  • Response time: 5 ms
  • Display number of colours: 16.78 million colours
  • Material: Metal, Plastic
  • Product colour: Black
  • Hot-Plug support: Yes
  • Operating relative humidity (H-H): 0 - 80%
  • Built-in KVM switch: Yes
  • Maximum resolution: 1920 x 1200 pixels
  • Rack mounting: Yes
  • Key lock: Yes
  • Number of computers controlled: 1
  • On/off switch: Yes
  • LED indicators: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U
  • I/O ports: 3.5 mm Audio Jack, SPHD
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: VGA
  • USB 2.0 Type-A ports quantity: 3
  • Keyboard number of keys: 105
  • Built-in touchpad: Yes
  • Keyboard language: US English
  • Keyboard layout: QWERTY
  • Hot keys: Yes
  • Certification: UL 60950-1, CAN/CSA
  • Power supply type: AC
  • Power consumption (typical): 14.1 W
  • AC adapter input voltage: 100 - 240 V
  • AC adapter frequency: 50/60 Hz
  • Input current: 1 A
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Width: 477 mm
  • Height: 42.8 mm
  • Depth: 480.6 mm
  • Weight: 10.2 kg
  • Cables included: AC, KVM
  • Manual: Yes
  • AC adapter included: Yes
  • Rack mount kit: Yes
  • Master (outer) case net weight: 10.2 kg
  • Master (outer) case width: 612 mm
  • Master (outer) case length: 658 mm
  • Master (outer) case height: 135 mm
  • Products per master (outer) case: 1 pc(s)

Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / VGA)

€1.004,39
€1.004,39
Tax included.
