Description

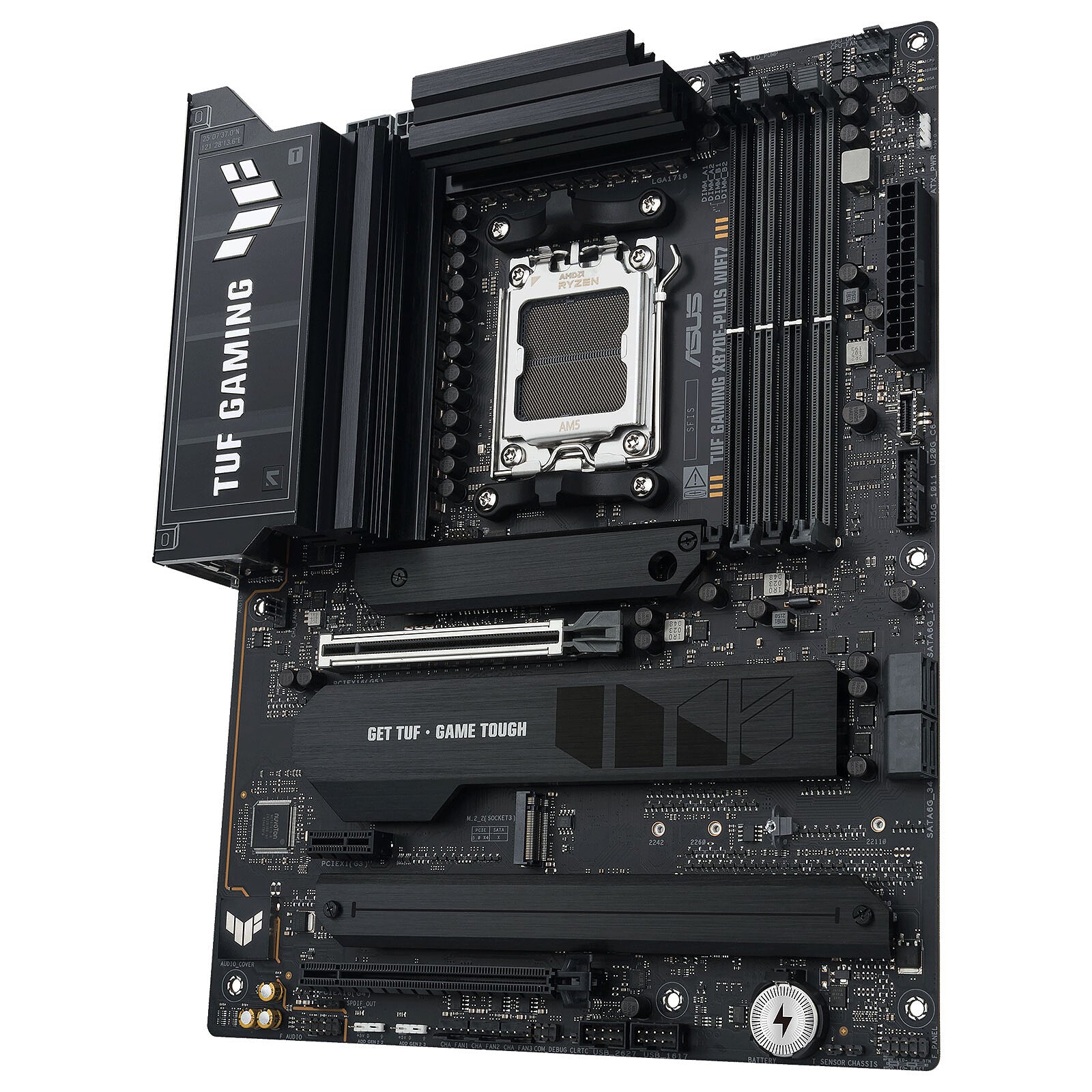

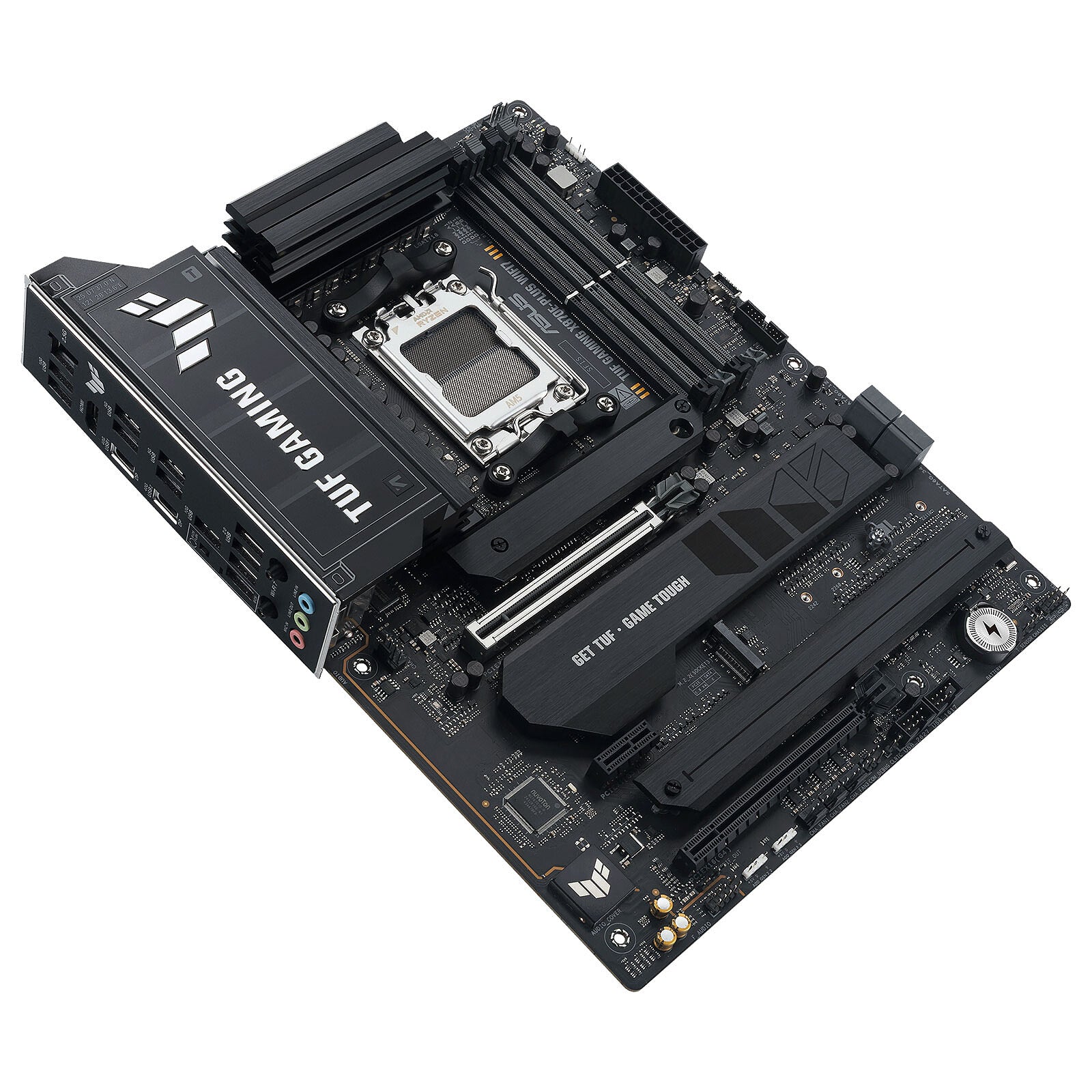

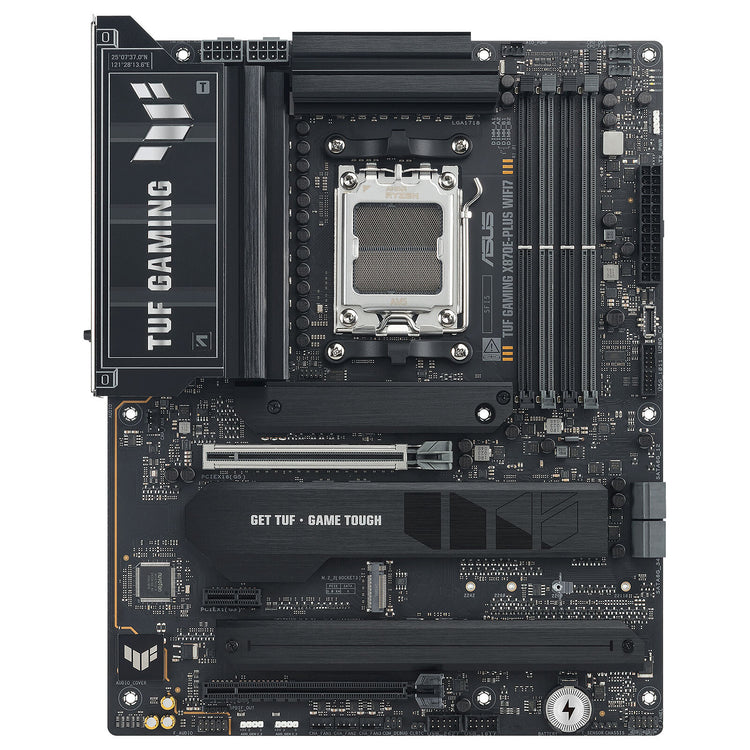

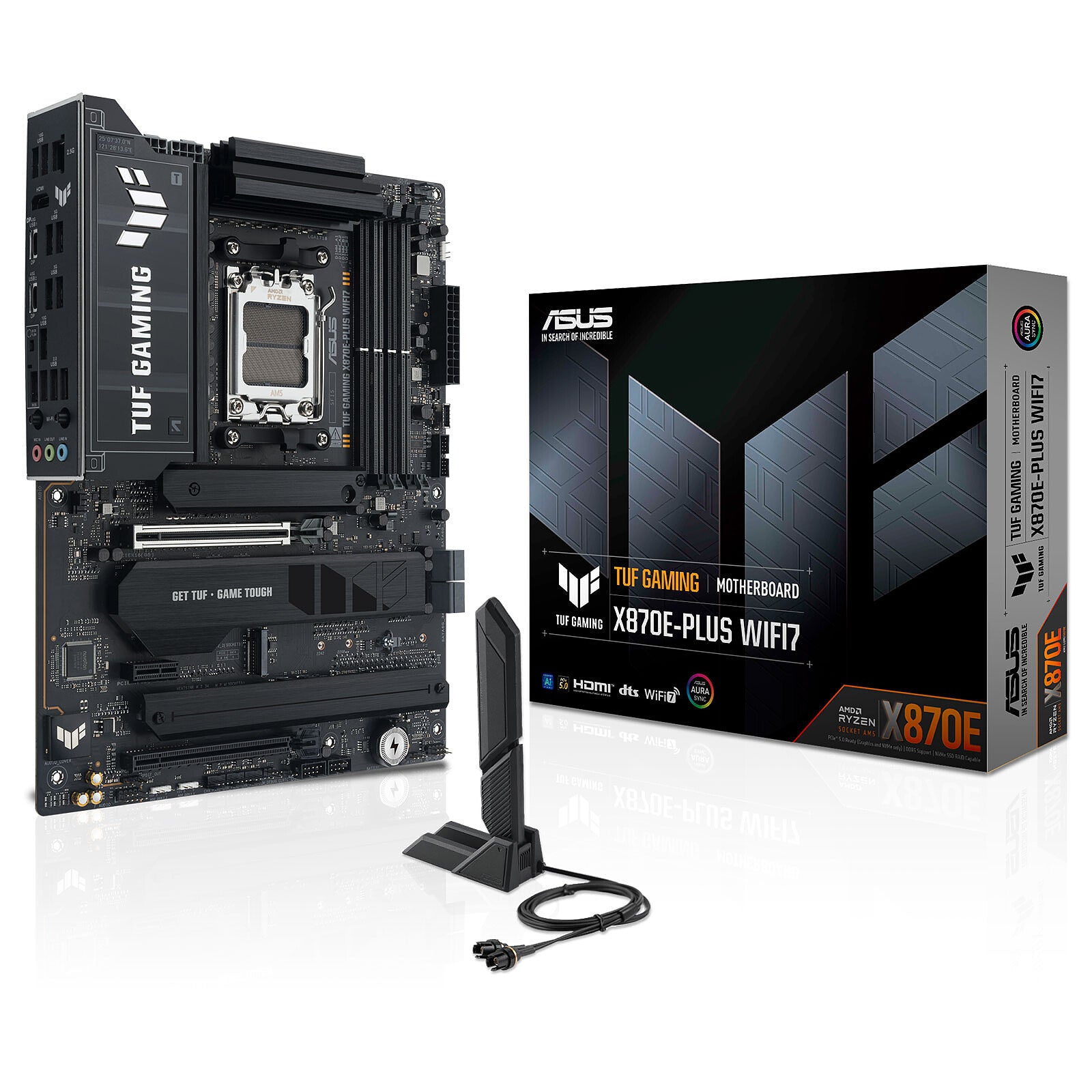

The Asus TUF GAMING X870E-PLUS WIFI7 is a motherboard that is ideal for gamers and PC builders who use AMD processors. Its features support high-performance memory and storage solutions for an efficient gaming experience.

Supports AMD Ryzen 7000, 8000, and 9000 Series processors via the AM5 socket for enhanced processing power.
Equipped with 4 DIMM slots for DDR5 memory, allowing for rapid data access and improved overall performance.
Provides 4 SATA connectors and support for M.2 storage, giving users versatile storage options for both SSDs and HDDs.
RAID support for levels 0, 1, 5, and 10 enables data redundancy and performance optimization for storage drives.
Includes USB 3.2 and USB 2.0 connectors for seamless connectivity with a variety of peripherals.

Specifications (1)

Warranty: 36 month(s)

Internal I/O (2)

Number of SATA connectors: 4
Supported hard disk drive interfaces: SATA, M.2

Memory (1)

Supported memory types: DDR5

Processor (2)

Processor family: AMD
Processor socket: AM5

Technical details (2)

Net weight: 0.78 kg
Producer product name: TUF GAMING X870E-PLUS WIFI7

Additional specifications (83)

Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
RAID support: Yes
RAID levels: 0, 1, 5, 10
Parallel processing technology support: Not supported
On-board graphics card: No
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 2
12V power connector: Yes
Number of water pump connectors: 1
Number of temperature sensor headers: 1
RGB LED pin header: Yes
Number of RGB LED pin headers: 3

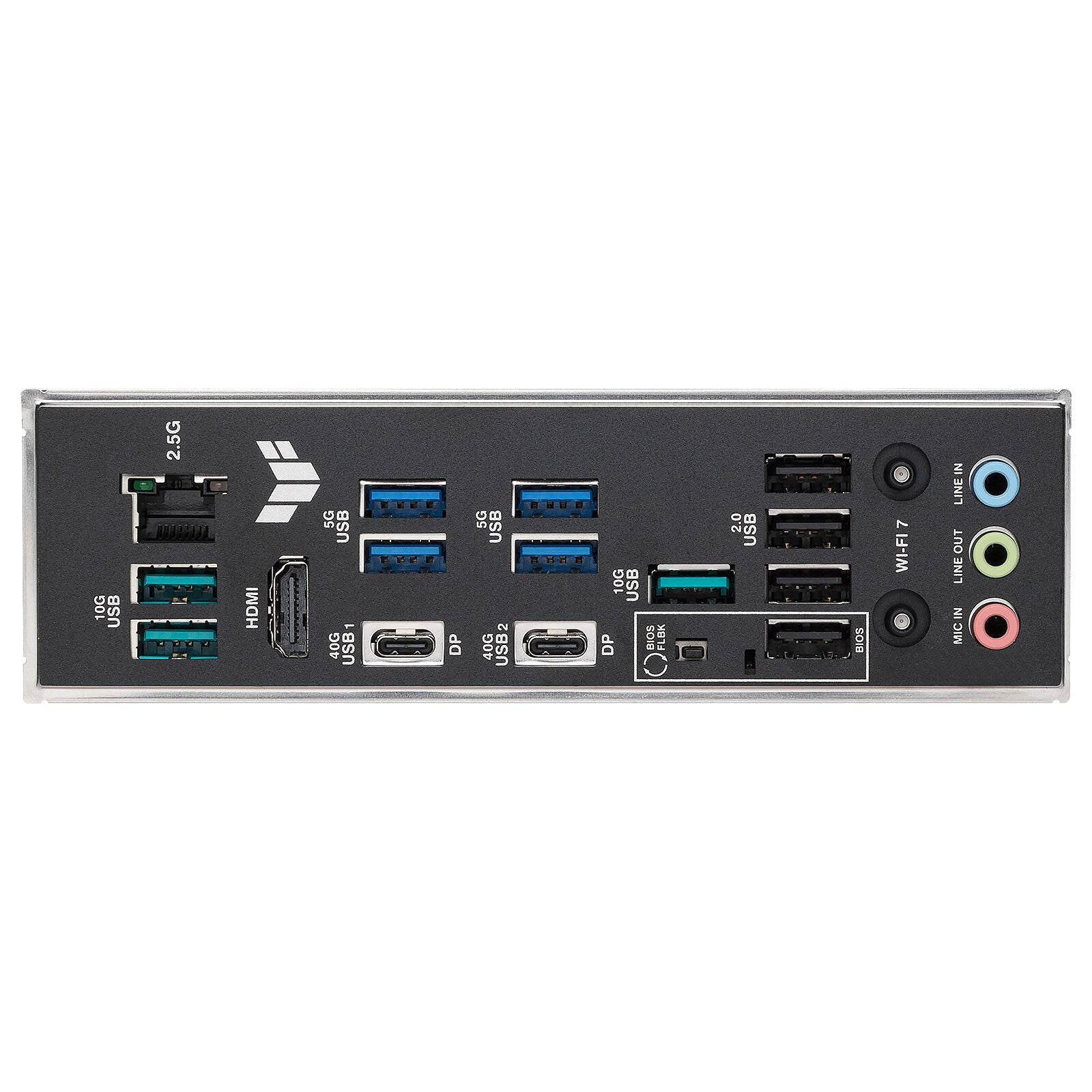

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
WiFi-AP antenna jack: 2
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4
Motherboard chipset: AMD X870E
Audio output channels: 7.1 channels
Product colour: Grey
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 11
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Width: 305 mm
Depth: 244 mm
Height: 48 mm
Cables included: SATA
Antenna included: Yes
Screws included: Yes
Weight: 1.56 kg
Quick installation guide: Yes
