Description

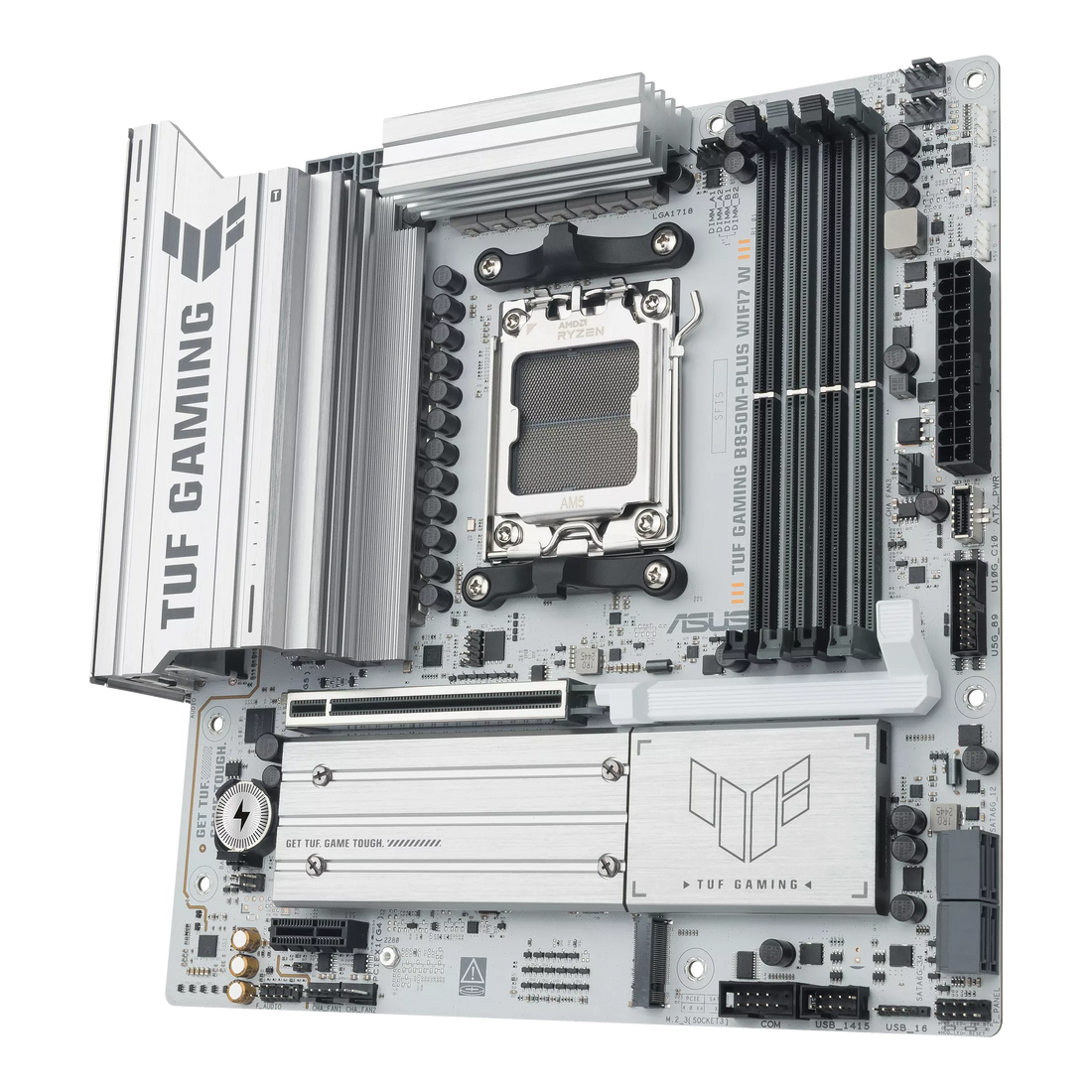

The Asus TUF GAMING B850M-PLUS WIFI7 W is a motherboard designed for gamers and PC builders seeking high performance and reliability. It is compatible with the latest AMD Ryzen processors and supports DDR5 memory, making it suitable for demanding computing tasks.

  • Supports up to 256 GB of DDR5 memory, allowing for smooth multitasking and high-performance gaming
  • Features four SATA connectors and support for M.2 drives, providing flexible storage options
  • Compatible with multiple AMD processor series, ensuring future upgrade potential
  • Equipped with RAID support for improved data redundancy and performance
  • Includes various USB connectors for easy peripheral connectivity
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: AMD
  • Processor socket: AM5
Technical details (2)
  • Net weight: 1.50 kg
  • Producer product name: TUF GAMING B850M-PLUS WIFI7 W
Additional specifications (72)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Maximum internal memory: 256 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • Chassis intrusion connector: Yes
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 3
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • WiFi-AP antenna jack: 1
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: Wi-Fi 7 (802.11be)
  • WLAN controller model: MediaTek MT7925
  • Bluetooth: Yes
  • Bluetooth version: 5.4
  • Motherboard chipset: AMD B850
  • Audio chip: Realtek ALC1220P
  • Audio output channels: 7.1 channels
  • Product colour: White
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 11
  • PCI Express x1 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 4.0
  • 3rd M.2 largest key size: 2280
  • 3rd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Width: 244 mm
  • Depth: 244 mm
  • Cables included: SATA
  • Antenna included: Yes
  • Screws included: Yes
Description

The Asus TUF GAMING B850M-PLUS WIFI7 W is a motherboard designed for gamers and PC builders seeking high performance and reliability. It is compatible with the latest AMD Ryzen processors and supports DDR5 memory, making it suitable for demanding computing tasks.

  • Supports up to 256 GB of DDR5 memory, allowing for smooth multitasking and high-performance gaming
  • Features four SATA connectors and support for M.2 drives, providing flexible storage options
  • Compatible with multiple AMD processor series, ensuring future upgrade potential
  • Equipped with RAID support for improved data redundancy and performance
  • Includes various USB connectors for easy peripheral connectivity
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: AMD
  • Processor socket: AM5
Technical details (2)
  • Net weight: 1.50 kg
  • Producer product name: TUF GAMING B850M-PLUS WIFI7 W
Additional specifications (72)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Maximum internal memory: 256 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • Chassis intrusion connector: Yes
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 3
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • WiFi-AP antenna jack: 1
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: Wi-Fi 7 (802.11be)
  • WLAN controller model: MediaTek MT7925
  • Bluetooth: Yes
  • Bluetooth version: 5.4
  • Motherboard chipset: AMD B850
  • Audio chip: Realtek ALC1220P
  • Audio output channels: 7.1 channels
  • Product colour: White
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 11
  • PCI Express x1 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 4.0
  • 3rd M.2 largest key size: 2280
  • 3rd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Width: 244 mm
  • Depth: 244 mm
  • Cables included: SATA
  • Antenna included: Yes
  • Screws included: Yes

Asus TUF GAMING B850M-PLUS WIFI7 W, Processor family AMD, Processor socket AM5, DDR5

€288,91
