Description

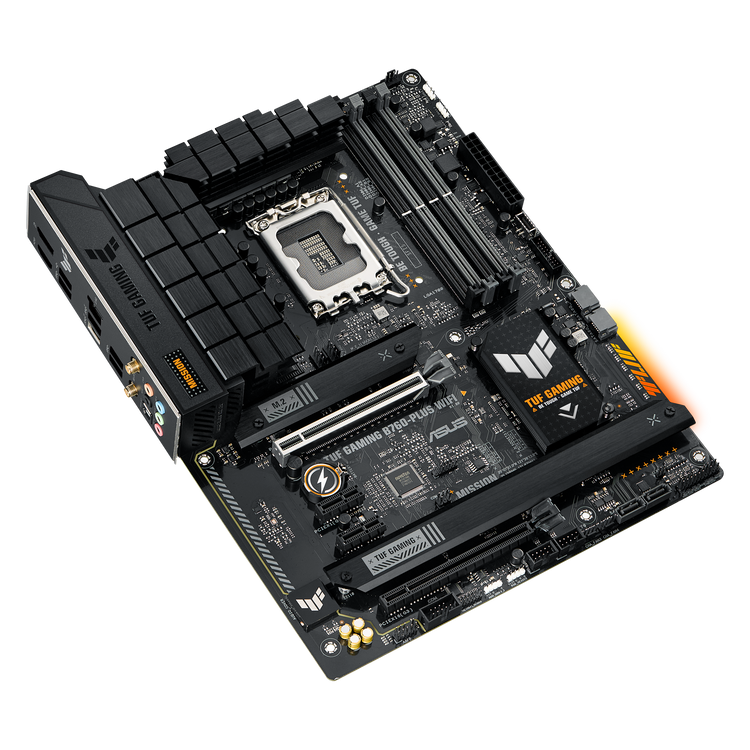

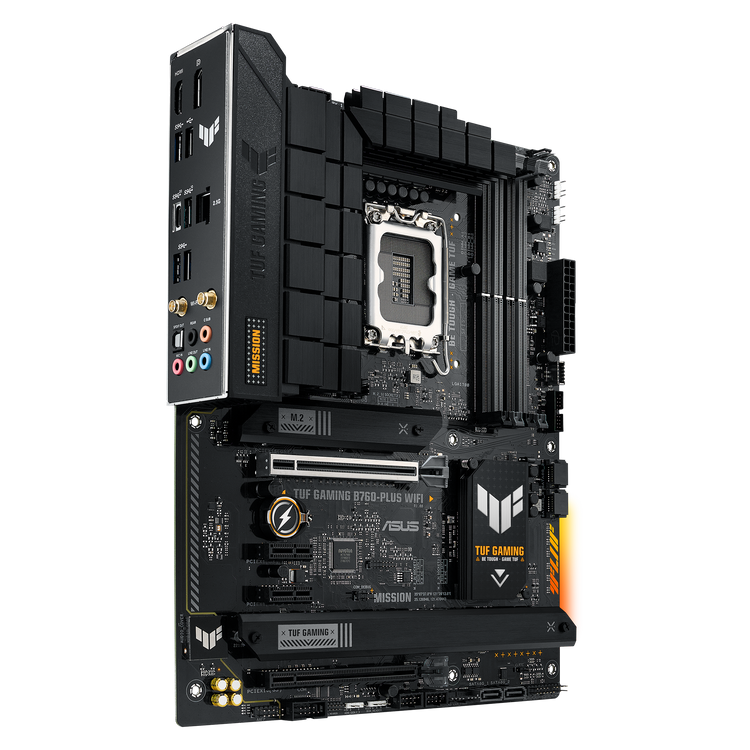

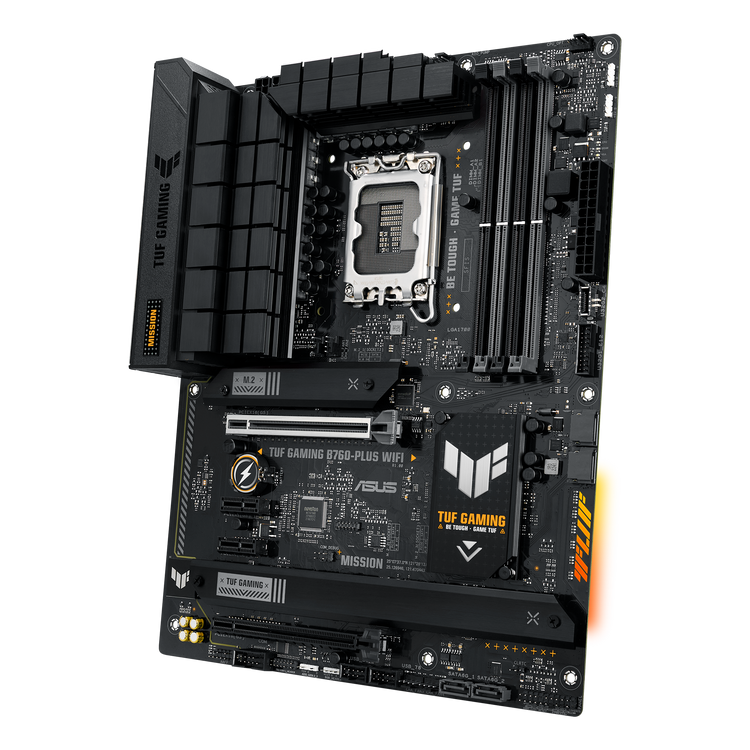

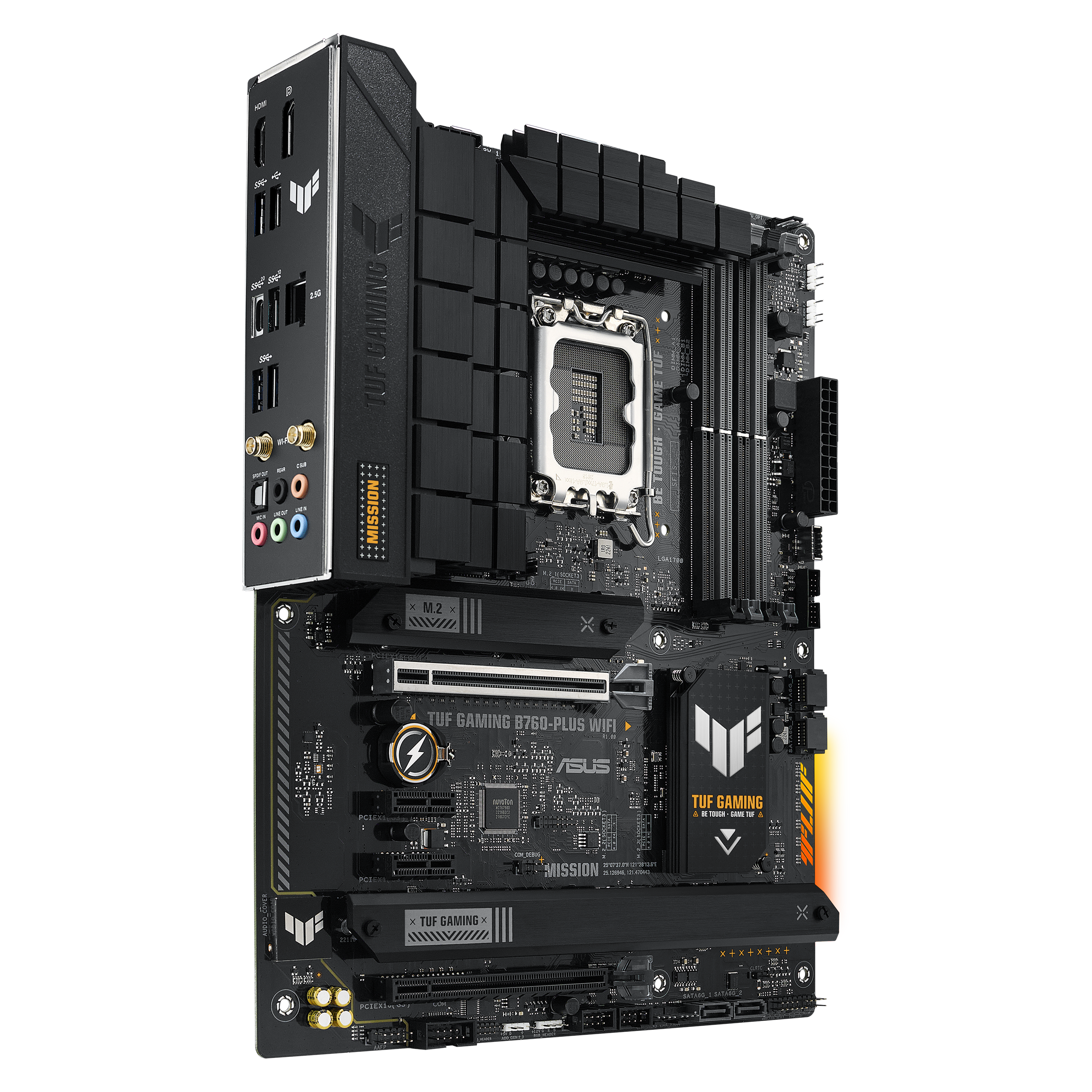

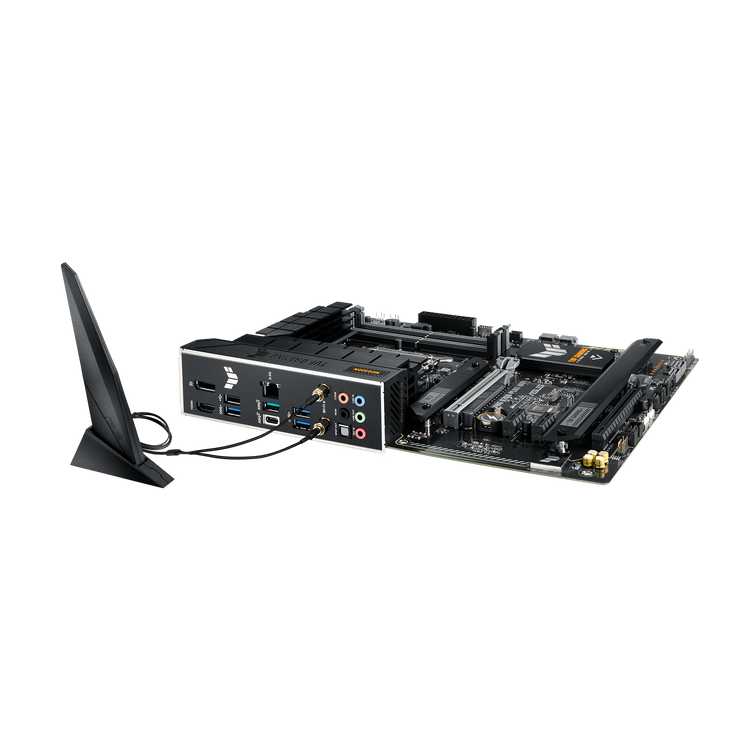

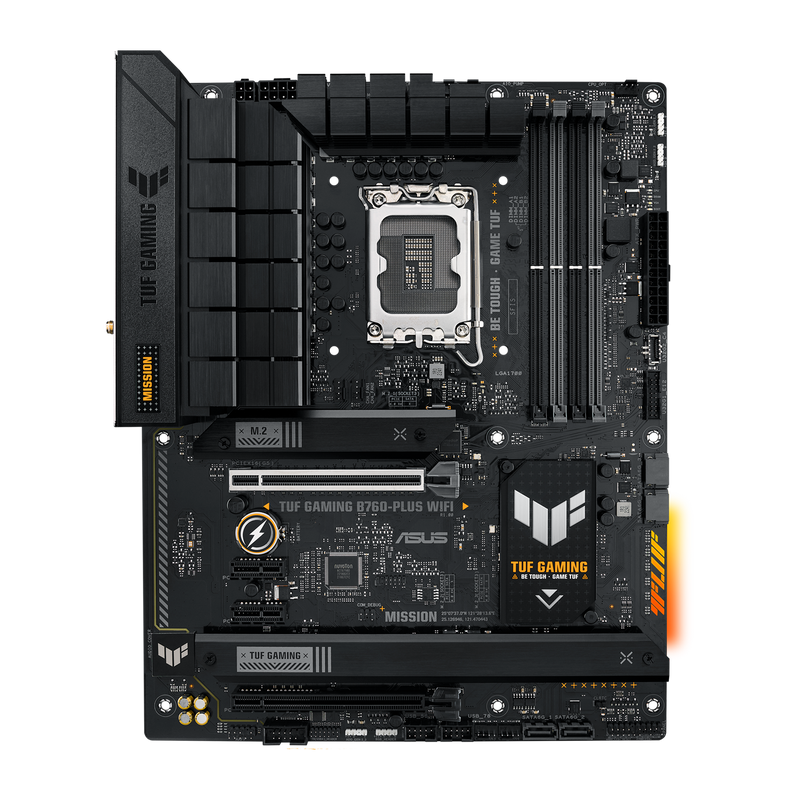

The Asus TUF GAMING B760-PLUS WIFI is a motherboard designed for gamers and PC builders seeking a reliable platform for Intel processors. It offers various connectivity options and robust performance for demanding applications and gaming needs.

Supports Intel processors with the LGA1700 socket, making it suitable for a range of Intel CPU families.
Equipped with 4 SATA connectors and multiple storage interfaces, allowing for versatile storage configurations with both HDDs and SSDs.
Offers 4 memory slots for DDR5-SDRAM, enabling high-speed memory options and a maximum capacity of 128 GB.
Includes RAID support for improved data redundancy and performance configurations.
Features dual-channel memory architecture for enhanced data throughput.

Specifications (1)

Warranty: 36 month(s)

Internal I/O (2)

Number of SATA connectors: 4
Supported hard disk drive interfaces: SATA, M.2

Processor (2)

Processor family: Intel
Processor socket: LGA1700

Technical details (2)

Net weight: 0.78 kg
Producer product name: TUF GAMING B760-PLUS WIFI

Additional specifications (74)

Processor manufacturer: Intel
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 5066 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
RAID levels: 0, 1, 5, 10
Parallel processing technology support: Not supported
On-board graphics card: No
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.2
Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI slots: 4
Number of M.2 (M) slots: 3
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Width: 305 mm
Depth: 244 mm
Cables included: SATA
