About
Description

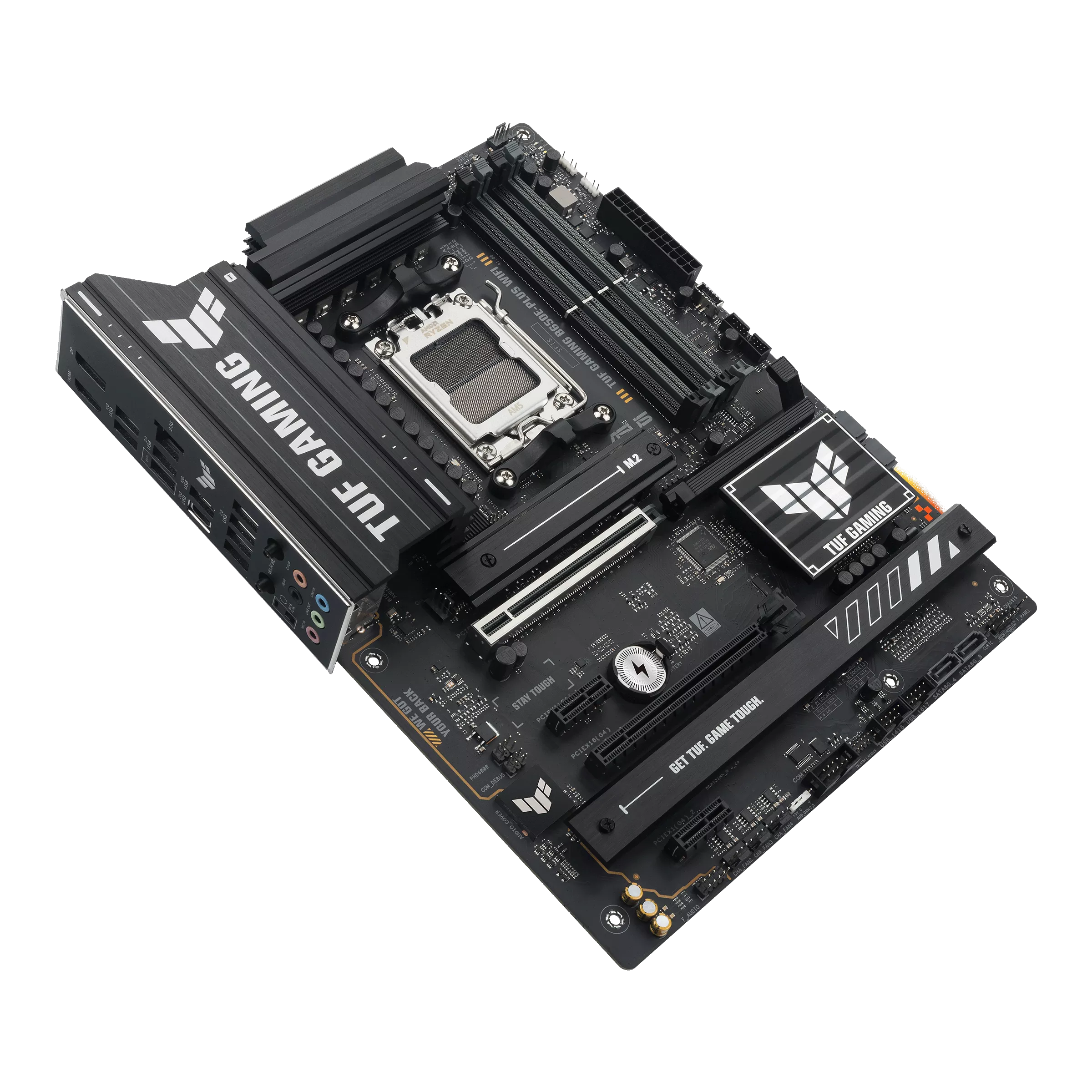

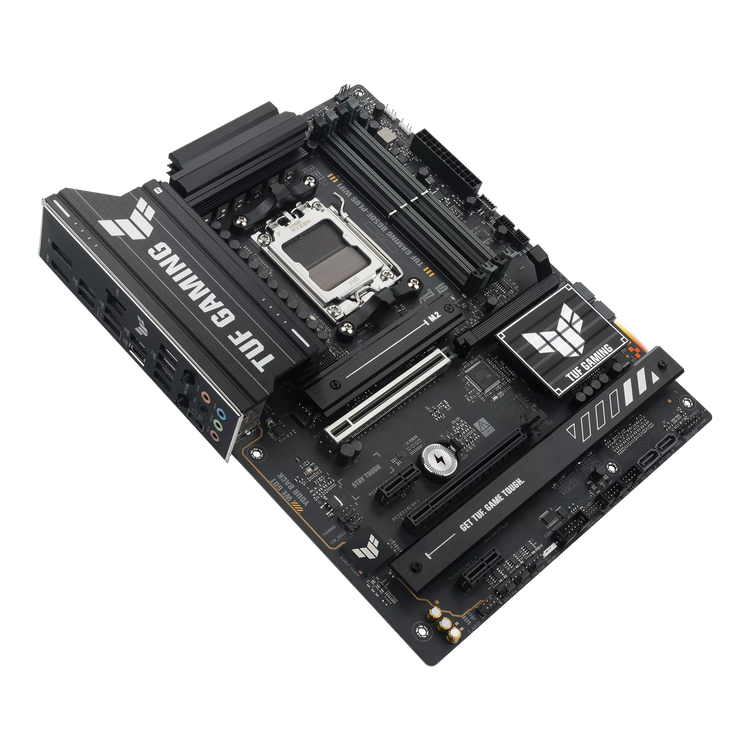

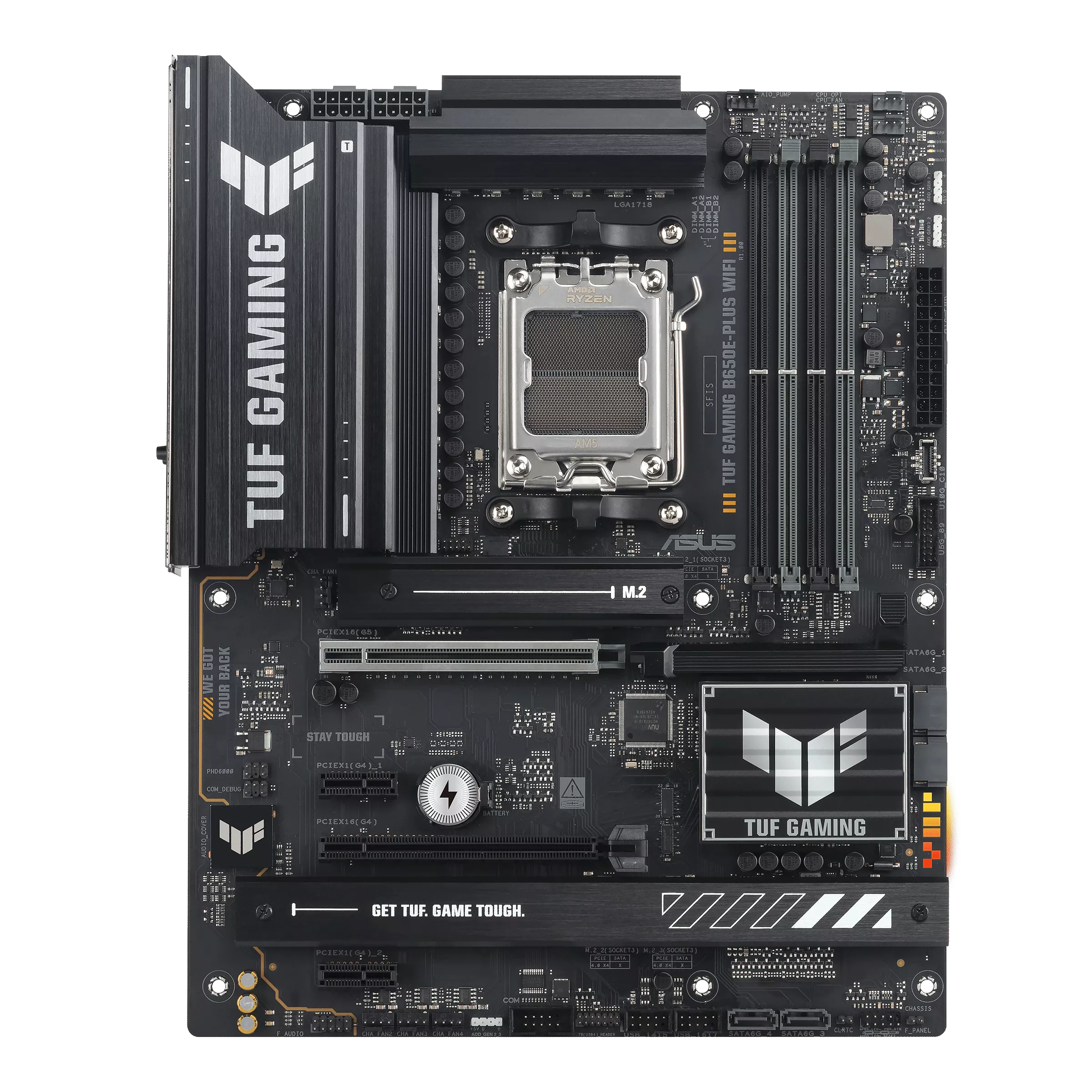

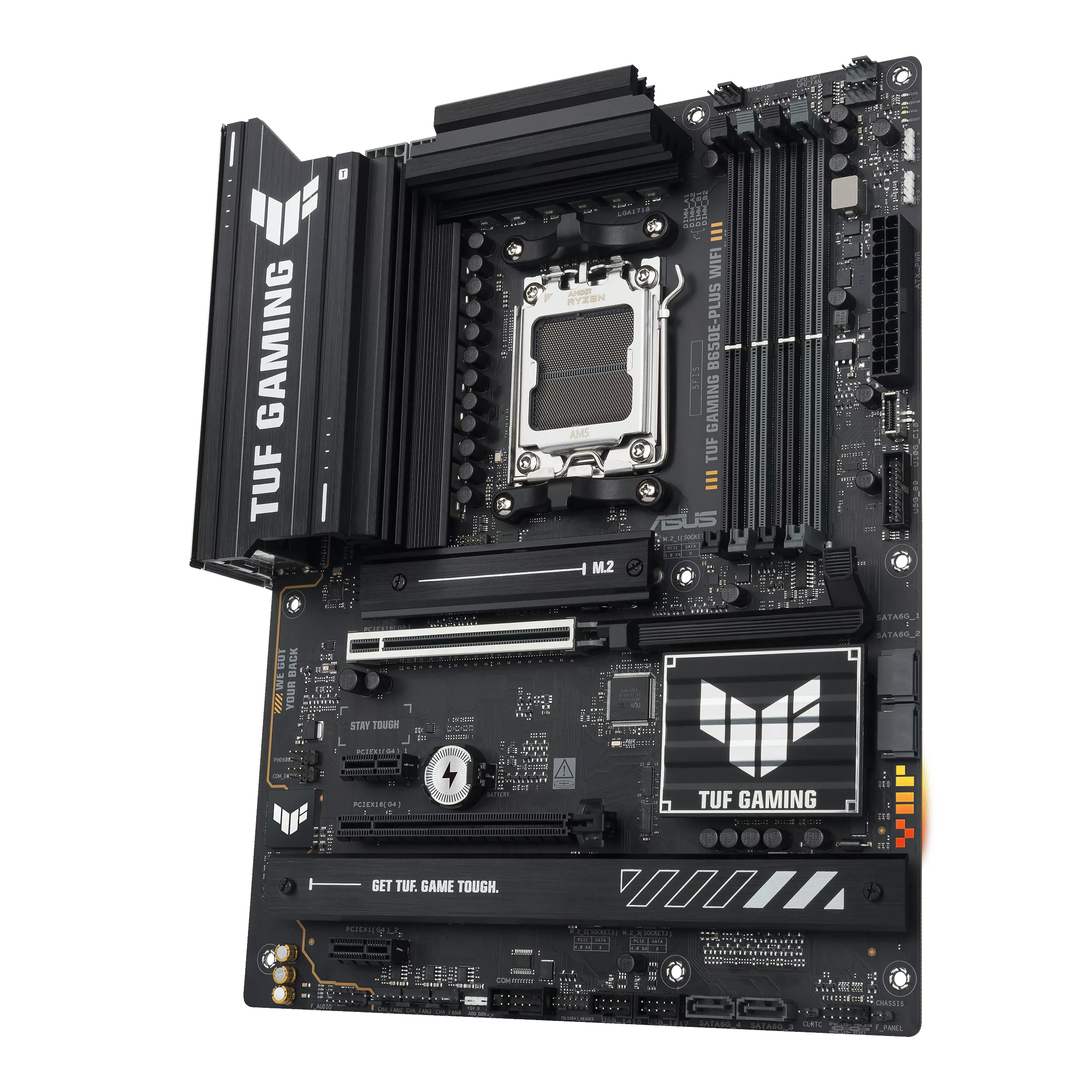

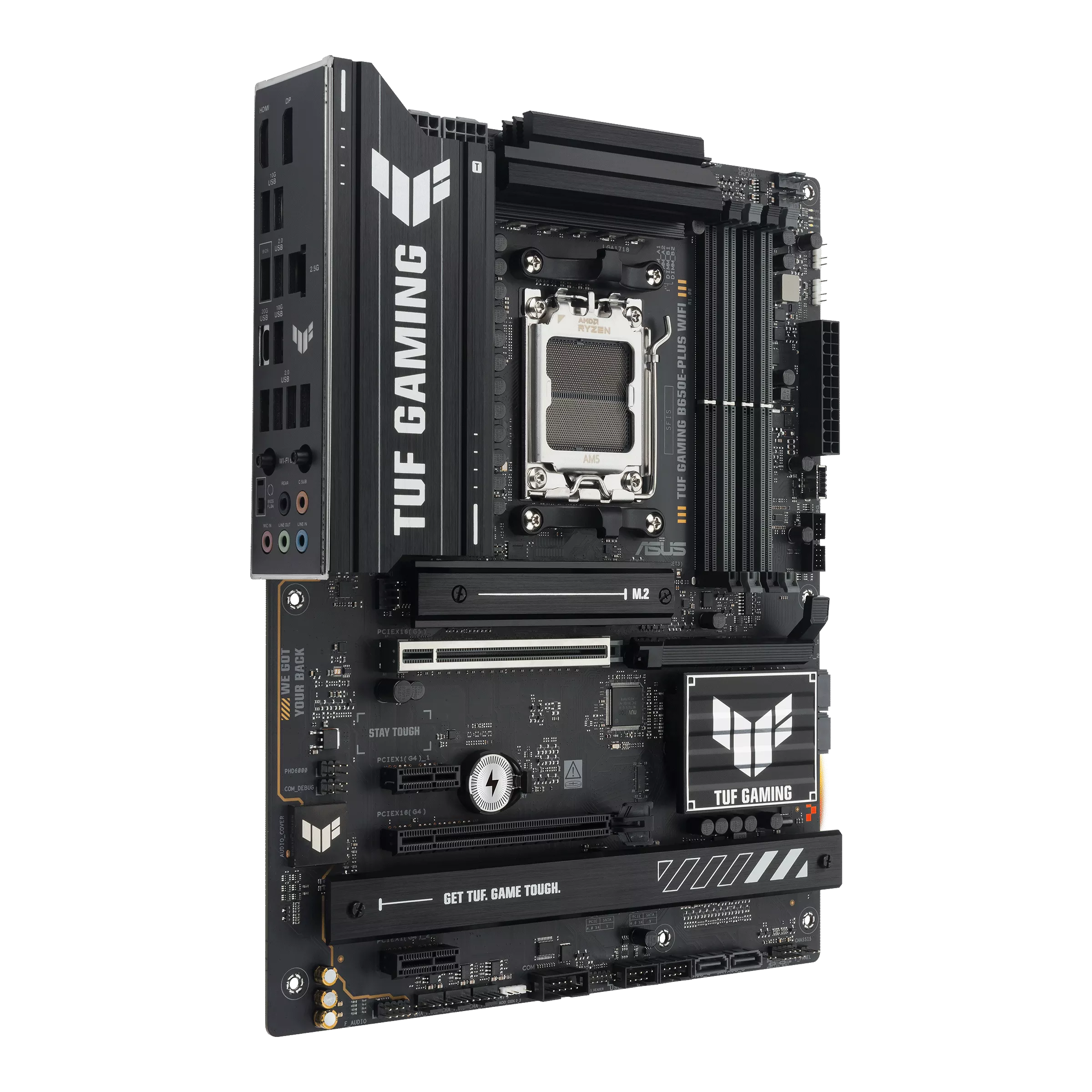

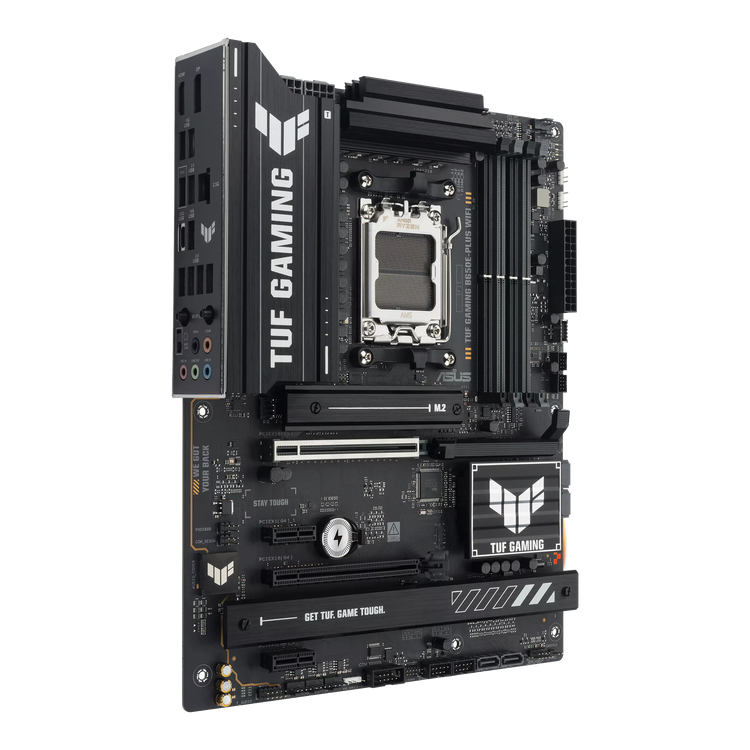

The Asus TUF GAMING B650E-PLUS WIFI is a motherboard designed for gamers and PC builders who prefer using AMD processors. It offers robust support for high-speed memory and multiple storage options, catering to both performance and versatility.
- Supports the latest AMD Ryzen processor families, including the 7000, 8000, and 9000 series, ensuring compatibility with powerful processors.
- Equipped with 4 SATA connectors and M.2 slots, this motherboard provides ample options for connecting HDDs and SSDs.
- Supports DDR5 memory with a maximum capacity of 256 GB across 4 memory slots, allowing for improved performance and multitasking capabilities.
- Offers RAID support with levels 0, 1, 5, and 10, enhancing data security and performance for your storage setup.
- Features various USB ports including USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2 connectors for versatile peripheral connectivity.
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Technical details (2)
- Net weight: 1.50 kg
- Producer product name: TUF GAMING B650E-PLUS WIFI
Additional specifications (73)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Parallel processing technology support: Not supported
- On-board graphics card: No
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 4
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- Thunderbolt headers: 1
- 12V power connector: Yes
- USB 2.0 ports quantity: 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 1
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC1220P
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Windows operating systems supported: Windows 10 x64, Windows 11
- PCI Express x1 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Width: 305 mm
- Depth: 244 mm
- Cables included: SATA
- Antenna included: Yes
