Description

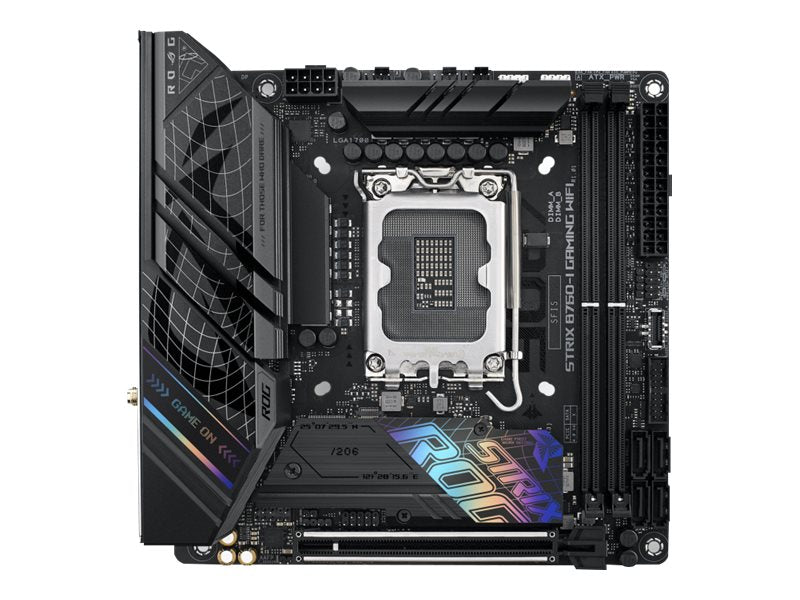

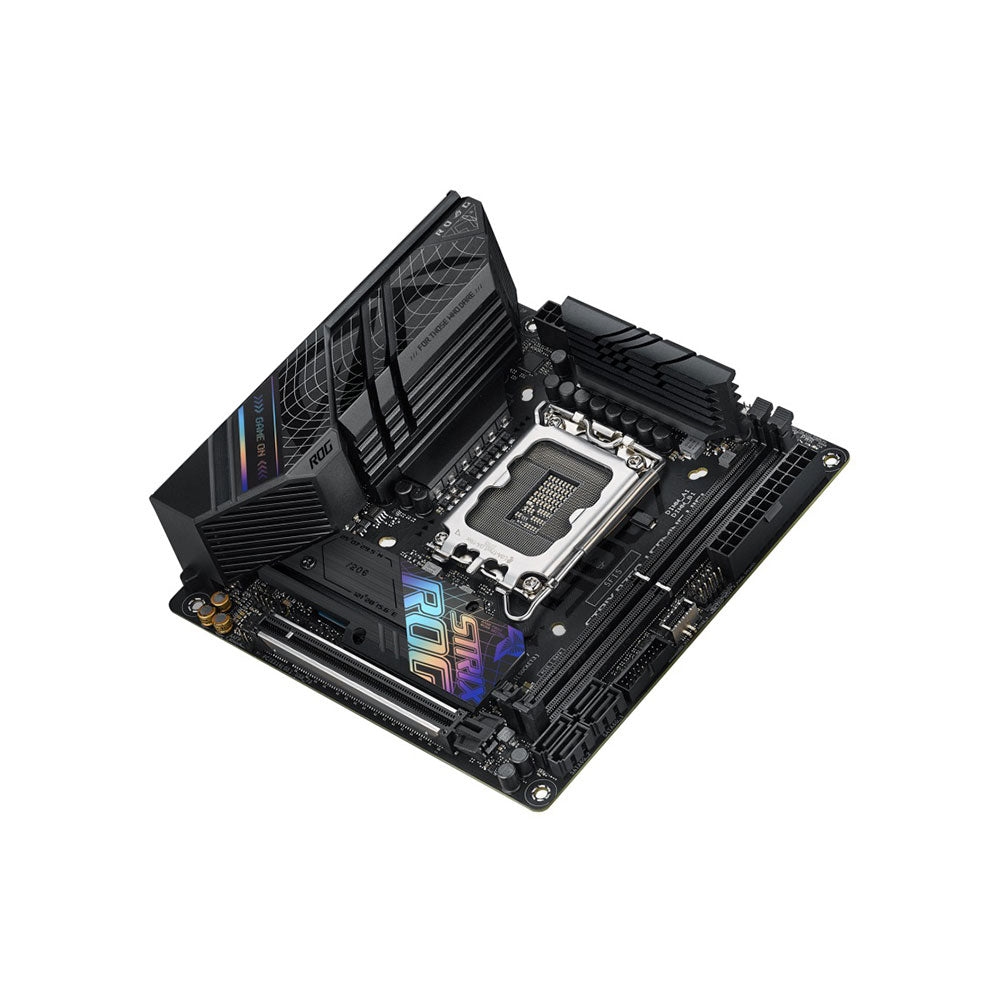

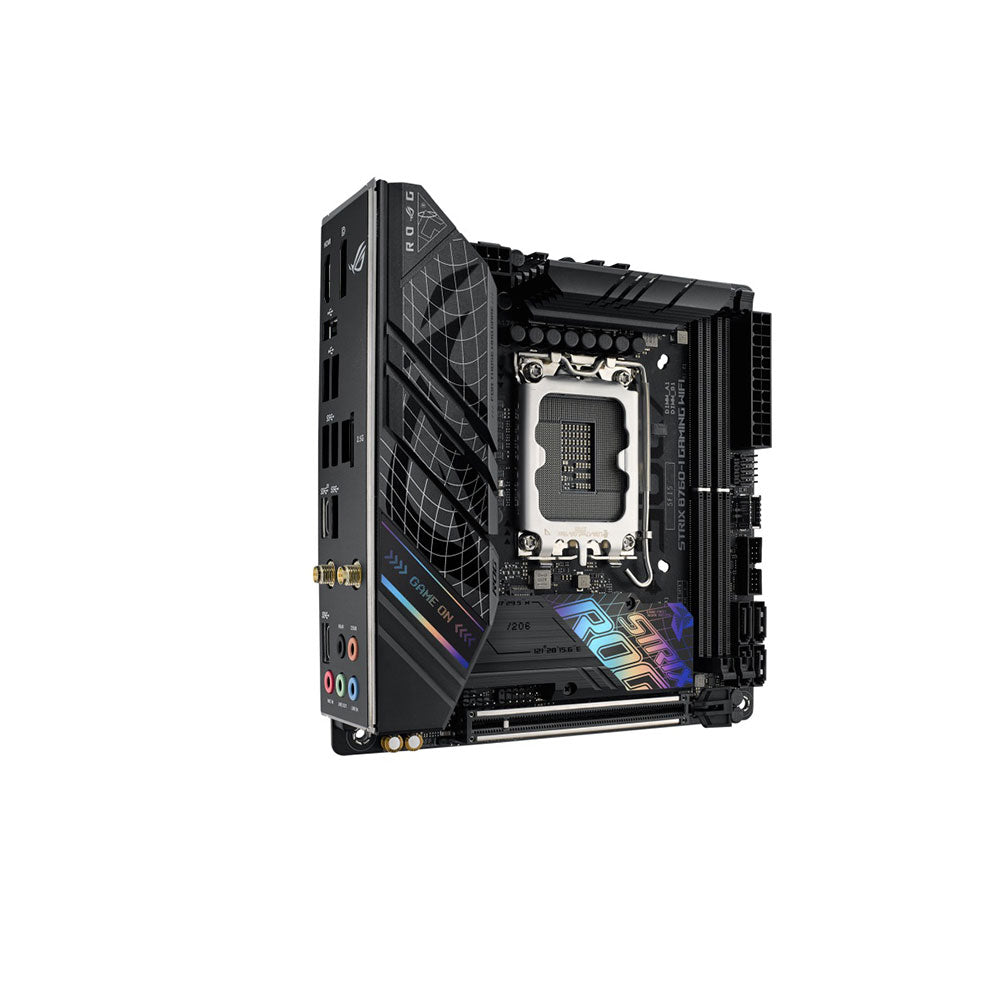

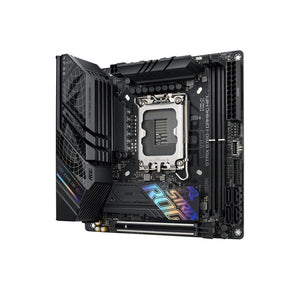

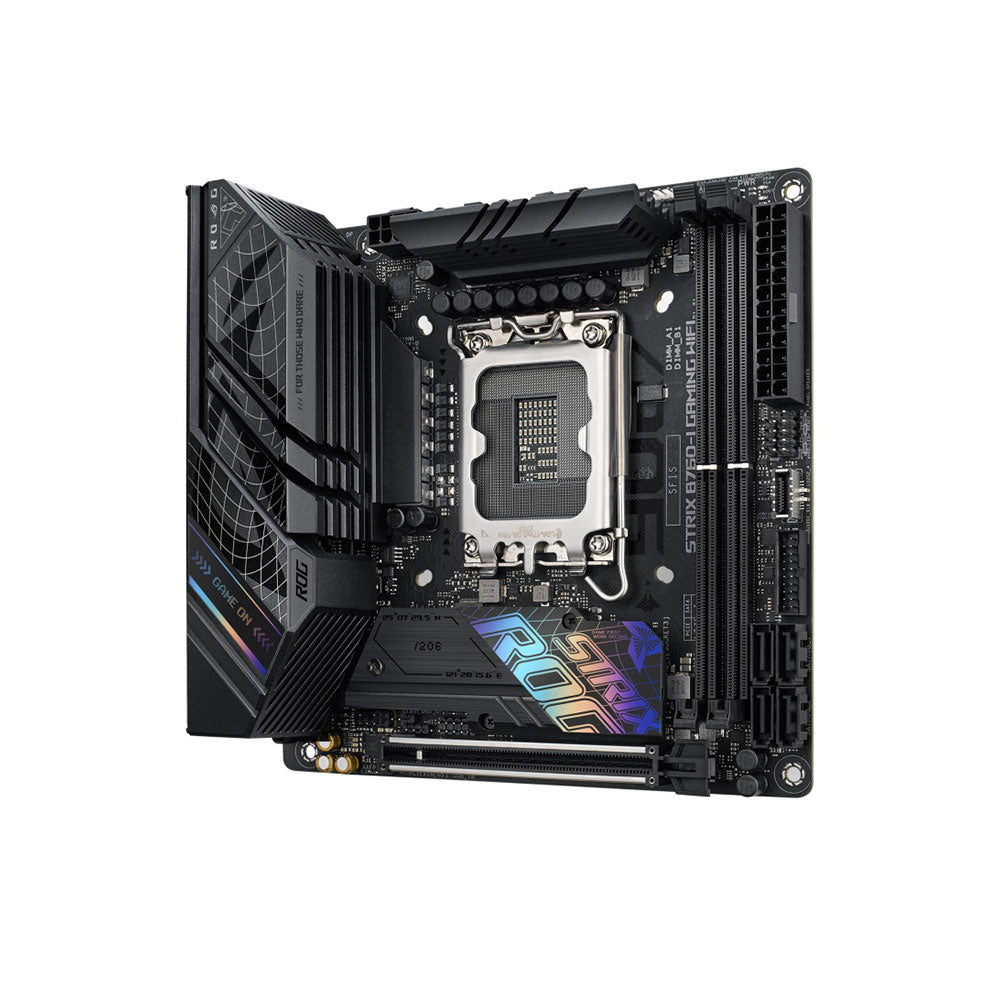

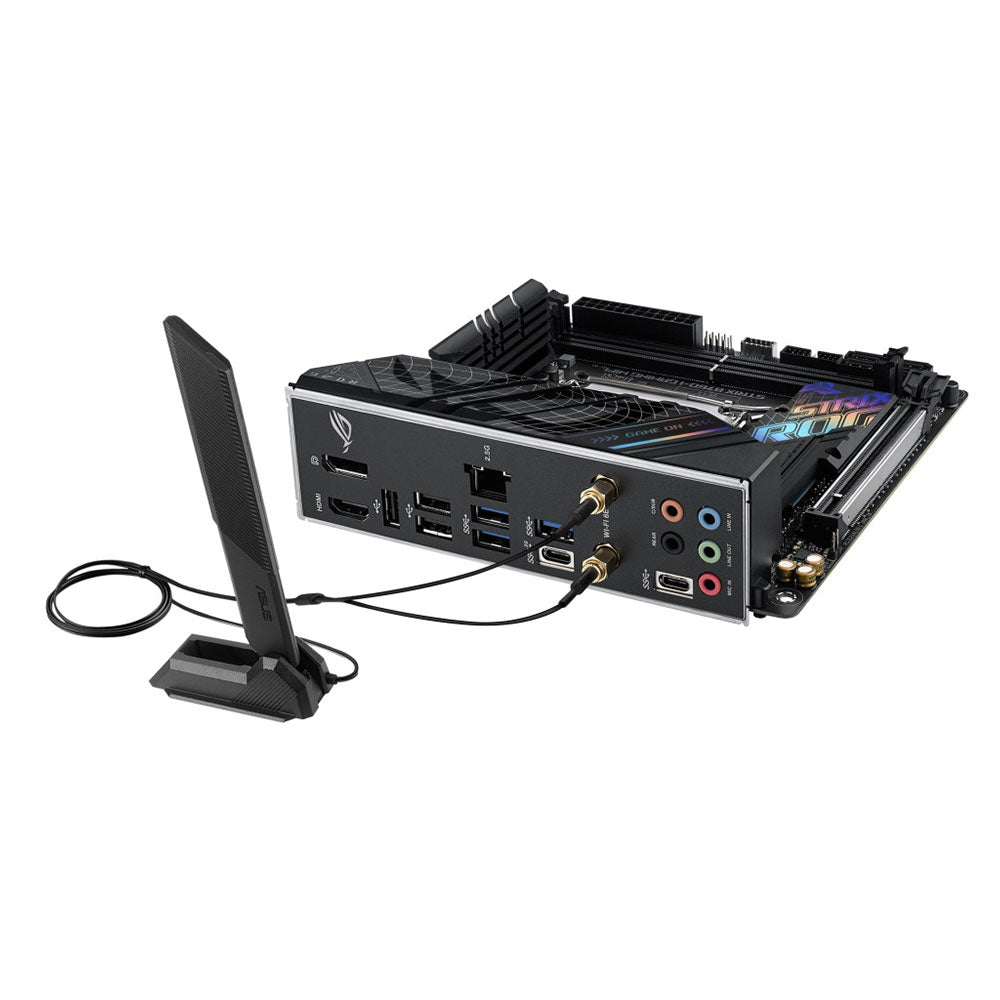

The Asus ROG STRIX B760-I GAMING WIFI is a compact motherboard designed for gamers and PC builders who want a powerful and versatile foundation for their systems. It supports the latest Intel processors and high-speed DDR5 memory for enhanced performance.

  • Compatible with Intel processors from Celeron to Core i9, allowing for flexible upgrade options.
  • Supports up to 64 GB of DDR5 memory, enabling high-performance multitasking and gaming.
  • Includes 4 SATA connectors and M.2 support for diverse storage options, accommodating both HDDs and SSDs.
  • Offers RAID support with multiple levels (0, 1, 5, and 10) for data redundancy and performance improvements.
  • Provides dual-channel memory architecture for improved bandwidth and system responsiveness.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: M.2, SATA
Memory (1)
  • Supported memory types: DDR5 SDRAM
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Producer product name: ROG STRIX B760-I GAMING WIFI
  • Net weight: 1.00 kg
Specifications (1)
  • Warranty: 36 month(s)
Additional specifications (64)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Maximum number of SMP processors: 1
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
  • Supported memory clock speed (max): 7600 MHz
  • Maximum internal memory: 64 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 1
  • EPS power connector (8-pin): Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.3
  • Motherboard chipset: Intel B760
  • Audio chip: SupremeFX S1220A
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: mini ITX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • Width: 170 mm
  • Depth: 170 mm
  • Height: 50 mm
  • Cables included: SATA
  • User guide: Yes
  • Weight: 644 g
Description

The Asus ROG STRIX B760-I GAMING WIFI is a compact motherboard designed for gamers and PC builders who want a powerful and versatile foundation for their systems. It supports the latest Intel processors and high-speed DDR5 memory for enhanced performance.

  • Compatible with Intel processors from Celeron to Core i9, allowing for flexible upgrade options.
  • Supports up to 64 GB of DDR5 memory, enabling high-performance multitasking and gaming.
  • Includes 4 SATA connectors and M.2 support for diverse storage options, accommodating both HDDs and SSDs.
  • Offers RAID support with multiple levels (0, 1, 5, and 10) for data redundancy and performance improvements.
  • Provides dual-channel memory architecture for improved bandwidth and system responsiveness.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: M.2, SATA
Memory (1)
  • Supported memory types: DDR5 SDRAM
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Producer product name: ROG STRIX B760-I GAMING WIFI
  • Net weight: 1.00 kg
Specifications (1)
  • Warranty: 36 month(s)
Additional specifications (64)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Maximum number of SMP processors: 1
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz
  • Supported memory clock speed (max): 7600 MHz
  • Maximum internal memory: 64 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 1
  • EPS power connector (8-pin): Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.3
  • Motherboard chipset: Intel B760
  • Audio chip: SupremeFX S1220A
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: mini ITX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • Width: 170 mm
  • Depth: 170 mm
  • Height: 50 mm
  • Cables included: SATA
  • User guide: Yes
  • Weight: 644 g

Asus ROG STRIX B760-I GAMING WIFI, Processor family Intel, Processor socket LGA1700, DDR5 SDRAM

€243,03
€243,03
Tax included.
