Description

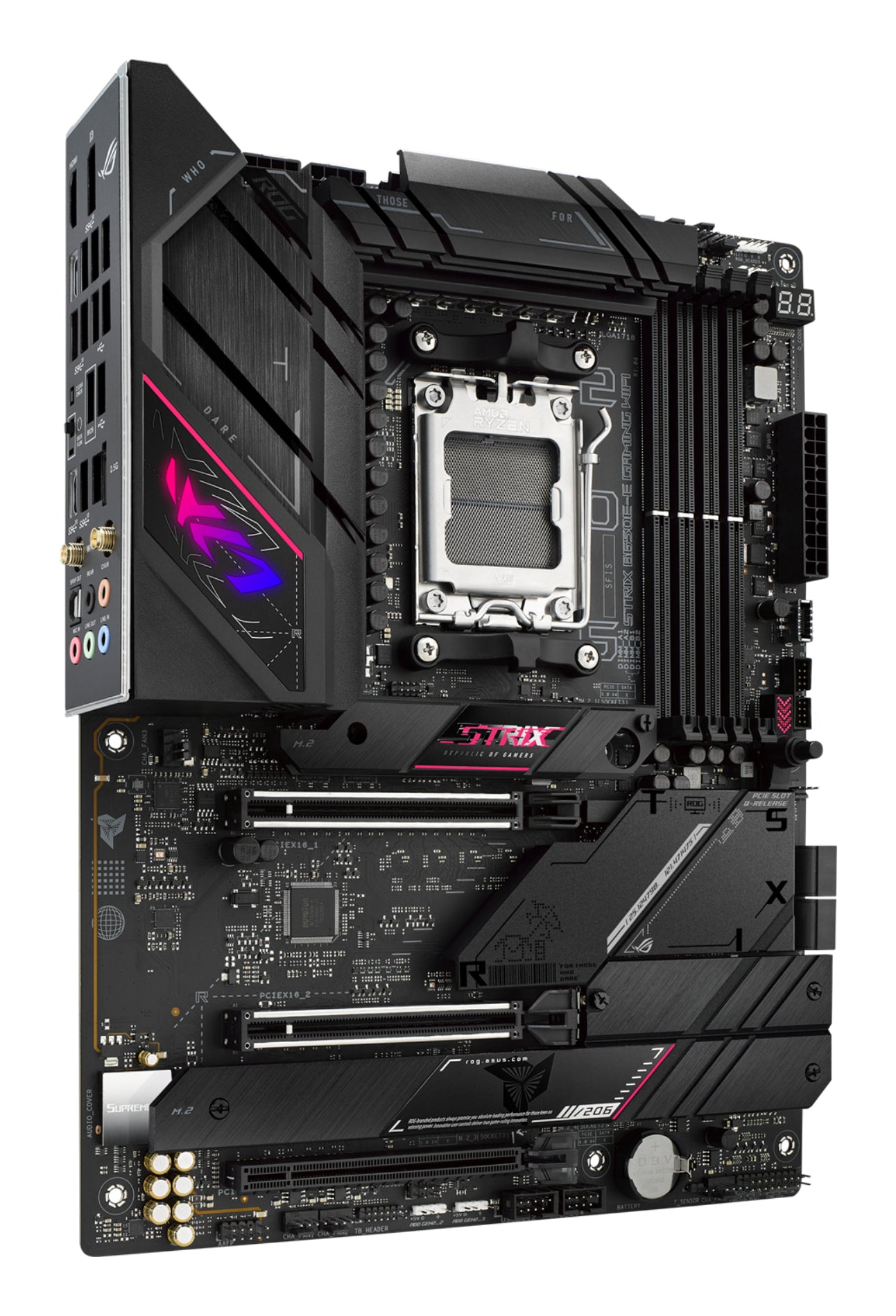

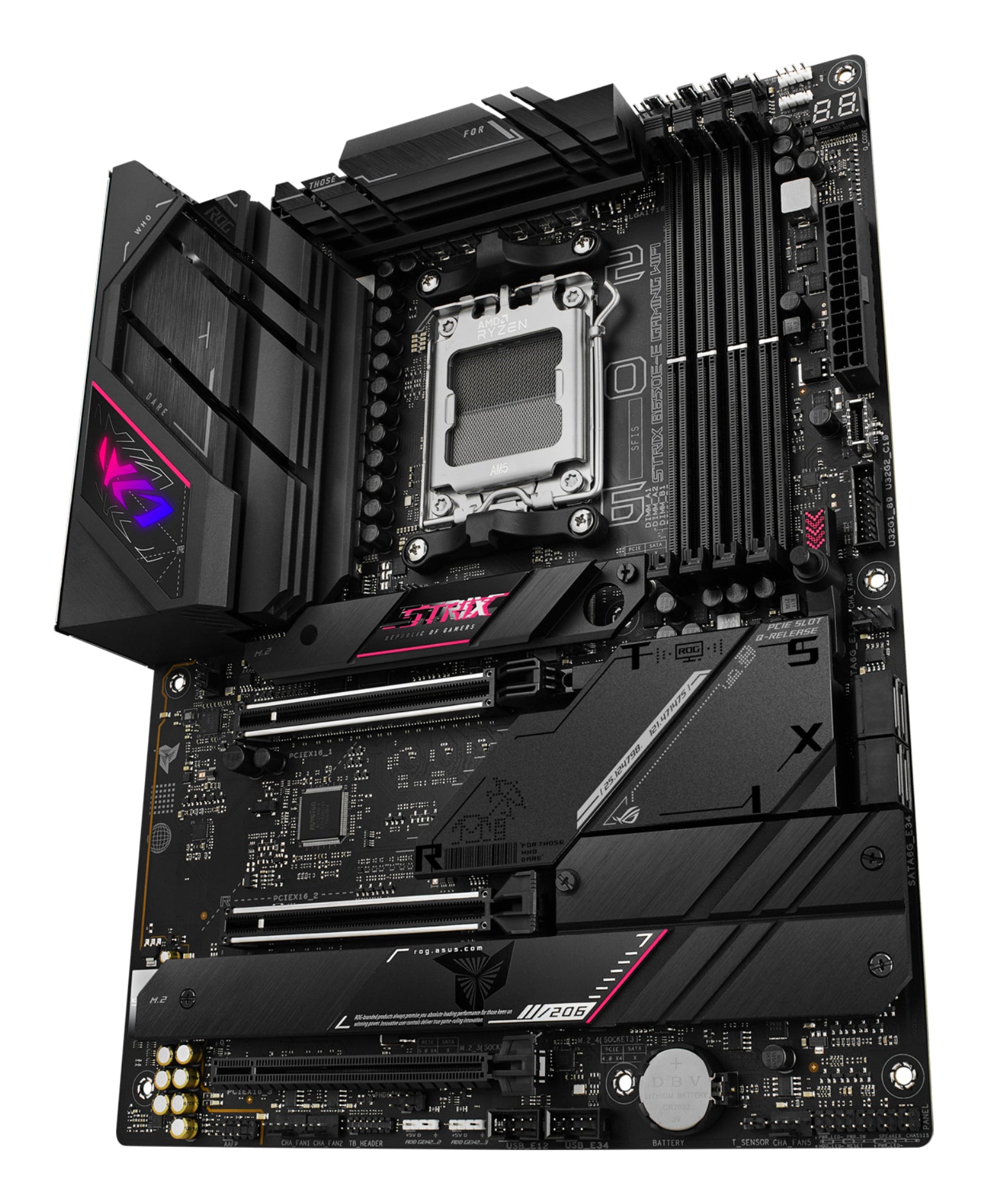

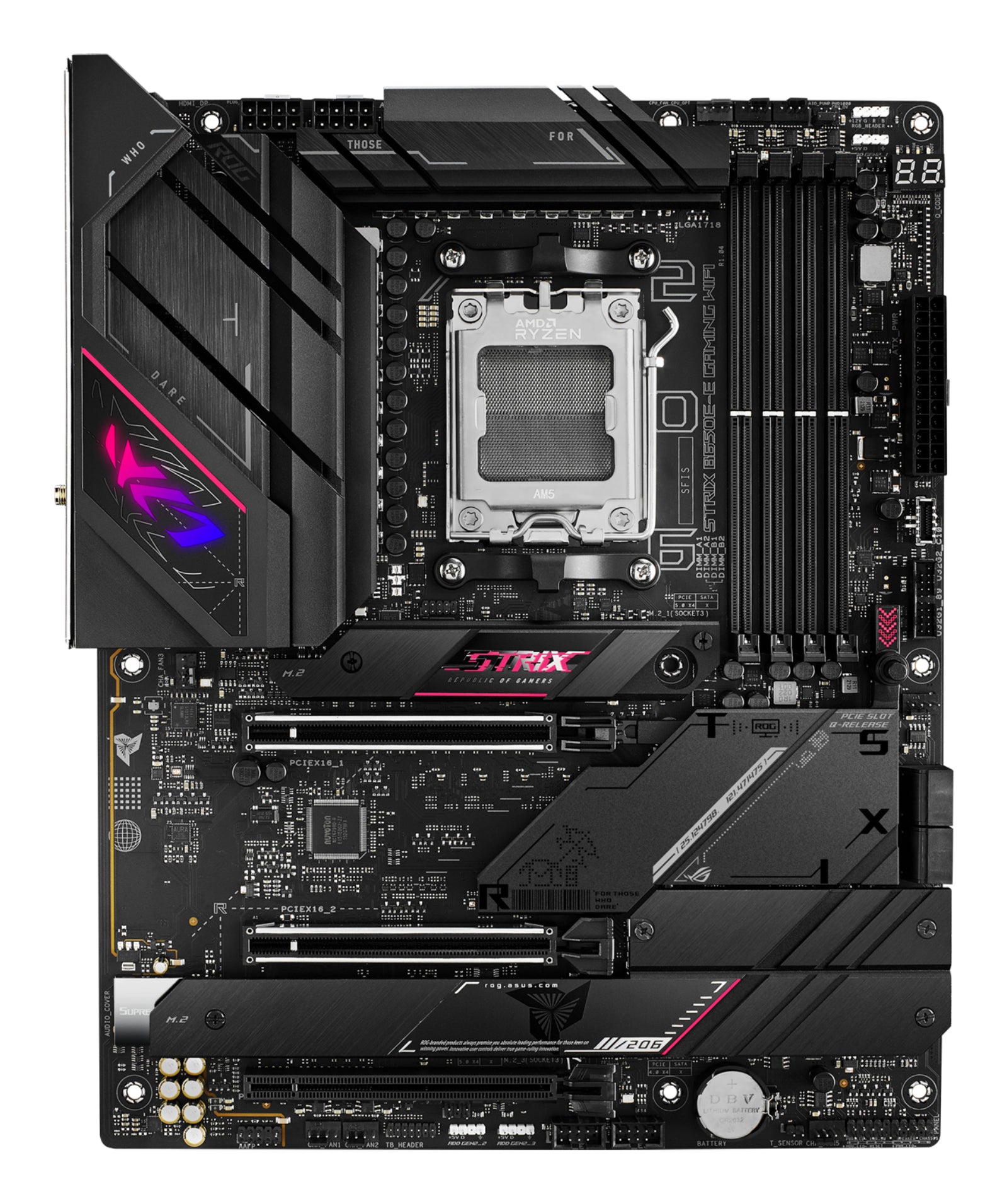

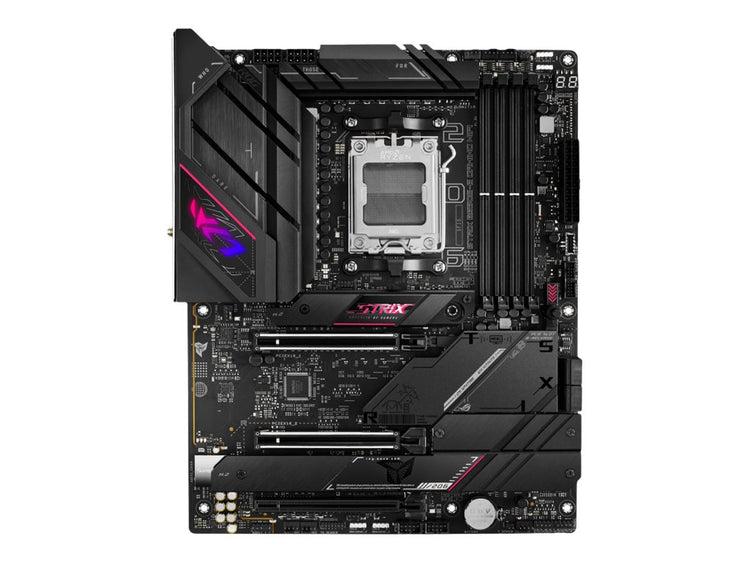

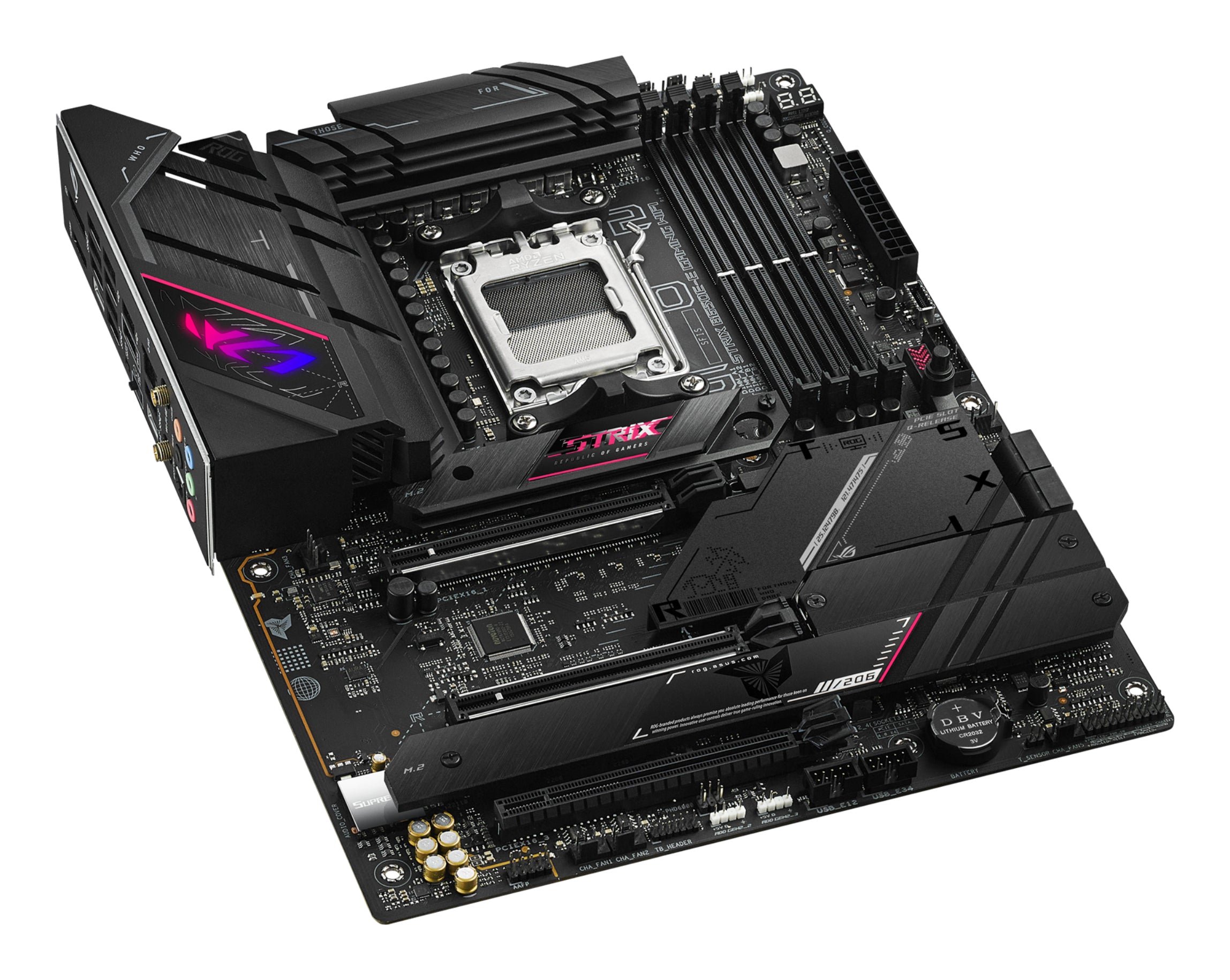

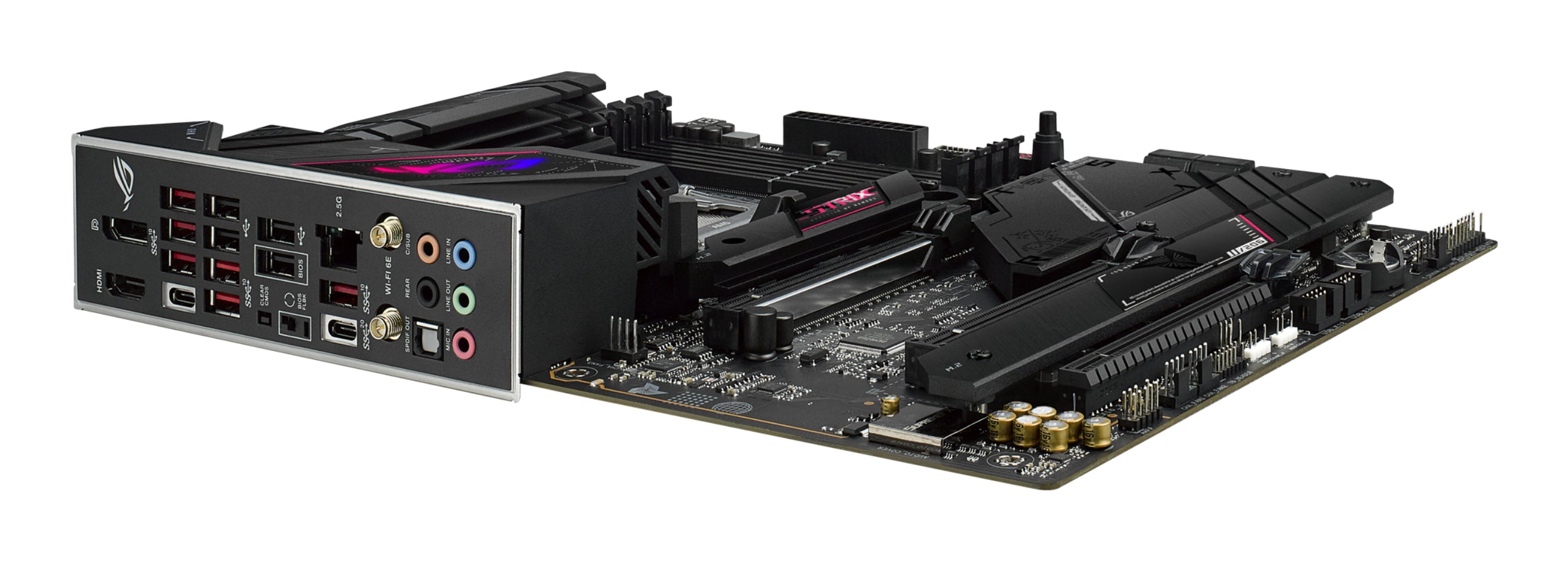

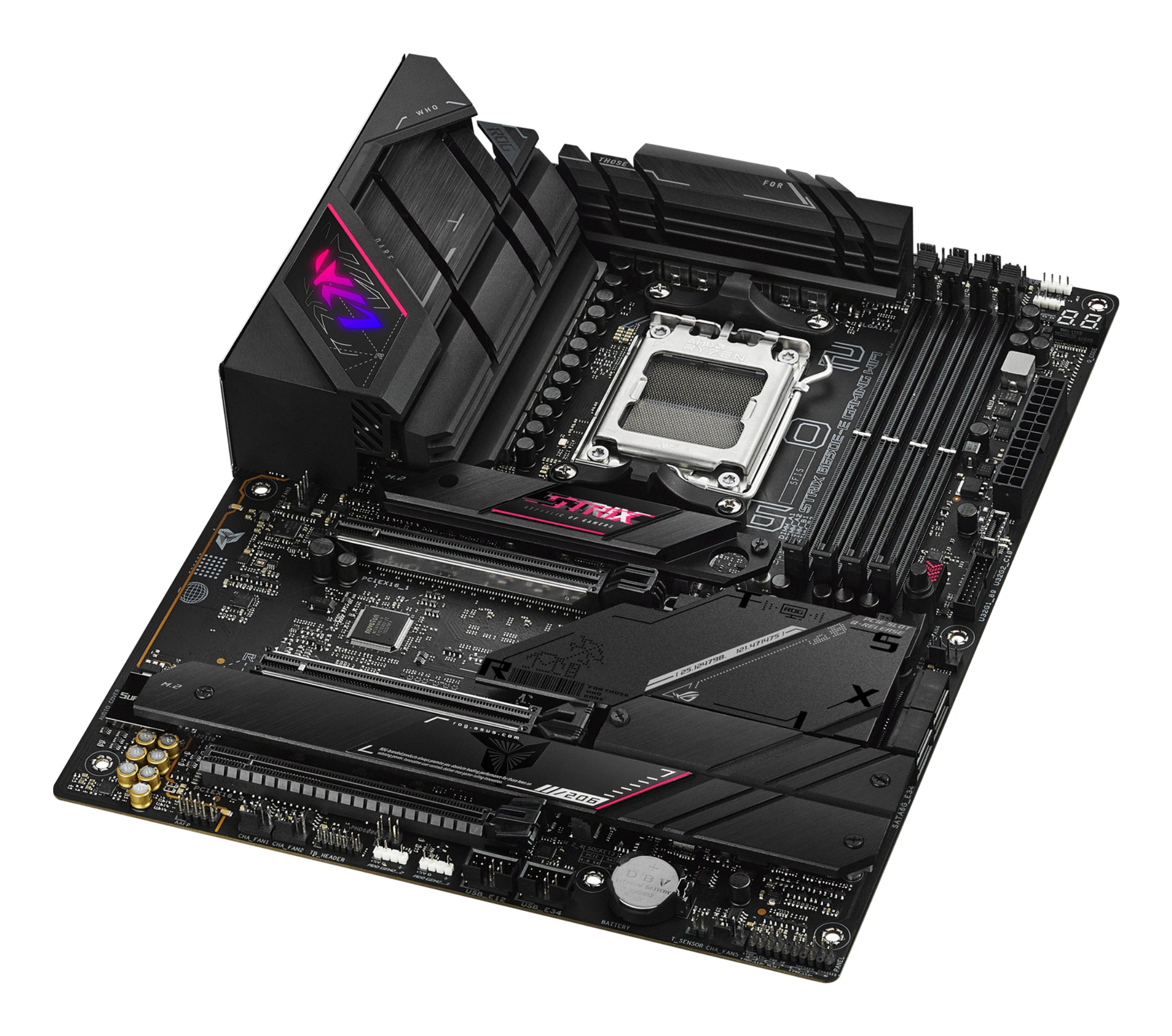

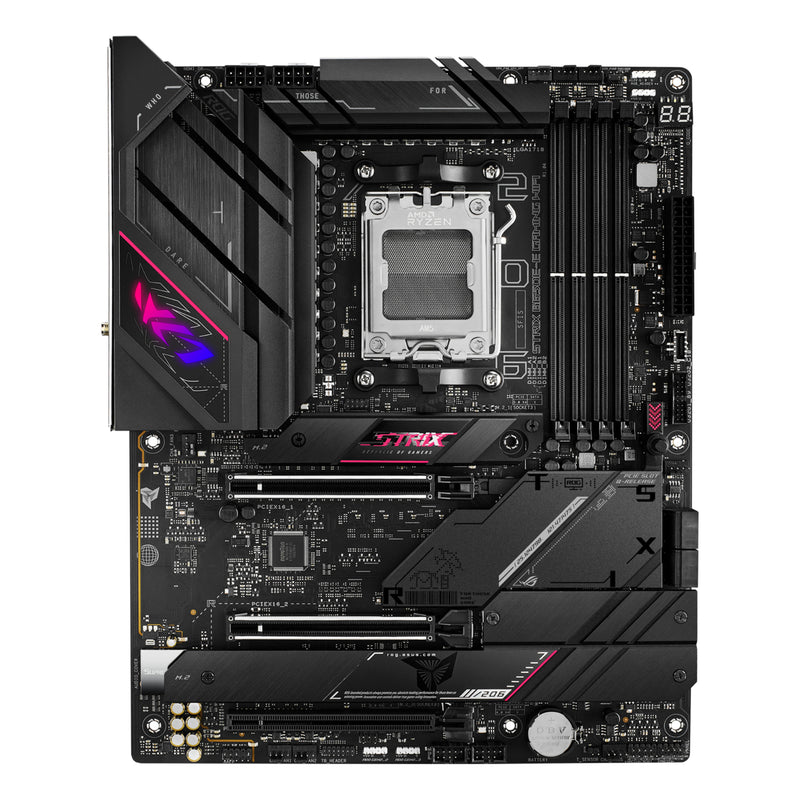

The Asus motherboard is designed for users looking to build or upgrade their PCs with advanced Ryzen processors. It offers versatile memory and storage options, making it suitable for gamers, content creators, and everyday users alike.

  • Supports up to 128 GB of DDR5 memory, allowing for high-performance multitasking and faster data processing.
  • Features four DIMM slots for flexible memory configuration and dual-channel performance.
  • Provides multiple storage options with support for up to eight drives, including 4 x M.2 and SATA-600 interfaces for efficient data management.
  • Includes RAID support for enhanced data redundancy and performance with options for RAID levels 0, 1, and 10.
  • Equipped with various USB connectors (2 x USB 2.0, 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2), facilitating easy connection to peripherals.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA-600 (RAID), 4 x M.2
Memory (1)
  • Supported memory types: 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Processor (2)
  • Processor family: Ryzen
  • Processor socket: 1 x Socket AM5
Technical details (2)
  • Net weight: 0.78 kg
  • Warranty: 36 month(s)
Additional specifications (68)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
  • Supported memory clock speed (max): 6400 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 8
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 5
  • EPS power connector (8-pin): Yes
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

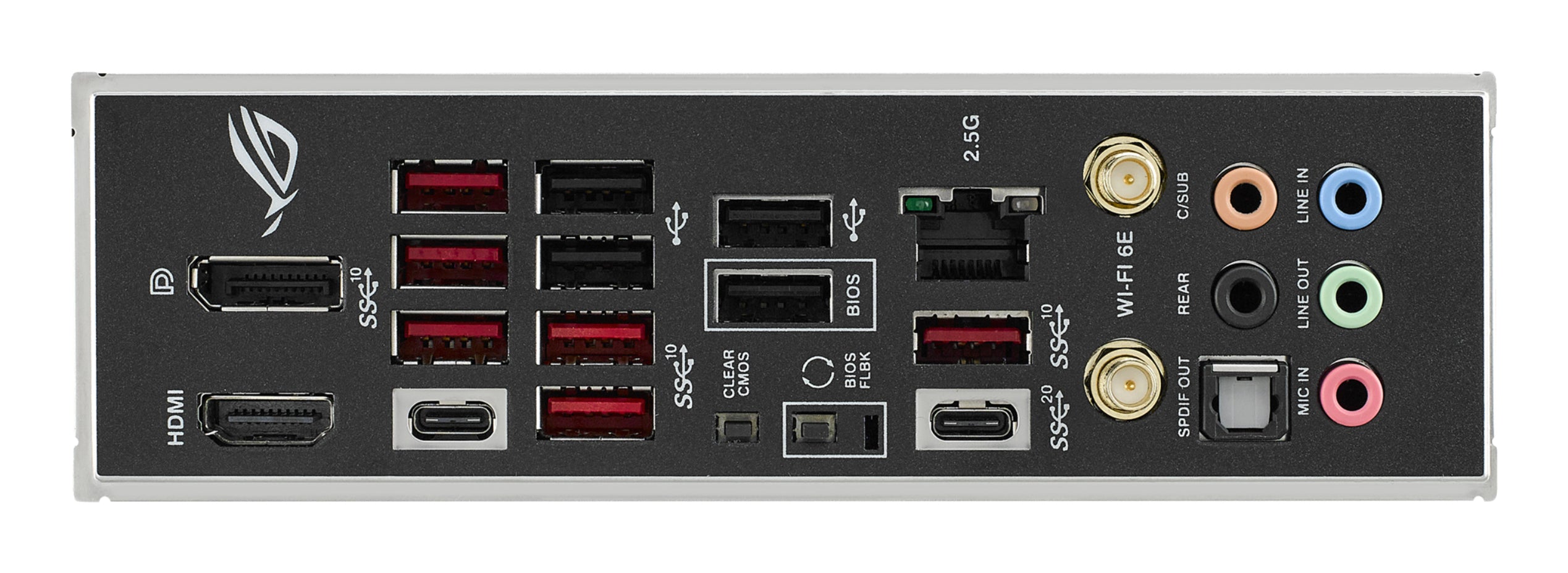

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • S/PDIF out port: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet

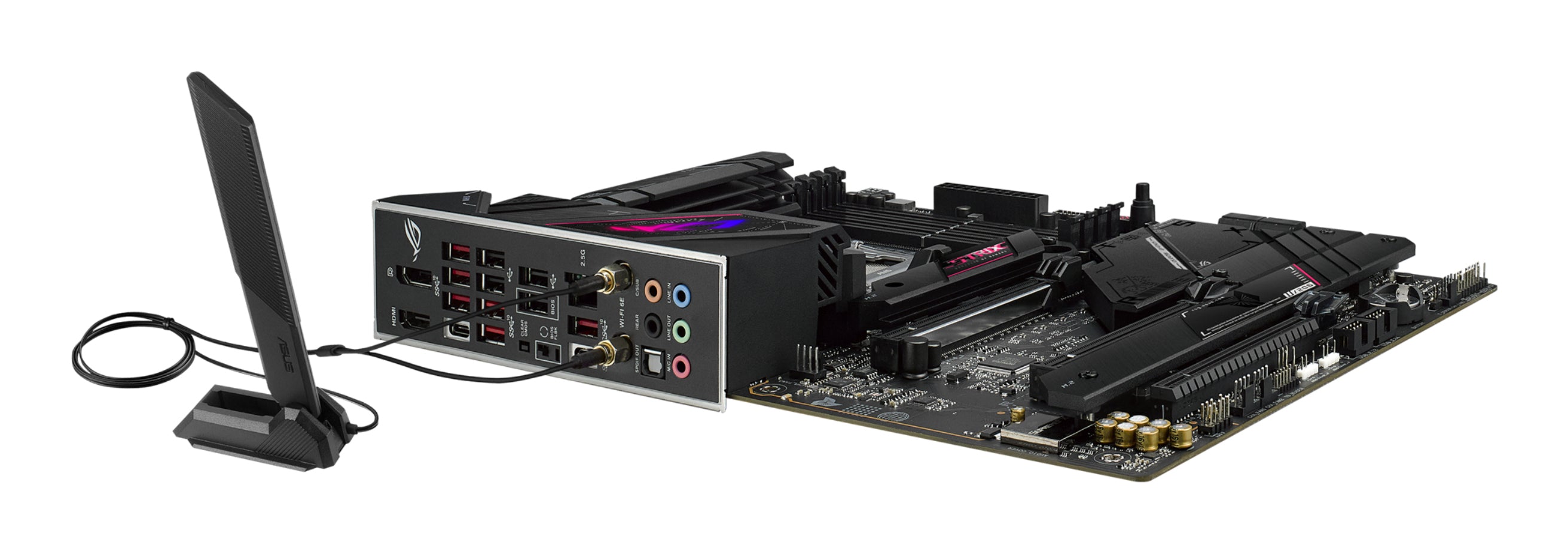

  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2
  • Motherboard chipset: AMD B650
  • Audio chip: Realtek ALC4080
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11 x64
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 2
  • Number of M.2 (M) slots: 4
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Clear CMOS button: Yes
  • Width: 305 mm
  • Depth: 244 mm
  • Cables included: SATA
  • User guide: Yes
  • Back-to-BIOS button: Yes
Description

The Asus motherboard is designed for users looking to build or upgrade their PCs with advanced Ryzen processors. It offers versatile memory and storage options, making it suitable for gamers, content creators, and everyday users alike.

  • Supports up to 128 GB of DDR5 memory, allowing for high-performance multitasking and faster data processing.
  • Features four DIMM slots for flexible memory configuration and dual-channel performance.
  • Provides multiple storage options with support for up to eight drives, including 4 x M.2 and SATA-600 interfaces for efficient data management.
  • Includes RAID support for enhanced data redundancy and performance with options for RAID levels 0, 1, and 10.
  • Equipped with various USB connectors (2 x USB 2.0, 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2), facilitating easy connection to peripherals.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA-600 (RAID), 4 x M.2
Memory (1)
  • Supported memory types: 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Processor (2)
  • Processor family: Ryzen
  • Processor socket: 1 x Socket AM5
Technical details (2)
  • Net weight: 0.78 kg
  • Warranty: 36 month(s)
Additional specifications (68)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
  • Supported memory clock speed (max): 6400 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 8
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 5
  • EPS power connector (8-pin): Yes
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • S/PDIF out port: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2
  • Motherboard chipset: AMD B650
  • Audio chip: Realtek ALC4080
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11 x64
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 2
  • Number of M.2 (M) slots: 4
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Clear CMOS button: Yes
  • Width: 305 mm
  • Depth: 244 mm
  • Cables included: SATA
  • User guide: Yes
  • Back-to-BIOS button: Yes

Asus, Processor family Ryzen, Processor socket 1 x Socket AM5, Number of SATA connectors 4

€329,83
€329,83
Tax included.
