About

Description

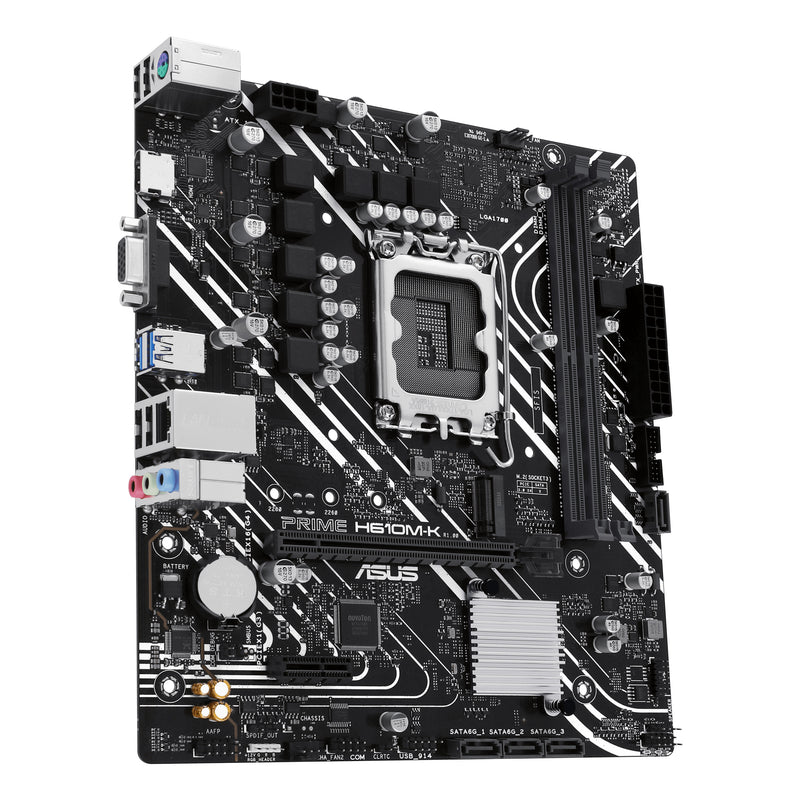

The Asus motherboard features a robust design suitable for Intel processors, making it ideal for users looking to build or upgrade a reliable PC. It supports advanced memory types and multiple storage options, catering to various computing needs.

Supports Intel processors, including Core i3 to i9, providing versatility for performance needs.
Includes four SATA connectors and M.2 support for flexible storage solutions, accommodating both HDDs and SSDs.
Dual-channel DDR5 DIMM slots allow for increased memory speeds and a maximum capacity of 96 GB.
Equipped with multiple USB connectors for added connectivity options, including USB 3.2.
Features two chassis fan connectors to enhance cooling efficiency within your system.

Specifications (1)

Warranty: 36 month(s)

Internal I/O (2)

Number of SATA connectors: 4
Supported hard disk drive interfaces: SATA, M.2

Memory (1)

Supported memory types: DDR5 DIMM

Processor (2)

Processor family: Intel
Processor socket: LGA1700

Technical details (1)

Net weight: 0.78 kg

Additional specifications (58)

Processor manufacturer: Intel
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5000,5200,5400,5600 MHz
Maximum internal memory: 96 GB
Unbuffered memory: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 5
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB connector type: USB Type-A
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Top Wi-Fi standard: Not available
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes
Width: 234 mm
Depth: 203 mm
Height: 36.5 mm
Cables included: SATA
Weight: 470 g
